Page 58 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
613. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
14. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20111
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.3. If the coolant is at or below the
minimum level mark, remove the
coolant reservoir cover by remov-
ing the bolts, remove the reservoir
cap, and then add coolant to the
maximum level mark.
1. Maximum level mark
2. Minimum level mark
1. Coolant reservoir cover
2. Bolt
5SLE1.book Page 12 Friday, August 1, 2003 4:09 PM
Page 62 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EAU21161
Checking the air filter element The air filter element should be
checked at the intervals specified in the
periodic maintenance and lubrication
chart. Check the air filter element more
frequently if you are riding in unusually
wet or dusty areas.
1. Remove the rider seat. (See page
3-17.)
2. Remove the fuel tank bolts and
slightly lift the fuel tank.
3. Disconnect the fuel tank breather
hose and fuel tank overflow hose
from the fuel tank.
NOTE:Before disconnecting the fuel tank
breather hose and fuel tank overflow
hose, mark them to ensure that they willbe reinstalled in their correct positions.
4. Tilt the front of the fuel tank back to
position the tank away from the air
filter case, and then support the
tank as shown.
WARNING
EWA10410
Make sure that the fuel tank is
well supported.
Do not tilt or pull the fuel tank
too much, otherwise the fuel
hoses may come loose, whichcould cause fuel leakage.
5. Remove the air filter case cover by
removing the screws.
6. Pull the air filter element out.
1. Bolt
1. Fuel tank breather hose
2. Fuel tank overflow hose
1. Screw
2. Air filter case cover
5SLE1.book Page 16 Friday, August 1, 2003 4:09 PM
Page 70 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6fore operating the motorcycle. Air in
the hydraulic system will diminish
the braking performance, which may
result in loss of control and an acci-
dent.
EAU22270
Adjusting the rear brake light
switch The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
Turn the adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on earlier,
turn the adjusting nut in direction (a). To
make the brake light come on later, turn
the adjusting nut in direction (b).
EAU22390
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22410
Front brake pads
Each front brake pad is provided with a
wear indicator, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicator while applying the
brake. If a brake pad has worn to the
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1. Brake pad wear indicator
5SLE1.book Page 24 Friday, August 1, 2003 4:09 PM
Page 79 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6 INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealercharge your battery.
EAU23701
Replacing the fuses The main fuse and fuse box 1 are locat-
ed under the rider seat. (See page
3-17.)
Fuse box 2 is located under panel B.
(See page 6-6.)1. Spare main fuse
2. Main fuse
3. Fuse box 1
4. Electronic fuel injection fuse
5. Parking lighting fuse
6. Spare fuse
5SLE1.book Page 33 Friday, August 1, 2003 4:09 PM
Page 80 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box 2
2. Headlight fuse
3. Radiator fan fuse
4. Ignition fuse
5. Signaling system fuse
6. Backup fuse (for odometer, clock and
immobilizer system)
7. Spare fuse
Specified fuses:
Main fuse:
40.0 A
Fuse box 1:
Electronic fuel injection fuse:
15.0 A
Parking lighting fuse:
10.0 A
Fuse box 2:
Headlight fuse:
20.0 A
Signaling system fuse:
15.0 A
Radiator fan fuse:
15.0 A
Ignition fuse:
15.0 A
Backup fuse:
10.0 A
5SLE1.book Page 34 Friday, August 1, 2003 4:09 PM
Page 81 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAU23940
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
1. Remove panel B (if replacing the
left headlight bulb) or panel A (if re-
placing the right headlight bulb).
(See page 6-6.)
2. Remove the headlight bulb cover
by turning it counterclockwise.
3. Disconnect the headlight coupler.4. Unhook the headlight bulb holder,
and then remove the defective
bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
5. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
1. Headlight bulb cover
1. Headlight coupler
1. Headlight bulb holder
5SLE1.book Page 35 Friday, August 1, 2003 4:09 PM
Page 82 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
6. Connect the headlight coupler.
7. Install the headlight bulb cover by
turning it clockwise.
8. Install the panel.
9. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24180
Tail/brake light This model is equipped with an LED
type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24201
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
1. Do not touch the glass part of the bulb.
1. Screw
5SLE1.book Page 36 Friday, August 1, 2003 4:09 PM
Page 83 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
6

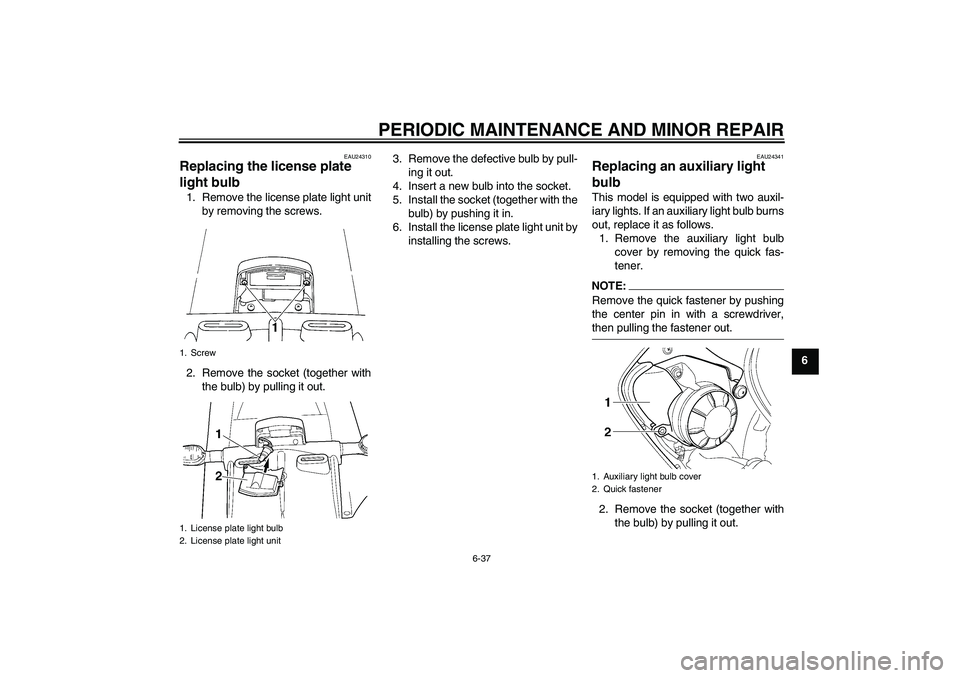

EAU24310
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU24341
Replacing an auxiliary light
bulb This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove the auxiliary light bulb
cover by removing the quick fas-
tener.NOTE:
Remove the quick fastener by pushing
the center pin in with a screwdriver,then pulling the fastener out.
2. Remove the socket (together with
the bulb) by pulling it out.
1. Screw
1. License plate light bulb
2. License plate light unit
1. Auxiliary light bulb cover
2. Quick fastener
5SLE1.book Page 37 Friday, August 1, 2003 4:09 PM
