DESCRIPTION
2-1
2
EAU10410
Left view1. Front fork rebound damping force adjusting screw (page 3-20)
2. Front fork spring preload adjusting bolt (page 3-20)
3. Fuse box 2 (page 6-33)
4. Coolant reservoir (page 6-12)
5. Shock absorber assembly spring preload adjusting ring (page 3-22)
6. Shock absorber assembly compression damping force adjusting screw
(page 3-22)
7. Owner’s tool kit (page 6-1)
8. Shock absorber assembly rebound damping force adjusting screw
(page 3-22)
9. Shift pedal (page 3-14)10.Engine oil drain bolt (page 6-9)
11.Engine oil filter cartridge (page 6-9)
12.Front fork compression damping force adjusting screw (page 3-20)5SLE1.book Page 1 Friday, August 1, 2003 4:09 PM
Page 13 of 104
DESCRIPTION
2-2
2
EAU10420
Right view1. Luggage strap holder (page 3-23)
2. Helmet holder (page 3-18)
3. Fuse box 1 (page 6-33)
4. Main fuse (page 6-33)
5. Battery (page 6-32)
6. Throttle stop screw (page 6-18)
7. Air filter element (page 6-16)
8. Front brake fluid reservoir (page 6-25)
9. Radiator cap (page 6-12)
10.Coolant drain bolt (page 6-13)
11.Engine oil filler cap (page 6-9)12.Brake pedal (page 3-15)
13.Dipstick (page 6-9)
14.Rear brake fluid reservoir (page 6-25)
5SLE1.book Page 2 Friday, August 1, 2003 4:09 PM
Page 79 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6 INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealercharge your battery.
EAU23701
Replacing the fuses The main fuse and fuse box 1 are locat-
ed under the rider seat. (See page
3-17.)
Fuse box 2 is located under panel B.
(See page 6-6.)1. Spare main fuse
2. Main fuse
3. Fuse box 1
4. Electronic fuel injection fuse
5. Parking lighting fuse
6. Spare fuse
5SLE1.book Page 33 Friday, August 1, 2003 4:09 PM
Page 80 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6

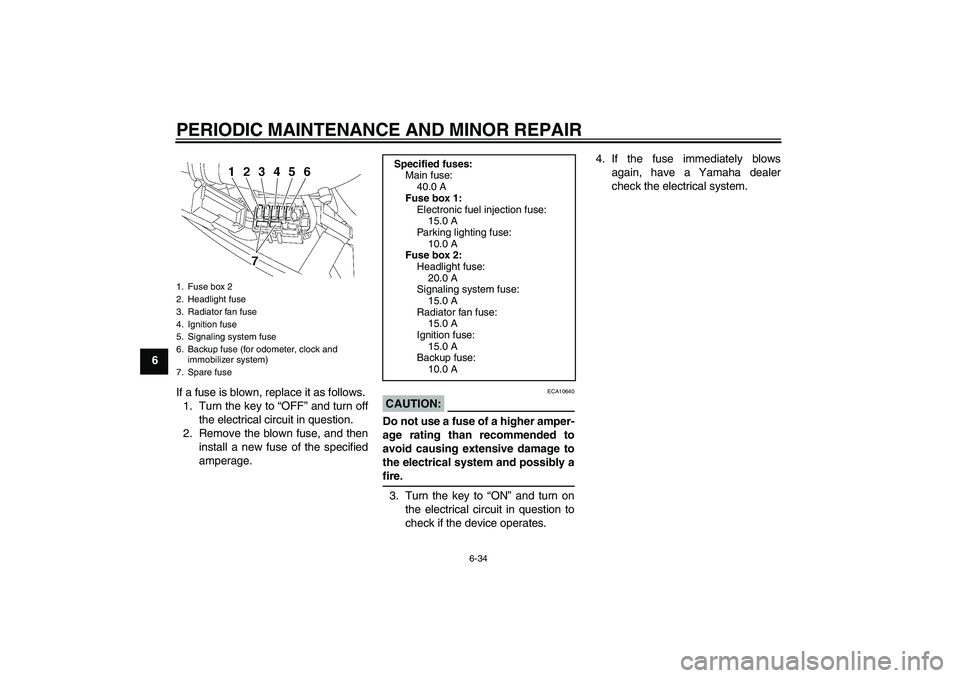

If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box 2
2. Headlight fuse
3. Radiator fan fuse
4. Ignition fuse
5. Signaling system fuse
6. Backup fuse (for odometer, clock and
immobilizer system)
7. Spare fuse
Specified fuses:
Main fuse:
40.0 A
Fuse box 1:
Electronic fuel injection fuse:
15.0 A
Parking lighting fuse:
10.0 A
Fuse box 2:
Headlight fuse:
20.0 A
Signaling system fuse:
15.0 A
Radiator fan fuse:
15.0 A
Ignition fuse:
15.0 A
Backup fuse:
10.0 A
5SLE1.book Page 34 Friday, August 1, 2003 4:09 PM
