2004 YAMAHA YZF-R1S sensor

5-44
CRANKSHAFT POSITION SENSORENG
NOTE:
12 Nm (1.2 m
kg, 8.7 ft
lb)
10 Nm (1.0 m
kg, 7.2 ft
lb)
REMOVING THE CRANKSHAFT POSITION
SENSOR
1. Remove:

rider seat

fuel tank
Refer to “SEATS” and “FUEL TANK” in chap-
ter 3.
2. Remove:

right side cowling

bottom cowlings
Refer to “COWLINGS” in chapter 3.
3. Drain:

engine oil
Refer to “CHANGING THE ENGINE OIL” in
chapter 3.
4. Disconnect:

crankshaft position sensor lead coupler
5. Remove:

crankshaft position sensor

O-ring

pickup rotor cover
1
Loosen each bolt 1 / 4 of a turn a time, in stages
and in a crisscross pattern.
After all of the bolts are fully loosened, remove
them.
INSTALLING THE CRANKSHAFT POSITION
SENSOR
1. Install:

gasket
New

pickup rotor cover
1

O-ring New

crankshaft position sensor
LOCTITE
2. Connect:

crankshaft position sensor lead coupler
3. Fill:

engine oil
Refer to “CHANGING THE ENGINE OIL” in
chapter 3.
4. Install:

right side cowling

bottom cowlings
Refer to “COWLINGS” in chapter 3.
ProCarManuals.com

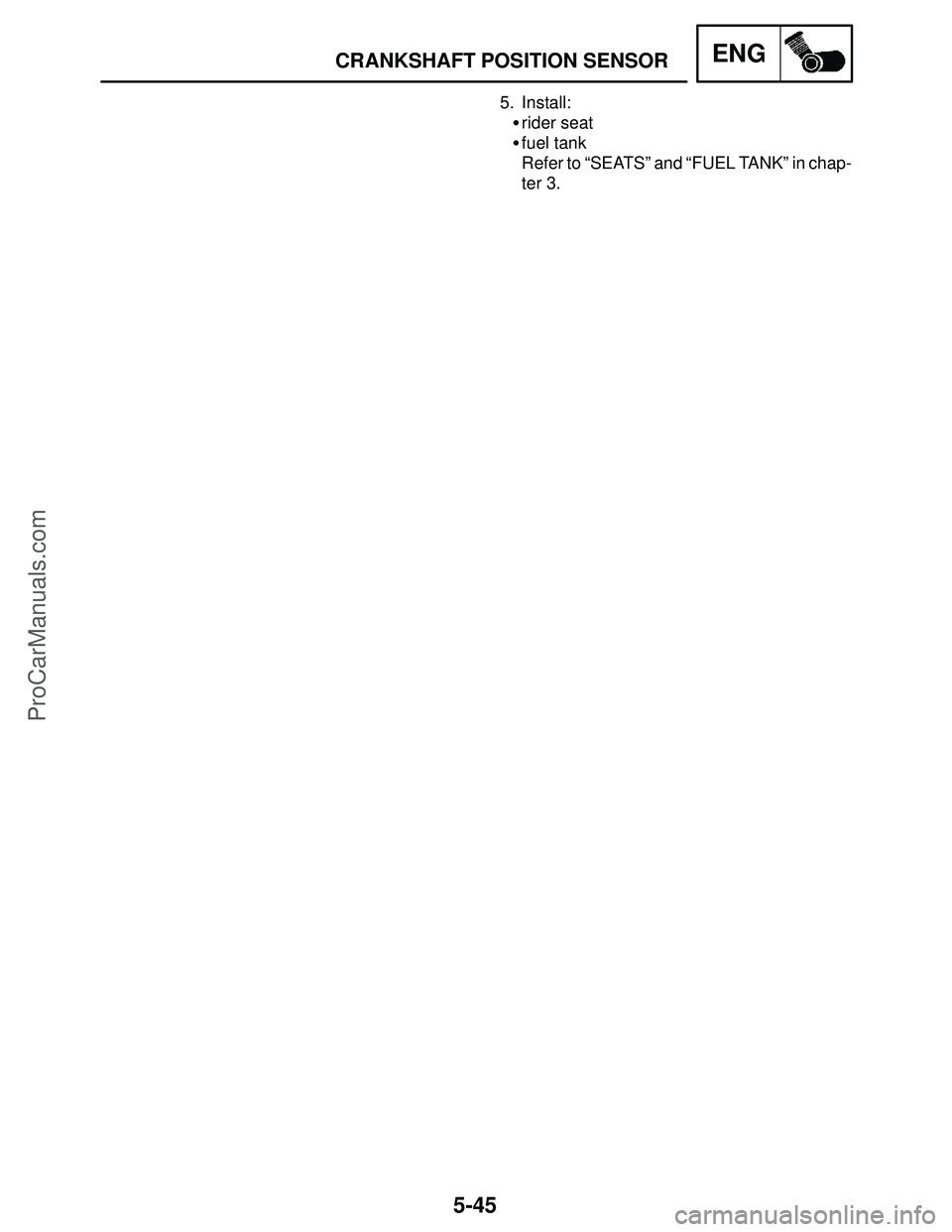

5-45
CRANKSHAFT POSITION SENSORENG
5. Install:

rider seat

fuel tank
Refer to “SEATS” and “FUEL TANK” in chap-
ter 3.
ProCarManuals.com

5-72
Order Job / Part Q’ty Remarks
Removing the crankcase
Air filter case
Throttle body assembly
Engine
Cylinder head
Starter clutch and generator
Shift shaft
Crankshaft position sensor
Clutch
Oil pan and oil pump
Starter motorRemove the parts in the order listed.
Refer to “AIR FILTER CASE” in chapter 3.
Refer to “THROTTLE BODIES” in
chapter 7.
Refer to “ENGINE”.
Refer to “CYLINDER HEAD”.
Refer to “STARTER CLUTCH AND
GENERATOR”.
Refer to “SHIFT SHAFT”.
Refer to “CRANKSHAFT POSITION
SENSOR”.
Refer to “CLUTCH”.
Refer to “OIL PAN AND OIL PUMP”.
Refer to “STARTING SYSTEM” in
chapter 8.
12 Nm (1.2 m
kg, 8.7 ft
lb)12 Nm (1.2 m
kg, 8.7 ft
lb)
24 Nm (2.4 m
kg, 17 ft
lb)
10 Nm (1.0 m
kg, 7.2 ft
lb)
24 Nm (2.4 m
kg, 17 ft
lb)
12 Nm (1.2 m
kg, 8.7 ft
lb)
20 Nm (2.0 m
kg, 14 ft
lb) +60
CRANKCASEENG
CRANKCASE
ProCarManuals.com

7-1
FUEL INJECTION SYSTEMFI
19Atmospheric pressure
sensor
20Fuel injection system
relay
21Engine trouble warning
light
22Lean angle cut-off
switch
23Air cut-off valve
13Coolant temperature
sensor
14Spark plug
15Cylinder identification
sensor
16Pressure regulator
17Battery
18ECU
1Ignition coil
2Air filter case
3Intake temperature
sensor
4Fuel delivery hose
5Fuel tank
6Fuel pump
7Fuel return hose
8Intake air presure sen-
sor
9Throttle position sen-
sor
10Fuel injector
11Catalytic converter
12Crankshaft position
sensor
FUEL INJECTION SYSTEM
FUEL INJECTION SYSTEM
ProCarManuals.com

7-3
FUEL INJECTION SYSTEMFI
1Main switch
4Fuse (main)
5Fuse (backup)
6Battery
7Fuse (fuel injection)
10Starting circuit cut-off relay
11Neutral switch
12Sidestand switch
13Fuel pump
14E.C.U.
15Ignition coil #1
16Ignition coil #2
17Ignition coil #3
18Ignition coil #4
19Spark plug
20Injector #1
21Injector #2
22Injector #3
23Injector #4
25Sub-throttle position sensor
26EXUP servo motor
27Speed sensor
28Coolant temperature sensor
29Intake air temperature sensor
31Crankshaft position sensor
32Throttle position sensor
33Intake air pressure sensor
34Atmospheric pressure sensor
35Cylinder identification sensor
36Lean angle cut-off switch
43Multi function meter
53Engine stop switch
73Fuse (ignition)
ProCarManuals.com

7-4
30: Lean angle cut-off switch
(latch up detected)
41: Lean angle cut-off switch
(open or short circuit)
50: ECU internal malfunction
(memory check error)
FUEL INJECTION SYSTEMFI
EAS00899
ECU’S SELF-DIAGNOSTIC FUNCTION
The ECU is equipped with a self-diagnostic function in order to ensure that the engine control system is
operating normally. If this function detects a malfunction in the system, it immediately operates the en-
gine under substitute characteristics and illuminates the engine trouble warning light to alert the rider
that a malfunction has occurred in the system. Once a malfunction has been detected, a fault code is
stored in the memory of the ECU.

To inform the rider that the fuel injection system is not functioning, the engine trouble warning light
flashes when the start switch is being pushed to start the engine.

If a malfunction is detected in the system by the self-diagnostic function, this mode provides an ap-
propriate substitute characteristic operation, and alerts the rider of the detected malfunction by illumi-
nating an engine trouble warning light.

After the engine has been stopped, the fault code number appears from the lowest value in order of
precedence on the LCD meter. Once a fault code has been displayed, it remains stored in the memory
of the ECU until it is deleted.
EAS00900
Engine trouble warning light indication and FI system operating condition
Warning light
indication
ECU’s operationFI operationVehicle operation
Flashing*Warning provided
when unable to start
engineOperation stoppedUnable
Remains ONMalfunction detectedOperated with
substitute
characteristics
in accordance with the
description of the
malfunctionAble / Unable depend-
ing on the self-diag-
nostic fault code
* The warning light flashes when any one of the conditions listed below is present and the start switch is
pushed.
11: Cylinder identification sensor
12: Crankshaft position sensor
19: Sidestand switch
(open circuit in wire to ECU)
EAS00901
Checking for a defective engine trouble warning light bulb
The engine trouble warning light comes on for 1.4 seconds after the main switch has been turned “ON”
and when the start switch is being pushed. If the warning light does not come on under these condi-
tions, the warning light bulb may be defective.
ProCarManuals.com

7-5
FUEL INJECTION SYSTEMFI
SUBSTITUTE CHARACTERISTICS OPERATION CONTROL (FAIL-SAFE ACTION)
If the ECU detects an abnormal signal from a sensor while the vehicle is being driven, the ECU illumi-
nates the engine trouble warning light and provides the engine with alternate operating instructions
that are appropriate for the type of malfunction.
When an abnormal signal is received from a sensor, the ECU processes the specified values that are
programmed for each sensor in order to provide the engine with alternate operating instructions that
enable the engine to continue to operate or stop operating, depending on the conditions.
The ECU takes fail-safe actions in two ways: one in which the sensor output is set to a prescribed value,
and the other in which the ECU directly operates an actuator. Details on the fail-safe actions are given
in the table below.
FAIL-SAFE ACTIONS TABLE
Fault
Code No.ItemSymptomFail-safe actionAble / unable
to startAble / unable
to drive
11
Cylinder identification
sensorNo normal signals are received from
the cylinder identification sensor.Continues to operate the engine based
on the results of the cylinder
identification that existed up to that
point.
UnableAble
12Crankshaft position
sensorNo normal signals are received from
the crankshaft position sensor.
Stops the engine (by stopping the
injection and ignition).UnableUnable
13
14Intake air pressure
sensor (open or short
circuit) (pipe system)Intake air pressure sensor-open or
short circuit detected.
Faulty intake air pressure sensor
system.
Fixes the intake air pressure to
101.3 kpa.
AbleAble
15
16Throttle position sensor
(open or short circuit)
(stuck)Throttle position sensor-open or short
circuit detected.
Fixes the throttle position sensor to
fully open.AbleAble
17EXUP servo motor
potention
(open or short circuit)EXUP servo motor potention-open or
short circuit detected.
Turn the EXUP servo motor toward
the open side for 3 seconds and then
stop it.AbleAble
18
EXUP servo motor (lock)A lock of the EXUP servo motor is
detected.
Perform the preventive control
against motor locking.
Perform the lock release operation
twice every 100 seconds.
AbleAble
19Sidestand switch (open
circuit in wire to ECU)Open circuit in the input line of ECU
No.15 terminal is detected when the
start switch is pressed.-- (No start)UnableUnable
20Intake air pressure
Atmospheric pressureDefective values are detected due to
the internal malfunction
Fixes the intake air pressure and
atmospheric pressure to 101.3 kpa.AbleAble
21Coolant temperature
sensorCoolant temperature sensor-open or
short circuit detected.
Fixes the coolant temperature to
60C.AbleAble
22Intake temperature
sensorIntake temperature sensor-open or
short circuit detected.
Fixes the intake temperature to 20C.AbleAble
23Atmospheric pressure
sensorAtmospheric pressure sensor-open or
short circuit detected.
Fixes the atmospheric pressure to
101.3 kpa.AbleAble
33
34
35
36
Faulty ignitionOpen circuit detected in the primary
lead of the ignition coil.
Cut the injection of other cylinder in
the same group with the cylinder that
the error is detected.
(Example: when the #1 cylinder is
detective, cut the injection of #1 and
#4 cylinders, when the #2 cylinder is
detective, cut the injection of #2 and
#3 cylinders).
Turn on the power to the air induction
solenoid to always cut-off the air.
Able
(depending
on the num-
ber of faulty
cylinders)Able
(depending
on the num-
ber of faulty
cylinders)
30
41Lean angle cut-off
switch (latch up
detected) (open or short
circuit)Lean angle cut-off switch-open or short
circuit detected.
Turns OFF the fuel injection system
relay of the fuel system.
UnableUnable
42Speed sensor, neutral
switchNo normal signals are received from the
speed sensor; or, an open or short
circuit is detected in the neutral switch.
Fixes the gear to the top gear.AbleAble
43Fuel system voltage
(monitor voltage)The ECU is unable to monitor the
battery voltage (an open circuit in the
line to the ECU).
Fixes the battery voltage to 12 V.AbleAble
44
Error in writing the
amount of CO
adjustment on
EEPROMAn error is detected while reading or
writing on EEPROM (CO adjustment
value).--
AbleAble
ProCarManuals.com

7-7
Engine operation is not normal or the engine trouble warning light is on.
* Engine trouble warning light may not come on even if the engine operation is not normal.
The engine trouble warning light comes on.
Check the fault code number displayed on the me-
ter.
Identify the probable cause of malfunction. (Refer
to the “Diagnostic fault code table”.)
Check and repair the probable case of malfunc-
tion.
Fault code No.
appearFault code No.
disappear
Check and repair.
(Refer to “TROU-
BLESHOOTING DE-
TAILS”.)
Monitor the operation
of the sensors and
actuators in the diag-
nostic mode. (Refer
to “Diagnostic mode
table” in chapter 7)Check and repair.
(Refer to “FAIL-SAFE
ACTIONS TABLE”.)
Perform ECU reinstatement action. (Refer to “Re-
instatement method” in “TROUBLESHOOTING
DETAILS”.)
Turn the main switch to “OFF”, turn the main switch
back to “ON”, and then check if the fault code num-
ber is still displayed.
Erasing the malfunction history:*
The malfunction history is stored even if the main
switch is turned OFF.
The malfunction history must be erased in the
diagnostic mode. (Refer to the “Diagnostic mode
table (Diagnostic code No.62)”)Repairs completed
The engine trouble warning light does not come
on.
Check the operation of following sensors and ac-
tuators in the diagnostic mode (Refer to “Diagnos-
tic mode table” in chapter 7.)
Malfunction of en-
gineDefective sensor
or actuator
Check and repair
the inner parts of
engine. (Refer to
Chapter 5)Check and repair
the corresponding
sensor or actua-
tor.
* Operated when the engine trouble warning light is on.
Fault code
number displayed
Fault code number not displayed
OKNG
OK
OK
Check the engine condition.
OK NG
01: Throttle position
sensor (throttle
angle)
03: Intake air pressure
07: Vehicle speed pulse
09: Fuel system volt-
age (battery bolt)
21: Neutral switch
30: Ignition coil #1
31: Ignition coil #232: Ignition coil #3
33: Ignition coil #4
36: Injector #1
37: Injector #2
38: Injector #3
39: Injector #4
48: Al system solenoid
53: EXUP servo motor
56: Sub-throttle servo
motor
FUEL INJECTION SYSTEMFI
EAS00904
TROUBLESHOOTING CHART
ProCarManuals.com
