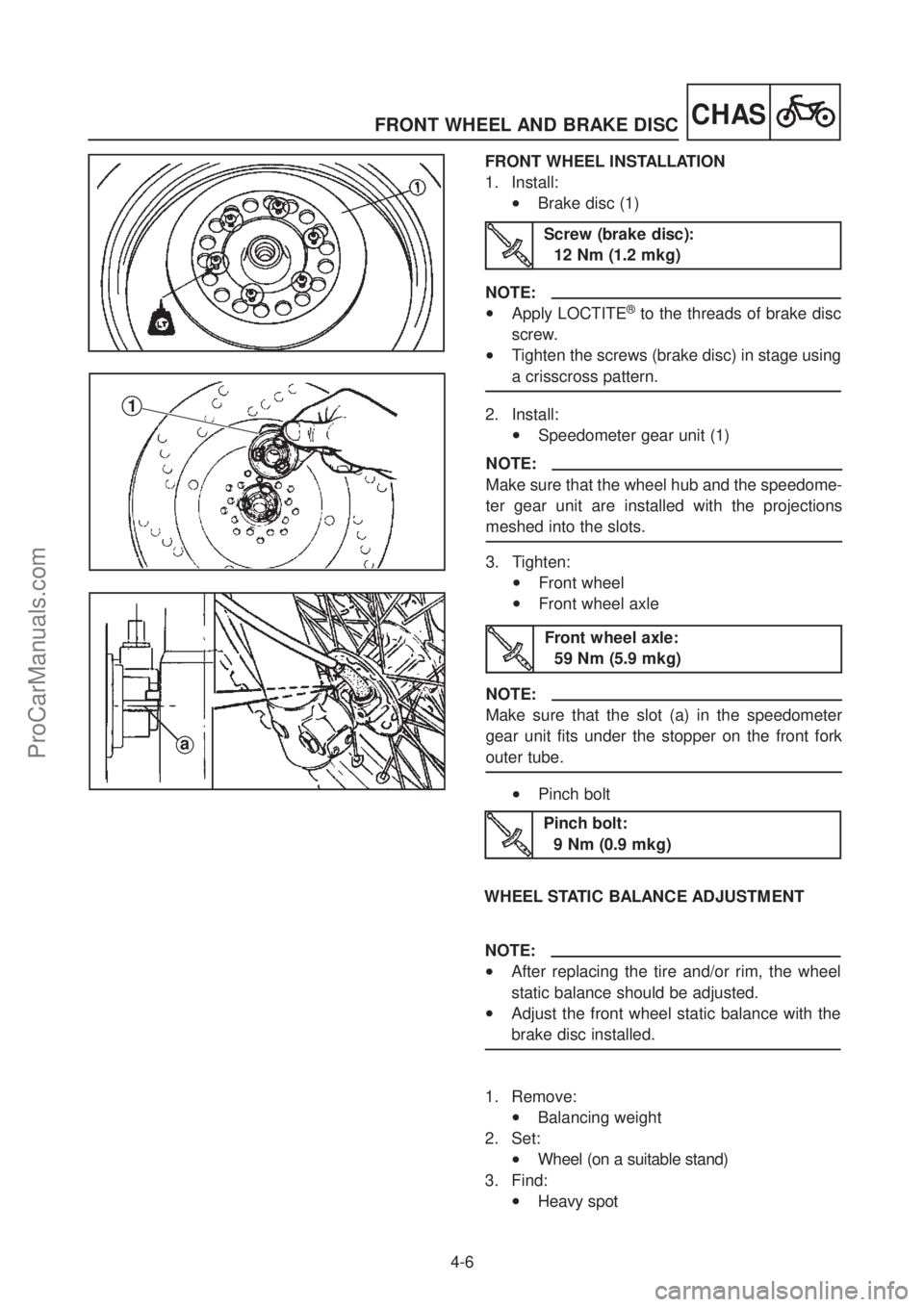

FRONT WHEEL AND BRAKE DISC
4-6
CHAS
FRONT WHEEL INSTALLATION
1. Install:
•Brake disc (1)
2. Install:
•Speedometer gear unit (1) Screw (brake disc):
12 Nm (1.2 mkg)
NOTE:
•Apply LOCTITE®to the threads of brake disc
screw.
•Tighten the screws (brake disc) in stage using
a crisscross pattern.
3. Tighten:
•Front wheel
•Front wheel axle
NOTE:
Make sure that the wheel hub and the speedome-
ter gear unit are installed with the projections
meshed into the slots.
•Pinch bolt Front wheel axle:
59 Nm (5.9 mkg)
NOTE:
Make sure that the slot (a) in the speedometer
gear unit fits under the stopper on the front fork
outer tube.
Pinch bolt: 9 Nm (0.9 mkg)a
WHEEL STATIC BALANCE ADJUSTMENT
1. Remove:
•Balancing weight
2. Set:
•Wheel (on a suitable stand)
3. Find:
•Heavy spot
NOTE:
•After replacing the tire and/or rim, the wheel
static balance should be adjusted.
•Adjust the front wheel static balance with the
brake disc installed.
1
