2004 TOYOTA SIENNA CD player

04 SIENNA_U (L/O 0408)
255
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Cassette tape player
Push the “
” or “” side of the “DISC/
CH/PROG” button to select the other side
of a cassette tape. The screen indicates
which side is currently selected. (“
” indi-
cates the top side, “
” indicates the bot-
tom side.)
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding. 2. “TUNE/TRACK” button
Radio
Push the “
” or “” side of the “TUNE/
TRACK” button to tune or seek.
Tuning:
Quickly push and release the “
” or “”
side of the “TUNE/TRACK” button. Each
time you push the button, the radio will
step up or down to another frequency. If
you push and hold the button, and the
radio will go into the seek mode.
Seeking:
Push and hold the “
” or “” side of the
“TUNE/TRACK” button. The radio will seek
up or down for a station of the nearest
frequency and will stop on reception. Each
time you push the button, the stations will
be searched one after another.
Cassette tape player
To fast forward a cassette tape, push and
hol d the “
” side of the “TUNE/TRACK”
button until “FF” appears on the screen.
Push and hold the “
” side of the “TUNE/
TRACK” button until “REW” appears on
the screen to rewind a tape.
Use this button to skip up or down to
locate a song or recording. You can select up to nine recordings (in-
cluding current one).
Push the “
” or “” side of the “TUNE/
TRACK” button. “FF 1” or “REW 1” will
appear on the screen.
Next, push either side of the track button
until the number on the screen reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off.
For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.

04 SIENNA_U (L/O 0408)
256
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Compact disc player
Use this button to skip up or down to a
different track.
Push the “
” or “” side of the “TUNE/
TRACK” button until the number of the
track you want to listen to appears on the
screen. If you want to return to the begin-
ning of the current track, quickly push the
“
” side of the “TUNE/TRACK” button one
time.
Push and hold the “
” or “” side of the
“TUNE/TRACK” button to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing. REPLACING CONTROLLER BATTERY
For replacement, use 3 AAA batteries.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved battery or components.
NOTICE

When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type of battery recom-
mended by a Toyota dealer.
 Dispose of used batteries according
to local regulations.
Replace the battery according to the fol-
lowing procedure:
1. Remove the cover of the controller as shown.

04 SIENNA_U (L/O 0408)
257
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
2. Remove the discharged batteries andput in the new batteries as shown.
Install the cover.
NOTICE
Be sure that the positive side and
negative side of the controller bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause rust.
 Do not touch or move any compo-
nents inside of the controller, or it
may interfere with proper operation.
 Be careful not to bend the electrode
of the controller battery insertion.
 Close the battery case securely.
After replacing the battery, check that the
controller operates properly. If the control-
ler still does not operate properly, contact
your Toyota dealer. The DVD player can play audio CDs,
DVD video discs, CD texts, dtsCDs
and video CDs.
For appropriate discs for this player, see
“Car audio/video system operating hints”
on page 292 in this Section.
The DVD player works when the ignition
key is in the “ACC” or “ON” position.
To turn on the DVD player, a disc must
be loaded in the player.
To turn off the player, eject the disc.
Error messages
If the player malfunctions, your audio sys-
tem will display one of the three following
error messages.
If “DISC CHECK” appears on the
screen:
It indicates that the disc is dirty,
damaged or it was inserted upside down.
Clean the disc or insert it correctly.
If “REGION CODE ERROR” appears on
the screen: It indicates that the DVD re-
gion code is not set properly.
If “DVD ERROR” appears on the
screen: There is a problem inside the
player. Eject the disc. Set the disc again.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
—DVD player

04 SIENNA_U (L/O 0408)
258
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
INSERTING THE DISC
Insert the compact disc into the slot
with the label side up.
“DISC” indicator light turns on while the
disc is loaded.
If the label faces down, the disc cannot
be played. In this case, “DISC CHECK”
and disc number appear on the screen.If a disc which is not playable is inserted,
“DISC CHECK” will also appear on the
screen. For appropriate discs for this play-
er, see “Car audio/video system operating
hints” on page 292 in this Section.
The player will play the track or chapter,
and it will play from the beginning of the
track or chapter again after it reaches the
end.
NOTICE
Never try to disassemble or oil any
part of the DVD player. Do not insert
anything other than a disc into the
slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diameter
−smaller than standard
discs.
NOTICE
Do not use an adaptor for compact
disc singles—it could cause tracking
errors or interfere with the ejection of
compact discs.

04 SIENNA_U (L/O 0408)
260
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
The “DVD Hint!” screen appears when
the DVD mode is first selected after
you turn the ignition key to the “ACC”
or “ON” position.
Push the “OK” switch when you read the
message.The DVD player can be operated with the
controller buttons directly.1. “DVD” button
2. “RETURN” button
3. “MENU” button
4. “AUDIO” button
5. “SUB TITLE” button
6. “ANGLE” button
7. “SET UP” button
8. “SEARCH” button
9. “TOP MENU” button
10. “
”, “ ”, “  ” and “ ” buttons
Controller
DVD player unit
—DVD player operation
switches

04 SIENNA_U (L/O 0408)
261
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
The player can also be operated with the
switches on the screen.
To operate the switches on the screen,
select the switch by the joy stick and
push the “ENT” button. You cannot select
the switches on the screen by touching
them directly.
When the switch is selected by the joy
stick, the outline of the switch changes to
blue. Push the “ENT” button, and the
switch will be highlighted in green.
Controller
DVD player unit
TURNING THE OPERATION SWITCHES
ON AND OFF

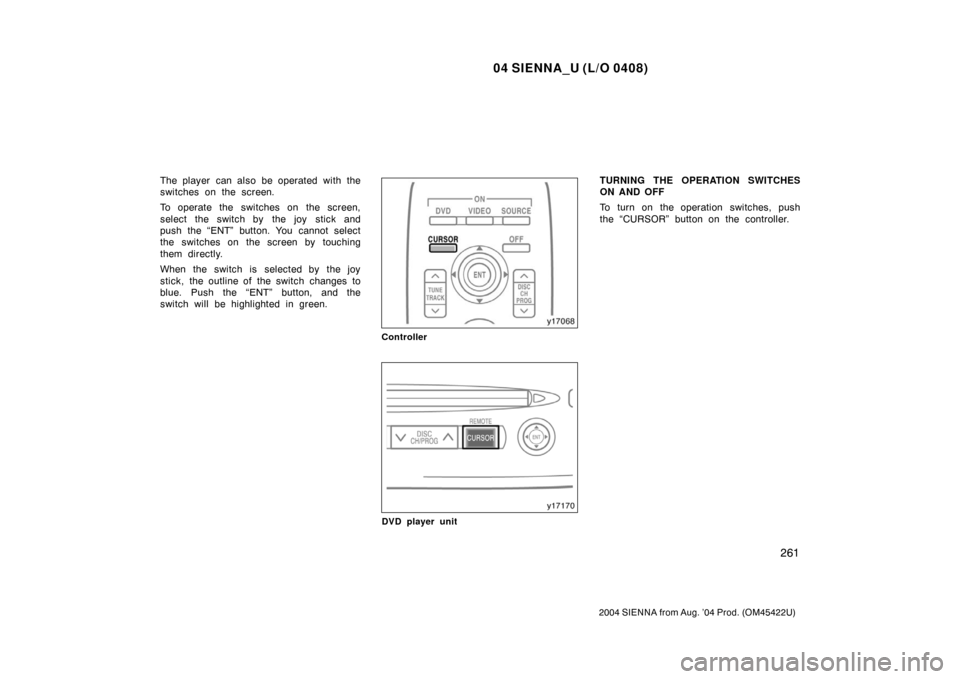

To turn on the operation switches, push
the “CURSOR” button on the controller.

04 SIENNA_U (L/O 0408)
264
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
DVD player unit
To turn off the switches on the screen,
push the “CURSOR” button on the control-
ler once again or push the “Hide Keys” on
the screen.NOTE:
The playback condition of some
DVD video discs may be determined by
the DVD video software producer. This
DVD player plays discs as the software
producer intended. Therefore, some
functions may not work properly. Be
sure to read the instruction manual for
the DVD video disc separately provided.
For detailed information about DVD vid-
eo discs, see “—DVD video disc infor-
mation” on page 287 in this Section.
Precautions for DVD video discs
When recording on a DVD video, DVD
audio, video CD or audio tracks may not
record in some cases while the menu is
displayed. As audio will not play in this
case, verify that the video tracks are play-
ing and then activate playback.
The title/chapter number and playback
time display may not appear while playing
back certain DVD video discs.
—DVD player operation
(DVD video/DVD audio)

04 SIENNA_U (L/O 0408)
268
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
SKIPPING TO THE PREDETERMINED
SCREEN
To skip to the predetermined screen, push
the “Return” switch. The DVD player starts
playing from the beginning of the predeter-
mined screen. You can also display the
screen by pushing the “RETURN” button
on the controller.
For further details of the predetermined
screen, see the separate manual for the
DVD disc.SELECTING THE TITLE/GROUP

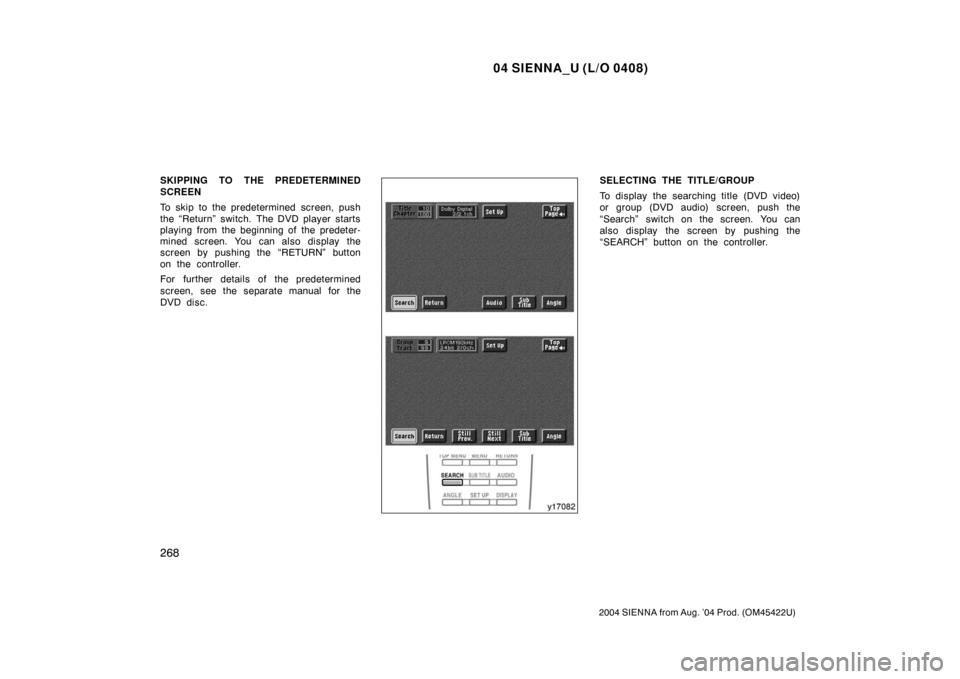

To display the searching title (DVD video)
or group (DVD audio) screen, push the
“Search” switch on the screen. You can
also display the screen by pushing the
“SEARCH” button on the controller.
