2004 TOYOTA SIENNA coolant

04 SIENNA_U (L/O 0408)
402
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Because stopping distance may be in-
creased, vehicle−to −vehicle distance
should be increased when towing a
trailer. For each 16 km/h (10 mph) of
speed, allow at least one vehicle and
trailer length between you and the ve-
hicle ahead. Avoid sudden braking as
you may skid, resulting in jackknifing
and loss of control. This is especially
true on wet or slippery surfaces.
Avoid jerky starts or sudden accelera-
tion.
Avoid jerky steering and sharp turns.
The trailer could hit your vehicle in a
tight turn. Slow down before making a
turn to avoid the necessity of sudden
braking.
Remember that when making a turn,
the trailer wheels will be closer than
the vehicle wheels to the inside of the
turn. Therefore, compensate for this by
making a larger than normal turning
radius with your vehicle.
Crosswinds and rough roads will ad-
versely affect handling of your vehicle
and trailer, causing sway. Pay attention
to the rear from time to time to pre-
pare yourself for being passed by large
trucks or buses, which may cause your
vehicle and trailer to sway. If swaying
happens, firmly grip the steering wheel
and reduce speed immediately but
gradually. Never increase speed. Steer
straight ahead. If you make no extreme
correction with the steering or brakes,
the vehicle and trailer will stabilize.
Be careful when passing other ve-
hicles. Passing requires considerable
distance. After passing a vehicle, do
not forget the length of your trailer and
be sure you have plenty of room be-
fore changing lanes.
In order to maintain engine braking effi-
ciency, do not place the transmission
in “D”.
Because of the added load of the trail-
er, your vehicle’s engine may overheat
on hot days (at temperatures over
30 C [85 F]) when going up a long or
steep grade with a trailer. If the engine
coolant temperature gauge indicates
overheating, immediately turn off the air
conditioning (if in use), pull off the road
and stop in a safe spot. Refer to “If
your vehicle overheats” on page 410 in
Section 4.
Always place wheel blocks under both
the vehicle and trailer wheels when
parking. Apply the parking brake firmly.
Put the transmission in “P”. Avoid park-
ing on a slope with a trailer, but if it
cannot be avoided, do so only after
performing the following:
1. Apply the brakes and hold.
2. Have someone place wheel blocks un- der both the vehicle and trailer wheels.
3. When the wheel blocks are in place, release your brakes slowly until the
blocks absorb the load.
4. Apply the parking brake firmly.
5. Shift into “P” and turn off the engine.

04 SIENNA_U (L/O 0408)
410
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If your engine coolant temperature
gauge indicates overheating, if you ex-
perience a loss of power, or if you hear
a loud knocking or pinging noise, the
engine has probably overheated. You
should follow this procedure...1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the transmission in “P”
and apply the parking brake. Turn off
the air conditioning if it is being used.
2. If coolant or steam is boiling out of the radiator or reservoir, stop the engine.
Wait until the steam subsides before
opening the hood. If there is no coolant
boiling over or steam, leave the engine
running and make sure the electric
cooling fan is operating. If it is not,
turn the ignition off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the engine is running, keep
hands and clothing away from the
moving fan and engine drive belts.
4. If the coolant is leaking, stop the en-gine immediately. Call a Toyota dealer
for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the en-
gine is running. Fill it about half full.
CAUTION
Do not attempt to remove the radiator
cap when the engine and radiator are
hot. Serious injury could result from
scalding hot fluid and steam blown
out under pressure.
6. After the engine coolant temperaturehas cooled to normal, again check the
coolant level in the reservoir. If neces-
sary, bring it up to half full again. Seri-
ous coolant loss indicates a leak in the
system. You s hould have it checked as
soon as possible at your Toyota dealer.
If your vehicle overheats

04 SIENNA_U (L/O 0408)
443
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If you are a skilled do−it−yourself mechan-
ic, the Toyota service manuals are recom-
mended. Please be aware that do −it−your-
self maintenance can affect your warranty
coverage. See “Owner ’s Warranty Informa-
tion Booklet” or “Owner ’s Manual Supple-
ment” for the details. Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only with ade-
quate ventilation if you run the en-
gine.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See page 479 in Section 7
−3 for
additional information. Engine coolant level
Make sure the coolant level is between
the “FULL” and “LOW” lines on the see
−
through reservoir when the engine is cold.
See page 458 in Section 7 −2 for addition-
al information.
Radiator, condenser and hoses
Check that the front of the radiator and
condenser are clean and not blocked with
leaves, dirt, or insects. See page 460 in
Section 7 −2 for additional information.
Battery electrolyte level
Your Toyota has a maintenance free bat-
tery. You do not have to add distilled wa-
ter. For longer life of the battery, however,
see page 476 in Section 7 −3 for additional
information.
Brake fluid level
Make sure the brake fluid level is correct.
See page 462 in Section 7 −2 for addition-
al information.
Engine oil level
Check the level on the dipstick with the
engine turned off and the vehicle parked
on a level spot. See page 456 in Section
7 −2 for additional information.
General maintenance

04 SIENNA_U (L/O 0408)
445
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Tire inflation pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See page 463 in Section 7−2
for additional information.
Tire surface and wheel nuts
Check the tires carefully for cuts,
damage or excessive wear. See page
466 in Section 7− 2 for additional in-
formation. When checking the tires,
make sure no nuts are missing, and
check the nuts for looseness. Tighten
them if necessary.
Tire rotation
Rotate the tires according to the
maintenance schedule. (For sched-
uled maintenance information, please
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-
ment”.) See page 468 in Section 7 −2
for additional information.Be on the alert for changes in perfor-
mance, sounds, and visual tip −offs that
indicate service is needed. Some impor-
tant clues are as follows:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)
Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)
Flat −looking tire; excessive tire squeal
when cornering; uneven tire wear
Vehicle pulls to one side when driving
straight on a level road
Strange noises related to suspension
movement
Loss of brake effectiveness; spongy
feeling brake pedal; pedal almost
touches floor; vehicle pulls to one side
when braking
Engine coolant temperature continually
higher than normal If you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Does your vehicle need
repairing?

04 SIENNA_U (L/O 0408)
448
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

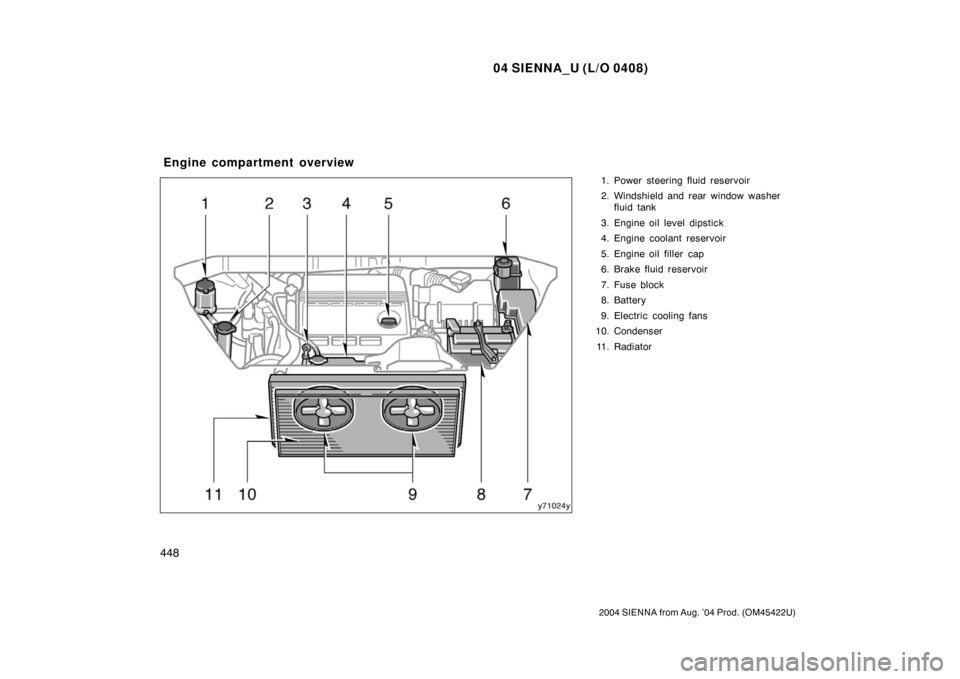

1. Power steering fluid reservoir
2. Windshield and rear window washerfluid tank
3. Engine oil level dipstick
4. Engine coolant reservoir
5. Engine oil filler cap
6. Brake fluid reservoir
7. Fuse block
8. Battery
9. Electric cooling fans
10. Condenser
11. Radiator
Engine compartment overview

04 SIENNA_U (L/O 0408)
450
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do−it−yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and Sections for
do− it−yourself maintenance, see “Parts
and tools” on page 453 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:CAUTION
When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)
Right after driving, the engine
compartment—the engine, radiator,
exhaust manifold and spark plug
boots, etc.—will be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not leave anything that may
burn easily, such as paper or rags,
in the engine compartment.
Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
Doityourself service
precautions

04 SIENNA_U (L/O 0408)
451
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.
NOTICE
Remember that battery and ignition
cables carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.
 Add only demineralized or distilled
water to fill the radiator. And if you
spill some of the coolant, be sure
to wash off with water to prevent it
from damaging the parts or paint.
 Do not allow dirt or anything else
to fall through the spark plug holes.
 Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
Do not reuse iridiumtipped spark
plugs by cleaning or regapping.
 Do not overfill automatic transmis-
sion fluid and power steering fluid,
or the transmission and power
steering could be damaged.
 Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
 Be careful not to scratch the glass
surface with the wiper frame.
 When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Front
Rear (twowheel drive models)
Positioning the jack

04 SIENNA_U (L/O 0408)
453
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Here is a list of parts and tools you will
need to perform do−it−yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
“Toyota Genuine Motor Oil” or equiva-
lent
See page 456 in Section 7 −2 for de-
tails about engine oil selection.
Tools:
Rag or paper towel
Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT
LEVEL
Parts (if level is low):
“Toyota Genuine Long Life Coolant” or
equivalent
See page 458 in Section 7 −2 for de-
tails about coolant type selection.
Demineralized or distilled water
Tools:
Funnel (only for adding coolant) CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid
DEXRON®II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts) CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Genuine Toyota fuse or equivalent with
same amperage rating as original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in
“Replacing light bulbs” on page 480 in
Section 7 −3.)
Tools:
Screwdriver
Wrench
Parts and tools
