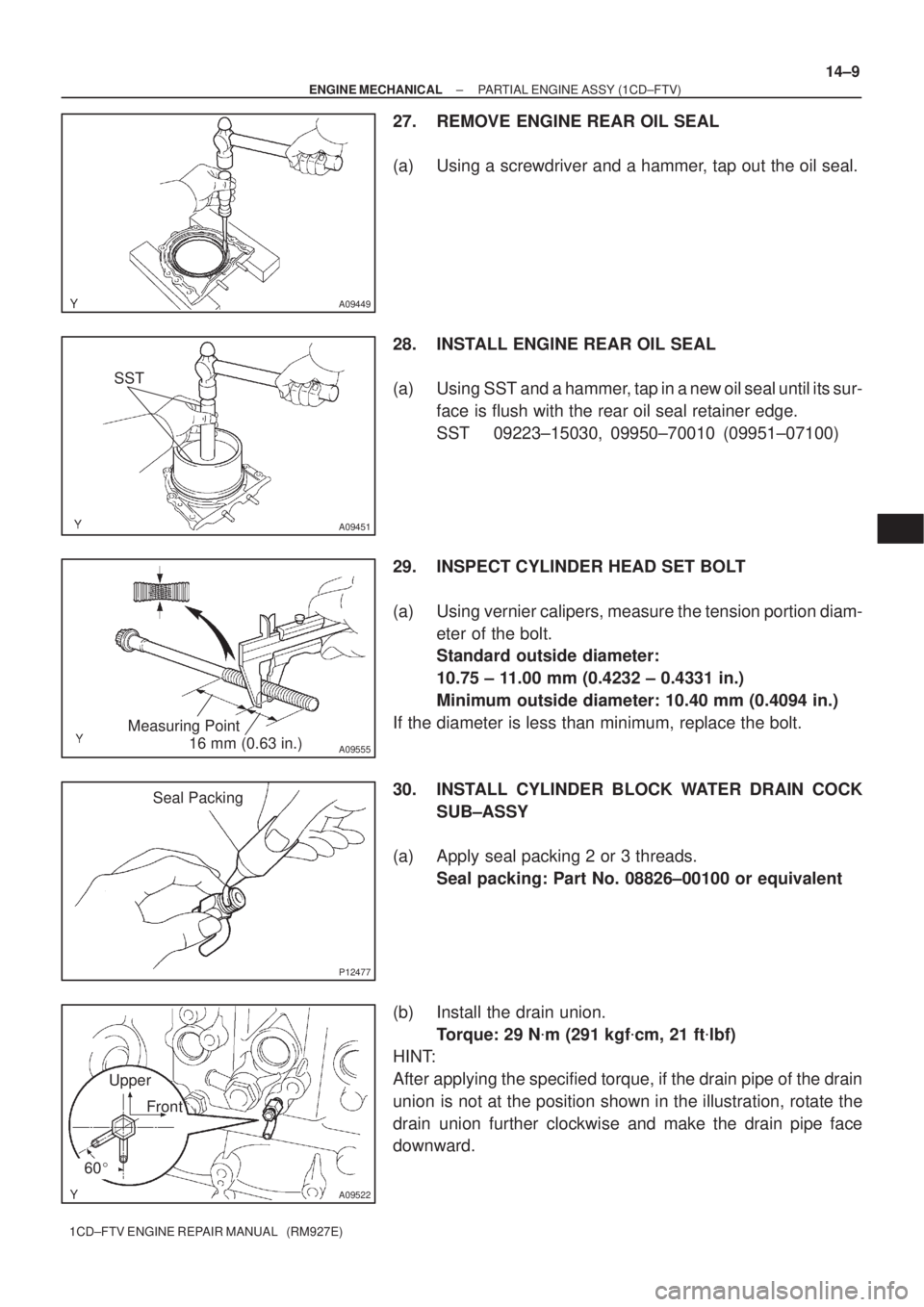

± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
14±9
1CD±FTV ENGINE REPAIR MANUAL (RM927E)
27. REMOVE ENGINE REAR OIL SEAL
(a) Using a screwdriver and a hammer, tap out the oil seal.
28. INSTALL ENGINE REAR OIL SEAL
(a) Using SST and a hammer, tap in a new oil seal until its sur-
face is flush with the rear oil seal retainer edge.
SST 09223±15030, 09950±70010 (09951±07100)
29. INSPECT CYLINDER HEAD SET BOLT
(a) Using vernier calipers, measure the tension portion diam-
eter of the bolt.
Standard outside diameter:
10.75 ± 11.00 mm (0.4232 ± 0.4331 in.)
Minimum outside diameter: 10.40 mm (0.4094 in.)
If the diameter is less than minimum, replace the bolt.
30. INSTALL CYLINDER BLOCK WATER DRAIN COCK
SUB±ASSY
(a) Apply seal packing 2 or 3 threads.
Seal packing: Part No. 08826±00100 or equivalent
(b) Install the drain union.
Torque: 29 Nm (291 kgfcm, 21 ftlbf)
HINT:
After applying the specified torque, if the drain pipe of the drain
union is not at the position shown in the illustration, rotate the
drain union further clockwise and make the drain pipe face
downward.
