A57098
A09600
Seal Width
2 ± 4 mm
Seal Packing
SST
A57101
Inward
Angle Sensor
A57102
Turn

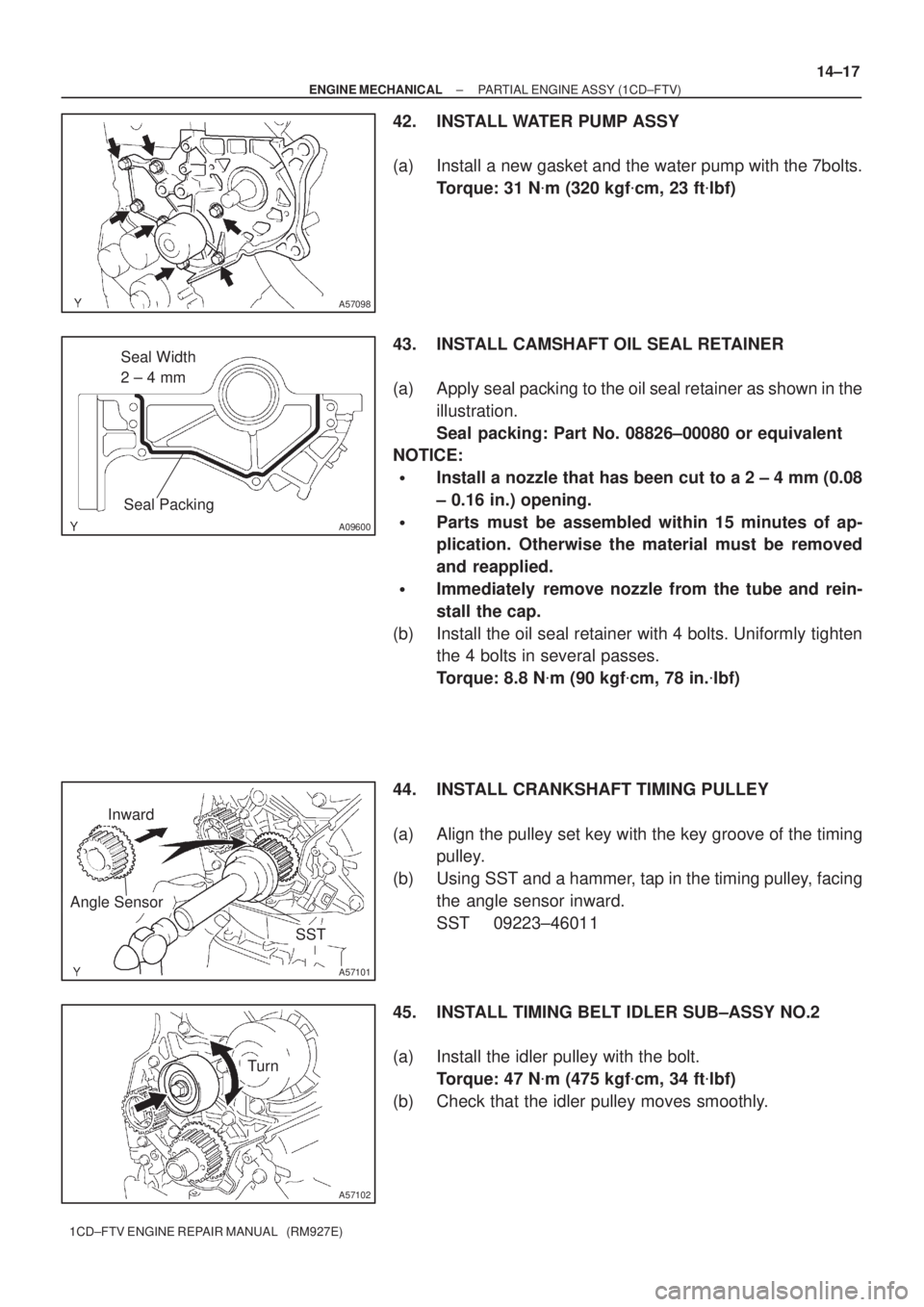

± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
14±17
1CD±FTV ENGINE REPAIR MANUAL (RM927E)
42. INSTALL WATER PUMP ASSY
(a) Install a new gasket and the water pump with the 7bolts.
Torque: 31 Nm (320 kgfcm, 23 ftlbf)
43. INSTALL CAMSHAFT OIL SEAL RETAINER
(a) Apply seal packing to the oil seal retainer as shown in the
illustration.
Seal packing: Part No. 08826±00080 or equivalent
NOTICE:
Install a nozzle that has been cut to a 2 ± 4 mm (0.08
± 0.16 in.) opening.
Parts must be assembled within 15 minutes of ap-
plication. Otherwise the material must be removed
and reapplied.
Immediately remove nozzle from the tube and rein-
stall the cap.
(b) Install the oil seal retainer with 4 bolts. Uniformly tighten
the 4 bolts in several passes.
Torque: 8.8 Nm (90 kgfcm, 78 in.lbf)
44. INSTALL CRANKSHAFT TIMING PULLEY
(a) Align the pulley set key with the key groove of the timing
pulley.
(b) Using SST and a hammer, tap in the timing pulley, facing
the angle sensor inward.
SST 09223±46011
45. INSTALL TIMING BELT IDLER SUB±ASSY NO.2
(a) Install the idler pulley with the bolt.
Torque: 47 Nm (475 kgfcm, 34 ftlbf)
(b) Check that the idler pulley moves smoothly.
A57103
Plate Washer
Hexagon
Wrench
(8mm)
A62592
SST
B08252
B09792
Spring
Convex
14±18
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
1CD±FTV ENGINE REPAIR MANUAL (RM927E)
46. INSTALL TIMING BELT IDLER SUB±ASSY NO.1
(a) Using an hexagon wrench (8mm), install the plate washer
and idler pulley with the idler pulley shaft.
Torque: 35 Nm (350 kgfcm, 25 ftlbf)
(b) Check that the pulley bracket moves smoothly.
47. INSTALL CAMSHAFT TIMING PULLEY
(a) Install the pulley set key to the key groove of the cam-
shaft.
(b) Align the pulley set key with the key groove of the timing
pulley, and slide on the timing pulley.
(c) Using SST, install the pulley bolt.
SST 09960±10010 (09962±01000, 09963±01000)
Torque: 88 Nm (899 kgfcm, 65 ftlbf)
48. INSTALL INJECTOR ASSY
(a) Install 4 new nozzle seats to the cylinder head.
(b) Set the spring to each injector.
NOTICE:
Be sure to make the opening direction of the spring and the
direction of the injector positioning convex meet.
(c) Install a new back±up ring and O±ring to each injector.
(d) Apply a light coat of oil onto O±ring for each injector.
