Page 241 of 266

’04MY CELICA U (L/O 0308)
233
2004 CELICA from Aug. ’03 Prod. (OM20823U)
Type A fuses can be pulled out by the
pull−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “RADIO”,
“CIG” or “HTR” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work, the wash-
er tank may be empty. Check the wash-
er fluid level on the level gauge. If the
washer fluid level is below “LOW”, add
washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
Adding washer fluid
Page 242 of 266

’04MY CELICA U (L/O 0308)
234
2004 CELICA from Aug. ’03 Prod. (OM20823U)
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
Vehicles with discharge headlights—
Do not touch the high voltage sock-
et when the headlight turns on.
20000 V is momentarily generated
and may cause severe injury by
electric shock.
Do not disassemble, repair or take
apart the headlight bulbs, connec-
tor, power supply circuits and ro-
tated components. Or you may be
injured by electric shocks. Call your
dealer when the headlights fail to
work or have to be replaced or dis-
posed of.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.
NOTICE
Only use a bulb of the listed type.
Replacing light bulbs—
Page 243 of 266
’04MY CELICA U (L/O 0308)
235
2004 CELICA from Aug. ’03 Prod. (OM20823U)
A: D2S discharge bulbs
B: H7 halogen bulbs
C: HB3 halogen bulbs
D: H3 halogen bulbs
E: Wedge base bulbs (clear)
F: Single end bulbs (amber)
G: Wedge base bulbs (amber)
H: Single end bulbs (clear)
I: Double end bulbsTy p e
W
Bulb No.
35
55
Light bulbs
Headlights (low) With discharge headlights
Without discharge headlights
Headlights (high) —
—
A
B
Front fog lights
Parking lights
Front turn signal lights
Front side marker lights
Rear turn signal lights
Stop/tail and rear side marker lights
Back −up lights
License plate lights
Interior light With moon roof
Without moon roof
Glove box light
Luggage compartment light 60
9005 C
55
—D
5
—E
21
—F
3.8
194 E
21
—G
21/5
7443 E
16
921 E
5
—E
108
—
— H
I
1.2
—E
5
—I
Page 244 of 266
’04MY CELICA U (L/O 0308)
236
2004 CELICA from Aug. ’03 Prod. (OM20823U)
1. Open the hood.
RIGHT SIDE HEADLIGHT—Remove the
clips and take out the cover. In doing
so, remove the washer hose from the
notch on the cover.
Remove and install the cover clips as
shown in the following illustrations.
Removing clip
Installing clip
—Low beam headlights
(without discharge headlights)
Page 245 of 266
’04MY CELICA U (L/O 0308)
237
2004 CELICA from Aug. ’03 Prod. (OM20823U)
2. Unplug the connector. Remove therubber cover.
If the connector is tight, wiggle it.3. Release the bulb retaining spring and remove the bulb along with the
socket. Install a new bulb into the
socket and return the bulb retaining
spring to its original position.
To install a bulb, align the tabs of the
bulb with the cutout of the mounting hole.4. Install the rubber cover with the “TOP” mark upward, and fit it se-
curely on the boss. Plug in the con-
nector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
Page 246 of 266
’04MY CELICA U (L/O 0308)
238
2004 CELICA from Aug. ’03 Prod. (OM20823U)
5. RIGHT SIDE HEADLIGHT—Install thecover.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
1. Open the hood.
RIGHT SIDE HEADLIGHT—Remove the
clips and take out the cover. In doing
so, remove the washer hose from the
notch on the cover.
Remove and install the cover clips as
shown in the following illustrations.
—High beam headlights
(without discharge headlights)
Page 247 of 266
’04MY CELICA U (L/O 0308)
239
2004 CELICA from Aug. ’03 Prod. (OM20823U)

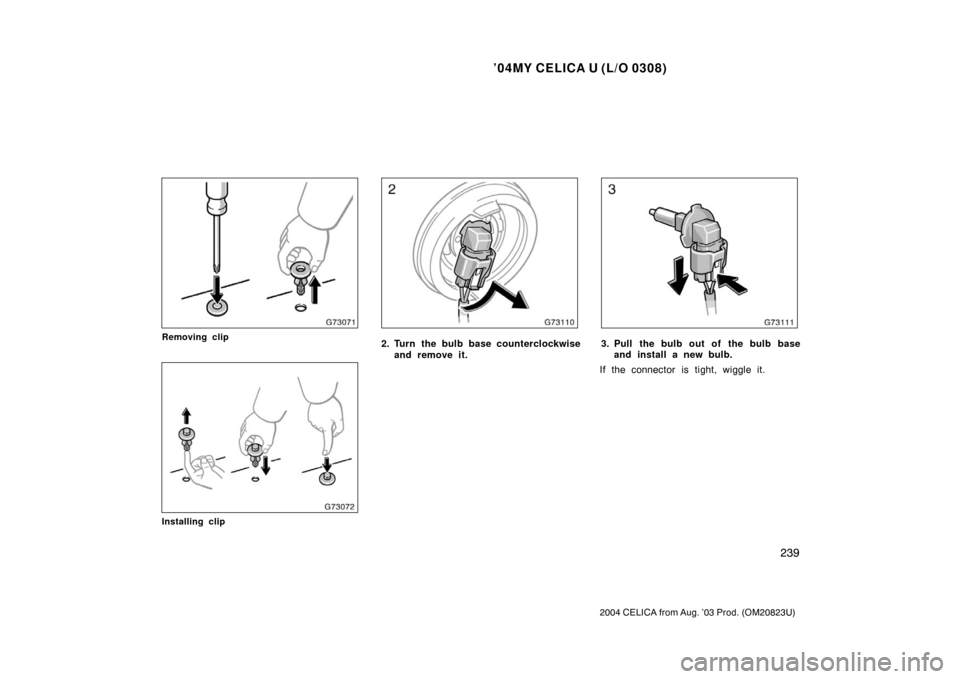

Removing clip
Installing clip
2. Turn the bulb base counterclockwiseand remove it.3. Pull the bulb out of the bulb baseand install a new bulb.
If the connector is tight, wiggle it.
Page 248 of 266
’04MY CELICA U (L/O 0308)
240
2004 CELICA from Aug. ’03 Prod. (OM20823U)
4. Insert the bulb base into the mount-ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.5. RIGHT SIDE HEADLIGHT—Install the cover.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
If either the left or right front fog or
front side marker lights burns out, con-
tact your Toyota dealer.
NOTICE
Do not try to replace the front fog or
front side marker light bulbs by your-
self. You may damage the vehicle.
—Front fog and front side
marker lights
