“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

’04Camry_U (L/O 0307)
170
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
—Air flow selector settings
: With rear vents
—Operating tips

’04Camry_U (L/O 0307)
171
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls as follows:
For automatic operation—
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s WARM
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been war-
med.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls as follows:
For automatic operation—
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—ON
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, select recirculated
air for a few minutes.

’04Camry_U (L/O 0307)
172
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
Ventilation
For best results, set controls as follows:
For automatic operation—Press in the “AUTO” button.
Temperature— Towards low temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging and defrosting
—The inside of the windshield
For best results, set controls as follows:
—For automatic operation
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again. Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
—The outside of the windshield
For best results, set controls as follows:
—For automatic operation
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Pressing the windshield air flow button
turns on the defrosting function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.

’04Camry_U (L/O 0307)
173
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

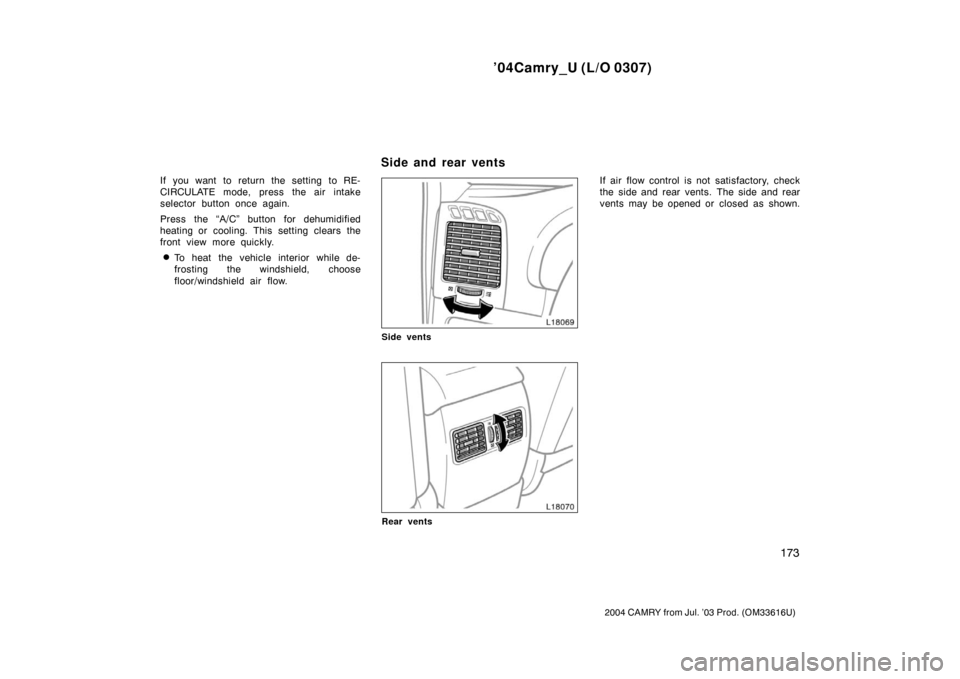

Side vents
Rear vents
If air flow control is not satisfactory, check
the side and rear vents. The side and rear
vents may be opened or closed as shown.
Side and rear vents

’04Camry_U (L/O 0307)
174
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

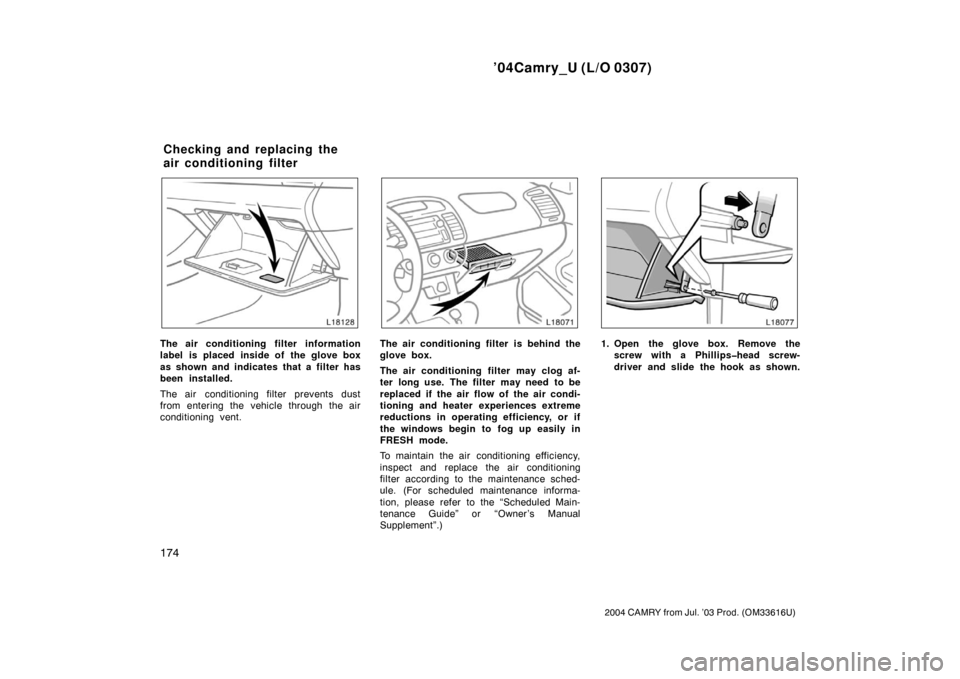

The air conditioning filter information
label is placed inside of the glove box
as shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.The air conditioning filter is behind the
glove box.
The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily in
FRESH mode.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. (For scheduled maintenance informa-
tion, please refer to the “Scheduled Main-
tenance Guide” or “Owner ’s Manual
Supplement”.)1. Open the glove box. Remove thescrew with a Phillipshead screw-
driver and slide the hook as shown.
Checking and replacing the
air conditioning filter

’04Camry_U (L/O 0307)
175
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

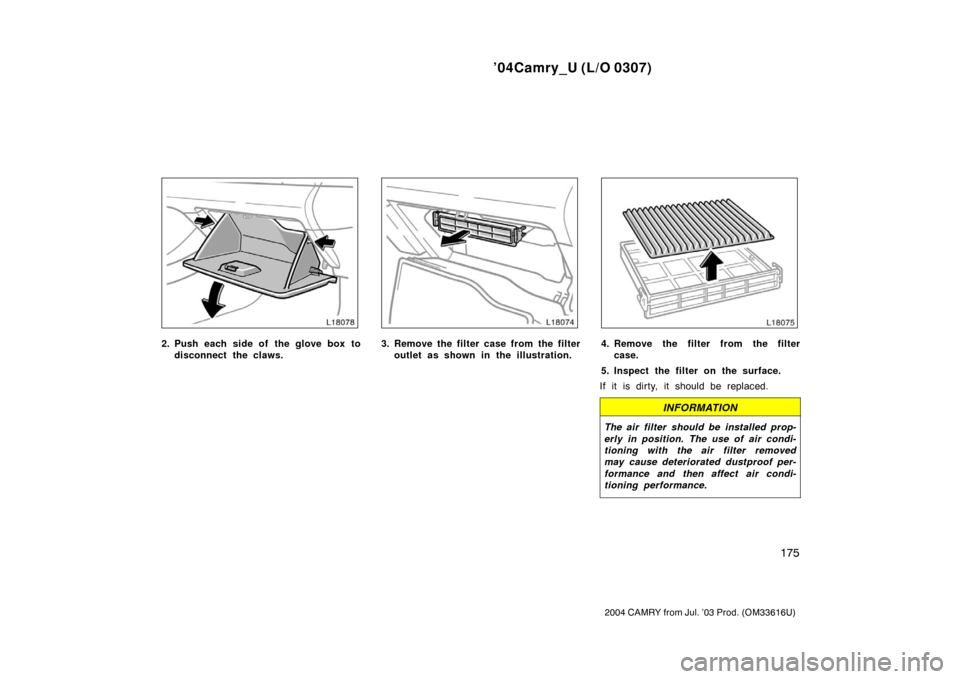

2. Push each side of the glove box todisconnect the claws.3. Remove the filter case from the filteroutlet as shown in the illustration.4. Remove the filter from the filtercase.
5. Inspect the filter on the surface.
If it is dirty, it should be replaced.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.
