2004 TOYOTA CAMRY Owners Manual

’04Camry_U (L/O 0307)
89
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

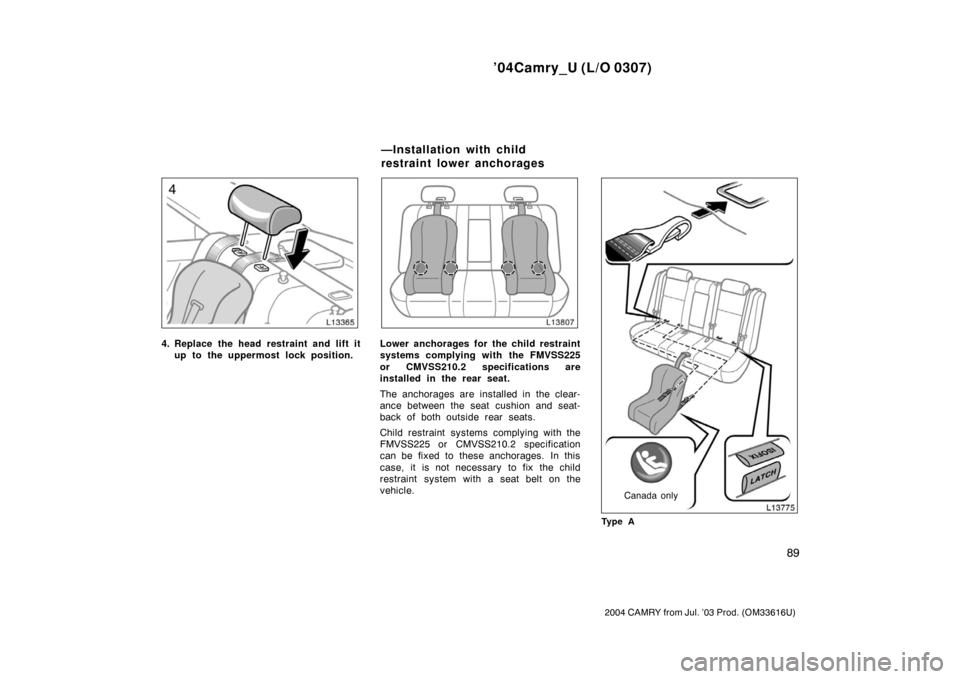

4. Replace the head restraint and lift itup to the uppermost lock position.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of both outside rear seats.
Child restraint systems complying with the
FMVSS225 or CMVSS210.2 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
Canada only
Ty p e A
—Installation with child
restraint lower anchorages

’04Camry_U (L/O 0307)
90
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

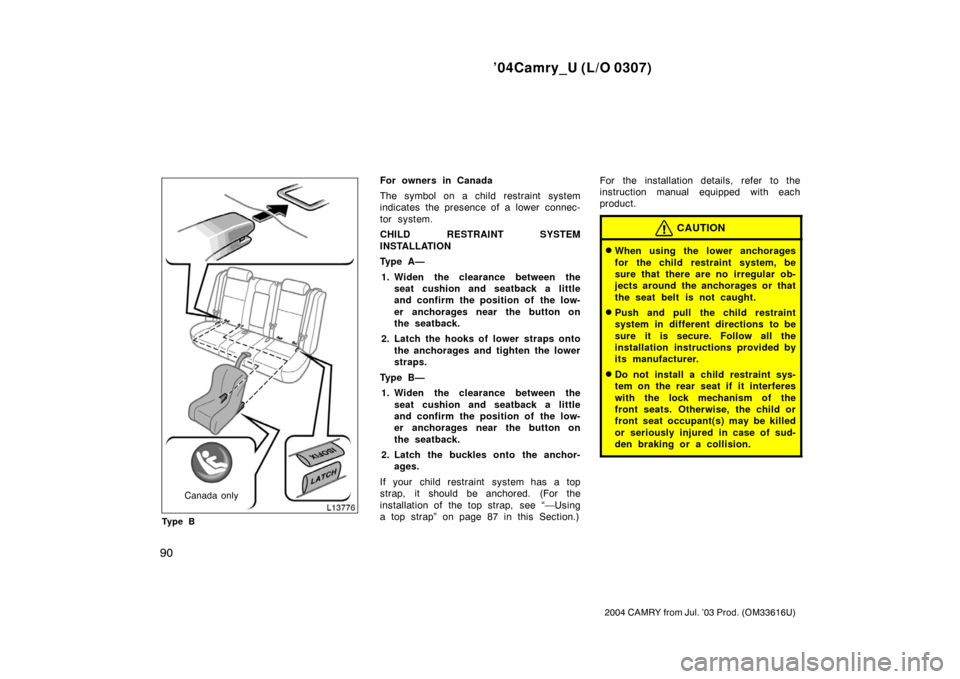

Canada only
Ty p e B
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages near the button on
the seatback.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages near the button on
the seatback.
2. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 87 in this Section.) For the installation details, refer to the
instruction manual equipped with each
product.
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

’04Camry_U (L/O 0307)
91
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Power adjustable pedals 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Outside rear view mirrors 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 95
. . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 4

’04Camry_U (L/O 0307)
92
2004 CAMRY from Jul. ’03 Prod. (OM33616U)

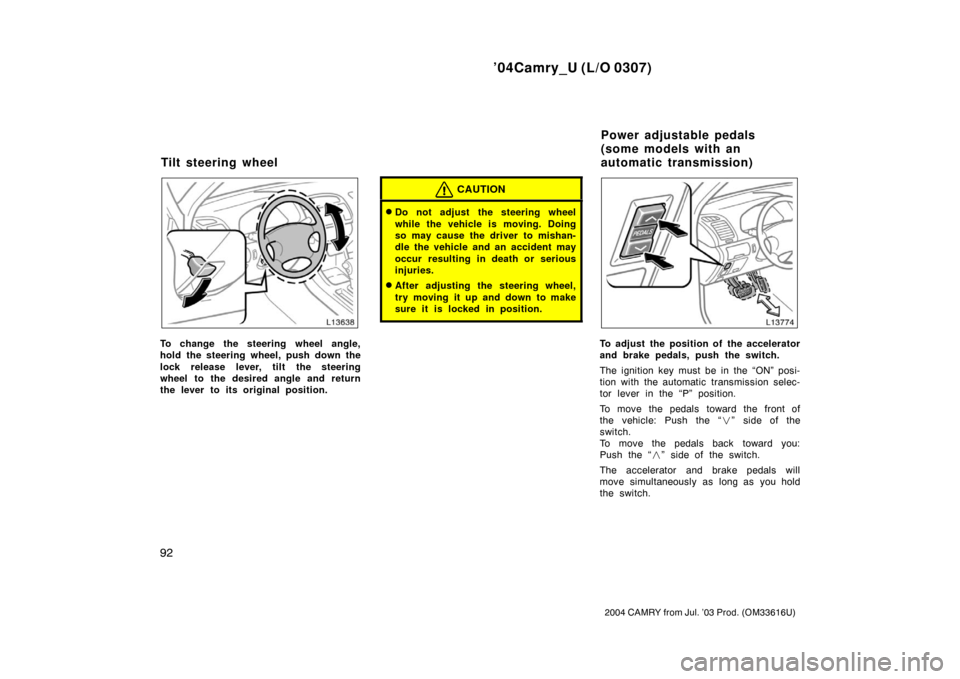

To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
To adjust the position of the accelerator
and brake pedals, push the switch.
The ignition key must be in the “ON” posi-
tion with the automatic transmission selec-
tor lever in the “P” position.
To move the pedals toward the front of
the vehicle: Push the “” side of the
switch.
To move the pedals back toward you:
Push the “ ” side of the switch.
The accelerator and brake pedals will
move simultaneously as long as you hold
the switch.
Tilt steering wheel Power adjustable pedals
(some models with an
automatic transmission)

’04Camry_U (L/O 0307)
93
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
When you set your driving position:1. Set the parking brake firmly.
2. Move the accelerator and brake pedals to the front most position.
3. Adjust the seat position and steering wheel angle properly. (See “Front
seats” on page 38 and “Tilt steering
wheel” on page 92.)
4. Move the pedals toward you until you can fully depress the brake pedal.
5. After adjusting, depress the pedals a few times to get used to the feel.
CAUTION
Never put your foot on the acceler-
ator pedal while the pedals are
moving. It may cause racing of the
engine or sudden acceleration.
Make sure that you can fully de-
press the brake pedal before driv-
ing. Otherwise, you may not be able
to hold down the brake pedal firmly
in an emergency stop.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface. (See “Rear
window and outside rear view mirror de-
foggers” on page 105 in Section 1 −5.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
Since the mirror surfaces can get
hot, do not touch them when the
defogger switch is on.
NOTICE
The outside rear view mirrors are
fixed in place. Do not try to fold the
mirrors. It may damage the mirrors.
Outside rear view mirrors—

’04Camry_U (L/O 0307)
94
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
—Power rear view mirror
control Antiglare inside rear view
mirror

’04Camry_U (L/O 0307)
95
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.

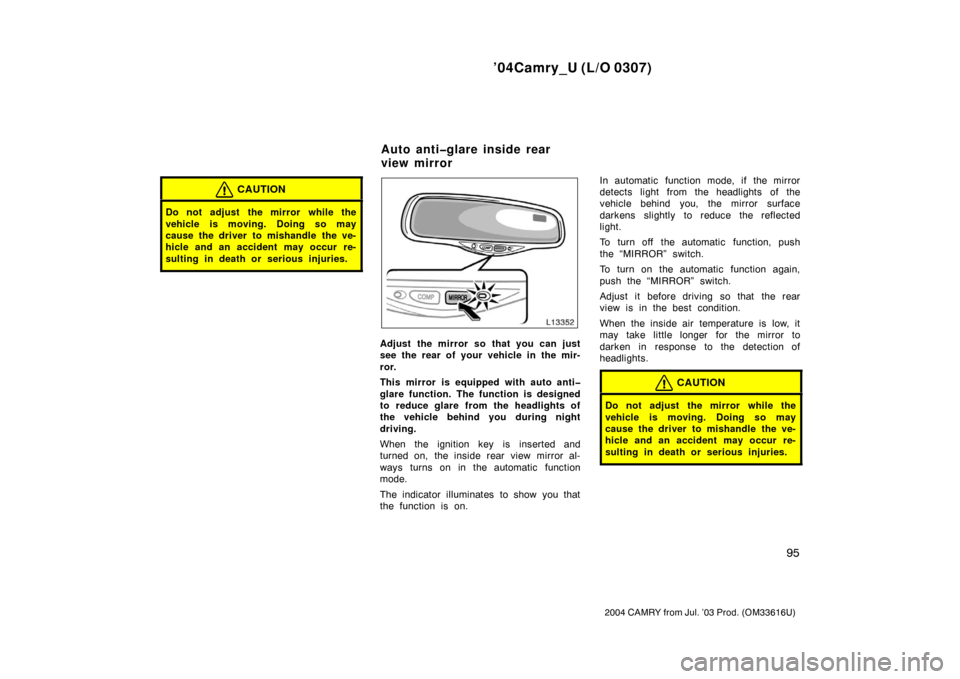

This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function, push
the “MIRROR” switch.
To turn on the automatic function again,
push the “MIRROR” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Auto antiglare inside rear
view mirror

’04Camry_U (L/O 0307)
96
2004 CAMRY from Jul. ’03 Prod. (OM33616U)
To ensure correct functioning of an
antiglare mirror sensor located on the
back side of the mirror, do not touch
or cover the sensor with your finger or
a piece of cloth, etc.Ty p e A
Ty p e B
To use the vanity mirror, swing down
the sun visor and open the cover.
Vanity lights (type B only)—
The lights come on when you open the
cover.
To adjust the brightness of the lights, slide
the switch.
Vanity mirrors
