GENERAL MAINTENANCE
Windscreen washer system
The windscreen washer reservoir is located
in the right of the engine compartment. It
holds about 3 litres, or about 5.5 litres in
the case of models with a headlight washer
system.
If the vehicle is equipped with headlight
washer system, it is necessary to only
use certain fluids which do not corrode
any polycarbonate connections.
Filling reservoirWhen topping up windscreen washer
fluid, do not remove the sieve from the
reservoir. Impurities might otherwise
affect proper operation of the wind-
screen washer system.
We recommend always adding a wind-
screen cleaner with wax-dissolving proper-
ties to the water (in winter with antifreeze
protection) as clear water is not generally
sufficient to quickly and intensively clean
the windscreen and the headlight lenses.
Refer to the mixing instructions on the wind-
screen cleaner pack.
Note
Should windscreen cleaner with antifreeze
protection not be available in exceptional
cases, it is also possible to add methylated
spirits (the concentration of methylated
spirits must not be higher than 15 %). Note
in this case, however, that the antifreeze
protection of this concentration is only down
to -5 °C at the most.
Even if your vehicle has heated windscreen
washer* nozzles, in winter you should al-
ways add antifreeze protection to the wa-
ter.
On no account use radiator antifreeze pro-
tection or other additives!
Windscreen wiper bladesThe windscreen wiper blades at the front
and rear must be in proper condition if they
are to ensure clear visibility. Wiper blades
must not be dirtied by dust, insect residues
and wax preservative.
To avoid smears, the windscreen wiper
blades should be cleaned regularly with a
windscreen cleaner. If they are very dirty,
e.g. insect residues, the wiper blades can
also be cleaned with a sponge or cloth.
If the wiper blades rub or „smear“, this may
be caused by wax residues on the wind-
screen as a result of washing the car in an
automatic car wash. For this reason, each
time after washing the car in a car wash
with wax treatment, remove the wax from
the lips of the wiper rubbers and from the
windshield and rear window.
In frosty conditions, check that the wiper
blades are not frozen to the glass before
switching the wipers on for the first time.
For safety reasons, the windscreen wiper
blades should be replaced twice a year.
Windscreen wiper blades are available
from Škoda Dealers.

158GENERAL MAINTENANCE
Motoring abroadPlease give consideration to the following
points when driving abroad with your car:

If your car is fitted with a petrol engine
and catalytic converter, it is important that
unleaded petrol is available on your route -
see also page 128. Information regarding
the availability of unleaded petrol can be
obtained from automobile associations.

In certain countries it is also possible that
the Škoda Dealership network is not fully
developed. Certain replacement parts may
therefore not be available or the personnel
of the Škoda Dealer may be able to carry
out repair work only to a limited extent.
ŠKODA AUTO a. s. in the Czech Republic
and the relevant importers will gladly pro-
vide you with the necessary information re-
garding preparing your car technically for
motoring abroad, the servicing required and
repair facilities.
The addresses of the Škoda dealers in
the @! can be found in the brochure
„Škoda dealers in @!“.
For all other countries, you will find a
contact address in the brochure „Trav-
elling assistant“ or in the local „ Work-
shop listing“.
Masking over headlightsAdapt your headlights for using the car in
countries in which the traffic drives on the
left-hand side: If you use your car in coun-
tries in which traffic drives on the left-hand
side of the road, other road users coming
toward you may be dazzled when you use
the headlights of your car which has been
designed for driving on the right-hand side
of the road. In order to eliminate this prob-
lem, you should mask over the left-hand
wedge-shaped areas of the headlight
lenses with an opaque adhesive strip.
The illustrations show how to mask over the
headlights of a car designed for driving on
the right-hand side of the road, when it is
used in a country in which traffic drives on
the left.
Adapting headlights with gas dis-
charge lamps* (applies to left-hand
and right-hand drive models)If you use your car in countries in which traf-
fic drives on the left-hand side of the road,
other road users coming toward you may
be dazzled when you use the headlights of
your car which has been designed for driv-
ing on the right-hand side of the road.
In order to eliminate this problem, the head-
lights must be adapted.
This adaptation is achieved by switching
over the shroud for low beam in the head-
light module.
This measure is carried out by your Škoda
Dealer. He can also provide you with more
detailed information on this matter.
Adapting the headlights with gas discharge
lamps is not a substitute for headlights
which are designed for driving on the right
or on the left, respectively.

159
GENERAL MAINTENANCE

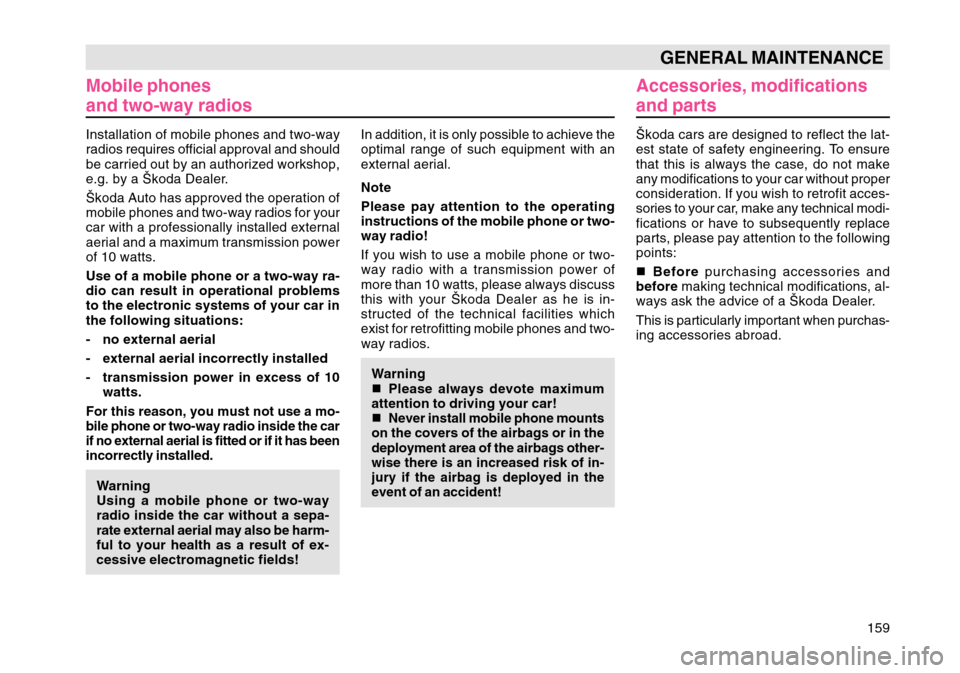

Mobile phones
and two-way radios
In addition, it is only possible to achieve the
optimal range of such equipment with an
external aerial.
Note
Please pay attention to the operating
instructions of the mobile phone or two-
way radio!
If you wish to use a mobile phone or two-
way radio with a transmission power of
more than 10 watts, please always discuss
this with your Škoda Dealer as he is in-
structed of the technical facilities which
exist for retrofitting mobile phones and two-
way radios.Warning

Please always devote maximum
attention to driving your car!


Never install mobile phone mounts
on the covers of the airbags or in the
deployment area of the airbags other-
wise there is an increased risk of in-
jury if the airbag is deployed in the
event of an accident!
Installation of mobile phones and two-way
radios requires official approval and should
be carried out by an authorized workshop,
e.g. by a Škoda Dealer.
Škoda Auto has approved the operation of
mobile phones and two-way radios for your
car with a professionally installed external
aerial and a maximum transmission power
of 10 watts.
Use of a mobile phone or a two-way ra-
dio can result in operational problems
to the electronic systems of your car in
the following situations:
- no external aerial
- external aerial incorrectly installed
- transmission power in excess of 10 watts.For this reason, you must not use a mo-
bile phone or two-way radio inside the car
if no external aerial is fitted or if it has been
incorrectly installed.Warning
Using a mobile phone or two-way
radio inside the car without a sepa-
rate external aerial may also be harm-
ful to your health as a result of ex-
cessive electromagnetic fields! Škoda cars are designed to reflect the lat-
est state of safety engineering. To ensure
that this is always the case, do not make
any modifications to your car without proper
consideration. If you wish to retrofit acces-
sories to your car, make any technical modi-
fications or have to subsequently replace
parts, please pay attention to the following
points:


Before purchasing accessories and
before making technical modifications, al-
ways ask the advice of a Škoda Dealer.
This is particularly important when purchas-
ing accessories abroad.
Accessories, modifications
and parts

162DO-IT-YOURSELF
Tyre repair spray*
The tyre repair spray is precisely for fast
repairs on small tyre defects up to 5 mm.
The spray does not replace a permanent
tyre repair, the repair serves only as an in-
termediate solution until the next service.

The repair can be directly performed on
the vehicle. Carefully read the enclosed in-
structions for direction of use.
On front-wheel drive vehicles, the spray is
located in the well at the front right of the
polypropylene part behind the spare wheel,
and on 4x4 vehicles, in the boot on the left.
Certain models are equipped with a tyre
repair set which includes a compressor and
a repair flask, instructions and accessories.
On front-wheel drive vehicles this set is lo-
cated in the well at the front right of the
polypropylene part behind the spare wheel,
and on 4x4 vehicles, in the boot on the left
next to the first-aid box.

Apply the handbrake before jack-
ing up the car. Never start the engine
when the car is jacked up - risk of
accident.

If it is necessary to carry out work
underneath the vehicle, ensure that
it is supported on suitable stands.
Spare wheelThe spare wheel is stowed in the well below the
floor covering of the luggage compartment and
is secured by a handwheel.

To ensure that the spare wheel is always
ready for use, check the inflation pressure at
regular intervals.
Vehicles with tyres 205/60 R15 and wheel trims
6.5Jx15 have an emergency wheel as a spare
wheel, which has different dimensions and which
is provided with a warning sticker.
Please pay attention to the following instructions,
if you are going to use an emergency wheel:

After fitting on the wheel, the warning sticker
must not be concealed (e.g. by the wheel trim).

Do not drive with this spare wheel at more
than 80 km/h - risk of accident.
Avoid acceleration at full throttle, sharp braking
and fast cornering.

The inflation pressure for this spare wheel is
identical to the inflation pressure of the standard
tyres.

Use this spare wheel only to reach the near-
est service station, as it is not intended for con-
tinuous use.
Tyre repair set*

163
DO-IT-YOURSELF
Changing a wheelWarning

In the case of a flat tyre or punc-
ture, park the vehicle off the road,
switch on the hazard warning lights
and place the warning triangle in po-
sition - note any statutory require-
ments.

All the vehicle occupants should
leave the car and move to a safe area
(e.g. behind safety barrier).


Apply handbrake firmly and engage
a gear. Chock the opposite wheel with
a stone or similar if the car is stand-
ing on a slope.

Never start the engine when the
car is jacked up - risk of accident!

If towing a trailer, unhitch the
trailer from the car before changing
the wheel.

Carry out wheel change on a flat, level
surface, as far as possible.

Remove the car tool kit and spare wheel
from the luggage compartment.

Attach the wire hook (from the car tool
kit) at the edge of the full wheel trim* oppo-
site the air valve. Push the wheel wrench
through the wire hook and pull off the wheel
trim - see illustration.

If light-alloy wheels are fitted, use the
plastic clip supplied to pull off the covers
for the wheel bolts.

Unscrew the safety wheel bolts* - see
page 166.

Fit wheel wrench onto the wheel bolt as
far as the stop and turn to the left. Hold the
wrench as close as possible to its end for
this operation. If the bolts cannot be slack-
ened, you can carefully apply pressure to
the end of the wheel wrench with your foot.
Ensure that you are standing properly and
hold tight on the car. Slacken the wheel
bolts about one turn.

164DO-IT-YOURSELF
Fit the car jack onto the car. Recesses
are provided on the lower sill (at the front
and rear). Below this is the point at which
the car jack should be positioned - see ar-
rows in the illustration.

Position the car jack so that its claw fits
around the web of the lower sill A and the
moving base plate of the car jack B is posi-
tioned flat on the ground.
Warning

Always raise the vehicle with the
doors closed - risk of injury.

Take suitable measures to prevent
the base of the lifting jack from slip-
ping off - risk of injury!

Place the lifting jack only on a
solid and even surface.

Not positioning the lifting jack at
the specified points can result in
damage to the vehicle. In addition,
the jack may slip off if it does not
have sufficient grip - risk of injury!

Never start the engine if the vehi-
cle is lifted - risk of accident.

Never lie under the vehicle if the
vehicle is only lifted with the vehicle
lifting jack.

It is important to support the ve-
hicle with suitable supporting blocks
if you wish to work under the lifted
vehicle - risk of injury! -
If the surface is soft, place a large
solid base below the foot of the jack.
- Rotate the crank to raise the claws of the jack sufficiently so that the jack can just
still be fitted below the car.
- The claw of the jack must be fitted around the vertical web of the lower sill
so that the jack cannot slip off when the
car is raised.
- The base of the jack should be resting fully on a firm surface.
- Align jack and at the same time raise the claw of the jack further until the claw is
touching the web.

167
DO-IT-YOURSELF
FusesThe individual electrical circuits are pro-
tected by fuses.
The fuses are located on the left-hand face
end of the instrument cluster below the co-
ver.
Space is provided on the right for spare fu-
ses - see page 168.
Additional fuses are located in the engine
compartment on the battery. We recom-
mend having these fuses replaced by a
Škoda Dealer.Replacing a fuse
Switch off the ignition and the relevant
electrical component.

To remove the cover, place a screwdriver
against the cover (arrow on cover) and ca-
refully lever it off.

Refer to the list of fuses as shown in il-
lustration to find which fuse belongs to the
faulty component - see illustration on page
168.

Remove the blown fuse.

A blown fuse is recognizable from the
melted metal strip - replace with a new fuse
of the same rating.
Notes

If a newly inserted fuse blows again af-
ter a short time, the electrical system should
then be inspected as soon as possible by
a Škoda Dealer.

On no account „repair“ fuses as this may
cause major damage to another point of the
electrical system.

Certain of the electrical components
listed are fitted only to particular model
versions or are optional equipment.

We recommend always carrying with
you a box with replacement fuses, which is
available from Škoda Dealers
1).
1)In certain countries the box with replacement
fuses is part of the basic equipment.
Warning
If the fire extinguisher is not correctly
attached, in case of sudden manoeu-
vres or an accident, it can be thrown
through the interior compartment
and cause injuries.

168DO-IT-YOURSELFFuse assignment
No. Electrical component A
1 - Mirror and spray nozzle heater,relay for cigarette lighter
el. seats ........................................ 10
2 - Turn signal lights .......................... 10
3 - Stowage compartment light ............ 5
4 - Licence plate lights ......................... 5
5 - Seat heaters, Climatronic, Navi- gation system, recirculated air
flap, multifunction steering
wheel, exterior mirror heaters ..... 7.5
6 - Central locking control unit ............. 5
7 - Reversing lights, parking aid ........ 10
8 - Mobile phone .................................. 5
9 - ABS/ESP ......................................... 5
10 - Petrol engine: control unit ............ 20
Diesel engine: control unit .............. 5No. Electrical component A
11 - Dash panel insert, selector lever
lock solenoid (automatic
gearbox) .......................................... 5
12 - Power supply for diagnosis, mobile phone ............................... 7.5
13 - Brake lights ................................... 10
14 - Interior light, central locking ......... 10
Interior light (without central
locking) ......................................... 10
15 - Instrument cluster, automatic gearbox, steering lock angle
sensor, rear-view mirrors ................ 5
16 - Air conditioning, electric water pump ............................................. 10
17 - Police .............................................. 5
18 - Right main beam .......................... 10
19 - Left main beam ............................. 10
20 - Right low beam, headlight range control ................................. 15
21 - Left low beam ............................... 15
22 - Right parking light ........................... 5
23 - Left parking light ............................. 5
24 - Wiper system, washer pump ........ 20
25 - Heater fan ..................................... 25
26 - Rear window heater ...................... 25
27 - Rear window wiper ....................... 15
28 - Fuel pump ..................................... 15
29 - Petrol engine - engine electronics, ignition ....................... 15
Diesel engine - engine
electronics .................................... 10 No. Electrical component A
30 - Power sliding/tilting roof
............... 20
31 - Automatic gearbox ........................ 20
Haldex coupling .............................. 5
32 - Petrol engine - injectors ............... 10
Diesel engine - injection pump,
control unit .................................... 30
33 - Headlight cleaning system ........... 20
34 - Petrol engine - engine electronics .................................... 10
Diesel engine - engine
electronics .................................... 10
35 - Trailer socket, socket in luggage compartment ............... 30
36 - Fog lights ...................................... 15
37 - S contact
1)................................... 10
38 - Luggage compartment light, central locking, remote fuel
filler flap release ........................... 15
39 - Hazard warning signals ................ 15
40 - Horn .............................................. 20
41 - Cigarette lighter ............................ 15
42 - Radio ............................................. 15
43 - Petrol engine: engine electronics .................................... 10
Diesel engine: engine
electronics .................................... 10
44 - Seat heaters ................................. 15
1)For electrical components which can be oper-
ated after switching off the ignition provided the
ignition key is not withdrawn, e.g. radio.
