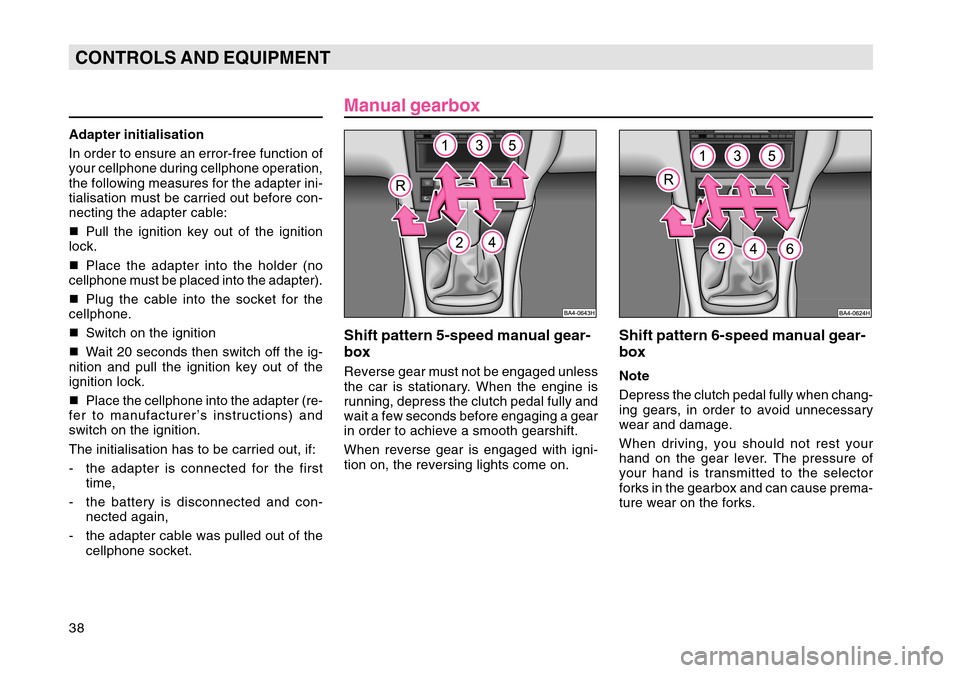

38CONTROLS AND EQUIPMENT
Manual gearboxShift pattern 5-speed manual gear-
boxReverse gear must not be engaged unless
the car is stationary. When the engine is
running, depress the clutch pedal fully and
wait a few seconds before engaging a gear
in order to achieve a smooth gearshift.
When reverse gear is engaged with igni-
tion on, the reversing lights come on.
Shift pattern 6-speed manual gear-
boxNote
Depress the clutch pedal fully when chang-
ing gears, in order to avoid unnecessary
wear and damage.
When driving, you should not rest your
hand on the gear lever. The pressure of
your hand is transmitted to the selector
forks in the gearbox and can cause prema-
ture wear on the forks.
Adapter initialisation
In order to ensure an error-free function of
your cellphone during cellphone operation,
the following measures for the adapter ini-
tialisation must be carried out before con-
necting the adapter cable:


Pull the ignition key out of the ignition
lock.

Place the adapter into the holder (no
cellphone must be placed into the adapter).

Plug the cable into the socket for the
cellphone.

Switch on the ignition

Wait 20 seconds then switch off the ig-
nition and pull the ignition key out of the
ignition lock.

Place the cellphone into the adapter (re-
fer to manufacturer’s instructions) and
switch on the ignition.
The initialisation has to be carried out, if:
- the adapter is connected for the first time,
- the battery is disconnected and con- nected again,
- the adapter cable was pulled out of the cellphone socket.

184ALPHABETICAL INDEX
NNavigation system, 55
Net partition, 33
Net, 30
Noise, dust and pollen filter, 152
Note holder, 91OOil consumption, 119
On-board instruments, 48PPaint damage, 131
Parking light, 62
Parking light, 67
Parking ticket, 91
Pedals, 35
Pelvic belt, 101
Petrol engines, 45
Plastic and synthetic leather parts, 132
Polishing the car, 131
Power steering, 141
Preglow system (diesel), 43, 45, 57
Prewarming fuel, 129RReading light, 88
Rear-view mirror, 16
Recirculated air mode, 73, 76
Refuelling the car, 65, 127 Remote control, 12
- Replacing the code, 13
Replacement
- Brake fluid, 145
- Parts, 159
- Wheel, 163
- Oil, 141
- Fuses, 167
- Bulbs, 169
Rev counter, 48
Roof luggage rack system, 91
Roof luggage rack system, 91
Running in the car, 117
SSafe securing system, 9
Safety net, 30
Safety, 93
Seat belt tensioners, 102
Seat belt tensioners, 102
Seat belts, 98
Seat belts, 98
Seat heaters, 65
Seat height, 19
Seats, 19, 25, 94
Securing wheels, 166
Service Display, 49
Service interval, extended, 138
Shift pattern, 38
Shifting gears, 38 Side airbag, 109
Signals, acoustic, 46
Snow chains, 157
Socket 12 V, 89
Spare wheel, 162
Spark plugs, 150
Spectacle case, 91
Spectacles, 91
Speedometer, 49
Speedometer, 49
- Counter for distance driven, 49
Spray for tyre repair, 162
Steering wheel, 5, 43, 70
Storage compartments, 10, 87
Sun visors, 86
Support of pelvic belt, 20
Switch, 62
Switching from high beam to low beam, 67
TTaking care of your vehicle, 129
TCS, 60, 65
Technical changes, 160
Temperature display, 52
The first 1500 km, 117
Tool, 161
Top up with oil, 140
Towing a trailer, 124
Towing a vehicle, 178
Towing device, 124
