Electronic differential lock (EDL)*The EDL system operates in combination
with the ABS. A failure of the EDL system
is indicated by the ABS warning light co-
ming on. You should then contact a Škoda
Dealer without delay.
Models fitted with ESP are equipped with
electronic differential lock (EDL).
If a major fault is present in the ABS sy-
stem, an audible warning signal also
sounds (3 peeps). Further information on
the ABS and EDL systems is given on
pages 122 and 124.Electronic immobiliserWhen the ignition is switched on, a data
harmonization is performed between key
and control unit. If the data exchanged are
correct, this is confirmed by the warning li-
ght coming on for a few seconds.
If an unauthorized car key (e.g. forged key)
has been used, the warning light changes
to a continuous flashing light. It is then no
longer possible to start the car - see page
7.
Brake fluid levelThe warning light comes on for a few se-
conds after switching on the ignition.Warning
If the warning light comes on when
the ignition is switched on or when
driving, there is a fault in the brake
system. Contact the nearest Škoda
Dealer without delay and have the
brake system inspected.
An audible warning signal sounds
(3 peeps).
You can drive on carefully to the near-
est Škoda Dealer but allow for higher
pedal pressures, longer braking dis-
tances and greater idle travel of the
brake pedal.
The warning light also comes on when the
handbrake is applied.
Charge indicatorThe warning light comes on when the igni-
tion is switched on. It should go out when
the engine is started.
If the warning light comes on when driving
or does not go out after the engine has
started, stop the car and switch off the
engine. Check the ribbed belt.
If it is loose or broken, do not drive any
further . The belt has to be tensioned or
replaced.
If the ribbed belt is in proper order and the
warning light nevertheless comes on, it is
possible to drive on to the nearest Škoda
Dealer. In this case, the battery will not be
charged; switch off all unnecessary elec-
trical components in the vehicle.
An audible warning signal sounds (single
peep signal).Seat belt warning system*This warning light comes on to request the
driver to fasten the seat belt.
If the driver’s belt is not fastened, an audi-
ble warning signal sounds for 6 seconds.

62CONTROLS AND EQUIPMENTSwitchesLight switchNotes

The position of the switches differs on
right-hand drive vehicles. The symbols on
the switches are, however, the same as on
vehicles with left-hand drive.

Use of the lighting described here is
subject to the legal regulations of the coun-
try concerned.

If the side lights are not switched off af-
ter withdrawing the ignition key, an audible
signal sounds as a reminder as soon as the
driver’s door is opened.

The warning signal of the buzzer is swit-
ched off by the door contact when the driv-
er’s door is closed (ignition off) allowing the
car to be parked with the side lights on.
0 - Off
1 - Side lights
2 - Low beamLow beam and main beam operate only if
the ignition is switched on.
The headlights are switched automatically
to side lights when starting the engine and
after switching off the ignition.
For switching the headlights between low
beam and main beam and using the head-
light flasher - see page 67.3 - Instrument lighting*If the car lights are switched on, the inten-
sity of the instrument lighting can be
steplessly varied by then turning this knob.
Warning
Never drive with side lights on - risk
of accident!
The side lights are not bright enough
to light up the road sufficiently in
front of you or to be seen by other
oncoming traffic.
Therefore always switch on the low
beam when it is dark or when visibil-
ity is poor.

63
CONTROLS AND EQUIPMENT
Fog lights*The fog lights are switched on by pull-
ing the switch into position A.
The fog lights come on if the side lights,
low or main beam are switched on.Rear fog lightThe rear fog light is switched on by pull-
ing the switch into position B.
The rear fog light comes on if the low or
main beam is selected or if the front fog
lights are switched on (depends on the
national version). The rear fog light should
only be switched on if visibility is poor, be-
cause of the risk of dazzling a driver be-
hind.
Notes

The rear fog light is incorporated in the
rear light of the driver’s side.

The electrical system of the towing de-
vice fitted for certain countries is designed
to automatically switch off the rear fog light
of the car when towing a trailer fitted with a
rear fog light.
1 - Hazard warning system
2 - Rear window heater/Exte-
rior mirror heater
3 - ESP/TCS*
(The switch applies to the
ESP or TCS, depending on the sys-
tem fitted. See pages 64 and 65 for
further information on ESP and TCS.
4 - Thumbwheel for front seat heater*
5 - Remote fuel filler flap re- leased from driver’s seat*
1 - Hazard warning systemIf the hazard warning system is switched
on, all the turn signal lights of the car flash
at the same time. The warning light for the
turn signals and the warning light in the
switch also flash. The system operates
even if the ignition is switched off.2 - Rear window heaterThe heating operates only if the ignition is
switched on. When the heater is operating,
the warning light in the switch comes on.
After the rear window heater is switched on,
the heaters of the exterior mirrors are also
switched on on models fitted with power
windows.
The rear window heater switches off au-
tomatically after 20 minutes.
If you press the switch once again, the
rear window heater is switched on perma-
nently - the automatic deactivation is thus
deactivated.
As soon as the rear window is clear, switch off the heater. The reduced
current consumption improves your fuel consumption - see also page 118.
2

64CONTROLS AND EQUIPMENT3 - Electronic stabilityprogram* ESPModels fitted with anti-lock brake system
(ABS) can be equipped additionally with an
electronic stability program (ESP).
The ESP makes it possible to enhance
control over the vehicle in situations in
which the vehicle is operating at the dyna-
mic limits, such as driving too fast into a
curve. The ESP is an extension of the ABS/
EBC//TCS/EDL function and reduces the
risk of skidding in all road conditions. The
system operates over the entire speed of
the vehicle in conjunction with the ABS. If
a fault develops in the ABS system, the ESP
then also does not operate.
The ESP is switched on automatically each
time the engine is started. It can be swit-
ched off and on, as desired, together with
the TCS system, by pressing the pushbut-
ton.
If the system is switched off, the ESP warn-
ing light comes on - see page 60.
In exceptional cases where wheel slip is
desired, it is beneficial to switch off the ESP
system. For example:
- when driving with snow chains
- when starting off in deep snow or on a
loose surface
- when rocking the car free if it has got stuck.
The system should be switched on again
after this.
Note
The same tyres must be fitted to all four
wheels if the ESP system is to operate
properly. Differing rolling circumferences of
the tyres can result in an undesirable re-
duction in engine output.
Repairs on the vehicle (e.g. on engine,
braking system, chassis or another combi-
nation of wheels and tyres) can influence
the function of the ESP.
Operating principle of ESP
The ABS, EBC, EDL, TCS systems are in-
tegrated in the electronic stability program.
In addition to the data available from these
functions, the ESP control unit is also sup-
plied with signals which are transmitted by
highly sensitive sensors. What is measu-
red is the spinning rotary motion about the
vertical axis of the vehicle, the lateral ac-
celeration of the vehicle, the brake pressu-
re and the steering lock.
Note
The direction selected by the driver is de-
termined with the aid of the movement of
the steering and the vehicle speed and
constantly compared with the actual behav-
iour of the vehicle. If variations exist, such
as the vehicle beginning to slide, the ESP
automatically brakes the wheel in question
and reduces engine speed.
The vehicle is again stabilised as a result
of the forces acting on the wheel during the
braking operation. If the vehicle is overs-
teering (tending to break away at the rear),
it is primarily the outside front wheel which
is braked, whereas, if the vehicle is under-
steering (tending to slide out of the curve),
the rear inner wheel is then braked.
Warning
The ESP system is also not able to
overcome the physical limits of the
vehicle. You should remember this,
particularly when driving on slippery
and wet road surfaces.
Your style of driving should always
be adapted to the condition of the
road and the traffic situation. The
enhanced safety offered by the ESP
must not tempt you to take any risks
which compromise your safety.

66CONTROLS AND EQUIPMENTEmergency release of fuel filler flap
If the remote release at the driver’s seat*
does not operate properly, it is possible to
unlock the fuel filler flap manually:

Open tailgate, detach the luggage com-
partment trim on the right and pull off.

Then, push the locking rod in direction
of arrow - see illustration.
Headlight range controlIf the low beam is switched on, it can be
matched exactly to the load of the vehi-
cle with the headlight range control.

You can turn the knurled wheel until the
low beam has been adjusted in such a way
that other road users are not dazzled.
The individual headlight beam settings cor-
respond approximately to the following ve-
hicle load:
- - driver, front passenger
I - 5 persons
II - 5 persons and an additional 180 kg in
the luggage compartment, in line with the
permissible load of the front and rear axles
III - driver and an additional 330 kg in the
luggage compartment, in line with the per-
missible load of the front and rear axles.
Warning
Adjust the headlight beam control,
so that the traffic on the opposite
side is not dazzled.
Headlights fitted with Xenon bulbs adapt
automatically to the load and driving
state (e.g. accelerating, braking) when
ignition is switched on and when driv-
ing.

67
CONTROLS AND EQUIPMENT
Multifunction switchThe turn signal system only operates if the
ignition is switched on.
Right turn signals - lever up
Left turn signals - lever down
When turn signals are operating, the ap-
propriate warning light also flashes - see
page 56.
The turn signal lights are cancelled auto-
matically when the steering wheel is moved
back into the straightahead position.
High and low beamIf low beam is switched on, press the lever
away from the steering wheel. A blue warn-
ing light comes on to indicate the high beam
setting. To switch over to the low beam
setting, pull the lever back into its original
position.
Note
On models fitted with xenon headlights*, do
not switch on main beam and fog lights at
the same time when the car is stationary.Coming Home Function*The function enables the lighting of the low
beam for a short time after leaving the ve-
hicle, e.g. for illumination of Coming-Home
etc.
Select function

Switch off light

Switch off ignition

Flash with main beam (headlight flasher)

Open and close door
If the door is open, the light is on for
approx. 3 minutes.
If the door is closed, the light is on for
approx. 30 seconds
Headlight flasherPull lever toward steering wheel as far as
the pressure point - the main beam and the
indicator light come on.
Note
Use of the signal and lighting systems de-
scribed is subject to local national regula-
tions.Parking lightsThe parking light can only be switched on
if the ignition is off.
Right parking lights - lever up
Left parking lights - lever down
Notes

Use of the parking lights is subject to
local national regulations.

If the lever is not in the middle position
after withdrawing the key, an audible sig-
nal sounds when the driver’s door is ope-
ned. The audible signal switches off again
as soon as the door is closed.

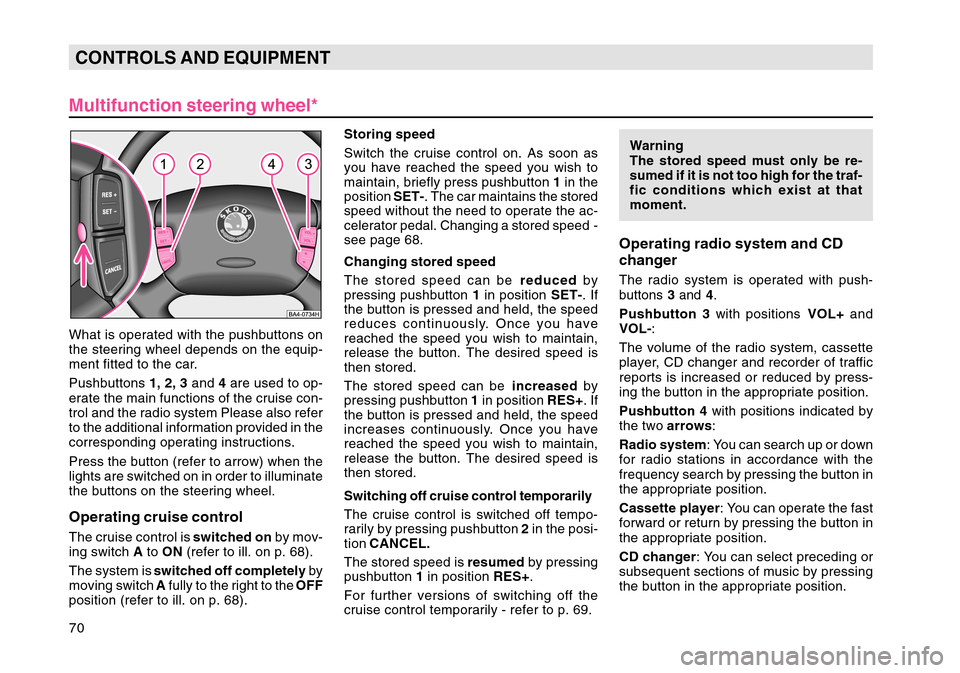

70CONTROLS AND EQUIPMENT
Multifunction steering wheel*What is operated with the pushbuttons on
the steering wheel depends on the equip-
ment fitted to the car.
Pushbuttons 1, 2, 3 and 4 are used to op-
erate the main functions of the cruise con-
trol and the radio system Please also refer
to the additional information provided in the
corresponding operating instructions.
Press the button (refer to arrow) when the
lights are switched on in order to illuminate
the buttons on the steering wheel.Operating cruise controlThe cruise control is switched on by mov-
ing switch A to ON (refer to ill. on p. 68).
The system is switched off completely by
moving switch A fully to the right to the OFF
position (refer to ill. on p. 68).
Storing speed
Switch the cruise control on. As soon as
you have reached the speed you wish to
maintain, briefly press pushbutton 1 in the
position SET-. The car maintains the stored
speed without the need to operate the ac-
celerator pedal. Changing a stored speed -
see page 68.
Changing stored speed
The stored speed can be reduced by
pressing pushbutton 1 in position SET-. If
the button is pressed and held, the speed
reduces continuously. Once you have
reached the speed you wish to maintain,
release the button. The desired speed is
then stored.
The stored speed can be increased by
pressing pushbutton 1 in position RES+. If
the button is pressed and held, the speed
increases continuously. Once you have
reached the speed you wish to maintain,
release the button. The desired speed is
then stored.Switching off cruise control temporarilyThe cruise control is switched off tempo-
rarily by pressing pushbutton 2 in the posi-
tion CANCEL.
The stored speed is resumed by pressing
pushbutton 1 in position RES+.
For further versions of switching off the
cruise control temporarily - refer to p. 69. Warning
The stored speed must only be re-
sumed if it is not too high for the traf-
fic conditions which exist at that
moment.
Operating radio system and CD
changerThe radio system is operated with push-
buttons
3 and 4.Pushbutton 3 with positions VOL+ and
VOL- :
The volume of the radio system, cassette
player, CD changer and recorder of traffic
reports is increased or reduced by press-
ing the button in the appropriate position.
Pushbutton 4 with positions indicated by
the two arrows:
Radio system : You can search up or down
for radio stations in accordance with the
frequency search by pressing the button in
the appropriate position.
Cassette player : You can operate the fast
forward or return by pressing the button in
the appropriate position.
CD changer : You can select preceding or
subsequent sections of music by pressing
the button in the appropriate position.

72CONTROLS AND EQUIPMENTAfter the ignition is switched off, you have
to re-activate the rain sensor. To do this,
move the lever into position 0 and then back
again into position 1.
Warning
Do not use the windscreen washer
system at low temperatures, without
heating the windscreen beforehand.
Otherwise the window cleaner could
freeze on the windscreen and restrict
the view to the front.Headlight washer system*When the side lights, low beam or main
beam are switched on, the headlight lenses
are also washed every time the windscreen
is washed.
There is a time delay of about 3 second af-
ter operating the lever (position 5) before
the headlights are washed.
Stubborn dirt (such as insect residues)
should be removed from the headlight
lenses at regular intervals, for example
when refuelling.
In winter, also clean off any snow on the
washer nozzles or use de-icing spray to re-
move the ice to ensure proper operation.
Rear window
Intermittent wipe
Stalk in position 6.
The wiper operates every 6 seconds.

Automatic wash/wipe*
Push down stalk away from steering wheel
into position 7. The washer system and the
wiper operate so long as the stalk remains
in this position.
Release stalk. The washer system no lon-
ger operates and the wiper performs a fur-
ther 1 to 3 sweeps (depending on the length
of the washing operation).
The stalk remains in position 6 after be-
ing released.

Switching off intermittent wipe
Stalk in position 0.
Heating and ventilationControlsRotary control A - temperature selection
clockwise - increases heat output
anti-clockwise - decreases heat output
Rotary switch B - blower and shutting-
off air supply
The quantity of air which flows through the
heater is regulated with rotary switch B.
The air supply can be regulated in four
stages.
The blower is switched off in position 0. To
switch off the fresh air supply press button
D , see below. The air supply should only
be switched off for a short time as the win-
dows may mist up.
