156GENERAL MAINTENANCE
Knowledge of the tyre inscription and
its meaning makes it easier to choose the
right tyres. Radial tyres have the following
inscription on the tyre wall:
e.g. 175 / 80 R 14 88 T
175 = Tyre width in mm
80 = Height/width ratio in %
R = Tyre design code for Radial
14 = Wheel diameter in inches
88 = Ply rating
T = Speed code
The following speed categories apply to
tyres:
Code letter Q - max. 160 km/h
Code letter R - max. 170 km/h
Code letter S - max. 180 km/h
Code letter T - max. 190 km/h
Code letter H - max. 210 km/h
Code letter V - max. 240 km/h
The tyres may be damaged if you drive
at more than the maximum speed for the
particular tyre.
The date of manufacture is also indicted
on the tyre wall (possibly only on the inside
of the wheel).
DOT 40.04 means that the tyre was manu-
factured in the 40
th calendar week of 2004.
Warning
Tyres which are more than 6 years
old, should only be used in excep-
tional cases and by adopting a cau-
tious style of driving.
If the car is retrofitted with tyres or wheels
other than the factory-fitted type, pay at-
tention to the following points:
Warning

For technical reasons, it is not per-
mitted on any account to use tyres
or wheels on your car which have not
been approved by the manufacturer
for the particular model.


Wheels and wheel bolts are matched
to each other. If different wheels are fit-
ted to the car (e.g. light alloy wheels or
wheels fitted with winter tyres), it is
then necessary to use the matching
wheel bolts of the correct length and
shape of spherical cap. In view of the
fact that the wheels and wheel bolts,
including security bolts, are matched
for all the wheels approved by the
manufacturer (sheet steel, steel and
light alloy wheels), never use wheel
bolts which are not approved by the
manufacturer. These are universal for
all types of approved wheels and are
tightened in the same way as described
in the section DO-IT-YOURSELF.

Using tyres and/or wheels which
have not been approved by the ma-
nufacturer for your model of car can
be detrimental to the safety of the
vehicle. It may also affect official ap-
proval for use of the vehicle on pub-
lic roads!

163
DO-IT-YOURSELF
Changing a wheelWarning

In the case of a flat tyre or punc-
ture, park the vehicle off the road,
switch on the hazard warning lights
and place the warning triangle in po-
sition - note any statutory require-
ments.

All the vehicle occupants should
leave the car and move to a safe area
(e.g. behind safety barrier).


Apply handbrake firmly and engage
a gear. Chock the opposite wheel with
a stone or similar if the car is stand-
ing on a slope.

Never start the engine when the
car is jacked up - risk of accident!

If towing a trailer, unhitch the
trailer from the car before changing
the wheel.

Carry out wheel change on a flat, level
surface, as far as possible.

Remove the car tool kit and spare wheel
from the luggage compartment.

Attach the wire hook (from the car tool
kit) at the edge of the full wheel trim* oppo-
site the air valve. Push the wheel wrench
through the wire hook and pull off the wheel
trim - see illustration.

If light-alloy wheels are fitted, use the
plastic clip supplied to pull off the covers
for the wheel bolts.

Unscrew the safety wheel bolts* - see
page 166.

Fit wheel wrench onto the wheel bolt as
far as the stop and turn to the left. Hold the
wrench as close as possible to its end for
this operation. If the bolts cannot be slack-
ened, you can carefully apply pressure to
the end of the wheel wrench with your foot.
Ensure that you are standing properly and
hold tight on the car. Slacken the wheel
bolts about one turn.

165
DO-IT-YOURSELF

Jack up car until the wheel is just clear
of the ground.

Remove wheel bolts (after slackening)
1),
place them down on a clean surface (cloth,
paper, wheel cap) next to the car jack and
take off wheel.

Fit on spare wheel and attach wheel
bolts
1).

Tighten all the wheel bolts slightly. The
wheel bolts should be clean and turn freely.

On no account grease or oil them!

Lower car and tighten the wheel bolts
diagonally.

Press on the full wheel trim* first at the
valve opening and then apply pressure
around the entire circumference so that the
trim locks in position.
1)In order to accelerate the screwing out and in,
use the handle part of the screwdriver from the
car tool kit, which has on its end a hexagon
socket for the screw head.

Place the wheel removed in the spare
wheel well and secure with the handwheel.
Notes

After changing a wheel, pay attention to
the following points:
- Check the inflation pressure of the spare wheel fitted.
- Have the tightening torque of the wheel bolts checked with a torque wrench as
soon as possible. The tightening torque
for steel and light alloy wheels is 120 Nm.

Have the faulty wheel repaired as quickly
as possible. Warning
In case of incorrect treatment of the
wheel bolts, the wheel can loosen
when the car is moving - risk of acci-
dent!
Wheel bolts must be clean and must
turn easily. However
, they must never
be treated with grease or oil.
If the wheel bolts are tightened to a
too low tightening torque, the trims
can loosen when the car is moving -
risk of accident! A tightening torque,
which is too high, can damage the
bolts and threads and this can result
in permanent deformation of the con-
tact surfaces on the trims.
If it is intended to subsequently fit
wheels or tyres other than the factory-
fitted versions to the car, it is essen-
tial to read the remarks on page 156.

168DO-IT-YOURSELFFuse assignment
No. Electrical component A
1 - Mirror and spray nozzle heater,relay for cigarette lighter
el. seats ........................................ 10
2 - Turn signal lights .......................... 10
3 - Stowage compartment light ............ 5
4 - Licence plate lights ......................... 5
5 - Seat heaters, Climatronic, Navi- gation system, recirculated air
flap, multifunction steering
wheel, exterior mirror heaters ..... 7.5
6 - Central locking control unit ............. 5
7 - Reversing lights, parking aid ........ 10
8 - Mobile phone .................................. 5
9 - ABS/ESP ......................................... 5
10 - Petrol engine: control unit ............ 20
Diesel engine: control unit .............. 5No. Electrical component A
11 - Dash panel insert, selector lever
lock solenoid (automatic
gearbox) .......................................... 5
12 - Power supply for diagnosis, mobile phone ............................... 7.5
13 - Brake lights ................................... 10
14 - Interior light, central locking ......... 10
Interior light (without central
locking) ......................................... 10
15 - Instrument cluster, automatic gearbox, steering lock angle
sensor, rear-view mirrors ................ 5
16 - Air conditioning, electric water pump ............................................. 10
17 - Police .............................................. 5
18 - Right main beam .......................... 10
19 - Left main beam ............................. 10
20 - Right low beam, headlight range control ................................. 15
21 - Left low beam ............................... 15
22 - Right parking light ........................... 5
23 - Left parking light ............................. 5
24 - Wiper system, washer pump ........ 20
25 - Heater fan ..................................... 25
26 - Rear window heater ...................... 25
27 - Rear window wiper ....................... 15
28 - Fuel pump ..................................... 15
29 - Petrol engine - engine electronics, ignition ....................... 15
Diesel engine - engine
electronics .................................... 10 No. Electrical component A
30 - Power sliding/tilting roof
............... 20
31 - Automatic gearbox ........................ 20
Haldex coupling .............................. 5
32 - Petrol engine - injectors ............... 10
Diesel engine - injection pump,
control unit .................................... 30
33 - Headlight cleaning system ........... 20
34 - Petrol engine - engine electronics .................................... 10
Diesel engine - engine
electronics .................................... 10
35 - Trailer socket, socket in luggage compartment ............... 30
36 - Fog lights ...................................... 15
37 - S contact
1)................................... 10
38 - Luggage compartment light, central locking, remote fuel
filler flap release ........................... 15
39 - Hazard warning signals ................ 15
40 - Horn .............................................. 20
41 - Cigarette lighter ............................ 15
42 - Radio ............................................. 15
43 - Petrol engine: engine electronics .................................... 10
Diesel engine: engine
electronics .................................... 10
44 - Seat heaters ................................. 15
1)For electrical components which can be oper-
ated after switching off the ignition provided the
ignition key is not withdrawn, e.g. radio.

169
DO-IT-YOURSELF
Colour coding of fuses:A
light brown: ............................................. 5
dark brown: .......................................... 7.5
red: ........................................................ 10
blue: ...................................................... 15
yellow: ................................................... 20
white: ..................................................... 25
green: .................................................... 30
Notes
The fuse assignment differs depending on
the version of your car.
The pliers for removing fuses and replace-
ment fuses are not contained in the car
equipment.
Replacing a bulbThe relevant light should always be swit-
ched off first of all before replacing a bulb.
Do not grasp the glass of the bulb with your
bare fingers (even the minutest spot of dirt
reduces the operational life of the bulb).
Use a clean cloth, napkin or similar.
A bulb should only be replaced by a lamp
of the same design . The designation is
given on the base of the bulb or on the
glass.
Warning
H4 bulbs are pressurized and may
burst when they are replaced. For
this reason, always wear gloves and
eye protection when changing a H4
bulb. Models with Xenon headlamps*
If your car is fitted with xenon head-
lights, have the bulb (low beam, side
light and main beam) replaced by a
Škoda dealer.
We recommend always carrying with you in
the car a box with a set of spare bulbs, which
you received together with your car, or which
is available from your Škoda Dealer
1).
1)The small box of replacement light bulbs are part
of the basic equipping of the vehicle in some
countries

170DO-IT-YOURSELFTable of bulbs
Front Halogen Xenonheadlight headlight headlight
Low beam H4D2SMain beam
H1Side lightsW 5 W
Turn signal
lights PY21W
Fog lights H3 Rear light Octavia Octavia
unit
Estate
Rear lightsP21W
Turn signal
lights PY21W
Brake lights
P21W
P21/5W
Side lights
P21/4W
Fog lights P21WOthers Octavia
Octavia
Estate
Side turn
signal lights WY5W
License plate
light W5W
Additional
brake light W2,3W LEDInterior light
C10WReading light W 5 WBoot light C5W C10W
Door warning
light C5W
Glove box light
C3W
Interior mirror light W2,3W

173

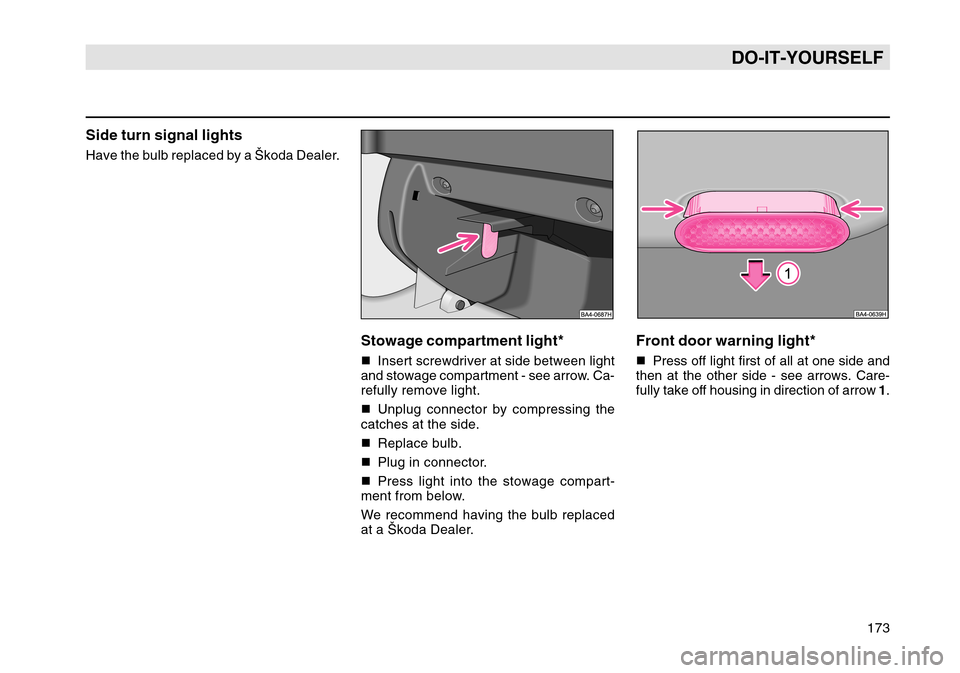

DO-IT-YOURSELF
Side turn signal lightsHave the bulb replaced by a Škoda Dealer.
Stowage compartment light*
Insert screwdriver at side between light
and stowage compartment - see arrow. Ca-
refully remove light.

Unplug connector by compressing the
catches at the side.

Replace bulb.

Plug in connector.

Press light into the stowage compart-
ment from below.
We recommend having the bulb replaced
at a Škoda Dealer.
Front door warning light*
Press off light first of all at one side and
then at the other side - see arrows. Care-
fully take off housing in direction of arrow 1.

183
ALPHABETICAL INDEX
Engine oil, 138- Specification, 138
Engine oil, 59, 118, 138
Engine oil, 59, 119, 138
EPC, 57, 60
ESP, 60, 64
Exterior mirror, 16FFault display, 50
Fire extinguisher, 166
First-aid box, 161
Fog lights, 57, 63
Fog lights, 63
Four-wheel drive models, 123
Fresh air, 78
Friendly way, 118
Front airbag, 103
Front passenger airbag switch, 107
Fuel consumption, 119
Fuel reserve, 49, 58
Fuel, 49, 58, 65, 119, 128
Fuses, 167HHandbrake, 36
Hands-free system, 37
Hazard warning light system, 63
Hazard warning light system, 63
Head restraints, 18, 95
- Adjusting head restraints, 18, 95 - Adjusting height, 18, 95
Headlamp beam adjustment, 66
Headlight flasher, 5
Headlight flasher, 67
Headlights - masking over, 158
Heating, 72
Hydraulic oil, 141
CHChild safety locks, 8
Child safety, 111
Child seat, 111
Chrome parts, 132IIdentification data, 181
Ignition lock, 43 - Steering lock, 44
Immobiliser, 7, 61
Indicators, 48
Information display, 53
Instrument lighting, 62
Interior light, 87
Interior lights, 88
Interlock, 101
ISOFIX system, 116
Isofix, 116JJump-starting, 177
KKeys, 6LLashing eyes, 29
Lights, 62 - Warning lights, 56
- Parking lights, 67
- Turn signal lights, 67
- Changing a bulb, 169
Loading area cover, 32
Loading area increased (Estate), 32
Locking the car, 8
Low beam, 62
Low beam, 62
Luggage compartment cover (Estate), 32
Luggage compartment cover, 26
Luggage compartment lights, 89
Luggage compartment, 11, 27MManual shifting of gears, 38
Mobile phone, 37, 159
Mobile phones and two-way radio systems, 159
MSR, 123
Multifunction display (MFD), 50
Multifunction steering wheel, 70
Multifunction switch, 67
