2004 Peugeot Expert Owner's Manual

26 -
19-07-2004
27
-
19-07-2004

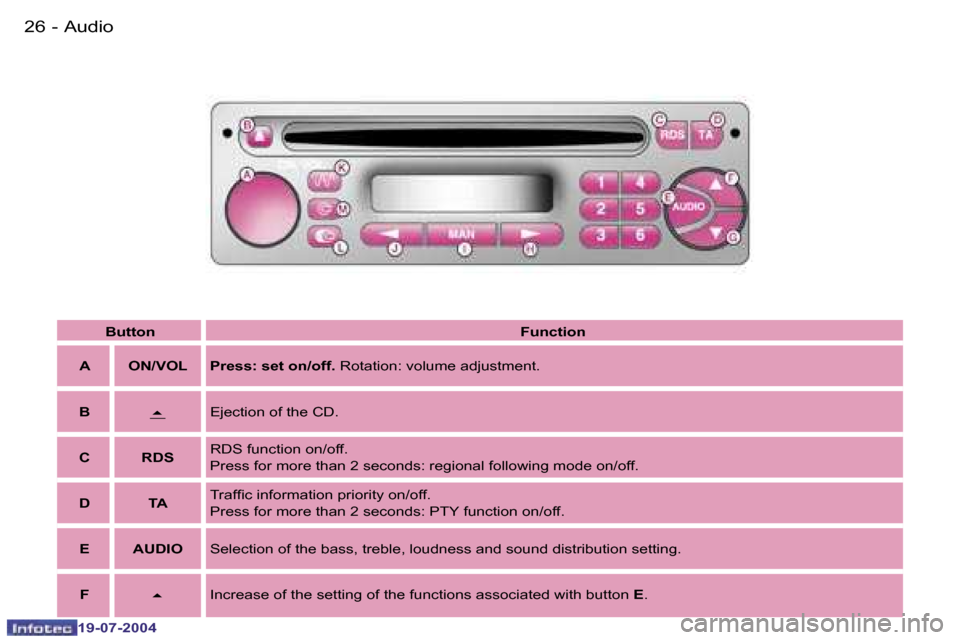

Audio
ButtonFunction
A ON/VOL Press: set on/off.
Rotation: volume adjustment.
B 5
Ejection of the CD.
C RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
D TA Trafic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
E AUDIO Selection of the bass, treble, loudness and sound distributio n setting.
F 5Increase of the setting of the functions associated with but
ton E.

26 -
19-07-2004
27
-
19-07-2004
Audio

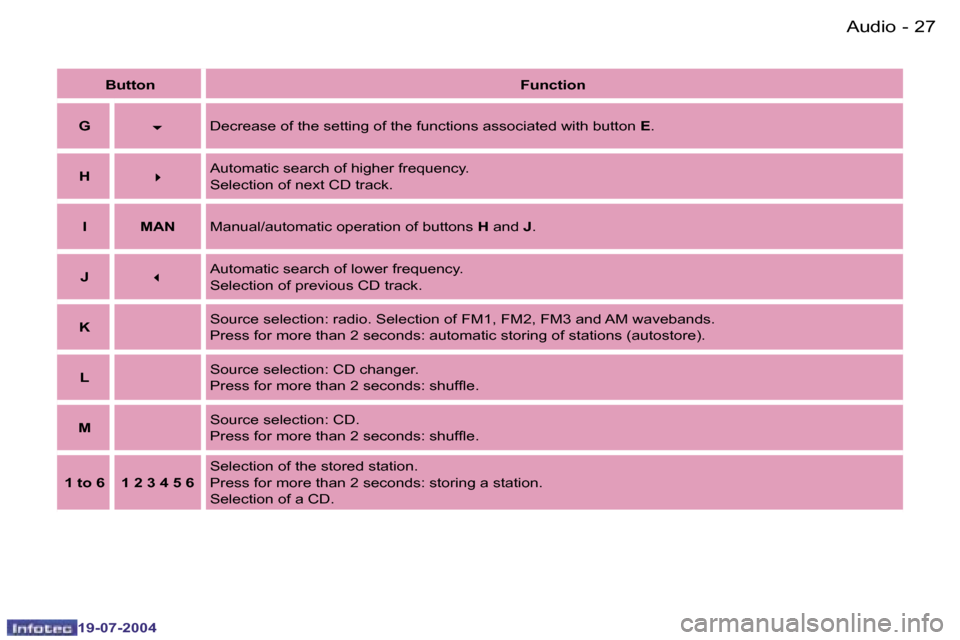

ButtonFunction
G
6Decrease of the setting of the functions associated with but
ton E.
H 4Automatic search of higher frequency.
Selection of next CD track.
I MAN Manual/automatic operation of buttons H and J.
J 3Automatic search of lower frequency.
Selection of previous CD track.
K Source selection: radio. Selection of FM1, FM2, FM3 and AM waveba
nds.
Press for more than 2 seconds: automatic storing of stations (autosto re).
L Source selection: CD changer.
Press for more than 2 seconds: shufle.
M Source selection: CD.
Press for more than 2 seconds: shufle.
1 to 6 1 2 3 4 5 6 Selection of the stored station.
Press for more than 2 seconds: storing a station.
Selection of a CD.

28 -
19-07-2004
29
-
19-07-2004
GENERAL FUNCTIONS
On / off
With the ignition key
in the accessories or
ignition on position,
press the
"ON/VOL"
button to switch the
set on or off.
The set can operate for 30 minutes
without switching on the ignition.
THEFT PROTECTION
When using the set for the irst time
or following disconnection of the set
or the battery, you must enter the
conidential code which was given to
you on delivery of your vehicle. Error in entering the code
If an error is made when entering
one of the irst three digits, do not
continue the operation and switch off
the set to prevent it from locking.
Each incorrect code entry will result
in the set being locked for between
5 seconds and 30 minutes, after the
7th incorrect entry.
To unlock the set, leave it switched
on during the waiting period. When
"- - - -"
is displayed, you can enter
the code again.
If the set is switched off during the
waiting period, this period will resume
when the set is switched on again.
After fourteen incorrectly entered
codes, the set will be permanently
locked.
Entering the code
Switch on the set.
"CODE" appears on the display then
the set changes over to code request
mode and "- - - -" is displayed.
Enter your four-digit code number
using buttons "1" to "6" .
Example : if your code number is
5345, press buttons "5" , "3" , "4"
and "5" in succession.
When the fourth digit has been
entered correctly, the set comes on
automatically. Press the
"AUDIO"
button several
times to select bass
(BASS) , treble
(TREBLE) , loudness
(LOUD) , fader (FAD)
and balance (BAL).
Exit from audio mode is automatic
after a few seconds, without
pressing any button, or by pressing
the "AUDIO " button after adjusting
the balance.
Note: the bass and treble settings
are speciic to each source. It is
possible to set them differently for
radio, CD, or CD changer.
AUDIO SETTINGS
ADJUSTING THE VOLUME
Turn the "ON/VOL" button to
increase or decrease the volume of
the set.
Note: If you have a telephone
itted with a "Mute" signal output
connected to the set, the set will
automatically change to "Mute" when
the telephone is used. Adjusting the bass
When
"BASS" is displayed, press
the "F" or "G" buttons to vary the
setting.
- "BASS -9" for a minimum bass
setting,
- "BASS 0" for a standard setting,
- "BASS +9" for a maximum bass
setting.
Audio

28 -
19-07-2004
29
-
19-07-2004
Audio
Adjusting the treble
When
"TREB" is displayed, press
the "F" or "G" buttons to vary the
setting.
- "TREB -9" for a minimum treble
setting,
- "TREB 0" for a standard setting,
- "TREB +9" for a maximum treble
setting.
Press the "K" button.
Selecting radio modeRADIO
Notes on radio reception
Your radio will be subject to
phenomena which do not affect
domestic radio sets. Both AM and
FM reception are subject to various
forms of interference which are
no relection on the quality of your
equipment, but are due to the nature
of the signals and the way in which
they are transmitted.
On MW/LW, interference may be
noticed when passing underneath
high voltage power lines, under
bridges or in tunnels.
On FM, interference may be the
result of increasing distance from the
transmitter, delection of the signal by
obstacles (mountains, hills, buildings
etc), or of being in an area which is
not covered by a transmitter.
Adjusting the loudness
This function automatically empha-
sises bass and treble tones when the
volume is low.
Press the
"F" or "G" buttons to
switch this function on or off.
Adjusting the front/rear sound
distribution (Fader)
When "FAD" is displayed, press
the "F" or "G" buttons to vary the
setting.
The "F" button increases the volume
at the front.
The "G" button increases the volume
at the rear. Adjusting the right/left sound
distribution (Balance)
When
"BAL" is displayed, press
the "F" or "G" buttons to vary the
setting.
The "F" button increases the volume
on the right-hand side.
The "G" button increases the volume
on the left-hand side.
Selecting a waveband
Short presses on the "K" button
selects the FM1, FM2, FM3 and AM
wavebands.

28 -
19-07-2004
29
-
19-07-2004
Audio
Adjusting the treble
When
"TREB" is displayed, press
the "F" or "G" buttons to vary the
setting.
- "TREB -9" for a minimum treble
setting,
- "TREB 0" for a standard setting,
- "TREB +9" for a maximum treble
setting.
Press the "K" button.
Selecting radio modeRADIO
Notes on radio reception
Your radio will be subject to
phenomena which do not affect
domestic radio sets. Both AM and
FM reception are subject to various
forms of interference which are
no relection on the quality of your
equipment, but are due to the nature
of the signals and the way in which
they are transmitted.
On MW/LW, interference may be
noticed when passing underneath
high voltage power lines, under
bridges or in tunnels.
On FM, interference may be the
result of increasing distance from the
transmitter, delection of the signal by
obstacles (mountains, hills, buildings
etc), or of being in an area which is
not covered by a transmitter.
Adjusting the loudness
This function automatically empha-
sises bass and treble tones when the
volume is low.
Press the
"F" or "G" buttons to
switch this function on or off.
Adjusting the front/rear sound
distribution (Fader)
When "FAD" is displayed, press
the "F" or "G" buttons to vary the
setting.
The "F" button increases the volume
at the front.
The "G" button increases the volume
at the rear. Adjusting the right/left sound
distribution (Balance)
When
"BAL" is displayed, press
the "F" or "G" buttons to vary the
setting.
The "F" button increases the volume
on the right-hand side.
The "G" button increases the volume
on the left-hand side.
Selecting a waveband
Short presses on the "K" button
selects the FM1, FM2, FM3 and AM
wavebands.

30 -
19-07-2004
31
-
19-07-2004
Automatic station search
Press the "MAN"
button.
Briely press button "H"
or "J" to increase or
reduce the frequency
displayed respectively .
By continuing to press the button in
the direction selected, you will obtain
continuous scrolling of the frequency.
Scrolling stops as soon as the button
is released.
Pressing the "MAN" button again
returns you to automatic station
search.
Manual station search Manual storing of stations in the
memory
Select the station required.
Press one of the buttons "1" to "6"
for more than two seconds.
The sound stops, then becomes
audible again, conirming that the
station has been stored in the
memory.
Press button "K" for
more than two seconds,
to automatically store
the 6 stations with the
strongest signal in FM.
These stations are stored in the FM3
waveband.
- If it is not possible to ind 6 stations, the remaining memories are
empty.
Briely press button
"H"
or "J" to search for the
station immediately
above or below.
Automatic storing of FM stations
in the memory (autostore)
Recalling stations stored in the
memory
For each waveband, briely pressing
the buttons "1" to "6" recalls the
corresponding station.
Audio
By continuing to press
the button in the
direction selected, you
will obtain continuous
scrolling of the
frequency. The scrolling stops on
the irst station found as soon as the
button is released.
If the TA trafic information
programme is selected, only stations
broadcasting this type of programme
are selected.
Searching for a station occurs irst
in "LO" sensitivity (selection of
the most powerful transmitters)
during scanning of the waveband,
then in "DX" sensitivity (selection
of the weakest and most distant
transmitters).
To scan the waveband in "DX"
sensitivity, press button "H" or "J"
twice.

30 -
19-07-2004
31
-
19-07-2004
Audio
RDS makes it possible
to listen to the same
station continuously,
whatever frequency it is
using for the region you
are going through.
Switch the function on or off by briely
pressing the "RDS" button.
RDS FUNCTION
Using the RDS (Radio Data
System) function on FM Note: the volume of trafic
information is independent of the
volume of normal radio listening.
You can adjust it using the volume
button. The setting will be stored
and will be used when the next
messages are broadcast.
While trafic information is being
broadcast, the display will alternately
show
"TRAFFIC" and the name
of the station broadcasting the
information.
When the station selected cannot
broadcast trafic information, the
display shows "NO TA".
Regional following mode (REG)
When they are part of a network,
certain stations broadcast regional
programmes in the various areas
they serve.
With regional following mode you
can keep listening to the same
programme.
To do this, press the "RDS" button
for more than two seconds to switch
the function on or off. PTY function
This enables stations which
broadcast a themed type of
programme (News, Culture, Sport,
Rock etc.) to be listened to.
With FM selected, press
the "TA" button for
more than two seconds
to switch this function
on or off.
- switch on the PTY
function,
- briely press button
"H" or "J" to scroll
down the list of the
various types of
programmes offered,
- when the programme of your choice is displayed, keep button "H" or "J"
pressed for more than two seconds
to carry out an automatic search
(after an automatic search the PTY
function is switched off).
In PTY mode the types of
programmes can be stored in the
memory. To do this, press and hold
the preselection buttons "1" to
"6" for more than two seconds. To
recall the type of programme stored
in the memory, briely press the
corresponding button.
RDS station following
The display indicates the name of the
station selected. The set continually
searches for the transmitter with the
best reception which is broadcasting
the same programme.
Press the "TA" button
to switch the function
on or off.
Any trafic information
lash will be broadcast
as a priority, whatever source you
are listening to (radio, CD or CD
changer).
If you wish to interrupt a message,
press the "TA" button; this switches
off the function.
Trafic information programme To search for a
PTY programme:

32 -
19-07-2004
33
-
19-07-2004
EON system
This system connects stations
belonging to the same network. It
enables the broadcast of TA trafic
information or a PTY programme
transmitted by a station belonging to
the same network as the station to
which you are listening.
This service is available when
you have selected the
TA trafic
information programme or the PTY
function. After inserting a disc
with the printed face
upwards, the player
starts automatically.
To listen to a disc which is already
inserted, press button "M".
Ejecting a disc
Shufle (RDM)
When the CD is selected, keep
button "M" pressed for two seconds.
The tracks will be played in random
sequence. Pressing button "M"
again for two seconds returns you to
normal play.
Press button
"B" to
eject the disc from the
player.
Selecting a track Press button "H" to
select the next track.
The use of copied
compact discs may cause
malfunctions.
Use circular compact discs
only.COMPACT DISC
Selecting CD mode
Press button "J" to
return to the start of the
current track or to select
the previous track. Press the
"MAN"
button.
Keep button "H" or "J"
pressed for forwards or
backwards accelerated
play.
Accelerated play stops as soon as
the button is released.
Buttons "H" and "J" resume the
track selection function when the
"MAN" button is pressed again.
Accelerated play
Audio
