2004 PEUGEOT 807 Owners Manual

52
26-04-2004
53
26-04-2004
YOUR 807 IN DETAIL
Text messages (SMS)
Accessing text messages
When the buzzer sounds (if the SMS
text messages buzzer option is ac-
tive) and a superimposed screen
announces "Do you wish to read
the new text message (SMS)?" ,
you can choose to read the text mes-
sage received by selecting and vali-
dating "YES" or postpone reading
it by selecting and validating "NO",
by pressing the "ESC" button or by
waiting until the announcement dis-
appears. The message is read by the
voice synthesiser, if it is active.
Note: the old text messages stored
and the new text messages, the
reading of which you wish to post-
pone, can be consulted. Press the
"MENU" button then validate the
telematic icon, select "Text mes-
sages (SMS)" and validate the func-
tion "Reading of text messages
received" by pressing knob G. Then
scroll through the list by turning the
knob and press the knob to select the
text message to be read. Note:
Before typing your irst text
message, check that your text mes-
sages (SMS) centre number is stored
correctly in the sub-menu "Server
centre N°" . If it is not, any text mes-
sages typed before this number is
entered will not be sent.
In the menu "Text messages (SMS)"
validate the function "Typing of a
text message" . Type your text mes-
sage using the alphanumeric keypad
and validate it using the "OK" button
to store it or validate the "Send" but-
ton to send it.
Validation of the "Send" button ena-
bles you to enter the number of your
recipient or select it from the direc-
tory or from the list of calls and send
the message.
Sending a text message
"Duration of calls" menu
Select the
"Duration of calls" func-
tion from the "Telephone functions" menu to consult the duration counters
for the calls made. The part counter
totals the duration of the calls since
the last zero reset carried out using
the "Zero reset" button.
"Telephone options" menu
Select the "Telephone options" func-
tion from the "Telephone options"
menu to access the functions: • "Conigure the calls" which per-
mits activation and deactivation of
the "show my number" and "au-
tomatic answering after X rings"
functions.
• "Ringing options" which permits
adjustment of the ringing volume
for voice calls, activation of the text
messages (SMS) receipt buzzer
and selection of a ring tone from
the ive offered.
• "Diversion number/voice mail"
which permits recording of the call
diversion number chosen by the
customer, otherwise the call will be
transferred to the voice mail.

54
26-04-2004
55
26-04-2004
YOUR 807 IN DETAIL
Press button E to dis-
play the "Services"
menu and select one of
the following services:
• "Customer Contact
Centre" which ena-
bles you to contact the
PEUGEOT Customer
Contact Centre directly and access
the services offered (this type of call is
suspended if an energency or break-
down call is made).
•
"PEUGEOT Assistance" which ena-
bles you to contact the call centre which
controls the PEUGEOT breakdown
service directly and receive rapid assist-
ance (you have 6 seconds within which
to cancel the call when it is made). Dur-
ing the breakdown call phase it is not
possible to make any other calls with
the exception of emergency calls. If you
have signed the speciic PEUGEOT
contract, your call will be located.
• "Operator services" which gives
access to the list of services spe-
ciic to your operator (e.g.: customer
service, consumption monitoring,
news, stock market, weather, travel,
games, etc) if they are available.
Services*
In an emergency , press button
V until a signal is heard and a
call validation / deletion screen
is displayed (delay of 6 sec-
onds) or enter 112 directly.
Make an emergency call when
you are involved in a situation
which leads you to fear serious
consequences (injuries, ...) for those
exposed to them (if you witness or are
involved in an accident resulting in inju-
ries, an attack, ...).
Before making a call of this kind, the
audio/telephone must detect a cel-
lular network.
If you have not signed the speciic
PEUGEOT contract, the parameters
of the SOS button are set so that a
call is made to 112 - unique number
made available by the worldwide
GSM network, reserved for emer-
gency calls.
No security mode is required and,
depending on the network, you do
not need to insert your SIM card or
enter your PIN.
If you have signed the speciic PEUGEOT
contract, your call will be located and you
will be put in contact with a PEUGEOT
assistance team.
For further details, refer to the gen-
eral conditions of your contract.
Emergency call*
"PEUGEOT Assistance" /
Emergency call
During a connection to "PEUGEOT
Assistance" or to an emergency
call, it is not possible to send or re-
ceive calls or SMS text messages;
these will be transferred to your
voice mail.
In this case, a green diode lashes
on the RT3 GPS audio/telephone
panel, when the emergency call or
"PEUGEOT Assistance" call pro-
cedure begins, then lights continu-
ously when the call is taken by the
services concerned.
If your call to "PEUGEOT Assist-
ance" is located, an asterisk " ´" will
appear in the text on the screen.
* If option and service available.

54
26-04-2004
55
26-04-2004
YOUR 807 IN DETAIL
The directory
General
The "Directory" application gives
access to 400 iles divided into 4 in-
dependent sub-directories ("User1",
"User2", "User3" and "User4"). It
enables you to manage these iles,
make calls using the SIM card and
activate guidance.
From the general menu , select the
"Directory" application to access its
main menu and select one of the fol-
lowing functions:
• "Call", to call a number stored in a ile,
• "Activate guidance to", to initiate guidance to a location stored in a
ile,
• "Management of directory iles", to add, delete, modify and consult di-
rectory iles or exchange them with
the SIM card,
• "Directory coniguration", to select the working directory and deine
the directory when the system is
switched on.
Main menu
To create a ile, from the
"Directory"
menu, select the "Management of di-
rectory iles" function, then "Add".
In the ile, select the section to be
illed in, conirm and then enter the
information.
To modify an existing ile, select it by
means of the "Consult or modify the
ile" function of the "Management of
directory iles" menu, then make the
modiications.
Note: when entering the address,
the navigation CD ROM must be
present to obtain guidance to this
destination.
Creation / Modiication of a ile Description of a directory
ile
When a description is associated
with a directory ile, you can record
the description vocally to use it later
for direct access by means of voice
commands (e.g.: "Call" "[Name of
voice description]" or "Guide to"
"[Name of voice description]" ).
Select "Consult or modify the ile"
from the "Management of directory
iles" menu to access the description
entering and recording screen.
Press the record button and follow
the instructions.
TMC (Traffic Message Channel)
RDS Traffic Information
You can access the information
regarding the status of the trafic
on the road from the "Audio func-
tions" or "Telematics" menu, then
the "Trafic Information TMC" func-
tion (see section "Satellite navigation
system").

56
26-04-2004
YOUR 807 IN DETAIL
VOICE COMMANDS
The voice commands make it pos-
sible to use pre-recorded words or
phrases to control a certain number
of functions of the RT3 GPS audio/
telephone.
Activation of the voice commands
Press the button on the end of the
lights stalk to activate or deacitvate
this function.
Example: to recall the radio station
stored on button 3, the key words
are: "Radio" "Memory" "3" .
To use these key words, you must
say the word "Radio", wait for the
audible conirmation signal, then
say the word "Memory", wait for the
audible conirmation signal, then end
with the word "3", wait for the audible
conirmation signal which will carry
out the action requested.
Notes:
- between two key words, a screen indicates the time remaining and
the key word recognised,
- in the absence of any voice commands, this function will be
switched off after approximately
ive seconds,
- if a command is not understood, the system transmits the phrase
"Pardon" and displays "Word not
recognised" on the screen. Saying the phrase
"Help" or "What
can I say" displays all of the com-
mands available on the screen.
List of commands available
- For the radio, say "RADIO", then:
"PREVIOUS" / "FOLLOWING" / "MEMORY" + "1...6" / "AUTO-
STORE" / "LIST"
- For the CD, say "CD PLAYER", then:
"PREVIOUS TRACK" / "FOLLOWING TRACK" / "TRACK
NUMBER" + "1...20" / "SHUFFLE" /
"SCAN" / "LIST"
- for the CD changer, say "CHANG- ER", then":
"PREVIOUS TRACK" / "FOLLOWING TRACK" / "TRACK
NUMBER" + "1...20" / "PREVIOUS
DISC" / "FOLLOWING DISC" /
"DISC NUMBER" + "1...6" / "SHUFFLE" / "SCAN" / "REPEAT" /
"LIST"
- For the telephone, say "TELE- PHONE", then:
"LAST NUMBER" / "DIREC- TORY" + DESCRIPTION / "SERV-
ICES" / "VOICE MAIL" / "VOICE
MESSAGES"
- For the text messages, say "SMS" or "MESSAGE", then:
"DISPLAY" / "READ"
- For the RDS trafic information TMC, say "TRAFFIC-INFO", then:
"DISPLAY" / "READ" - For navigation/guidance, say
"NAVIGATION" or "GUIDANCE",
then:
"STOP" / "RE-START" / "DIRECTORY" + DESCRIPTION /
"ZOOM PLUS" / "ZOOM MINUS" /
"SHOW" + "DESTINATION" /
"SHOW" + "VEHICLE"
- To change the permanent applica- tion, say "DISPLAY", then:
"AUDIO" / "TELEPHONE" / "NAVI- GATION" / "GUIDANCE" / "TRIP
COMPUTER"
- To call someone recorded in the directory directly, say "CALL" +
DESCRIPTION
- To be guided to the address of someone recorded in the directory,
say "GUIDE TO" + DESCRIPTION
- Various:
"CANCEL" / "HELP" / "WHAT CAN I SAY" / "STOP" / "DELETE" /
"YES" / "NO" / "PREVIOUS" /
"NEXT"

57
26-04-2004
YOUR 807 IN DETAIL
To insert a disc into the changer:
- open sliding panel A,
- press button B to eject the car-
tridge C,
- open one of the six compartments of the cartridge by pulling tab D,
- insert the disc with the printed
face upwards and close the
compartment,
- insert the cartridge into the changer,
- close the sliding panel A.
This is located inside the passen-
ger's lower glove compartment. It
holds up to 6 discs.
CD CHANGER
The use of copied com-
pact discs may cause
faults.
Insert circular compact
discs only.

58
26-04-2004
59
26-04-2004
YOUR 807 IN DETAIL

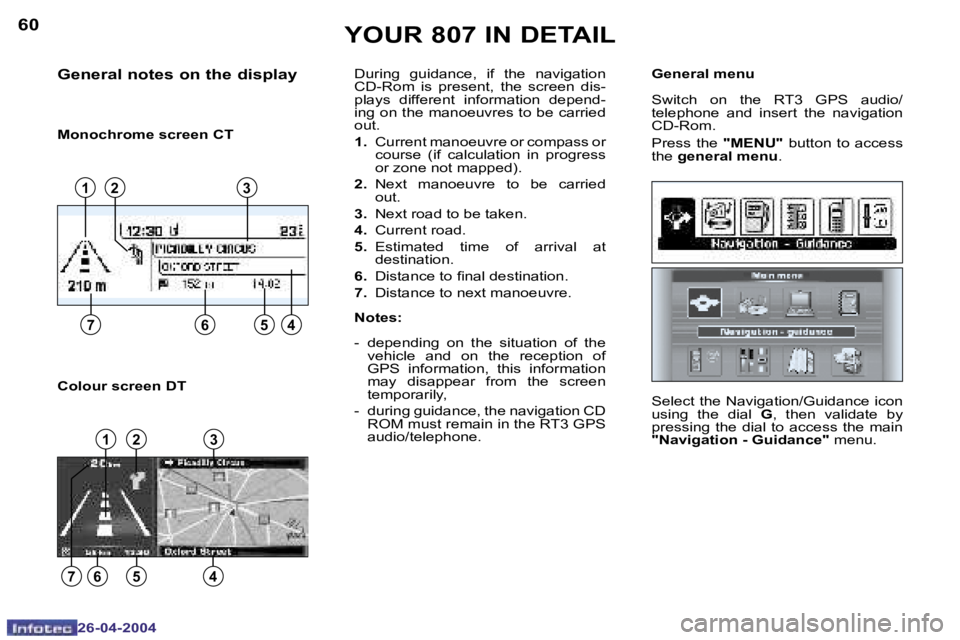

SATELLITE NAVIGATION
SYSTEM
Introduction
The satellite navigation system
guides you, by means of vocal and
visual instructions (graphics), to
your chosen destination.
The heart of the system lies in the
use of a map data base and
GPS
(Global Positioning System) . With
this system you can ix the position
of your vehicle by means of a satel-
lite network.
The system uses the following ele-
ments:
- the CD-Rom drive,
- the coniguration CD-Rom,
- the navigation CD-Rom,
- the last voice message recall control,
- the control keypads,
- the CT monochrome display or the DT colour screen.
Certain functions or services de-
scribed may vary depending on
the version of the CD-Rom or the
country where the vehicle is sold.
For safety reasons, the
inputting of navigation
information by the driver
must be carried out when
the vehicle is stationary.
The CD-Rom drive
This is part of the RT3 GPS audio/
telephone.
1. CD-Rom ejection button.
2. CD-Rom housing.
The navigation CD-Rom
This contains all the map data.
It must be inserted in the drive, printed
face upwards.
Use only CD-Roms approved by
PEUGEOT. The last voice message recall
control
Pressing for more than two seconds
on the button at the end of the lights
stalk repeats the last voice informa-
tion.

58
26-04-2004
59
26-04-2004
YOUR 807 IN DETAIL
RT3 GPS audio/telephone control
keypad
The control keypads
These let you select and validate
the functions, commands and pro-
grammes displayed.
The additional telematics control is
located by the side of the gear lever.
or additional telematics controlRotation of the dial:
This allows you to
move round the
screen and thus select a function.
It also allows you:
- with a 'setting' type parameter,
after selection, to increase or de-
crease the value,
- with a 'list' type parameter, after
opening the list, to scroll through
the values,
- with map guidance, to increase or
decrease the zoom.
Pressing the dial:
This allows:
- access to the list of controls (con-
textual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected func-
tion or the modiied value.
- selection of a 'setting' or 'list'
type parameter for modiication.
"MODE" button
- Brief press: modiication of per- manent display (audio system,
navigation/guidance...),
- Pressing for more than two seconds displays general information .'ESC' button:
- Brief press:
cancelling of opera-
tion in progress or erasing of last
superimposed display.
- Pressing for more than two seconds: erasing of all superimposed displays
and return to the permanent display.
'MENU' button:
- Brief press: access to the general
menu .
- Pressing for more than two seconds: access to the help menu.
"NAV" button
- Brief press: display of the con- textual menu of the navigation/
guidance function.
"MAIN" button
- Brief press: display of the general
information .
Tip:
You can access the general menu
by pressing:
- the dial G of the RT3 GPS audio/
telephone ,
or
- the dial of the additional telematics control.

60
26-04-2004
61
26-04-2004
General menu
Switch on the RT3 GPS audio/
telephone and insert the navigation
CD-Rom.
Press the "MENU" button to access
the general menu .
During guidance, if the navigation
CD-Rom is present, the screen dis-
plays different information depend-
ing on the manoeuvres to be carried
out.
1.
Current manoeuvre or compass or
course (if calculation in progress
or zone not mapped).
2. Next manoeuvre to be carried
out.
3. Next road to be taken.
4. Current road.
5. Estimated time of arrival at
destination.
6. Distance to inal destination.
7. Distance to next manoeuvre.
Notes:
- depending on the situation of the vehicle and on the reception of
GPS information, this information
may disappear from the screen
temporarily,
- during guidance, the navigation CD ROM must remain in the RT3 GPS
audio/telephone.
General notes on the display
YOUR 807 IN DETAIL
Monochrome screen CT
Colour screen DT
Select the Navigation/Guidance icon
using the dial G, then validate by
pressing the dial to access the main
"Navigation - Guidance" menu.
7654
7654
123
321
