YOUR 807 IN DETAIL
Video
It is possible to connect video equip-
ment (a camcorder, digital camera, ...)
using the three video sockets situated
inside the glove box.
It is only possible to display
video images when the vehicle is
stationary.
Select the "Video" menu from the
main menu :
- "Activate video mode" to activate/ cancel the video function,
- "Video parameters" to adjust the display format, the brightness, con-
trast and colour.
Press "MODE" or "DARK" to exit video
mode.
Successive presses on the "SOURCE"
button allow you to select another au-
dio source other than the video.
For safety reasons, con-
iguration of the multi-
function screens by the
driver must be carried out
when stationary.

34
26-04-2004
35
26-04-2004
YOUR 807 IN DETAIL
Adjusting the front/rear
sound distribution (Fader)
When "FAD" is displayed, press button
H or I.
Button H increases the volume at
the front.
Button I increases the volume at the
rear.
Adjusting the right/left
sound distribution (Balance)
When "BAL" is displayed, press button
H or I.
Button H increases the volume on
the right-hand side.
Button I increases the volume on the
left-hand side.
Automatic volume correction
This function enables the volume to
be automatically adjusted depending
on the level of noise produced by the
speed of the vehicle.
Press buttons H or I to switch the function
on or off.
RADIO
Notes on radio reception
Your car radio is subject to phenom-
ena which do not affect domestic
radio sets. Both AM (MW/LW) and
FM reception are subject to various
forms of interference. This is no re-
lection on the quality of the equip-
ment, but is due to the nature of the
signals and the way in which they are
transmitted.
On MW/LW, interference may be no-
ticed when passing under high voltage
power lines or bridges, or in tunnels.
On FM, interference may be the re-
sult of increasing distance from the
transmitter, delection of the signals
by obstacles (mountains, hills, build-
ings etc.), or of being in an area which
is not covered by a transmitter.
Press button O.
Selecting radio mode Press button
O briely to select wave-
bands FM1, FM2, FMast and AM.
Selecting a waveband
Briely press button
J or L to search
for the station immediately above or
below. By continuing to press the
button in the direction selected, you
will obtain continuous scrolling of the
frequency.
The scrolling stops at the irst sta-
tion found as soon as the button is
released.
If the TA trafic programme is select-
ed, only stations broadcasting this
type of programme are selected.
Searching for a station occurs irst in
"LO" sensitivity (selection of the most
powerful transmitters) during scan-
ning of the waveband, then in "DX"
sensitivity (selection of the weakest
and most distant transmitters).
To make a direct search in "DX" sen-
sitivity, press button J or L twice.
Automatic station search

36
26-04-2004
37
26-04-2004
YOUR 807 IN DETAIL
Press the "MAN" button.
Briely press button J or L to increase
or decrease the frequency displayed.
By continuing to press the button in
the direction selected, you will obtain
continuous scrolling of the frequency.
The scrolling stops at the irst sta-
tion found as soon as the button is
released.
Pressing the "MAN" button again re-
turns you to automatic station search. Select the station required.
Press one of the buttons
"1" to "6"
for more than two seconds.
The sound stops then becomes audi-
ble again, conirming that the station
has been stored in the memory.
Manual storing
of stations in the memory
Automatic storing of FM stations
in the memory (autostore)
Press button O down
for more than two
seconds.
Your radio automatically stores the
six stations with the strongest signal
in FM . These stations are stored in
the FMast waveband.
If it is not possible to ind 6 stations,
the remaining memories are empty.
Recalling stations
stored in the memory
For each waveband, briely press one
of the buttons "1" to "6" to recall the
corresponding station.
RDS
Using the RDS (Radio Data
System) function on FM
The Radio Data System allows you
to continue listening to the same sta-
tion whatever frequency it is using for
the region you are going through.
Briely press the "RDS"
button to switch the
function on or off.
The multifunction dis-
play will show:
- "RDS" if the function is selected,
- "(RDS)" if the function is selected
but not available.
RDS station following
The display indicates the name of the
station selected. The radio is contin-
ually searching for the station which
has the best reception and which is
transmitting the same programme.
Manual station search

36
26-04-2004
37
26-04-2004
YOUR 807 IN DETAIL
Press the "TA" button
to switch the function
on or off.
The multifunction dis-
play will show:
- "TA" if the function is selected,
- "(TA)" if the function is selected
but not available.
Any trafic information lash will be
given priority, whatever source you are
listening to (radio, CD or CD changer).
If you wish to interrupt a message,
press the "TA" button; this switches
the function off.
Note: the volume of trafic informa-
tion announcements is independ-
ent of the volume of normal radio
listening. You can adjust it using
the volume button. The setting will
be stored and will be used when
the next messages are broadcast.
Trafic information programme
PTY function
This allows you to listen to stations
broadcasting a speciic type of pro-
gramme (news, culture, sport, rock etc.).
Regional following mode (REG)
When they are part of a network,
certain stations broadcast regional
programmes in the various areas
they serve. With regional following
mode you can keep listening to the
same programme.
Press the "RDS" button for more
than two seconds to switch the func-
tion on or off. - select the
PTY function,
- briely press button J or L to scroll
down the list of the various types of
programmes offered.
- when the programme of your choice is displayed, keep button J or L
pressed for more than two seconds
to carry out an automatic search
(after an automatic search the PTY
function is switched off).
In PTY mode, the different types of
programmes can be stored in memory.
To do this, press the preselection but-
tons "1" to "6" for more than two sec-
onds. Briely press the corresponding
button to recall the type of programme
stored in the memory.
EON system
This connects stations which are part
of the same network. It enables the
broadcasting of trafic information or
a PTY programme by a station that is
part of the same network as the sta-
tion to which you are listening.
This service is available when you
have selected the TA trafic informa-
tion programme or the PTY function.
With
FM selected,
press the "TA" but-
ton for more than two
seconds to switch this
function on or off. To search for a
PTY programme:

30
26-04-2004
31
26-04-2004
The additional
telematics control
This permits selection and validation
of the functions, commands and pa-
rameters, displayed on the CT mono-
chrome screen and the DT colour
screen .
It is located next to the gear lever.
YOUR 807 IN DETAIL
Rotation of the knob:
This enables you to move around the
screen and thus select a function.
It also permits:
- with a "setting" type parameter,
following selection, increasing or
decreasing of the value,
- with a "list" type parameter, after
opening the list, scrolling of the
values,
- with guidance on a map, increasing
or decreasing of the zoom factor.
Pressing the knob
This permits:
- access to the list of commands
(context-related menu) of the per-
manent application displayed, if no
superimposed display appears,
- validation of the selected function
or of the modiied value,
- selection of a "setting" or "list"
type parameter in order to modify it.
"MODE" button:
- Brief press: modiication of the per- manent application display (audio
equipment, navigation/guidance, ...)
- Pressing for more than two seconds: displaying of the general informa-
tion . "ESC" button:
- Brief press:
cancellation of the
operation in progress or clearing
of the last superimposed display.
- Pressing for more than two sec- onds: clearing of all of the super-
imposed displays and return to the
permanent application.
"MENU" button:
- Brief press: access to the general
menu .
- Pressing for more than two seconds: access to the help menu.
"MUSIC" button:
- Brief press: displaying of the context- related menu of the active audio
source (tuner, CD, ...).
"TEL" button:
- Brief press: opening of the line, in the case of an in-coming call, or
displaying of a telephone source
context-related menu.
"NAV" button:
- Brief press: displaying of a context- related menu of the navigation/
guidance function.
"MAIN" button:
- Brief press: displaying of the general
information .

32
26-04-2004
33
26-04-2004
AUDIO RD3YOUR 807 IN DETAIL

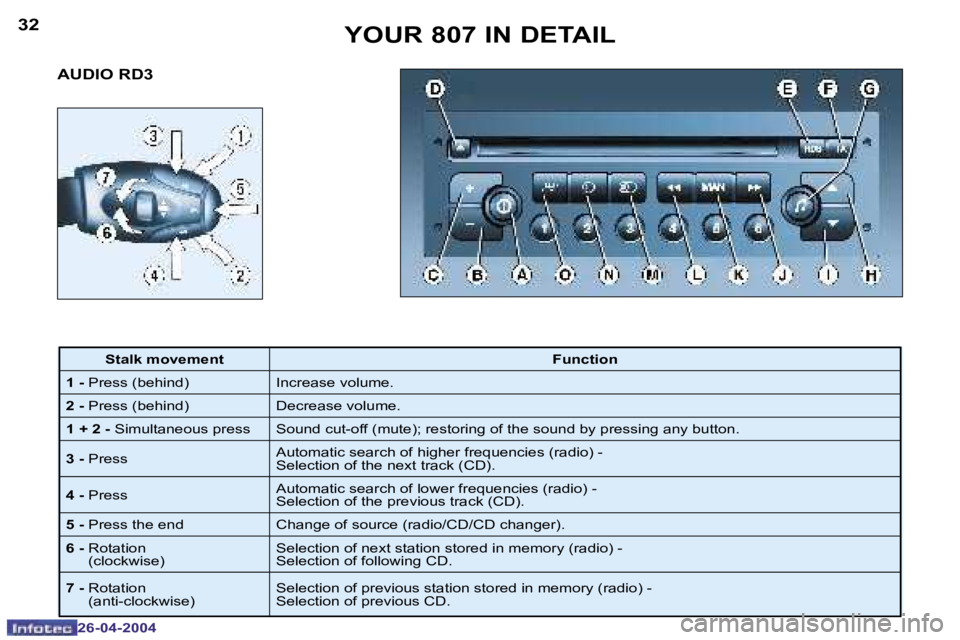

Stalk movement
Function
1 - Press (behind)
Increase volume.
2 - Press (behind)Decrease volume.
1 + 2 - Simultaneous pressSound cut-off (mute); restoring of the sound by pressing any butto n.
3 - PressAutomatic search of higher frequencies (radio) -
Selection of the next track (CD).
4 - PressAutomatic search of lower frequencies (radio) -
Selection of the previous track (CD).
5 - Press the end Change of source (radio/CD/CD changer).
6 - Rotation
(clockwise) Selection of next station stored in memory (radio) -
Selection of following CD.
7 - Rotation
(anti-clockwise) Selection of previous station stored in memory (radio) -
Selection of previous CD.

32
26-04-2004
33
26-04-2004
YOUR 807 IN DETAIL

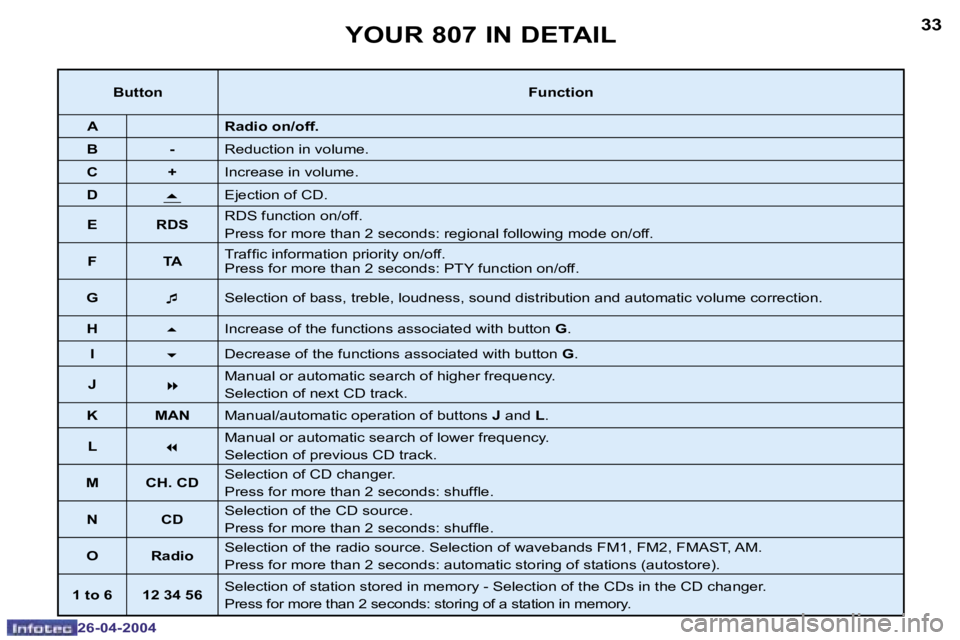

ButtonFunction
A Radio on/off.
B - Reduction in volume.
C + Increase in volume.
D
5Ejection of CD.
E RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
F
TATrafic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
G
¯Selection of bass, treble, loudness, sound distribution and a utomatic volume correction.
H 5Increase of the functions associated with button
G.
I 6Decrease of the functions associated with button
G.
J 8Manual or automatic search of higher frequency.
Selection of next CD track.
K MAN Manual/automatic operation of buttons J and L.
L 7Manual or automatic search of lower frequency.
Selection of previous CD track.
M CH. CD Selection of CD changer.
Press for more than 2 seconds: shufle.
N CD Selection of the CD source.
Press for more than 2 seconds: shufle.
O Radio Selection of the radio source. Selection of wavebands FM1, FM2,
FMAST, AM.
Press for more than 2 seconds: automatic storing of stations (autosto re).
1 to 6 12 34 56 Selection of station stored in memory - Selection of the CDs in
the CD changer.
Press for more than 2 seconds: storing of a station in memory.

34
26-04-2004
35
26-04-2004
YOUR 807 IN DETAIL
GENERAL FUNCTIONS
On / off
With the ignition key
in the accessories or
ignition position, press
button A to switch the
set on or off.
The set can operate for 30 minutes
without the vehicle ignition being
switched on.
Anti-theft system
The audio system is coded in such a
way that it can operate only on your
vehicle. It would not function if itted
to another vehicle.
The anti-theft system is automatic
and requires no action on your part.
ADJUSTING THE VOLUME
Press button C to increase the volume,
or button B to decrease it.
Continuous pressure on buttons B and
C allows a gradual adjustment of the
volume.
AUDIO SETTINGS
Press button G sev-
eral times in succes-
sion to access the bass
(BASS) , treble (TREB) ,
loudness (LOUD), fader
(FAD), balance (BAL)
and automatic volume
correction settings.
Exit from audio mode is automatic
after a few seconds without pressing
any button, or by pressing button G
after coniguration of the automatic
volume correction.
Note: bass and treble settings are
speciic to each source. It is possible
to set them differently for radio, CD
or CD changer. When
"BASS" is
displayed, press but-
ton H or I to vary the
setting.
- "BASS -9" for a
minimum bass set-
ting,
- "BASS 0" for a normal setting,
- "BASS +9" for a maximum bass
setting.
Adjusting the treble
When "TREB" is displayed, press
button H or I to vary the setting.
- "TREB -9" for a minimum treble
setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum treble
setting.
Adjusting the loudness
This function automatically empha-
sises bass and treble tones.
Press button H or I to switch the func-
tion on or off.
Adjusting the bass
