2004 PEUGEOT 607 ABS

02-02-2004
YOUR AT A GLANCE5
STARTING
STOP position:
The ignition is switched off.
1st notch, Accessories position:
The ignition is switched off but theaccessories still function. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter. Starting a diesel engine If the temperature is high enough, the pre-heat indi-cator light does not comeon and you can start imme-
diately.
If the indicator light comes on, waitfor it to go out before operating the
starter. If the engine stalls, it is necessary to return the key to the 'Stop' posi-
tion before re-starting. CHECK
(vehicle autotest)
Automatic check
With the ignition on (2nd notch)If no malfunction has been detected: In the
absence of vehicle func-tion status indicator lights,the OK light is displayed
after two seconds on the instru-ment panel screen. Otherwise, itwill be displayed after these indi-cator lights come on. If a 'minor' malfunction has been detected: the warning light for the
faulty function is displayed on theinstrument panel screen. Certainindicator lights showing the status ofvehicle functions may also come on,followed by the OKindicator light.
If a 'major' malfunction has beendetected: the corresponding warning
light is displayed on the instrumentpanel screen. Certain indicator lightsshowing the status of vehicle func-
tions may also come on. The OK
indicator light does not come on. Do
not start your vehicle. Contact a
PEUGEOT dealer. Afterwards, if the passenger air bag is disarmed, the correspon-ding warning light will come on.
With the engine running or if the vehicle is moving , the instrument
panel screen temporarily displays:
- lights indicating warnings, when
these occur,
- vehicle function status indicator lights, when a changeoccurs. The display of certain indicatorlights is accompanied by anaudible signal and a message
on the multi-function display. Manual check
 Press the "CHECK" button on
the instrument panel.
With the ignition key in the accessories position, with the ignition switched on,with the engine running or the vehiclemoving, this function informs you at alltimes of the following:
- any current warnings,
- the status of functions which it is possible to switch on or switch off (windscreen wipers, automaticswitching on of lights, cruisecontrol, disarming of passenger airbag, etc.).
The corresponding warning lightsare displayed in succession onthe instrument panel screen. If a warning or a change of status occurs during the CHECKmode, the
corresponding indicator light(s) will bedisplayed at the end of this mode.
21
Never run the engine in a confined space. Do not make any modi-
fications to the steering lock.

02-02-2004
INSTRUMENTS AND CONTROLS
18
1 -
Handbrake indicator light.
2 - Seat belt not fastened indicator light.
3 - Main beam headlamps indicatorlight.
4 - Dipped beam headlampsindicator light.
5 - Rev counter.
6 - Left-hand direction indicator.
7 - Fuel gauge. 8 -
Right-hand direction indicator.
9 - Speedometer.
10 - Front fog lamps indicator light.
11 - ABS anti-lock braking system warning light.
12 - Rear fog lamps indicator light.
13 - Engine diagnostics warninglight. 14 -
Coolant temperature indicator.
15 - CHECK button.
16 - Trip recorder zero re-set.
17 - Service indicator and total
distance recorder.
18 - Warning/status screen.
19 - Illumination button +.
20 - Illumination button -.
21 - Engine oil level indicator.
- Engine oil temperature
indicator.
INSTRUMENT PANEL DIALS: PETROL

02-02-2004
INSTRUMENTS AND CONTROLS19
1 -
Handbrake indicator light.
2 - Seat belt not fastened indicator light.
3 - Main beam headlamps indicatorlight.
4 - Dipped beam headlamps indi-cator light.
5 - Rev counter.
6 - Left-hand direction indicator.
7 - Fuel gauge. 8 -
Right-hand direction indicator.
9 - Speedometer.
10 - Front fog lamps indicator light.
11 - ABS anti-lock braking system warning light.
12 - Rear fog lamps indicator light.
13 - Engine diagnostics warninglight. 14 -
Coolant temperature indicator.
15 - CHECK button.
16 - Trip recorder zero re-set.
17 - Service indicator and total
distance recorder.
18 - Warning/status screen.
19 - Illumination button +.
20 - Illumination button -.
21 - Engine oil level indicator.
- Engine oil temperature
indicator.
INSTRUMENT PANEL DIALS: DIESEL

02-02-2004
INSTRUMENTS AND CONTROLS
20
INDICATOR LIGHTS
With the key in the accessories position (1st notch): the battery charge warning light illuminates on the instrument panel disp lay.
With the ignition on (2nd notch): the following three warning lights illuminate on the sides of the instrument panel:
Brake fluid level and brake force distribution fault warning light. This light should go out after 3 seconds.If the warning light remains on, or if it comes on when the engine is running and the vehicle is moving, it indicates an excessive drop in the brake fluid level or a malfunction of the brake force distribution. Stop immediately. Contact a PEUGEOT dealer.
Anti-lock braking system (ABS) warning light This should go out after 3 seconds.
If the warning light remains on or comes on above 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Engine diagnostics warning lightThis should go out 3 seconds after the engine starts.
If it flashes with the engine running, this indicates a malfunction in the injection or the ignition system. There is a
risk of damage to the catalytic converter.
If it is on continuously, this indicates a fault in the emission control system.
Contact a PEUGEOT dealer as soon as possible.
At the same time, on the instrument panel display:
If no malfunction has been detected: the OK light comes on after two seconds (following a black screen), in the
absence of indicator lights showing the status of vehicle functions. If these indicator lights are present, the OK
button will come on after these. You may start your vehicle.
If a 'minor' malfunction has been detected: the warning light for the faulty function comes on. Certain indicator
lights showing the status of vehicle functions may also come on, followed by the OKindicator light. You can start
your vehicle ; however, contact a PEUGEOT dealer as soon as possible.
If a 'major' malfunction has been detected: the corresponding warning light comes on. Certain indicator lights showing
the status of vehicle functions may also come on. The OKindicator light does not come on. Do not start your vehicle.
Contact a PEUGEOT dealer. Afterwards, if the passenger air bag is disarmed, the corresponding indicator light will come on.

02-02-2004
INSTRUMENTS AND CONTROLS
26
Anti-lock braking system (ABS) warning light This is linked to the warning light on the instrument panel.Display of this warning light is accompanied by an audible signal and the message 'ABS fault'on the multi-function
display.
If the warning light remains on, or comes on at over 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Automatic headlamp adjustment warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic adjustment of
headlamps fault' on the multi-function display.
It comes on if there is a malfunction of the system.
Contact a PEUGEOT dealer. Automatic gearbox fault warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic gearbox fault' on
the multi-function display. It comes on if there is an abnormality in the automatic gearbox.
The gearbox will continue to operate in downgrade mode (locked in 3rd gear).
Contact a PEUGEOT dealer. Tyre under-inflation detector battery flat / remote control battery flat / impact sensor fault / wheel(s) missing warning light Display of this warning light is accompanied by an audible signal and a message on the multi-function display sho- wing the cause of the warning:
- 'Tyre pressure sensor battery charge low',
- 'Remote control battery charge low', - 'Impact sensor fault',
- 'X tyre pressure sensor(s) missing'.
Contact a PEUGEOT dealer.

02-02-2004
Information provided by the display1 -Indicates receipt of an SMS* or voice message.
2 - On the monochrome screen: Telephone symbol, indicates: - present: telephone ready;- absent: searching for network;- Crossed out, telephone not connected in "hands-free" mode.On the colour screen:The colour of the telephone symbol indicates:- blue: telephone detected (no communication in progress),- orange: telephone detected (communication in progress),
- grey: telephone off or not connected in "hands-free" mode or accessconditions not fulfilled (PIN code, network signal level).
3 - Indicates the network signal level (3 levels).
4 - Indicates that the sound is in "mute" mode.
5 - Indicates that your telephone's profile does not have all of the functions (see table of functions available).
YOUR 607 IN DETAIL
64
The services offered by the hands-free kit depend on the network, the SIM card, the compatibility of the equipment used and the content formats supported.
Check which services are available to you by looking in your telephone's manual and asking your operator.
In addition to the general information, the multi-function display enables you to display:
- the list of matched telephones
- the directories,
- the incoming and outgoing calls,
- the current communication data (number, name of the caller or of the person called, time counter),
- the second call,
- the name of the operator. * According to telephone model.

02-02-2004
Switching between two calls During a call, press the end of the steering wheel control to display thecontrol tabs:- when it is selected andthen confirmed bypressing the end of thesteering wheel control,this tab button enablesyou to switch from onecorrespondent to the
other,
- this tab enables you to hang up the currentcall and resume thecall with the other cor-respondent.Second call* This function enables you to receive a second call during a communica-tion.
You are informed by a bleep and the message "Pick up the call?"
appears.
You can choose:
- to take the call by confirming the "YES" tab by pressing the end of
the steering wheel control,
- not to tale the call by selecting the "NO" tab using the ring and confir-
ming by pressing the end of the steering wheel control.
Note: if you do not confirm your choi-
ce, the second call will be left unans-wered when the message expires. If you do not take the second call, you continue the first call. If you takeit, the first call is put on hold. Note: if you switch to the call put on
hold and it has been interrupted during your call, you must select the"Hang up" tab to clear the "Com-
munication in progress" message
from the screen. Continuity of service If you get into your vehicle while a call is in progress on your mobiletelephone, you can continue this callusing the hands-free kit after a fewseconds.
To do this, you must "trigger" the system: - by switching on the ignition,or
- by switching on the audio equipment.Note:
if you switch the ignition off
while a call is in progress, the system remains in "hands-free" mode untilthe end of the call or until the telephone is disconnected from thesystem. Secrecy mode During a conversation, it is possible, from your telephone, to transfer thesound to enable you to continue theconversation using your telephone
directly.
Inversely, you can, from the telepho- ne, transfer the sound to return to"hands-free" mode.
To use this function, please refer to your telephone's manual.
* If option or service available on your telephone.
YOUR 607 IN DETAIL
68

02-02-2004

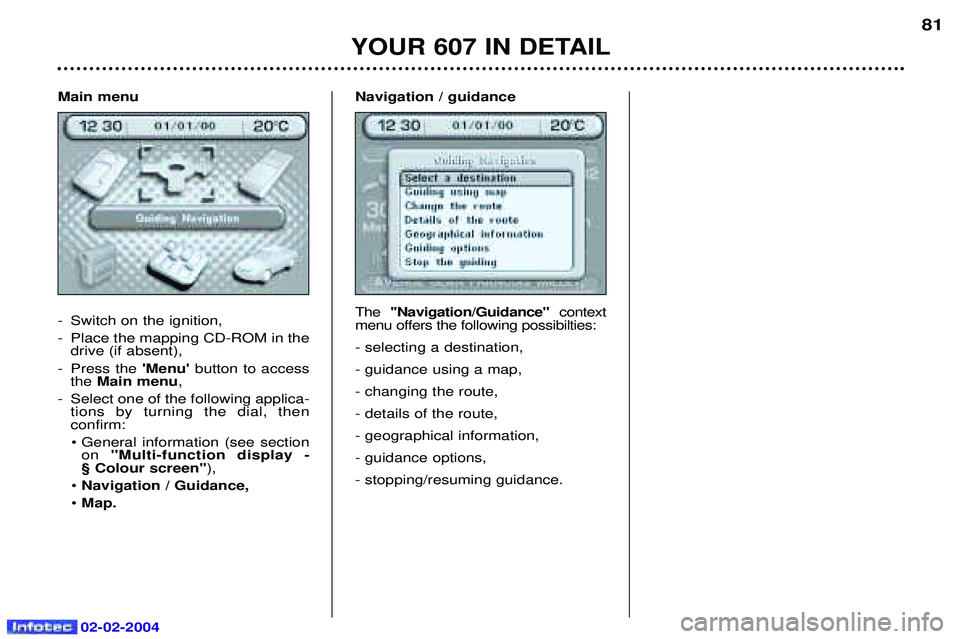

Main menu
- Switch on the ignition,
- Place the mapping CD-ROM in thedrive (if absent),
- Press the 'Menu'button to access
the Main menu ,
- Select one of the following applica- tions by turning the dial, then confirm:
¥ General information (see section on ''Multi-function display -
¤ Colour screen'' ),
¥ Navigation / Guidance,
¥ Map. Navigation / guidance The
''Navigation/Guidance'' context
menu offers the following possibilties: - selecting a destination,- guidance using a map,- changing the route,- details of the route,- geographical information,- guidance options,- stopping/resuming guidance.
