2004 PEUGEOT 607 window

02-02-2004
YOUR 607 IN DETAIL119
To keep your children safe, press switch
5to prevent operation of the
rear windows irrespective of theirposition. One press activates the switch and a second press deactivates it.
You have two options:Manual operation:
 press or pull switch 1gently. The
window stops as soon as the swit- ch is released.
Automatic operation:  press or pull switch 1fully. The win-
dow opens or closes completelywhen the switch is released. Pres-sing the switch again stops the
movement of the window.
Note: when a door is opened or
approximately 45 seconds following
removal of the ignition key, none of the
windows can be opened or closed. Youmust switch the ignition on again toopen or close the windows. Safety auto-reverse When the window rises and meets an obstacle, it stops and lowers again. Note : In the case of unwanted ope-
ning of the window on closing (for example, in the case of ice), if the win-dow will not rise, pull the switch until the
window closes completely. Continue topress the switch for one second afterclosing. Following reconnection of the batte-
ry, in the event of a malfunction, youmust reinitialise the safety auto-reverse function:
- open the window completely, then
close it, it will rise in stages of a few centimetres with each press,repeat the operation until the win-dow is completely closed,
- continue to press the switch for at least one second after reachingthis position.
The safety auto-reverse functionis not operational during theseoperations.
ELECTRIC WINDOWS
1 - Driver's electric window switch.
2 - Passenger's electric window switch.
3 - Rear right electric window switch.
4 - Rear left electric window switch.
5 - Neutralisation of the rear lighter and the rear electric windows (child safety).
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
In the event of contact when ope-rating the windows, you mustreverse the movement of the win-
dow. To do this, press the switchconcerned. When the driver operates the pas- senger window switches, he mustensure that no one is preventing
correct closing of the window. The driver must ensure that pas- sengers use the electric windows
correctly. Be aware of children when opera- ting the windows.

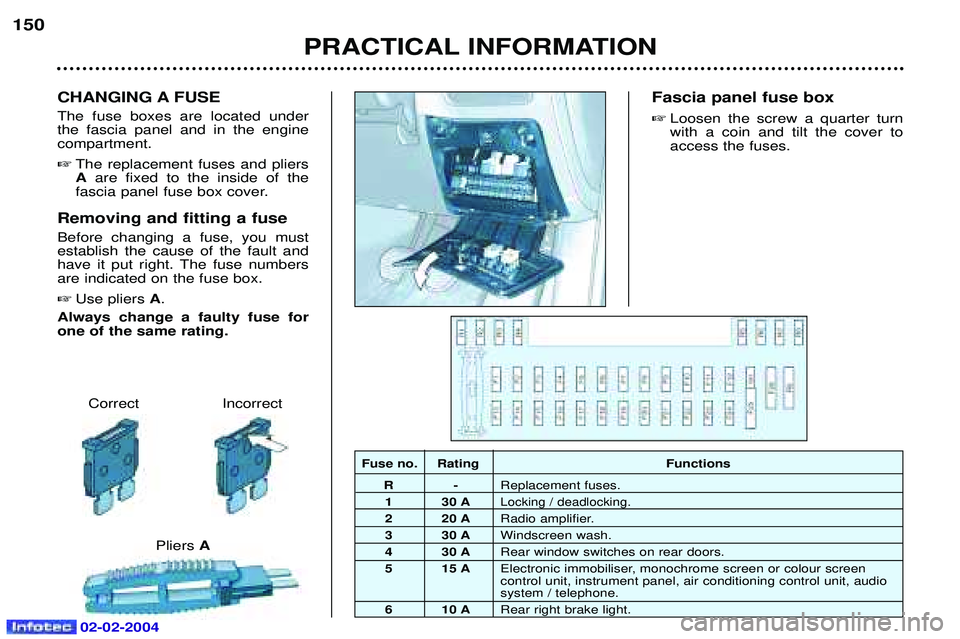

PRACTICAL INFORMATION
150
Correct Incorrect
Pliers A
CHANGING A FUSE The fuse boxes are located under the fascia panel and in the enginecompartment.
The replacement fuses and pliers A are fixed to the inside of the
fascia panel fuse box cover.
Removing and fitting a fuse Before changing a fuse, you must establish the cause of the fault and
have it put right. The fuse numbersare indicated on the fuse box.  Use pliers A.
Always change a faulty fuse forone of the same rating. Fascia panel fuse box
 Loosen the screw a quarter turnwith a coin and tilt the cover toaccess the fuses.
Fuse no. Rating Functions R- Replacement fuses.
1 30 A
Locking / deadlocking.
2 20 A Radio amplifier.
3 30 A Windscreen wash.
4 30 A Rear window switches on rear doors.
5 15 A Electronic immobiliser, monochrome screen or colour screen control unit, instrument panel, air conditioning control unit, audiosystem / telephone.
6 10 A Rear right brake light.
02-02-2004

PRACTICAL INFORMATION
150
Correct Incorrect
Pliers A
CHANGING A FUSE The fuse boxes are located under the fascia panel and in the enginecompartment.
The replacement fuses and pliers A are fixed to the inside of the
fascia panel fuse box cover.
Removing and fitting a fuse Before changing a fuse, you must establish the cause of the fault and
have it put right. The fuse numbersare indicated on the fuse box.  Use pliers A.
Always change a faulty fuse forone of the same rating. Fascia panel fuse box
 Loosen the screw a quarter turnwith a coin and tilt the cover toaccess the fuses.
Fuse no. Rating Functions R- Replacement fuses.
1 30 A
Locking / deadlocking.
2 20 A Radio amplifier.
3 30 A Windscreen wash.
4 30 A Rear window switches on rear doors.
5 15 A Electronic immobiliser, monochrome screen or colour screen control unit, instrument panel, air conditioning control unit, audiosystem / telephone.
6 10 A Rear right brake light.
02-02-2004

02-02-2004
PRACTICAL INFORMATION151
Fuse no. Rating Functions 7 10 A Switches, rear ashtray illumination, front courtesy light, rear courtesy light, rear lighter, number plate lighting, headlamp height adjustment.
8 10 A Diagnostic connector, headlamp height adjustment control unit, HF locking receiver,
passenger compartment air temperature sensor, HF tyre under-inflation receiver.
9 20 A Headlamp wash.
10 20 A Glove box lighting, front lighter, front and rear courtesy light, electrochrome interior mirror,electric exterior mirrors.
11 5 A Control unit for automatic lighting of headlamps, air bags control unit, safety relay for automatic lighting of headlamps.
12 30 A Rear window switches on driver's pad, rear windows.
13 30 A Windscreen wiper.
14 15 A Not used.
15 15 A Driver's door pad, passenger's door pad.
16 15 A Rear lighter.
17 5 A Heated exterior mirrors.
18 15 A Rear left brake light, additional brake light.
19 10 A Parking assistance control unit, navigation control unit.
20 15 A Alarm siren, monochrome screen or colour screen control unit, HF receiver, audio system /telephone, monochrome or colour navigation control unit, diesel additive control unit.
21 15 A Diagnostic connector, caravan socket, trailer sidelights relay.
22 15 A Diesel additive control unit, driver's seat memory control unit, driver's door pad, passenger'sdoor pad.
23 30 A Driver's window, passenger's window, sunroof safety auto-reverse, passenger window switch on driver's door pad and passenger's door pad.
24 10 A Rear fog lamp.
25 40 A PARC shunt.
26 40 A Heated rear screen, radio aerial amplifier.

02-02-2004
PRACTICAL INFORMATION
154
CHANGING A WINDSCREEN WIPER BLADE Placing the wiper blades in the maintenance position Less than one minute after switch-
ing off the ignition, activate thewindscreen wiper stalk to positionthe blades in the centre of thewindscreen (maintenance posi-tion).
Replacing a blade  Lift the arm, then unclip the bladeand remove it.
 Fit the new blade and fold downthe arm.
To park the blades, switch on theignition and operate the wind-screen wiper stalk.
REMOVING A MAT When removing a mat on the driver's or passenger's side, push back theseat as far as possible and removethe clips.
To remove a rear mat, push the corresponding front seat forward andremove the clip. On refitting, position the mat and
tighten the securing clips fully.
LOAD REDUCTION FUNCTION When driving, certain functions (air conditioning, heated rear screen,heating system for passenger com-partment of diesel vehicles, etc.)
may be switched off temporarily,depending on the level of batterycharge. Reactivation of these functions is automatic, once the battery charge is
sufficient. Note:
at the risk of discharging the
battery, the functions that have been
switched off may be reactivated
manually.
A flat battery prevents the engine from starting.
ECONOMY MODE FUNCTION After the engine has stopped, certain
functions (windscreen wiper, electricwindows, sunroof, rear electric blind,electric seats, audio equipment, tele-phone etc) can only be used for thir-ty minutes, to prevent discharging
the battery.
Once the thirty minutes are over, the message "Economy mode active"
appears on the multiÐfunction dis-play and the active functions are put
on standby. These functions are automaticallyreactivated next time the vehicle isdriven. Note:
if the telephone is being used
when economy mode starts, it will still be possible to finish the call.

02-02-2004
- Do not disconnect theterminals while the engine is running.
- Do not recharge the batteries without disconnecting the termi-nals first.
- Close the windows and sunroof completely before disconnecting
the battery.
- Following reconnection of the battery, switch on the ignitionand wait 1 minute before star-ting the engine to permit initiali-sation of the electronic systems.
However, if minor problems per-sist after this operation, contact
a PEUGEOT dealer.
BATTERY
Vehicles fitted with two batteries Certain vehicles, depending on the country where the vehicle is sold, arefitted with two batteries:
- a battery for starting, located in theengine compartment,
- a service battery, located in the boot.
The starter battery has a label sho- wing that the service battery is in theboot. These are special batteries. If one of them needs to be replaced,
contact a PEUGEOT dealer.
To charge the starter battery with a battery charger:  remove the style cover to gain
access to the starter battery,
 disconnect the battery, Follow the instructions for use given by the battery charger
manufacturer,
 reconnect the battery, starting withthe negative (-) terminal,
 check that the terminals and theconnectors are clean. If they arecovered with sulphate (whitish orgreenish deposit), disconnect andclean them,
 refit the style cover. To start the vehicle from anotherbattery:

remove the style cover to gain
access to the starter battery,
remove the maxi fuse located near
to the starter battery,
connect the red cable to the positi-ve (+) terminals of the two batteries,
connect one end of the green orblack cable to the negative (-) ter-
minal of the additional battery,
connect the other end of the greenor black cable to an earth point onthe vehicle which has broken down,
as far as possible from the battery,
start the engine and let it run,
wait for the engine to return to idlethen disconnect the cables,
drive a few kilometres in order to
recharge the starter battery, thenreplace the maxi fuse near to it,
refit the style cover.
To recharge the service battery,
contact a PEUGEOT dealer.
PRACTICAL INFORMATION 155
If electrical operations are carried out,
disconnect the starter battery and
remove the maxi fuse located next to it.
It is advisable to disconnect
the starter battery and remove the maxi fuse located next to it, if the
vehicle is not to be used for a period of more than one month.

PRACTICAL INFORMATION
158
ACCESSORIES FOR YOUR 607
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee:
Ð Security :
Anti-theft alarm (pre-wired function), window engraving, wheel anti-theft devices, first aid kit, warning triangle, safety jacket, etc.
Ð Protection : Covers compatible with side air bags, mats, boot tray, luggage retaining net, styling mudflaps.
Ð Communication : Telephone, hands-free kits, satellite navigation, CD changer.
Ð Customising : Alloy wheels, wheel trims, sports exhaust, spoiler, leather gear lever knob.
Ð Comfort : Telephone console, door spoilers.
Ð Leisure pursuits : Trailer tow bar (maximum towable load: 1800 kg), roof bars (maximum load: 75 kg),
transportation accessories (bicycle carrier, ski carrier), roof box, snow chains etc.
Ð Children : Booster seats and child seats, rear blind.
Ð Maintenance products: Windscreen wash fluid, interior and exterior cleaning and maintenance products.
Before fitting any electrical accessory to your vehicle, consult a PEUGEOT dealer.
