YOUR 307 SW IN DETAIL

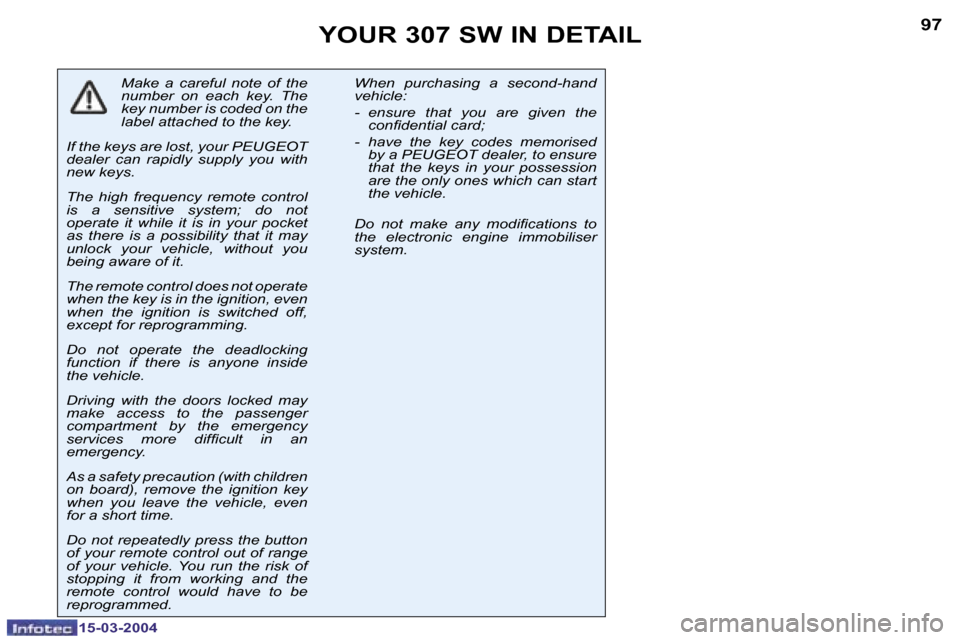

Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not
operate it while it is in your pocket
as there is a possibility that it may
unlock your vehicle, without you
being aware of it.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more dificult in an
emergency.
As a safety precaution (with children
on board), remove the ignition key
when you leave the vehicle, even
for a short time.
Do not repeatedly press the button
of your remote control out of range
of your vehicle. You run the risk of
stopping it from working and the
remote control would have to be
reprogrammed. When purchasing a second-hand
vehicle:
- ensure that you are given the
conidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.
Do not make any modiications to
the electronic engine immobiliser
system.

98
15-03-2004
99
15-03-2004
YOUR 307 SW IN DETAIL
THE ALARM
This provides two types of protection: - exterior protection: it sounds if
a door, the boot or the bonnet is
opened.
- interior protection:
it sounds if
the volume inside the passenger
compartment changes (breaking of
a window or a movement inside the
vehicle).
Setting the alarm
F Switch off the ignition and get out
of the vehicle.
F Set the alarm, by locking or dead-
locking using the remote control
(button A indicator light lashes
once per second).
Note: if you wish to lock your vehicle
without setting the alarm, use the
door lock. When the alarm is triggered, the si-
ren sounds and the direction indica-
tor lights lash for thirty seconds.
After triggering, the alarm remains
set.
Warning:
if the alarm has been trig-
gered ten times in succession, on the
eleventh time it becomes inactive.
Note: if button A indicator light
lashes rapidly, the alarm has been
triggered while you were away from
your vehicle.
Disarming
Unlock the vehicle with the remote
control key (button A indicator light
goes out).
Note: if the alarm has been triggered
while you were away from your vehi-
cle, the rapid lashing of the indicator
light will stop when you switch on the
ignition.
To set the alarm with exterior
protection only
If, while you are away from the ve-
hicle, you wish to leave a window
partially open or a pet inside the
vehicle, you should choose exterior
protection only.
F Switch off the ignition,
F In the next ten seconds, press
button A until the indicator light is
on continuously,
F Get out of the vehicle, F
Set the alarm by locking or dead-
locking using the remote control
(button A indicator light lashes
once a second).
Note: when the alarm is set but the
remote control does not operate:
F Unlock the doors with the key and
open the door. The alarm is trig-
gered.
F Switch on the ignition. The alarm is
disarmed.
Incorrect operation
When the ignition is switched on, if
button A lights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
Automatic activation*
The alarm is activated automatically
two minutes after the last closure of a
door or the boot.
In order to avoid accidental triggering
of the alarm when a door or the boot
is opened, it is essential to irst press
the unlocking button on the remote
control.
* According to destination.

98
15-03-2004
99
15-03-2004
Opening the doors from inside
The front door opening controls
permit complete unlocking of the
vehicle.
However, the rear door opening
controls only unlock the door con-
cerned.
Note: the door opening controls
do not function when the vehicle is
deadlocked. Locking / Unlocking from the
inside
Pressing button
A permits:
- locking of the vehicle,
- unlocking of the vehicle if you place the key in the switch.
Note: if the vehicle is deadlocked,
button A does not function. In this
case, use the remote control for un-
locking.
"Door open" alert
With the engine running, an audible
signal and a diagram locating the
door briely displayed on the multi-
function display warn you that a door
is not properly closed.
In addition, if the vehicle is moving,
the courtesy lights lash.
YOUR 307 SW IN DETAIL
THE DOORS
Opening the doors from outside

100
15-03-2004
101
15-03-2004
TAILGATE
Simultaneous locking or
unlocking of the tailgate and the
doors
The tailgate is locked or unlocked
by the remote control or the driver's
door lock.
To open, pull handle A and lift the
tailgate.
Note: the tailgate locks automatically
when the vehicle is being driven at
6 mph (10 km/h) and unlocks when
one of the doors is opened if the
speed is below 6 mph (10 km/h).
"Tailgate open" warning
When the engine is running, an au-
dible signal and a diagram displayed
briely on the multi-function display
warn you that the tailgate is not prop-
erly closed.
In addition, if the vehicle is being
driven, the courtesy lights lash.
YOUR 307 SW IN DETAIL
Tailgate release
This enables the tailgate to be
unlocked in the event of a central
locking fault.
- Fold back the rear seats to gain access to the lock from inside the
boot,
- Insert a small screwdriver into hole A of the lock to unlock the tailgate. Child safety
This prevents either of the rear doors
being opened from inside.
F Turn the switch a quarter of a turn
using the ignition key.

102
15-03-2004
103
15-03-2004
YOUR 307 SW IN DETAIL
PANORAMIC ROOF
Your vehicle is itted with a tinted
glass panoramic roof which in-
creases the light and visibility in the
passenger compartment. Its electric
concealing shutter improves tem-
perature conditions.
To open: press part A of the switch.
To close: press part B of the switch.
Manually: press the switch without
going past the point of resistance;
the shutter stops as soon as the
switch is released.
Automatically: press the switch
beyond the point of resistance;
one press fully opens or closes the
shutter. Press the switch again to
stop the shutter. Safety auto-reverse
At the end of its travel, if the shutter
encounters an obstacle to closing, it
stops and moves back slightly.
Notes
If the shutter's power supply is cut
off, while it is moving or immediately
after it has stopped, you must reini-
tialise the safety auto-reverse:
- press section
B of the switch until
the shutter is completely closed
(closing in stages of a few centi-
metres).
In the event of unwanted opening of
the shutter on closing, and immedi-
ately after the shutter has stopped:
- press section A of the switch until
the shutter is fully open,
- release section A and immediately
afterwards press section B of the
switch until the shutter is fully
closed (closing in stages of a few
centimetres).
The safety auto-reverse function is
not active during these operations.

102
15-03-2004
103
15-03-2004
YOUR 307 SW IN DETAIL
OPENING THE BONNET
From inside: push the handle on the
left-hand side under the fascia.
From outside: lift the catch and
raise the bonnet.
Bonnet strut
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is properly locked. The engine must be switched off

when illing with fuel.
F Open the fuel iller lap.
F Insert the key then turn it to the
left.
F Remove the cap and hang it on the
hook located on the inside of the
lap.
A label afixed to the inside of the fuel
iller lap indicates which type of fuel
to use.
When you ill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is ap-
proximately 60 litres.
F After illing the tank, lock the cap
and close the fuel iller lap.
FILLING WITH FUEL
Low fuel level
When the minimum
fuel level in the tank is
reached, this warning
light comes on.
You can still drive
approximately 30 miles (50 km).
Flashing of the warning light indicates
a malfunction of the fuel gauge.
Contact a PEUGEOT dealer.

104
15-03-2004
105
15-03-2004
YOUR 307 SW IN DETAIL
THE LIGHTS STALK
Front and rear lights
Selection is by turning ring A. Dipped / Main beam change
Pull the stalk towards you.
Note:
with the ignition off, when the
driver's door is opened, a buzzer
sounds if you have left your lights
on.
Front fog lamps and rear fog lamp
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
tus is conirmed by the indicator light
on the instrument panel. Vehicles itted with front fog
lamps and a rear fog lamp (ring C)
Lights off
Side lights
Dipped / main beam
headlampsAutomatic switching on
of lights Rear fog lamp Front fog lamps (irst rotation
of the ring forwards)
Front and rear fog
lamps (2nd rotation of
the ring forwards).
Note: to switch off
the rear fog lamp and the front fog
lamps, turn the ring backwards twice
in succession.
Note: when the lights are switched
off automatically or when the dipped
headlamps are switched off manu-
ally, the front fog lamps, the rear fog
lamp and the side lights will remain
on (turn the ring backwards to switch
off the front fog lamps. The side lights
will then be switched off).
Vehicles itted with a rear fog
lamp (ring B)
This only operates with the dipped /
main beam headlamps.
Note:
when the lights are switched
off automatically, the rear fog lamp
and the dipped headlamps will re-
main on (turn the ring backwards
to switch off the rear fog lamp. The
dipped headlamps and side lights will
then be switched off). The front fog lamps operate with
the side lights and the dipped head-
lamps.
When the main beam headlamps are
switched on, the front fog lamps are
switched off. They are switched on
again when the main beam head-
lamps are switched off.

104
15-03-2004
105
15-03-2004
"Follow me home" lighting
In poor light or at night, if you leave
your vehicle, the side lights and
dipped headlamps can be left on for
approximately one minute.
To do this:
- place the key in the STOP position,
- place the lights stalk in the 0
position,
- lash the headlamps,
- get out of the vehicle and lock it.AUTOMATIC SWITCHING ON
OF LIGHTS
The side lights and dipped beam
headlamps switch on automati-
cally if the light is poor and when the
windscreen wipers operate continu-
ously and switch off when the light
becomes bright enough or the wind-
screen wipers are switched off.
In foggy weather or in snow, the
brightness sensor can detect
suficient light, the lights will not
come on automatically.
This function is active when the vehi-
cle is supplied
to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Place the lights stalk in the AUTO/
0 position,
- Press the end of the lights stalk for more than four seconds.
Do not cover the brightness sen-
sor, coupled with the rain sensor,
located in the centre of the wind-
screen, behind the interior mirror.
It is used for automatic switching
on of the lights.
Operating check
Activation
The activated function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
Disarming
The disarmed function is accompa-
nied by an audible signal.
When the driver uses the manual
lighting controls, the function is tem-
porarily disarmed.
If the brightness sensor does not
function correctly, the lights come
on accompanied by an audible signal
and a message on the multifunction
display.
Contact a PEUGEOT dealer.
YOUR 307 SW IN DETAIL
In good or rainy weather,
both day and night, the
front fog lamps and the
rear fog lamp are dazzling
and are prohibited.
Do not forget to switch them off
when they are no longer needed.
Direction indicators (lashers) Left: downwards.
Right: upwards.
