CIRCUIT DIAGRAMS - CENTRAL JUNCTION3-8
Central Junction
M3030000300552

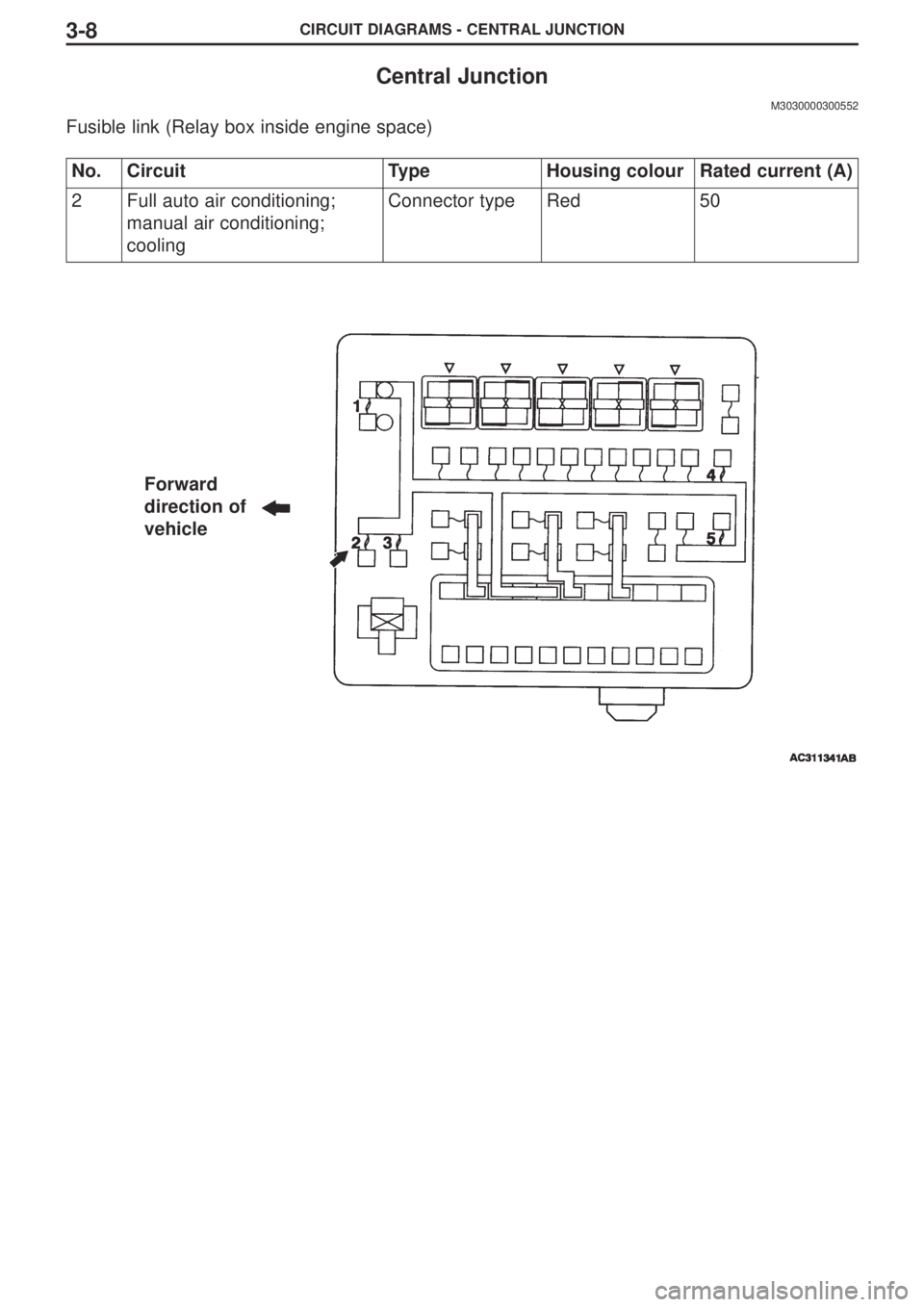

Fusible link (Relay box inside engine space)
No.CircuitTypeHousing colourRated current (A)
2Full auto air conditioning;
manual air conditioning;
coolingConnector typeRed50
Forward
direction of
vehicle

CIRCUIT DIAGRAMS - CENTRAL JUNCTION3-9
Fusible link (Relay box inside engine space)
Power supply circuitFuse No.Rated
current (A)ID
colourApplied loads
Battery / Alternator (fusible
link No. 6)320YellowO2sensor, secondary are
control solenoid valve, idle
speed control servo, ignition
coil 1, ignition coil 2, waste
gate solenoid valve 1, waste
gate solenoid valve 2, air
flow sensor, engine ECU,
engine control relay, cam
position sensor, crank angle
sensor, purge control
solenoid valve, fuel pressure
solenoid valve, radiator fan
control relay, register (for
injector)
1020YellowFuel pump relay 3, fuel pump
register, fuel pump & fuel
gauge unit (main)
Forward
direction of
vehicle

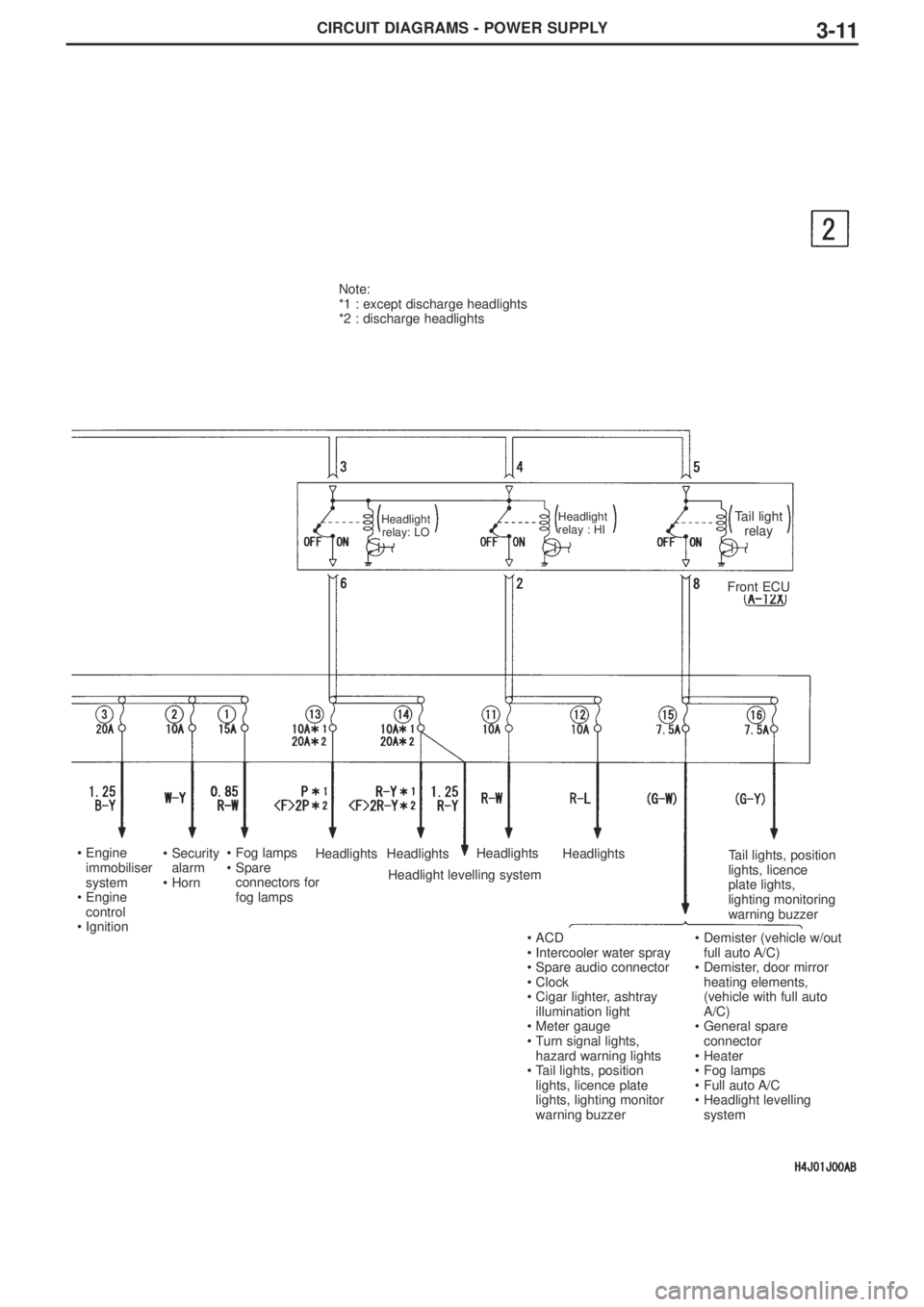

CIRCUIT DIAGRAMS - POWER SUPPLY3-11
Note:
*1 : except discharge headlights
*2 : discharge headlights
Headlight
relay: LOHeadlight
relay : HITail light
relay
Front ECU
•Engine
immobiliser
system
•Engine
control
•Ignition•Security
alarm
•Horn•Fog lamps
•Spare
connectors for
fog lampsHeadlightsHeadlightsHeadlightsHeadlights
Headlight levelling system
Tail lights, position
lights, licence
plate lights,
lighting monitoring
warning buzzer
•ACD
•Intercooler water spray
•Spare audio connector
•Clock
•Cigar lighter, ashtray
illumination light
•Meter gauge
•Turn signal lights,
hazard warning lights
•Tail lights, position
lights, licence plate
lights, lighting monitor
warning buzzer•Demister (vehicle w/out
full auto A/C)
•Demister, door mirror
heating elements,
(vehicle with full auto
A/C)
•General spare
connector
•Heater
•Fog lamps
•Full auto A/C
•Headlight levelling
system

CIRCUIT DIAGRAMS - POWER SUPPLY3-14
Power Supply (cont’d)
Fusible
link1Fusible
link5
•ABS
•ACD
•SRS airbags, seat pre-
tensioners
•Ignition key reminder
buzzer
•Windscreen wiper /
washer
•Engine immobiliser
system
•Engine control
•Security alarm
•Central door locking
•Turn signal lights,
hazard warning lights
•Tail lights, position
lights, licence plate
lights, lighting monitor
warning buzzer
•Electric stowable remote
control door mirrors
•Power windows
•Fog lamps
•Full auto A/C
•Headlights
•Rear wiper / washer
•Cabin lights, boot interior
light, ignition key cylinder
illumination light, door
not properly closed
indicator lamp•ACD
•Ignition key reminder
buzzer
•Windscreen wiper /
washer
•Warning lights
•Engine control
•Spare audio connector
•Clock
•Meter gauge
•Security alarm
•Central door locking
•Turn signal lights,
hazard warning lights
•Tail lights, position lights,
licence plate lights,
lighting monitor warning
buzzer
•Electric stowable remote
control door mirrors
•Power windows
•General spare connector
•Fog lamps
•Full auto A/C
•Headlights
•Headlight levelling
system
•Rear wiper / washer
•Cabin lights, boot
interior light, ignition key
cylinder illumination
light, door not properly
closed indicator lamp•Heater
•Full auto
A/C
•Manual A/CPower
windows
J/B
General fuse()5
Demister relay
Demister, door mirror
thermal element (vehicle
with full auto A/C)
•Demister (vehicle
w/out full auto A/C)
•Demister, door mirror
thermal element
(vehicle with full auto
A/C)
•Demister (vehicle
w/out full auto
A/C)
•Demister, door
mirror thermal
element (vehicle
with full auto
A/C)

CIRCUIT DIAGRAMS - ENGINE CONTROL3-16
ENGINE CONTROL
M3030000801516
Battery
Special fuse
Engine
control
relay
Engine
ECU

CIRCUIT DIAGRAMS - ENGINE CONTROL3-17
Ignition switch
Fuel
pump
relayFuel
pump
relay
Combination
meter
•Windscreen
washer/wiper
•Turn signal lights /
hazard warning
lights
•Tail lights, position
lights, licence
plate lights,
lighting monitor
warning buzzer
•Fog lights
•Headlights
•Rear
washer/wiper

CIRCUIT DIAGRAMS - ENGINE CONTROL3-18
Engine Control (cont’d.)
Engine control relay
Air
processor
Engine
ECU
Throttle position
sensorWater temperature
sensor
Atmospheric
pressure sensor
Intake air
temperature
sensor
Cam shaft
position sensor

CIRCUIT DIAGRAMS - ENGINE CONTROL3-19
Engine control relayJ/C (6)
(Engine control relay)
Crank angle
sensor
Register (for
indictor)
IndicatorIndicatorIndicatorIndicator
Engine
control relay
Knock
sensor
O2sensor
