MANUAL TRANSMISSION TROUBLESHOOTING2219
3.Fault classification
4. Fault classification procedure
Checking procedure 2
FaultCheck procedure No.Page ref.
No communication between MUTII/III and 4WDECU22219
When ignition switch is ON, (engine stopped), ACD mode indicator lamp does not come on.32220
Even after engine starts, at least 2 ACD mode indicator lamps remain lit 42220
No communication between MUTII/III and 4WDECUAssumed cause of concern
Diagnosis output circuit, 4WDECU power supply circuit,
earth circuit or 4WDECU malfunctions are possible.• Harness, connector malfunction
•4WDECU malfunction
Measurement at C122, diagnosis code connector and
C37 4WDECU connector.
• Resistance between C122 1 and C37 46
• Resistance between C122 7 and C37 35
OK:2Ω or less
Measurement at C38 4WDECU connector
•Measure ECU terminal voltage
• Ignition switch ON
OK:battery voltage
Measurement at C37, C38, 4WDECU connector
• Undo connector, take measurement on harness side
• Resistance between C38 26 and body earth
Connector check:C37, C38
NG > repair
Fault confirmation Replace 4WDECU
Connector check:C37, C23, C22, C20, C122,
C110, C06
NG > repair
Fault confirmationHarness check between 4WDECU and diagnosis
connector
Connector check:C38, C212, C210, C133
NG > repair
Fault confirmation
Check harness between ignition switch and 4WDECU
•Check power supply wire to see if broken or
damaged
NG > repair
Connector check:C37, C38
NG > repair
Fault confirmation
Check harness between 4WDECU – earth
• Check earth wire to see if broken or damaged
NG > repair
OK
OK
OK
OK
NG
OK
NG
NG
OK
OK
NG
NG
NG
NG

MANUAL TRANSMISSION TROUBLESHOOTING2220
The ACD mode injector lamp does not come on when the ignition
switch is ON (engine stopped)Assumed cause of concern
ACD mode indicator lamp circuit or 4WDECU malfunctions are possible.• Harness, connector malfunction
• ACD mode indicator lamp ASSY malfunction
• 4WDECU malfunction
Measurement at C106, combi. meter connector.
• Undo connector, take measurement on harness side
• Ignition switch ON
OK:battery voltage
Measurement at C37 4WDECU connector
• Undo connector, take measurement on harness side
• Ignition switch ON
• Earth 40, 51, 52 to body earth
OK:indicator lamp on
Connector check:C37
NG > repair
Fault confirmation Replace 4WDECU
Connector check:C106, C212, C210
NG > repair
Fault confirmation
Check harness between ignition switch – ACD mode
indicator lamp ASSY
• Check power supply wire to see if broken or
damaged
•NG > repair
Check ACD mode indicator lamp ASSY
NG > replace
Connector check:C37, C133, C106
NG > repair
Fault confirmation
Check harness between ACD mode indicator lamp
ASSY 4WDECU
• Check output wire to see if broken or damaged
When C37 4WDECU connector is undone, do all
ACD mode indicator lamps all go out?
Replace 4WDECU
Check connector:C37, C133, C106
NG > repair
Fault confirmation Check harness between ACD mode indicator ASSY
4WDECU
• Check output wire for earthing, shorting
NG > repair
Replace ACD mode indicator ASSY
Checking procedure 3
Checking procedure 4
Even after engine starts, at least 2 ACD mode indicator lamps
remain litAssumed cause of concern
ACD mode indicator lamp output circuit malfunction is possible.•Harness, connector malfunction
• 4WDECU malfunction
• ACD mode indicator lamp ASSY malfunction
Remarks
This phenomenon is limited to when communication with MUTII/III is possible (4WDECU power supply normal), and diagnosis
code is normal/correct.
OK
NG
NG
NO
OK
OK
NG
NG
OK
OK
OK
NG
YESOK
NG
OK

GENERAL INFORMATION - LIST OF CIRCUIT DIAGRAMS0-5
Main circuit Name of Circuit Circuit Diagram
J/B -!
J/C -#
Central junction -#
Power supply -#
Start up -!
Ignition -!
Charging -!
Engine control -#
Coolant -!
Headlights (excluding discharge type)!
Headlight (discharge type)!
Tail lights, side lights, licence plate lights, lighting monitor
warning buzzer!
Cabin lights, boot interior light, ignition key cylinder
illumination light, door not closed indicator light *2!
Fog lights!
Lighting
Headlight levelling system
!
Indicator lights, hazard warning lights!
Reversing lights *2!
Stop lights#
Signalling
Horn
!
Meters / Gauges *2!Meters
Remaining fuel warning light, oil pressure warning light,
brake warning light, seatbelt warning light *2
!
Electric windows *2!
Central door locking (vehicle not fitted with keyless entry)!
Door opening control
Central door locking (vehicle fitted with keyless entry)
!
Heater!
Fully automatic air conditioning!
Air conditioning
Manual air conditioning
#
List of Circuit Diagrams
M3000006000169
Notes:
1. This list of circuit diagrams indicates whether each circuit has been modified or added.
2. The “●” symbol indicates a circuit that has been modified or added. Diagrams for these circuits are included in
this supplement.
3. The “


” symbol indicates a circuit that is unchanged. Details of these circuits can be found in the existing
Electrical Wiring Diagram manual (’03-1 No.1036K77).
4. The “X” symbol indicates a circuit that is unrelated to the vehicle referred to in this manual.
5. The “*1” symbol marks circuits whose names have been changed the previous names.
6. The “*2” symbol marks circuits whose J/C terminal numbers have changed. For more information, please refer
to the “Details of Changes” table above.

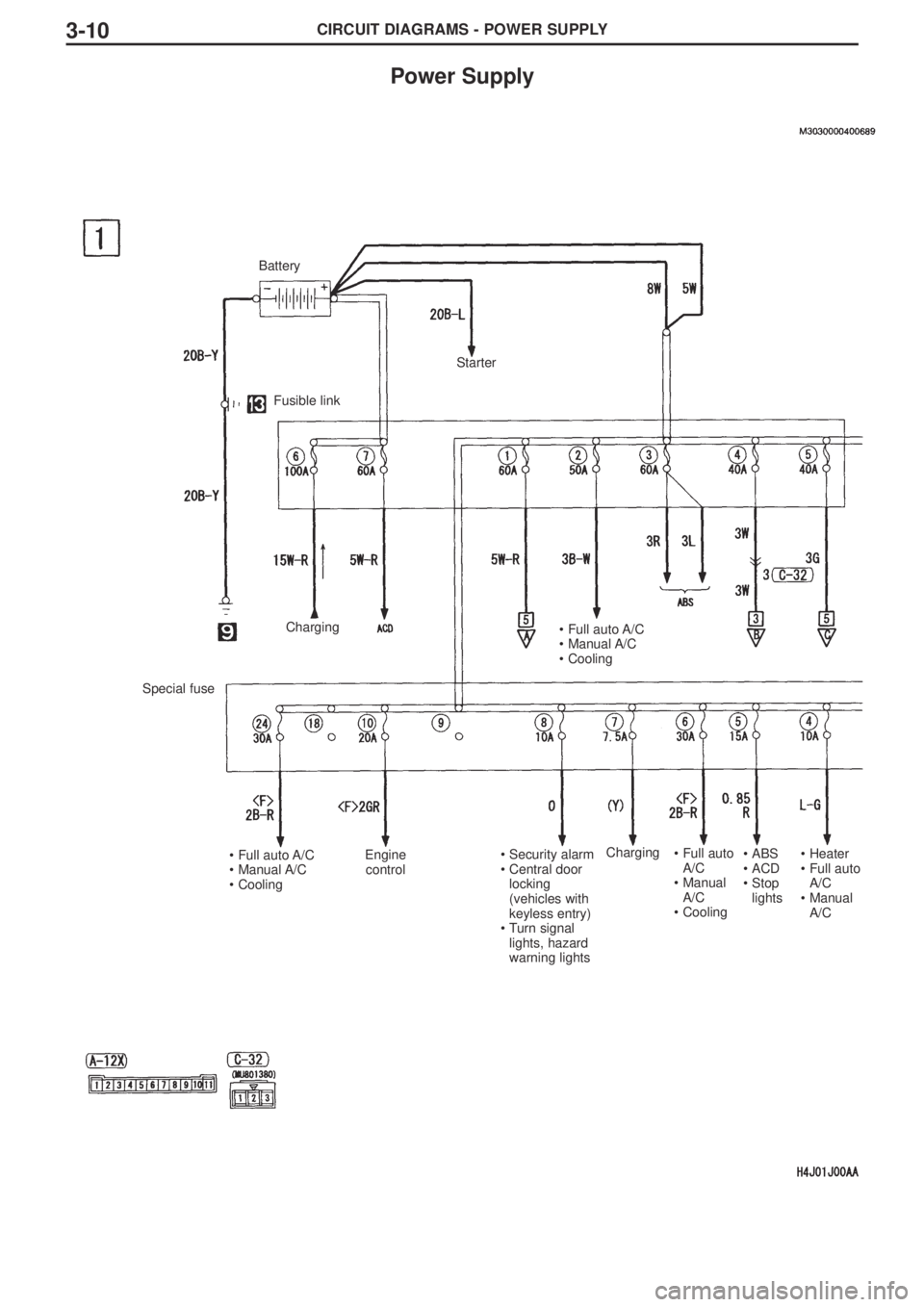

CIRCUIT DIAGRAMS - POWER SUPPLY3-10
Power Supply
Battery
Fusible link
Special fuse
Starter
Charging•Full auto A/C
•Manual A/C
•Cooling
•Full auto A/C
•Manual A/C
•CoolingEngine
control•Security alarm
•Central door
locking
(vehicles with
keyless entry)
•Turn signal
lights, hazard
warning lightsCharging•Full auto
A/C
•Manual
A/C
•Cooling•ABS
•ACD
•Stop
lights•Heater
•Full auto
A/C
•Manual
A/C
