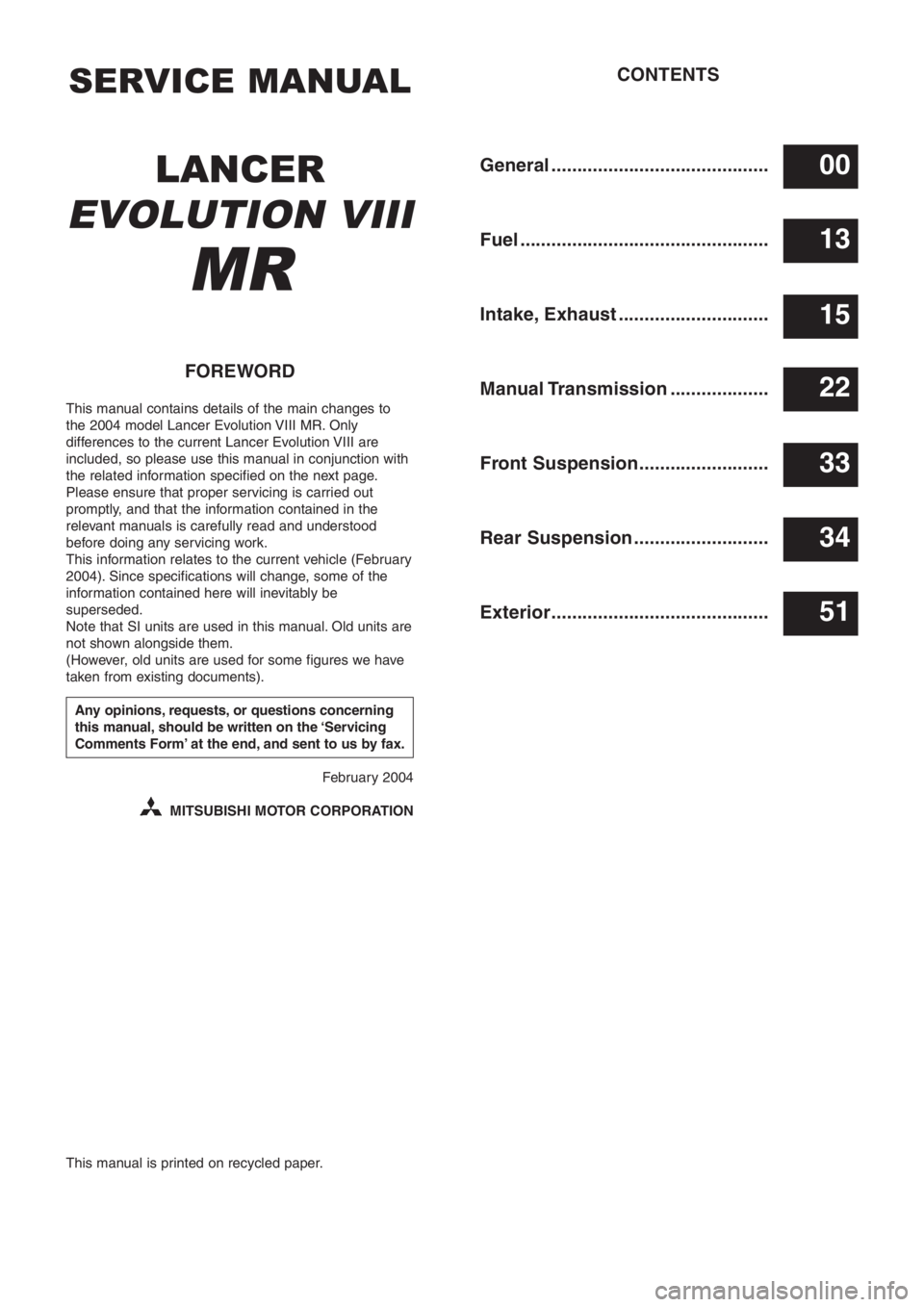

SERVICE MANUAL
LANCER
EVOLUTION VIII
MR
FOREWORD
This manual contains details of the main changes to
the 2004 model Lancer Evolution VIII MR. Only
differences to the current Lancer Evolution VIII are
included, so please use this manual in conjunction with
the related information specified on the next page.
Please ensure that proper servicing is carried out
promptly, and that the information contained in the
relevant manuals is carefully read and understood
before doing any servicing work.
This information relates to the current vehicle (February2004).Since specifications will change, some of the
information contained here will inevitably besuperseded.
Note that SI units are used in this manual. Old units are
not shown alongside them.
(However, old units are used for some figures we have
taken from existing documents).
Any opinions, requests, or questions concerning
this manual,should be written on the ‘Servicing
Comments Form’ at the end, and sent to us by fax.
February 2004
MITSUBISHI MOTOR CORPORATION
This manual is printed on recycled paper.
CONTENTS
General ..........................................
Fuel ................................................
Intake, Exhaust .............................
Manual Transmission ...................
Front Suspension.........................
Rear Suspension ..........................
Exterior..........................................
00
13
15
22
33
34
51

TitleNo.Issue dateTitleNo.Issue date
New model manualsBody Service Manuals
•Mirage, Lancer1036F3010/1995•Mirage, Lancer
(supplement)1036F528/1996
•Mirage, Lancer1036F311/1996•Lancer Sedia1036K505/2000
•Mirage, Lancer1036F328/1996•Lancer Sedia
(supplement)1036K517/2000
•Mirage, Lancer1036F337/1997•Lancer Evolution VII
(supplement)1036K525/2001
•Lancer1036F341/1998•Lancer Sedia
(supplement)
•Lancer Evolution VIIIMR (supplement)1036K53
1036K5410/2001
2/2004
•Mirage, Lancer1036F3510/1998
•Lancer1036F361/1999
•Lancer1036F3712/1999
•Lancer Sedia1036K305/2000
•Lancer Sedia1036K317/2000
•Lancer Evolution VII1036K321/2001Wiring layout diagram
Service Manuals
•Lancer Sedia1036K335/2001•Lancer Evolution VIII1036K771/2003
•Lancer Sedia1036K345/2001•Lancer Evolution VIII
MR (supplement)1036K802/2004
•Lancer Evolution VII1036K351/2001
•Lancer Sedia1036K365/2002
•Lancer Evolution VIII1036K371/2003
•Lancer1036K382/2003
•Lancer1036K3912/2003
•Lancer Evolution VIII MR1036K402/2004
Service ManualsEngine Service Manuals
•Lancer Sedia1036K005/2002•4G6 Engine1039G461/2001
•Lancer Sedia1036K017/2000•4G6 Engine1039G631/2003
•Lancer Evolution VII
(supplement)1036K021/2001
•Lancer Sedia (supplement)1036K035/2001
•Lancer Sedia (supplement)1036K0410/2001Transmission Service
Manuals
•Lancer Evolution VII
(supplement)1036K051/2002•W5M51 Manual
Transmission1039M171/2001
•Lancer Sedia (supplement)1036K065/2002•W5M51Manual
transmission
(Supplement)1039M221/2003
•Lancer Evolution VIII
(supplement)1036K071/2003•W6MAA Manual
transmission1039M231/2003
•Lancer (supplement)1036K082/2003
•Lancer (supplement)1036K0912/2003
Related information
Precautions to be taken when servicing vehicles with seatbelts fitted with SRS Airbag and Pretensioners:
1. Incorrect inspection or servicing of SRS airbag and pretensioner fitted seatbelt parts, as well as any related
components, could lead to major damage or nonoperation as a result of sudden, unintentional operation of SRS
airbag and pretensioner fitted seatbelts (incorrect deployment).
2.In cases where heating from painting processes occurs, the SRSECU, driver side airbag module, passenger side
airbag module, pretensioner fitted seatbelts, and cross springs, should be removed.
• 93°C and above: SRSECU, driver side airbag module, passenger side airbag module, cross springs• 90°C and above:pretensioner fitted seatbelts
3.Inspections and servicing of SRS airbag and pretensioner fitted seatbelt parts and any related components must,
without fail, be done by a Mitsubishi Motors authorized dealer.
4. Inspections and servicing of SRS airbag and pretensioner fitted seatbelt parts and any related components must be
done paying scrupulous attention to the relevant service manual (particularly in the case of Group 52B – SRS
airbags).

MPI General13A2
General
Service information issued contains the changes noted below. Other service details remain unchanged.
• Change from one to two wastegate solenoid valves. However, the No.2 wastegate solenoid valve on the 5 M/T is not
functional.
• Diagnosis code No. P1500 changed to P0622. <6M/T>
MPI system diagram
1.O2 sensor2. Air flow sensor3. Air intake sensor4. Throttle position
sensor
5. Cam position sensor6. Crack angle sensor7.Barometric pressure
sensor
8. Water temperature
sensor
9. Knock sensor•Power supply
• Ignition switch IG
• Ignition switch ST
•Vehicle speed sensor
• A/C switch
• A/C load signal
•Power steering fluid
pressure switch
•Alternator FR signal
•Intercooler water spray
switch (auto)
•Intercooler water spray
switch (manual)
1.Injector2. ISC servo (stepper
motor)
3.Fuel pressure control
solenoid valve
4.No.1 wastegate solenoid
valve
5. No.2 wastegate solenoid
valve
6. Purge control solenoid
valve
7. Secondary air control
solenoid valve•Engine control relay
•Fuel pump relay 2, 3
• A/C relay
•Ignition coil
• Fan controller
• Condenser fan relay (HI)
•Condenser fan relay
(LOW)
•Engine warning lamp
•Diagnosis output
• Alternator G terminal
•Intercooler water spray
relay
•Intercooler water spray
lamp
Engine ECU
6.Purge control
solenoid valveCanister
7.Secondary air
control solenoid valveFrom fuel tank
Secondary
air valveBypass
valve
1. O2sensor
3.Fuel pressure
control solenoid valve
4.Throttle
position
sensor
7. Barometric pressure
sensor
3. Air intake
sensor2. Air flow sensor
4. No.1
wastegate
solenoid valve
5.No.2 wastegate
solenoid valve
Only operates on 6M/TWastegate actuatorFuel pressure
regulator
1. Injector5.Cam position sensor8.Water temperature sensor
9.Knock sensor
Crack angle sensor
Catalytic converter Air
intakeCheck
valve
2.ISC servo
Vacuum
tank
From fuel
pump To fuel
tank
