2004 MERCEDES-BENZ CLK55AMG COUPE Owner's Manual

377 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

378 Technical dataIdentification labels

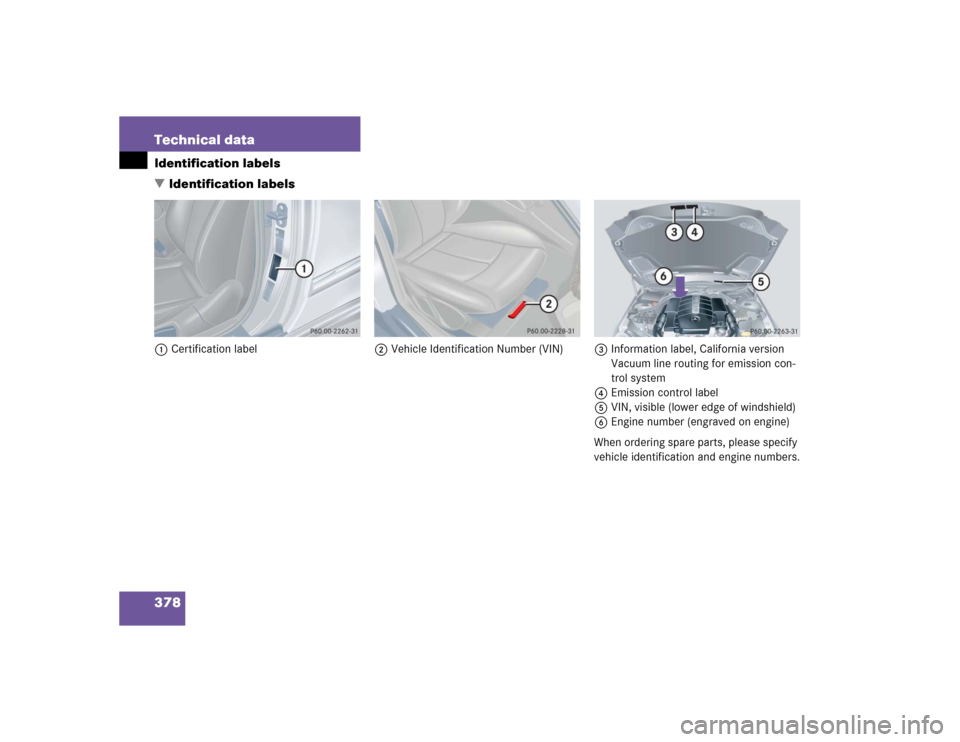

Identification labels1Certification label2Vehicle Identification Number (VIN)3Information label, California version
Vacuum line routing for emission con-
trol system
4Emission control label
5VIN, visible (lower edge of windshield)
6Engine number (engraved on engine)
When ordering spare parts, please specify
vehicle identification and engine numbers.

379 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
CLK 320/CLK 500/CLK 55 AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

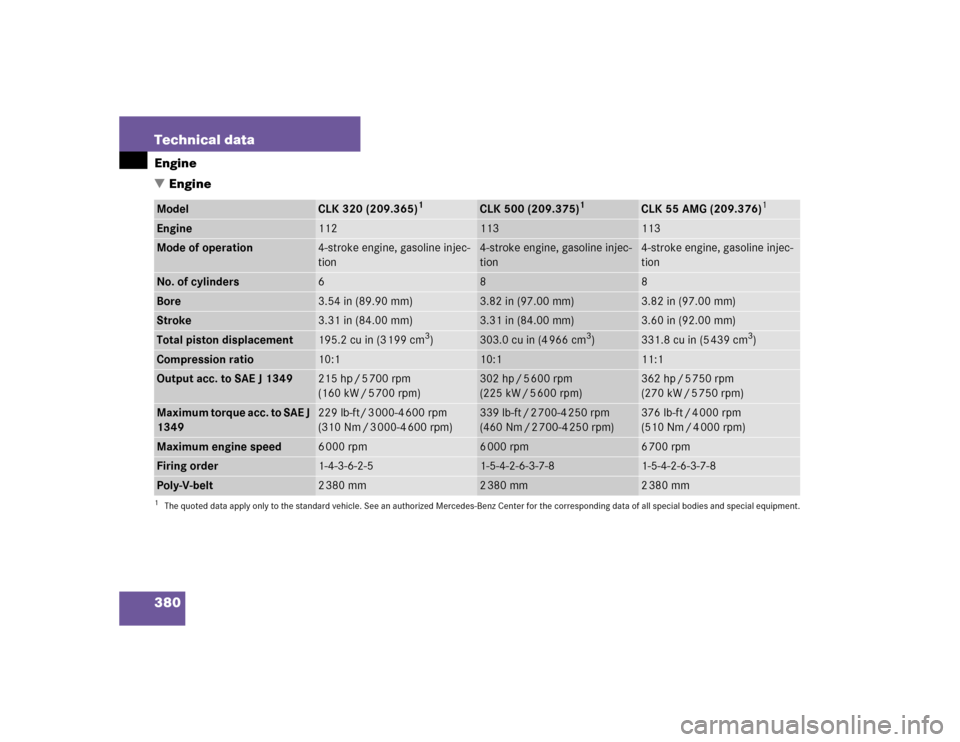

380 Technical dataEngine
EngineModel
CLK 320 (209.365)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CLK 500 (209.375)
1
CLK 55 AMG (209.376)
1
Engine
112
113
113
Mode of operation
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
No. of cylinders
6
8
8
Bore
3.54 in (89.90 mm)
3.82 in (97.00 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
3.60 in (92.00 mm)
Total piston displacement
195.2 cu in (3 199 cm
3)
303.0 cu in (4 966 cm
3)
331.8 cu in (5 439 cm
3)
Compression ratio
10:1
10:1
11:1
Output acc. to SAE J 1349
215 hp / 5 700 rpm
(160 kW / 5 700 rpm)
302 hp / 5 600 rpm
(225 kW / 5 600 rpm)
362 hp / 5 750 rpm
(270 kW / 5 750 rpm)
Maximum torque acc. to SAE J
1349
229 lb-ft/ 3 000-4 600 rpm
(310 Nm / 3 000-4 600 rpm)
339 lb-ft / 2 700-4 250 rpm
(460 Nm / 2 700-4 250 rpm)
376 lb-ft / 4 000 rpm
(510 Nm / 4 000 rpm)
Maximum engine speed
6000 rpm
6 000 rpm
6700 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2380 mm
2 380 mm
2380 mm

381 Technical data
Rims and tires
Rims and tires
Only use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er flap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

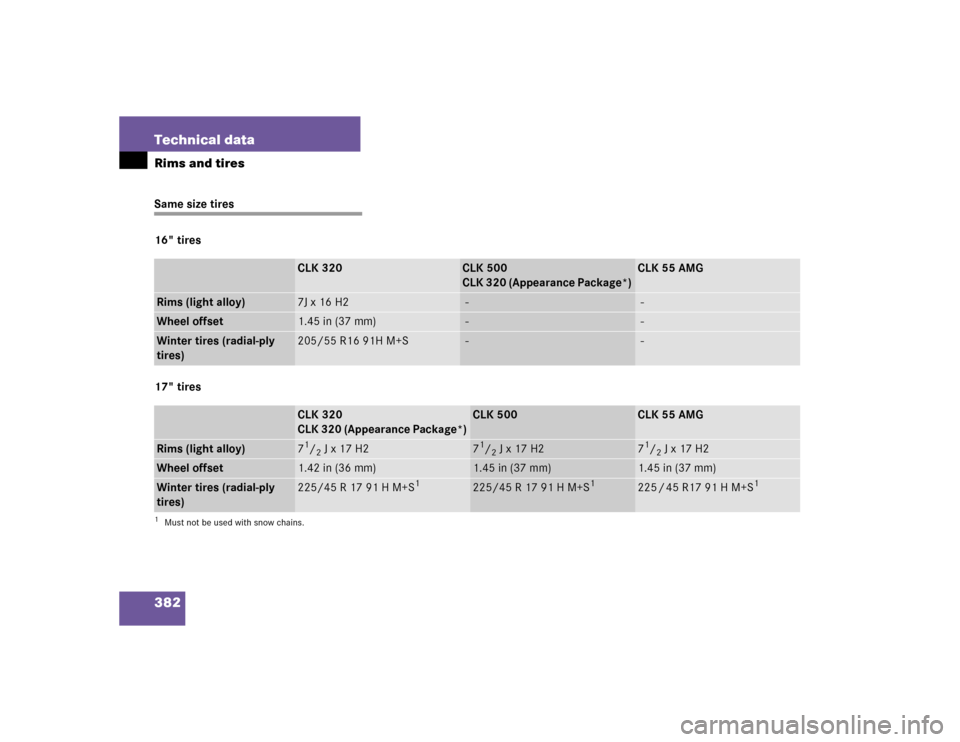

382 Technical dataRims and tiresSame size tires
16" tires
17" tires
CLK 320
CLK 500
CLK 320 (Appearance Package*)
CLK 55 AMG
Rims (light alloy)
7J x 16 H2
-
-
Wheel offset
1.45 in (37 mm)
-
-
Winter tires (radial-ply
tires)
205/55 R16 91H M+S
-
-
CLK 320
CLK 320 (Appearance Package*)
CLK 500
CLK 55 AMG
Rims (light alloy)
71/2 J x 17 H2
71/2 J x 17 H2
71/2 Jx17H2
Wheel offset
1.42 in (36 mm)
1.45 in (37 mm)
1.45 in (37 mm)
Winter tires (radial-ply
tires)
225/45 R 17 91 H M+S
1
225/45 R 17 91 H M+S
1
225 / 45 R17 91 H M+S
1
1Must not be used with snow chains.

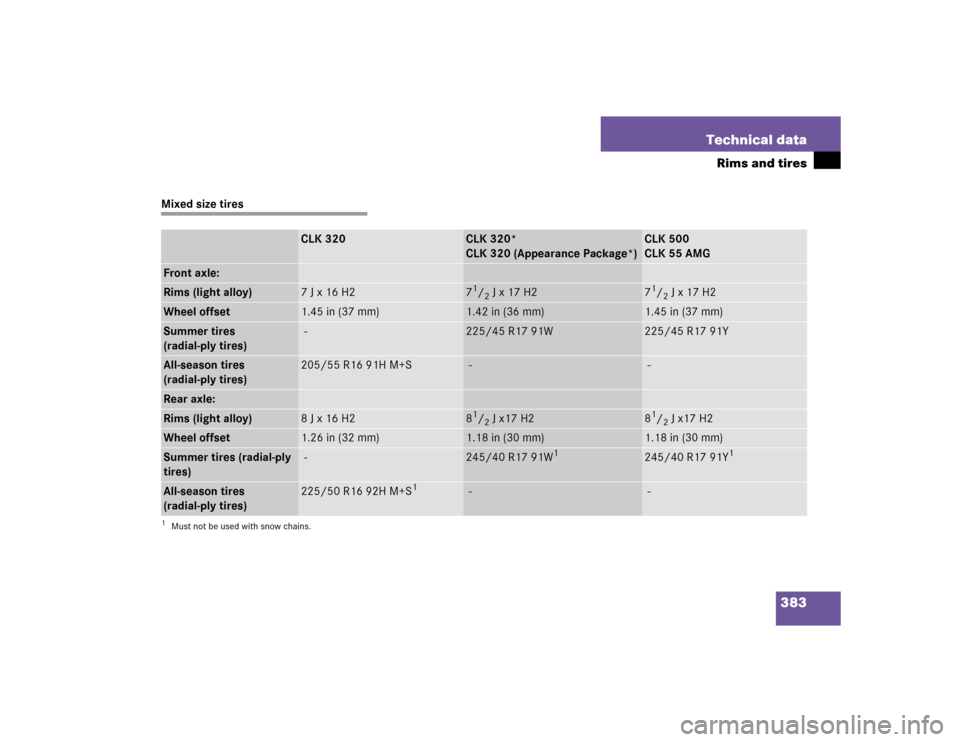

383 Technical data
Rims and tires
Mixed size tires
CLK 320
CLK 320*
CLK 320 (Appearance Package*)
CLK 500
CLK 55 AMG
Front axle:Rims (light alloy)
7 J x 16 H2
71/2 J x 17 H2
71/2 J x 17 H2
Wheel offset
1.45 in (37 mm)
1.42 in (36 mm)
1.45 in (37 mm)
Summer tires
(radial-ply tires)
-
225/45 R17 91W
225/45 R17 91Y
All-season tires
(radial-ply tires)
205/55 R16 91H M+S
-
-
Rear axle:Rims (light alloy)
8 J x 16 H2
81/2 J x17 H2
81/2 J x17 H2
Wheel offset
1.26 in (32 mm)
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires (radial-ply
tires)
-
245/40 R17 91W
1
1Must not be used with snow chains.
245/40 R17 91Y
1
All-season tires
(radial-ply tires)
225/50 R16 92H M+S
1
-
-

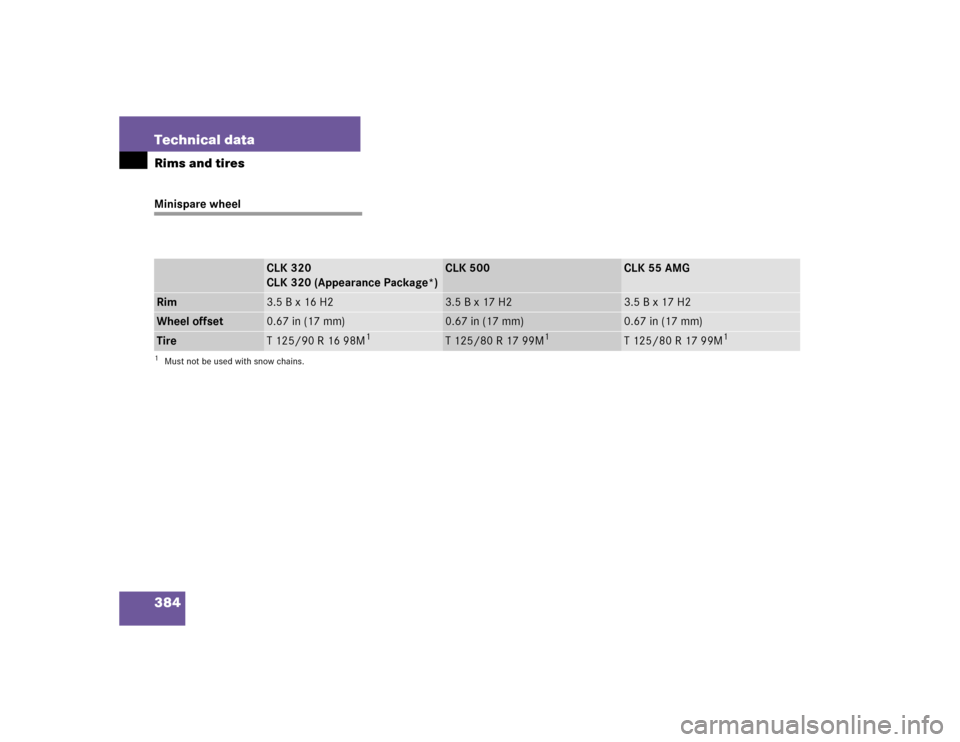

384 Technical dataRims and tiresMinispare wheel
CLK 320
CLK 320 (Appearance Package*)
CLK 500
CLK 55 AMG
Rim
3.5 B x 16 H2
3.5 B x 17 H2
3.5 B x 17 H2
Wheel offset
0.67 in (17 mm)
0.67 in (17 mm)
0.67 in (17 mm)
Tire
T 125/90 R 16 98M
1
1Must not be used with snow chains.
T 125/80 R 17 99M
1
T 125/80 R 17 99M
1
