324 Practical advice
Trouble
shoo ting Problem Po
ssible caus e/consequ ence Su
ggested solutions The engine does not start. You cannot
hear
the sta rter mo tor wor king. The on-board
voltage is too low (the start-
er battery is discharged or nearly dis-
char ged). 6
Jump-s tarting may beperform ed.
If the engine does not start despite jump-
starting:
6 Consult a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre. Vehicles with a petrol engine:
the engine is not running smoothly and is
misfiring. The
engine electronics or a mechanical
component in the engine con trol system
is faulty. 6
Do not use too much throttl e.
6 Have the cause rectified immediately at
a qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre.
Non-combusted fuel can otherwise get
into the catalytic co nverter and dama ge
it. Vehicles with a diesel engine:
the engine does not switch off. 6
Open the main fuse box (= page 386).
6 Pull out the two fuses markedMOTOR NOT
AUS
using the fuse extractor.
The engine stops.
If you wish to restart the engine:
6 Put the fuses bac kin. 209en_d2.boo Seite
324 Dienstag, 25. Mai 2004 7:26 19

344 Practical advice
Openin
g/clo sing in an emergency

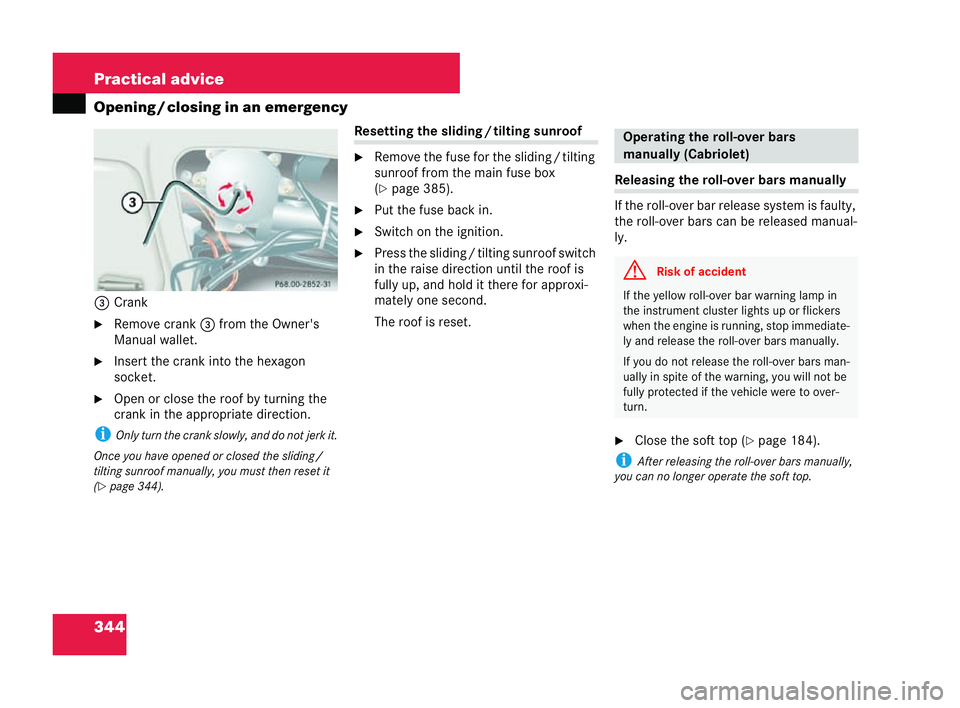

3 Crank
6 Remove crank 3from the Owner's
Manual wallet.
6 Insert the crank into the hexagon
socket.
6 Open or clos ethe roof by turning the
crank inthe appro priate direction.
i Only turn the cra nkslowly, and do not jerk it.
Once you have opened or closed the slidin g/
tilting sunroof manuall y,you must then reset it
(= page 344). Resetting
thesliding /tilti ng sunroof
6 Remove the fuse for the sliding /tilting
sunroof from the main fuse box
(= page 385).
6 Put the fuse back in.
6 Switch on the igniti on.
6 Press the sliding /tilting sunroof switch
in the raise direction until the roof is
fully up, and hold itthere for approxi-
mately on esecond.
The roof is reset. Releasing
the roll-over bars manually
If the roll-over bar release system isfaulty,
the roll-over bars can be released manual-
ly.
6 Close the soft top ( =page 184).
i After relea sing the roll-over bars manually,
yo u can no lo nger op eratethe soft top.
P 68
.00-2852-31 Operating the rol
l-ov er bars
manually (Cabriolet) G
Risk of accident If the yellow roll-over bar warning lamp in
the instrument cluster li
ghtsup or fl ickers
when the engine is ru nning,sto pimmediate-
ly and release the roll-over bars manually.
If yo u do not release the roll-over bars man-
ually in spite of the warning, you will not be
fully prote cted ifthe ve hicle were to over-
turn. 209en_d2.boo Seite
344 Dienstag, 25. Mai 2004 7:26 19

385
Practical advice

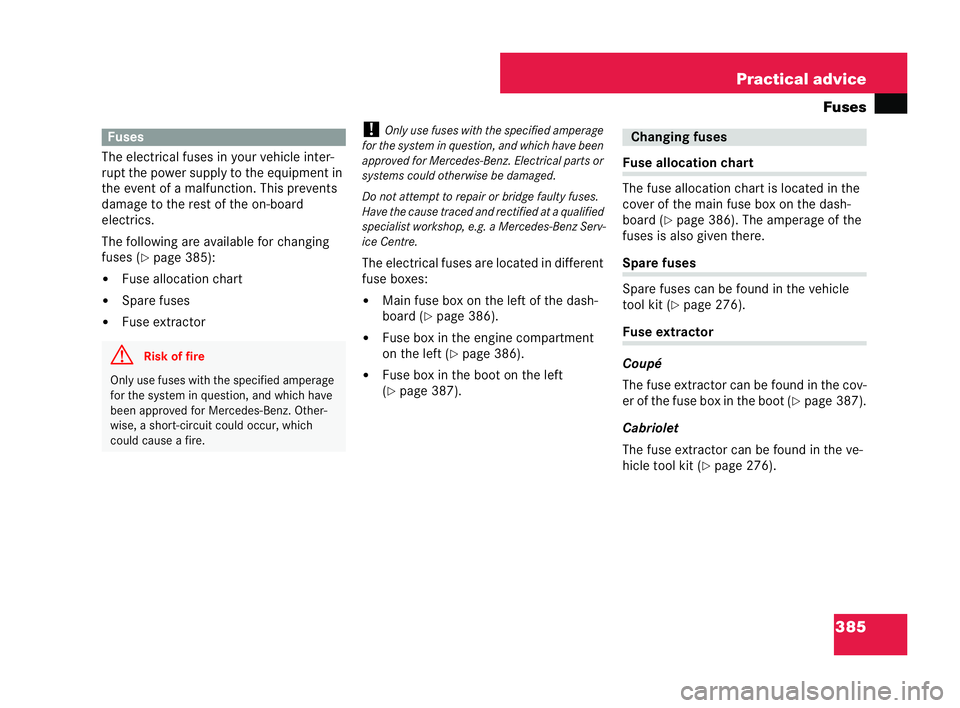

Fuses
The electrical fuses in your vehicle inter-
rupt the power supply to the equipment in
the event of a malfunction. This prevents
damage to the rest of the on-board
electri cs.
The following are available for changing
fuses ( =page 385):
! Fuse allocation chart
! Spare fuses
! Fuse extractor !
Only use fuses wi th thespec ifie d amperage
fo r the system inques tion, and which have been
ap proved for Mercede s-Be nz.Electrical parts or
sys tems could otherwise bedamaged.
Do not attempt to repair or bridge faul tyfuses.
Have the cause traced and recti fied at a qualified
specialist workshop, e.g. a Mercedes-Benz Serv-
ic e Centre.
The electrical fuses are located in different
fus eboxes:
! Main fuse box onthe left of the dash-
boa rd (
=page 386).
! Fuse box in the engine compartment
on the left (
=page 386).
! Fuse box in the boot on the left
(
= page 387). Fuse allocation chart
The fuse allocation chart is located in the
cover of the main fuse box on the dash-
board (
=page 386) .The amperage of the
fuses is also given there. Spare fuses
Spare fuses can be found in the vehicle
tool kit (=
page 276). Fuse extractor
Coupé
The fuse extractor can be found in the cov-
er of the fuse box
inthe boot (
=page 387).
Cabriolet
The fuse extractor can be found in the ve-
hicle tool kit ( =pa ge 276). Fuses
G
Riskof fire Only use fuses with the speci
fied amperage
for the system in question, and which have
be en approved for Mercedes-Be nz.Other-
wise, a short-circuit could occur, which
could cause afire. Changing fuses209en_d2.boo Seite
385 Dienstag, 25. Mai 2004 7:26 19

386 Practical advice
Fuses

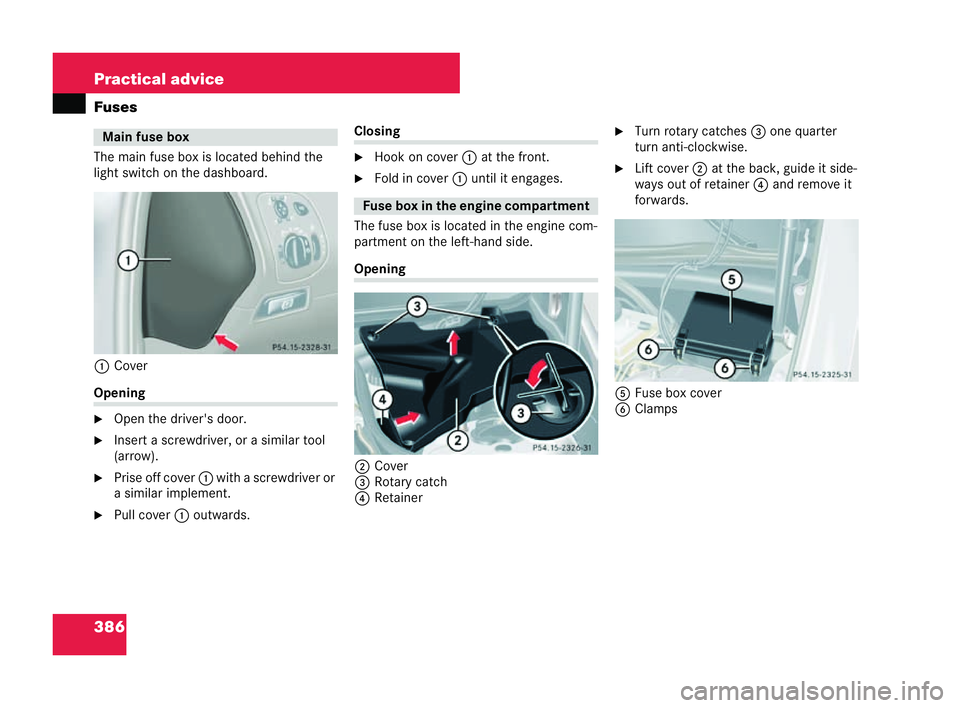

The main fuse box is located behind the
light switch on the dashboard.
1 Cover Opening
6
Open the driver's door.
6 Insert a screwdri ver, or a similar tool
(arrow ).
6 Prise off cover 1with a sc rewdriver or
a similar implement.
6 Pull cover 1outwards. Closing
6
Hook on cover 1at the front.
6 Fold in cover 1until it engages.
The fuse box islocated in the engine com-
partment on the left-hand side. Opening
2 Cover
3 Rotary catch
4 Retainer 6
Turn rotary catches 3onequarter
turn ant i-cl ockwise.
6 Lift cover 2at the back, guide it side-
ways out of retainer 4and remove it
for wa rds.
5 Fuse box cover
6 Clamps Main fuse box
P 54
.15-2328-31 neu Fus
eboxinthe engine compartment P 54.15-2326-31 neu P 54.15-2325-31 neu209en_d2.boo Seite
386 Dienstag, 25. Mai 2004 7:26 19

387
Practical advice
Fuses
6 Rem ove any moisture from the fuse
box using a dry cloth.
6 Loosen clamps 6and swing fuse box
cover 5upwards. Clos
ing
6 Place the cover on fuse box 5. Make
sure that the rubber seal fits correctly
and the cover fits correctly on the box.
6 Press cover 5and secure it with
clam ps6.
6 Guide the cover into the retainer.
6 Turn the rotary catches one quarter

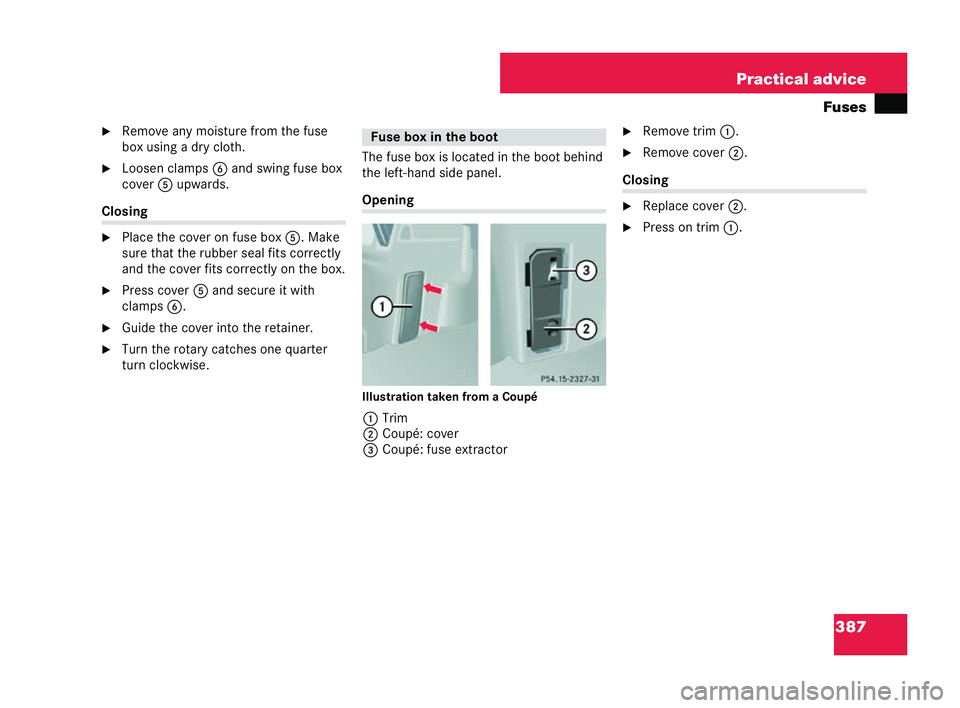

turn clockwise. The fuse box is located in the boot behind
the left-hand side panel. Open
ing
Illustratio ntake n from a Coupé
1 Trim
2 Coupé: cover
3 Coupé: fuse extractor 6
Remove trim 1.
6 Remove cover 2. Closi
ng
6 Rep lace co ver2.
6 Press on trim 1. Fuse box in
theb oot P 54.15-2327-31 neu209en_d2.boo Seite
387 Dienstag, 25. Mai 2004 7:26 19
