Operation
Trailer towing
! You should not exceed a maximum
speed of 80 km /h, even incountries
where higher speeds are permitted.
! Avoid sudden braking. Instead, apply
the brake lightly at first, to allow the
trailer to overrun. Then increase the
braking for cerapidly.
! If the trailer starts to swing, reduce
your speed, do not attempt corrective
steering, and brake if necessary. On no
account should you attem pttodraw
the vehicle /trailer combination out by
increasing your speed.
! The gradient-climbing capabi lities from
a standstill are correct for sea level.
When driving in mountainous areas,
note that the power output of the en-
gine, and with itits gradient-climbing
capability from a standstill, decreases
with increasing altitude.
! Do not uncouple a trai ler with anoverrun
brake when the brake is engaged. The spring
action of the overrunning brake mechani sm
could damage the bumper. 6
Fold out the socket under the vehicle.
6 Remove the locked prot ective cap on
the handwheel.
6 Unlock the lock on the handwheel
usin g the key.
6 Hold the ball coupli ngfirmly. Lift the
handwheel off the ball coupling and
turn the handwheel clockwise until it
engages.
The red marking on the handwheel is
aligned with the white marking.
6 Remove the ball coupling by pulling
downwards.
6 Press the ball coupling cover into the
ball coupling recess.
Make sure that the cover is fitted se-
curely. Stowing the ball coupling
6
Stow the ball coupling in the ball
coupling well by the spare wheel. Removing the ball coupling
G
Risk of accident Do not carry the ball coupling unsecured in
the vehicle interior.
Vehicle occupan tscould be injured by the
ball coupling being thrown around in the
vehicle in the event of:
! sharp braking
! a change of direction or
! anaccide nt 209en_d2.boo Seite
263 Dienstag, 25. Mai 2004 7:26 19

266 Operation
Service
6
Switch on the ignition.
The standard display appears in the mul ti-
function display (= page 120).
6 Pres s the k orj button on the
mu lti-function steering wheel repeat-
edly until the 9or´ service
symbol appears in the multi-function
display with the service due date.
i Periods when the battery isdisconnected
ar en ot recorde dbythe timed service indicator.
Yo u must therefore subtract such periods from
the ser vice due dat eyourself.
Do not confuse the service indicator with the
: engine oil level display. If your vehicle is ever service
dother than
at a Mercedes-Benz Serv ice Ce ntre, you
can reset the service indicator yoursel f.
6 Switch on the ignition.
The standard displ ayappears in the multi-
function display (= page 120).
6 Press the korj button on the
multi-function steering wheel repeat-
edly until the 9or´ service
symbol appears in the mul ti-function
display with the service due date.
6 Press and hold the reset button on the
left in the instrument cluster for about
four seconds. The following message appears
inthe
display:Re set service interval?
To confirm pr ess reset button
6To confirm, press and hold the reset
button until asignal sou nds.
The service indicator now displays the
new value.
i Ifyou have reset the service indicator acci-
dentally, a qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre, will beableto
upda te itagain. Calling up the
service due date Resetti
ngthe service indic ator 209en_d2.boo Seite
266 Dienstag, 25. Mai 2004 7:26 19

280 Practical advice
Display
messages
The operating system shows warnings or
malfunct ions in the multi-function display.
Certain messages are accompanied by an
audible warning signal or a continuous
tone.
High-priority messages are highlighted in
red in the display. These messages are
printed inred in the following tables.
Please respond inaccordance with the
messages and follow the additional notes
in this Owner's Manual.
! You can acknowledge low-priority mes-
sages by pressing the è,· ,
j ork buttons on the multi-
fun ction steering wheel or the reset
button on the left in the instrument
cluster. They will then be stored in the
malfunction memor y.
! Highest-priority messages cannot be
acknow ledged and are automatically
stored in the malfunction memory. If you select
the malfunction memory
menu in the operating system, the ac-
knowledged and unacknowledged mes-
sages will appear ( =page 116).
! Malfunctions and faults are only indicated
and dis play ed bycertain systems. The messages
se rve merelyto make sure that the vehicle oper-
ates safel y. i
Turning the key to position 2in the ignition
lock or pressing the KEYLESS GO* button twice
activates all the warni ngand indicator lamps
(except for the turn signal indicator lamps) and
the multi-function display. Please check that
the yare working properly before commencing a
journey.
The following tables show all the display
messages. The messages are divided into
sections to make it easier to find the rele-
va nt message:
! Text-style messages from
(=
page 281) onwards are displayed
alphabetically
! Symbol messages from ( =pa ge 293)
onwards Display messages
G
Riskofaccident No
messages are displayed if the instrument
clu ster or multi-function display fails. Other
systems which significantly affect the vehi-
cle's han dling characteristics may have
failed.
Contact a qualified spec ialist workshop im-
me diate lywhich hast he nece ssary special-
ist knowledge and tools to carry out the
work requi red. Mercedes-Benz recommends
that you use a Mercedes-Benz Service Cen-
tre for this purpose. In parti cular, work rele-
va nt to safety or onsafety-relate dsystems
must be carried out at a quali fied specialist
wor kshop. 209en_d2.boo Seite
280 Dienstag, 25. Mai 2004 7:26 19

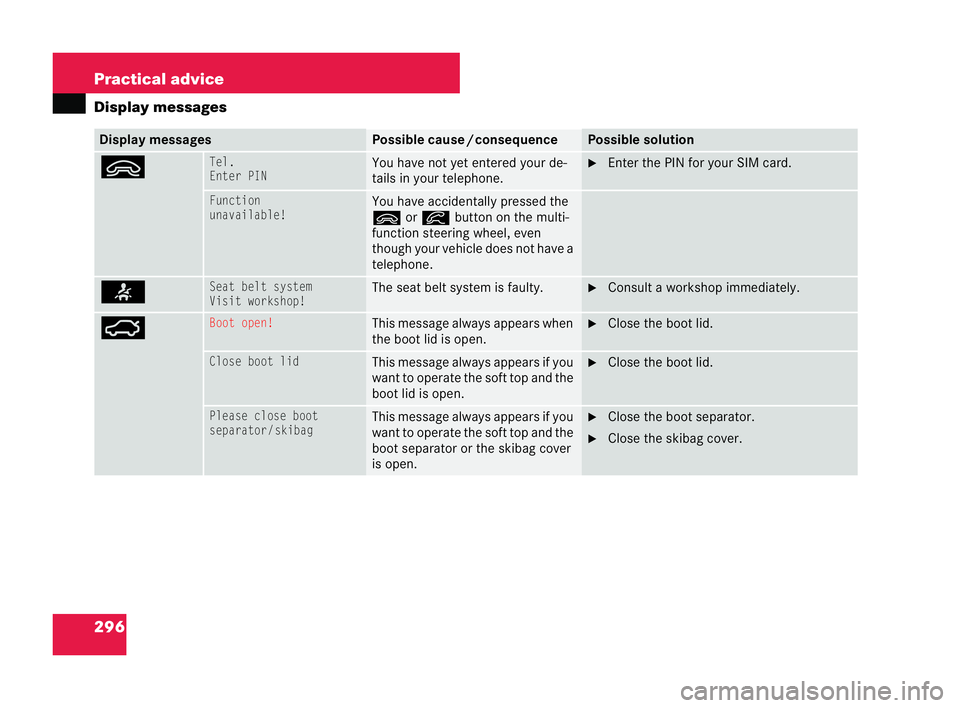

296 Practical advice
Display
messages Display messages Pos
sible cause /consequence Possible solution
ìTel.
Enter PIN Yo
uhave not yet enter edyou rde-
tails in your telephone. 6
Enter the PIN for your SIM card.
Function
unavailabl e! You have accidentally
pressed the
ì orí button on the mu lti-
function steering wheel, even
though your vehicle does not have a
te lephone. <
Seat
belt system
Visit work shop! The seat belt system is faulty. 6
Consult a workshop immediately. Ê
Boot
open! This message always appears when
the boot lid is open. 6
Close the boot lid.
Close boot lid This message always appears
ifyou
want to operate the soft top and the
boot lid is open. 6
Close the boot lid.
Please closeboot
separato r/skibag This message always appears
ifyou
want to operate the soft top and the
boot separator or the skibag cover
is open. 6
Closethe boot separator.
6 Close the skibag cover. 209en_d2.boo Seite
296 Dienstag, 25. Mai 2004 7:26 19

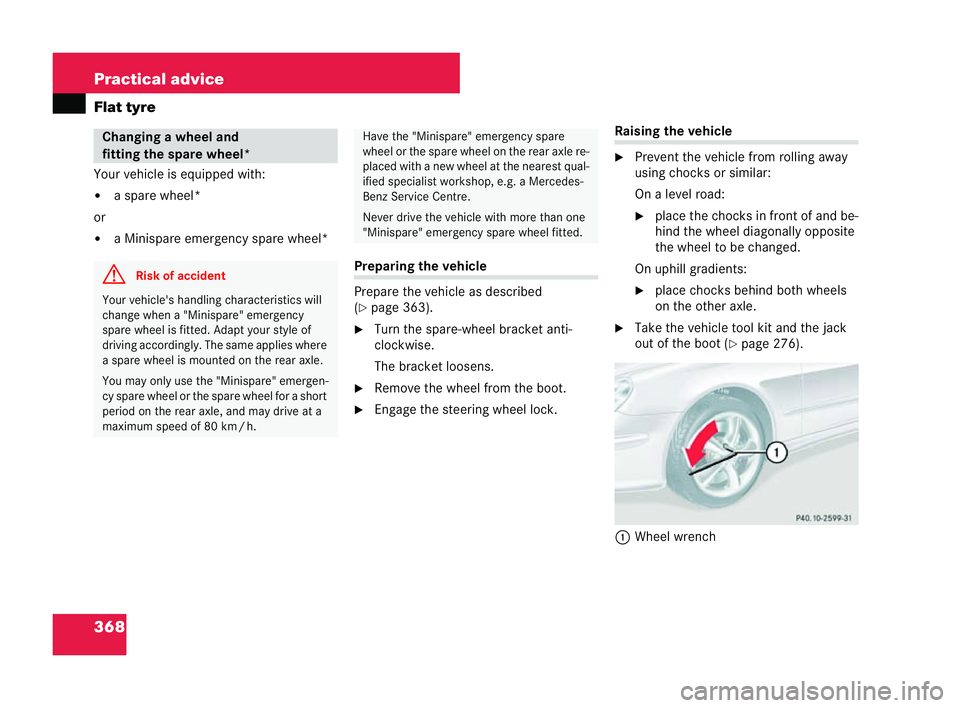

368 Practical advice
Flat tyre
Your vehicle is equipped with:
!
a spare wheel*
or ! a Minispare emergency spare wheel* Preparing the veh
icle
Prepare the vehicle as described
(= page 363).
6 Turn the spa re-wheel bracket anti-
clockwise.
The bracket loosens.
6 Remove the wheel from the boot.
6 Engage the steering wheel lock. Raisin
gthe vehicle
6 Prevent the vehicle from rolling away
using chocks or similar:
On a level road:
6place the cho cks in front of and be-
hind the wheel diagonally opposite
the wheel to be changed.
On uphill gradients:
6 place chocks behind both wheels
on the other axle.
6 Take the vehicle tool kit and the jack
out of the boot ( =page 276).
1 Wheel wrench Ch
anging a wheel and
fitting the spare wheel* G
Risk of accident Your vehicle's handling characteristics will
change when a "Minispare" emergency
spare wheel is fitted. Adapt your style of
driving accordingly. The same applies where
a spare wheel is
mounted on the rear axle.
You may only use the "Minispare" emergen-
cy spare wheel or the spare wheel for a short
period on the rear axle, and may drive at a
maximum speed of 80 km /h. Have the
"Minispare" emergency spare
wheel or the spare wheel on the rear axle re-
placed with a new wheel at the nearest qual-
ified specialist workshop, e.g. a Mercedes-
Benz Service Centre.
Never drive the vehicle with more than one
"Minispare" emergency spare wheel fitted. P 40.10-2599-31209en_d2.boo Seite
368 Dienstag, 25. Mai 2004 7:26 19

424 Technical terms
Maximum torque Maximum ->torque that is achieved at a
given engine speed. The higher the
max imum torque, the greater the pow-
er delive red to the wheels by the en-
gine.
Memor yfunction*
Memory for three individual seat, steer-
ing wheel and mirror positions. Posi-
tions are saved for each key and/or
->KEYLESS GO key*.
Menu The ->operating system displays are ar-
ranged in menus. Several commands
are grouped together in the men us, e.g.
the Audio menu contains theSelect
station
orOperate the CD playercom-
mands. You can change the settings for
your vehicle directly using these com-
mands. Minispare
->Emergency spare wheel
MON (M otor O ctane N umber)
Indicates the petrol octane number de-
termined by standard methods. MON is
a measure of the ->knock resistance of
the pet rol.
Multi-function display Display in the ->instrument cluster
which shows information about the
->operati ngsystem and system mes-
sages.
Multi-function ste ering wheel
Steering wheel with buttons which you
use to contro lthe ->operating system.
On-board voltage
The vehicle's voltage, influenced by
outgoing lines, electrical consumers
and return lines. The battery can re-
ceive and produce extremely high elec-
tric alcurrent without causing a
significant change in the voltage. Operating system
You can use the operating syst emto
look up information about your vehicle
and to make settings. This information
is displayed on the ->multi-function dis-
play. The buttons on the ->multi-func-
tion steering wheel are used to control
the displ ayand the settings in the oper-
at ing system.
Overrevving range Speeds in the red area of the rev coun-
ter at which the engine can only oper-
ate for a shor tperiod.
Overrun mode Passive acceleration (deceleration) of
the vehicle, e.g. if you drive downhi llor
release the accelerator pedal.
Parking brake Prevents th evehicle from rolling away
when it is parked. 209en_d2.boo Seite
424 Dienstag, 25. Mai 2004 7:26 19

437
Index
Minispare eme rgency spare wheel
St orage location .. . . . .... . . . ...277
Te chnical data ... . . . .... . . . ...403
Mirror light ..... . . . ..... . . . ...151
Mirrors – see Exterior mirrors
and Rear-view mirror
Misfiring . . . ..... . . . ..... . . . ...324
Mobile phone . . . .. . . .. . . . . . . ... 232
Inserting the bracket .. . . . . . . ... 232
Ow n number sending . ..... . . . ..233
Re moving . . ..... . . ..... . . . ...234
Run -on time . . . . . . . .. . . . . . . ... 233
MOExtended run-f lat system . . ...250
Driving tips .. . . . . . . .. . . . . . . ... 373
Multi-contour backrest . . .. . . . . ..91
Multi-function disp lay
Exp lanation . . . . . . . .. . . . . . . ... 424
Se lect the language
(operating system) . . . . . . . . . . . . .120
Multi-function displ aylanguage
Se lect the language
(operating system) . . . . . . . . . . . . .120
Multi-function steering wheel . .... 16
Bu ttons . . . ..... . . ..... . . . ...108
Ex planation . . . . . . . .. . . . . . . ... 424
Ov erview . . ..... . . ..... . . . ....16 N
Nubuck leath erupholstery
(AMG vehicles) Notes on care. .. . . . . . . .. . . . .. 267 O
Oi l–see Engine oil
One-to uchge arshi fting . . . ..... .. 140
Operating system . . . .. . . .. . . . .. 108
Audio men u. . . . . . . . . . . .. . . . .. 113
Convenience submenu . . . . . . . . . .129
Display messages . . . . . . .. . . . .. 280
Dist ronic menu . .. . . . . . . .. . . . .. 115
Explanat ion . . . . . . . . . . . .. . . . .. 424
Function . . . . . . .. . . . . . . .. . . . .. 109
Heater submenu . . . . . . . .. . . . .. 126
Instrument cluster submenu . . . ..119
Lighting submenu . . . . . . .. . . . .. 122
Malfunction memory me nu. . . . .. 116
Menu ove rview . .. . . . . . . .. . . . .. 110
Nav igation menu . . . . . . . .. . . . .. 114
Settings menu . .. . . . . . . .. . . . .. 116
Standard display menu . . . ...... 112
Submenu . . . . . .. . . . . . . .. . . . .. 109
Telephone menu . . . . . . . .. . . . .. 133
Time submenu . .. . . . . . . .. . . . .. 121 Trip computer
menu . . . .... . . . . .131
Veh icle submenu . . . . . .... . . . . .125
Outsi detemp erature
Display . . . . . .... . . . . .... . . . . .107
Overhead control pan el
Ov erview . . . .... . . . . .... . . . . ..19
Own number sending
(mob ile ph one) ... . . . . .... . . . . .233 P
Paint no. . . . . ..... . . . . .... . . . . .393
Park position Ex ter ior mirrors .. . . . . .... . . . . .150
Setting the exterior mirrors
(operating system) . . . . . . . . . . . . .130
Parking .. . . . . .... . . . . .... . . . . ..43
Parki ngaid . . .... . . . . . .... . . . . .150
Parking brake .... . . . . ..38, 43, 295
Dis play me ssag e. . . . . .... . . . . .295
Expl anation . .... . . . . .... . . . . .424
Parking lamps .... . . . . .... . . . . .357
Changing . . . .... . . . . .... . . . . .360
Display messag e. . . . . .... . . . . .301
Parking lock Releasing manually
(automatic transmission) ... . . . . .353 209en_d2.boo Seite
437 Dienstag, 25. Mai 2004 7:26 19

440 Index
Skibag cover
..... . . . ..... . . . ..188
Slidin g/tilting sunroof ..... . . . ..180
Crank ... . . . .... . . . ..... . . . ..344
Op ening /closing .. . . . .... . . . ..180
Op ening /closing (ma nually) . . . . .343
Rain closing feature . . . ..... . . ..182
Resetting . . .. . . . . . . .. . . . . 183, 344
Snow chains ..... . . . ..... . . . ..258
Socket ... . . . .... . . . ..... . . . ..231
Soft top ... . . . .... . . . ..... . . . ..184
Cleaning . . . . ..... . . ..... . . . ..270
Closing (key) . . . . . . . .. . . . . . . ..187
Closing (sw itch ). .. . . . .... . . . ..186
Dis play messag e.. . . . .... . . . ..297
Ensuring that it isloc ked. . .. . . . .188
Ma lfunction . ..... . . ..... . . . ..330
Opening (key) . . . . . . . .. . . . . . . ..187
Op ening (switch ).. . . . .... . . . ..185
Operating in an emerg ency.. . . . .347
Spare fuses . ..... . . . ..... . . . ..385
Spare wheel
Fitting ... . . . .... . . . ..... . . . ..368
Storage location ... . . . .... . . . ..278
Technic aldata . . . . . . .. . . . . . . ..403
Speed Technic aldata . . . . . . .. . . . 395–397
Speed limiter Speedtronic . ..... . . ..... . . . ..206 Speedome
ter
Digital display
(o perating system) . . . . . . . . . . . . .113
Selecting the display
(o perating system) . . . . . . . . . . . . .119
Speedt ronic . .. . . . . . . . . . . .. . . . .206
Disp lay messag e.. . . . . . . .. . . . .292
Expla nation ... . . . .... . . . ..... .426
Permanent . . . . . . . . . . . . . . . . . . .211
Variabl e. . . . . . . .. . . . . . . .. . . . .207
SRS (Supplemen tal Restraint
System) .. . . . . . . .. . . . . . . .. . . . .. 49
War ning lamp . . . . ..... . . ...49, 312
Standard display
Select the displ ay
(o perating system) . . . . . . . . . . . . .120
Starting, see Starting the engine
Station selection Setting (ope rating system) .... . ..125
Status indicator Select the disp lay
(o perating system) . . . . . . . . . . . . .120
Steering wheel Adjusting . . . . . . .. . . . . . . .. . . . .. 29
Buttons (operating system) . . . . . .108
Storing setting s. .. . . . . . . .. . . . .. 97 Steeri
ngwheel gearshift
buttons . .. . . . . . . .. . . . . . . . 143, 145
Steer ing wheel heating . .... . . . . .231
Stowage tray . .... . . . . . .... . . . .227
Stowage well . .... . . . . . .... . . . .225
Armr est (beneath) . . . . . .... . . . .226
Gl ove compartment . . . . .... . . . .225
Ru ffled pockets ... . . . . .... . . . .228
St owage tray . .... . . . . .... . . . .227
Submenu . . . . ..... . . . . .... . . . .109
Co nvenience . . .... . . . . .... . . . .129
He ating .. . . . . .... . . . . .... . . . .126
Instrument clust er . . . . . .... . . . .119
Li ghti ng . . . . . .... . . . . .... . . . .122
Re setting afunction . . . . .... . . . .117
Se ttings menu .... . . . . .... . . . .117
Se ttings overview .. . . . . .... . . . .118
Time .... . . . . .... . . . . .... . . . .121
Ve hic le .. . . . . .... . . . . .... . . . .125
Summer opening fea ture ... . . . . .183
Sun visor . . . . ..... . . . . .... . . . .151
Surround lighting .. . . . . .... . . . .104
Se tting (operating system) . . . . . . .123 209en_d2.boo Seite
440 Dienstag, 25. Mai 2004 7:26 19
