Getting started
Adjusting

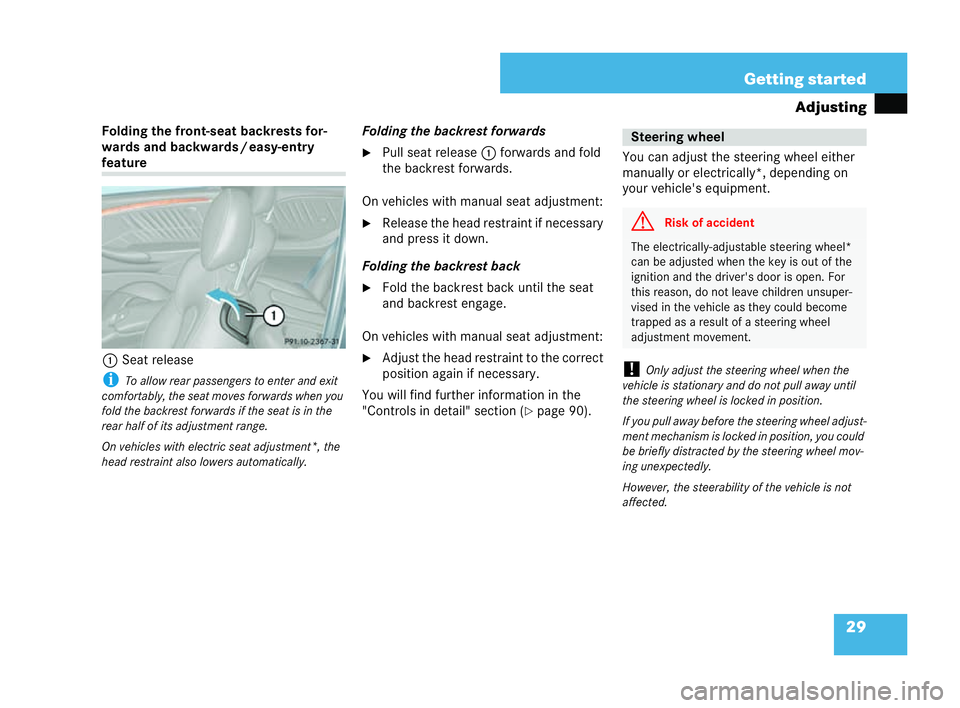

Folding the front-seat backrests for-
wards and backward s/easy-e ntry feature
1 Seat release
i Toallow rear passengers toent erand exit
com fortab ly, the seat moves forwards when you
fold the bac kres t forwards if the seat isin the
rear half of its adjustment range.
On vehicl eswith electric seat adjustment*, the
head restraint also lowers autom atically. Fol
ding the backrest forwards
6 Pull seat release 1forwa rds and fold
the backrest forwards.
On vehicles with manual seat adjustment:
6 Release the head restraint if necessary
and press it down.
Fol ding the backrest back
6 Fold the backr est back until the seat
and backrest engage.
On vehicles with manual seat adjustment:
6 Adjust the head restraint to the correct
position again if necessary.
You will find further information in the
"Controls in detail" section ( =page 90). You can adjust the steering wheel either
manually or electrically*, depending on
your vehicle's equipment.
! Only adjust the stee ring wheel whe nthe
ve hicle isstationary and do not pull away until
the ste ering whe elis locked in position.
If you pul laway before th esteering wheel adjust-
ment mechanism is locked in position, you could
be br iefly distracte dby the steering wheel mov-
in g unexpec tedly.
However ,the steerability of the vehicle is not
affected. P 91.10-2367-31
neu Steering wheel
G
Risk of accident The electrically-adjustable steering wheel*
can be adjus
tedw hen the key is out of the
ignition and the driver's door is open. For
thi sreason, do not leave children unsuper-
vised in the vehicle as they could become
trapped as a result of a steering wheel
adjustm ent movem ent. 209en_d2.boo Seite
29Diens tag, 25 .Mai 2004 7:26 19

30 Getting started
Adj
usting Adjus
ting the steeri ngwheel manual ly
The handle is located under the steering
column.
1 Release handle
6 Pullhandle 1to release the steering
column.
6 Adjust the position of the steering
wheel manually.
When doing so, make sure that:
! you can hold the steering wheel
with your arms sli ghtly bent
! your legs can mov efreely
! you can see all displ ays in the
in strument cluster clearly 6
To lock the steering co lumn, push han-
dle 1in fully until you hear it click into
place.
The steering wheel position is locked
again.
Adjusti ngthe steering wheel electrically*
6
Make sure that the ignition isswitched
on.
All the lamps in the instrument cluster
light up.
The lever is on the left under the steering
column.
1 Steering column fore-and-aft adjust-
ment
2 Steering column he ight Steering
column fore-and-aft adjust-
ment
6 Push the lever forwards or backwards
in the direction of arrow 1until your
arms are slightly bent when you are
holding the steering whee l.
Steering column hei ght
6 Push the lever up or do wnin the direc-
tion of arrow 2. When doing so, make
sure that:
! your legs can mo vefreely
! you can see all displays inthe
instrument cluster clearly
You will find further information in the
"Controls indetail" section.
! Easy-entr y/exit feature for the driver
(= page 129)
! Storing the steering wheel position
(=
page 97) P 46.15-2122-31
P 54.25-3801-31209en_d2.boo Seite
30Diens tag, 25 .Mai 2004 7:26 19

39
Getting started
Driving
6 Select either first or reverse gear.
6 Slowly release the clutch pedal and
carefully depress the accelerator.
! Change gear in good time. Make sure that
the enginespe eddoes notreach thered area in
the rev cou nter. There is otherwise a danger of
engine dam age.
Do not allow the wheels tospin, ifpossible. You
could otherwise damage the dri vetrain. Automatic
transmission*
i You can only move the selector lever tothe
re quired position by depressing the brake pedal.
Only then isthe selector lever lock disabled.
6 Depress the brake pedal and keep it in
this posi tion.
The selector lever lock is released.
6 Release the parking brake.
6 Move the selector lever to position D
or R.
i Wait for the shi ftprocess to complete
before pulling away.
6 Release the brake pedal.
6 Carefully depress the accelerator
pe dal.
i After a cold start, the automatic transmi s-
sion will shift at a higher engine spe ed. This helps
th e catalytic converter toreach its operati ng
te mperature more quickly. Dipped-
beam headlamps
The light switch is located on the dash-
board between the steering wheel and the
driver's door.

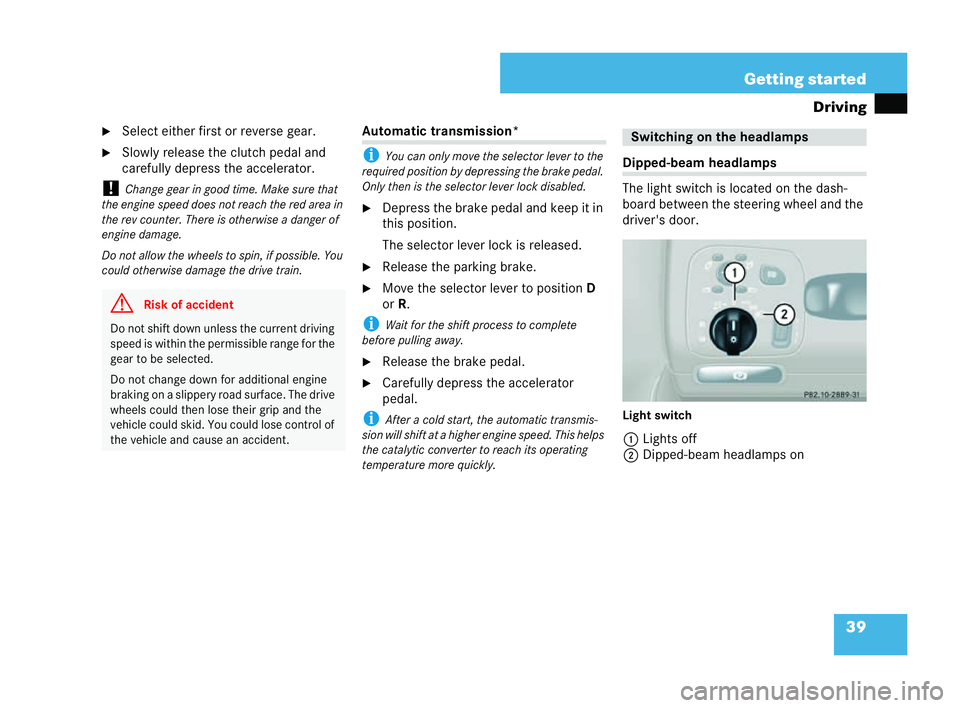

Light switch
1 Lights off
2 Dipped-beam headlamps on G
Risk of accident Do not shift down unle
ss the current driving
sp eed is within the permiss ible range for the
gear to be selected.
Do not change down for additio nal engine
braking ona slippery road surface. The drive
wheels could then lose their grip and the
vehi cle could skid. Youc ould lose control of
the vehicle and cause an acc iden t. Switching on the headlamps
P 82.10-2889-31 neu209en_d2.
boo Seite 39Diens tag, 25 .Mai 2004 7:26 19

41
Getting started
Driving
6 Press the combination switch in the
direction of arrow 1or2.
The cor responding turn signal indicator
lamp flashes in the instrument cluster.
The combination switch moves back to
its basic position automatically after
large steering wheel movements.
i Press the switch briefly to signal a minor
change in direction. The appropriate turn signal
flashes three times. The combination switch is located on the
left of the steering column.
Com
bination switch
1 Single wipe
2 To switch on the windscreen wipers
6 Make sure that the ignition is switched
on. Switching on the windscre
enwipers
6 Turn the combinatio nswitch to the cor-
re ct setting, depending on how heavy
the rain is.
0 Windscreen wipers off
I Intermittent wipe
II Normal wipe
III Rapid wipe
i Vehicles without a rain sensor*:
The winds cree nw iper s are swi tcheddown a
sp eed automatically when the vehicle is station-
ary. If intermitten twipe has been selecte d,the
wipe interval incre ases.
Ve hicles with arain sensor*:
Yo uc an use position Ias the universal position.
Th erain sensor automatically adjusts wiping fre-
quency depending onhow much rai nfalls on the
wiper sensor.
The rai nsensor is an advanced int elligent int er-
mitt ent function which shoul donlybe activated
wh en it is raining. Werecommend that you do
not acti vate the rai nsensor indry weather as dirt
or ooptical effects may cause inadv ertent wiper
sweeps. Windscreen wipers
P 54.25-3804-31 neu209en_d2.
boo Seite 41Diens tag, 25 .Mai 2004 7:26 19

53
Safety
Occupant safety Ai
rb ag syst em G
Risk ofinjury If the belt tensi
onersha ve bee ntriggered,
have them replaced ata qualified specialist
workshop which has th eneces sary special-
ist knowledge and tools to carry out the
work required. Mercedes -Benz recommends
that you use a Mercedes-Be nzService
Centre for this purpose.
In particular, work rele vant to safety or on
safe ty-re lated systems mustbe carried out
at a qualified spec ialist workshop.
Ob serve the safety regulations for th edis-
posal of belt tensioners. Any Mercedes-B enz
Service Centre can provide detail sof these
regulations. G
Risk of injury To reduce the risk of serious or fata
linjury in
an accident with a high rate of deceleration,
e.g. injuries caused by an airbaginflating
within milliseconds or in the ev ent of abrupt
br aking, please observe the following
inst ructions:
! Allve hicle occupants must select a seat
position in which it is possible to wear
the seat belt correctl ybut which is as far
back from the airba gas possible. The
position of the driver's seat must allow
the driver to drive th evehicle safely. The
driver's arms shou ldbe slightly bent
when holding the steering wheel. The
distance from th edriver's seat to the
pedals must be such that the dr iver can
fully depress the pedals.
! Vehicle occupants should wear their
seat belt correctly at all times and lean
back against the bac krest, which should
be positioned almost vertically. The
head restraint should support the back
of yo urhead at abo uteye level. !
Move the front- passenger seat as far to
the rear as possible, especially if a child
is secured in a restraint system installed
on this sea t.
! Never secure a rearward-facing child
restraint system on the front-pass enger
seat if the front-passenger front airbag
is not deactivate d.In the CLK-Class, the
fr ont-passen ger fro ntairbag is deacti-
vated if a child restraint system with
automatic child seat recognition is
secured to a front-passenger seat and
the AIRBAG OFF lamp is lit. If the auto-
matic child seat rec ognition is defective,
children must be secured in a child
restraint system ins talled on a suitable
re ar seat. If you are using aforward-f ac-
in g child seat on the fro nt-pa ssen ger
seat, the front-passenger seat must be
moved as far to the rear as possibl e. 209en_d2.boo Seite
53Diens tag, 25 .Mai 2004 7:26 19

54 Safety
Occupant safety
Your vehicleisequipped with the follo wing
airbags:
! Driver's front airbag accommodated in
the steering wheel housing
! Front-passenger fron tairbag above the
glove compartment
! Sidebags (Coupé)
! in the middle of the doors
! in the rear sidewall
! Head /thorax airba gs(Cabriolet)
! in the outer sides of the front seats
! in the rear sidewall
! Windowbags (Coupé)
!along the roof frame betw een the
front and rear doors Airbag
deploym ent
The airbag inflates in milliseconds. The
1 warning lamp lights up. i
Ifth e airba gsare triggered, you will hear a
bang and asmall amount ofdust may also be
released. This bang will not damage your hearing
and the dust does not constitu te ahealth hazard.
Airbag inflation slows down and restricts
the mo vement of the vehicle occupant.
If a vehicle occupant comes into contact
with an airbag which has been triggered,
the airbag will release some hot gas. This
feature is designed to reduce the force act-
ing on the occupant's head and ch est.
These airbags are theref orein a depress u-
rised state follo wing the accident. !
Do not lean forwards , e.g. over the pad-
ded boss of the steering wheel, particu-
la rly while the vehicle is in motion.
! Do not put your feet on the dashboard.
! Only hold the steering wheel by the rim.
This allows the airbag to inflate fully.
If you hold the ins ideo f the steering
wheel, you could be injured if the airbag
is triggered.
! Do not lean on the doo rsfrom inside the
vehicle.
! Donot place any objects onthe airba gs
or between the airbags and the vehicle's
oc cupants.
! Donot ha nganyha rd obje cts, e.g. coat
hangers ,on the grab handles or coat
hook s.
Because of the high speed at which airbags
have to inflate, it is not possib leto rule out
entire lythe risk of injurie scaused by an
inflating airbag. 209en_d2.boo Seite
54Diens tag, 25 .Mai 2004 7:26 19

55
Safety
Occupant safety
Front airbags
The front airbags increase the protection
afforded to the driver and front passenger
against head and chest in juries. The
driver's front airbag and front-passenger
front airbag are triggered:
! inthe first stages of an accident with
high forces of vehicle deceleration or
acceleration in a longi tudinal direction
! ifthe system foresees that airbag
deployment can offer additional pro-
tection to that provided by the seat belt !
depending on the use of the seat belt
! independently of other airbags in the
vehicle
! rarely if the vehicle overturns, unless
high forces of vehicle deceleration in a
long itudinal direction are detected
The dri ver's front airbag is located inthe
steering wheel. The front-passenge rfront
airbag is fitted above the glove compart-
ment.
Front airbags
1 Driver's front airbag
2 Front-passenger front airbag G
Risk ofinjury Af
ter an airbag has bee ntriggered:
! airbag parts are hot. Do not touch them,
oth erwi se you could be burnt
! have the airbags replaced at a qualified
specialist workshop whic hhas the nec-
essary specialist knowledge and tools to
carry out the work required. Mercedes-
Ben zrecom mends that you use a
Mercedes -Benz Serv ice Centre for
this purpose. Inparticular, work rele-
vant to safety or on safety-relate dsys-
tems must be carried out at a qualified
specialist workshop G
Risk of injury A small
amount of finepowder is released as
an airbag inflates. Thi spowder does not
constitute a health hazard, nor does it imply
that fire has brok enout in the vehicle. This
po wder could cause short-term breathing
dif ficu lties for persons suffering from
as thma or oth errespiratory conditions. In
order to prev ent these breathing difficulties,
leave the vehicle immediately when you are
certain it is safe to do so or open the win-
do ws to allow fresh air to enter the ve hicle.
P91.60-2392-31 209en_d2.boo Seite
55Diens tag, 25 .Mai 2004 7:26 19

56 Safety
Occupant safety
The driver's front airbag
inflates in front of
the steering wheel and the front-passen ger
front airbag inflates infront of and above
the glove compartment.
Front-passenger front airbag 2ison ly
triggered if:
! the front-passenger seat is laden or
occupied
! the PASSENGER AIRBAG OFF wa rning
lamp on the centre console is not lit
(= page 64).
This indicates that a child seat without
au tomatic child seat rec ognition is fit-
te d or that achild seat wit hautomatic
child seat recognition is fitte dincor-
rec tly.
! Do not place heavy objects onthe front-
pas seng er seat. Ifthe system assumes the seat
is occupied because there are objects placed on
it, the restr aint systems on the front-passe nger
si de could be triggered in the event of an acci-
dent and will then need to be replaced. Sidebags (Coupé) G
Risk of injury To reduce the risk of in
juryto occu pantsif a
sidebag is triggered, make sure that:
! there are no other persons ,animals or
ob jects between the vehic leoccu pants
and the deployment range of the side-
bags
! noacce ssories, e.g. cup holders, are
secure dto the doors
! only lig htitems of clothing are hun gon
the coat hooks in the vehicle
! no heavy or sharp objec tsare lef tin the
pockets in clo thing G
Risk ofinjury Ob
serve the following notes to reduce the
ris ko f serio usorfatal in jury if the sidebag is
triggered:
! Vehicle occupants – in particular, chil-
dren – must never lean their head into
the area of the window in which the
sidebag is triggered.
! Vehicle occupants must wear their seat
belt correctly at all times and lean back
against the backrest, which should be
positioned almost vertically.
! Always secure children less than 1.50 m
tall and under twelve years of age insuit-
able child restraint systems. 209en_d2.boo Seite
56Diens tag, 25 .Mai 2004 7:26 19
