2004 MERCEDES-BENZ CL600 Owner's Manual

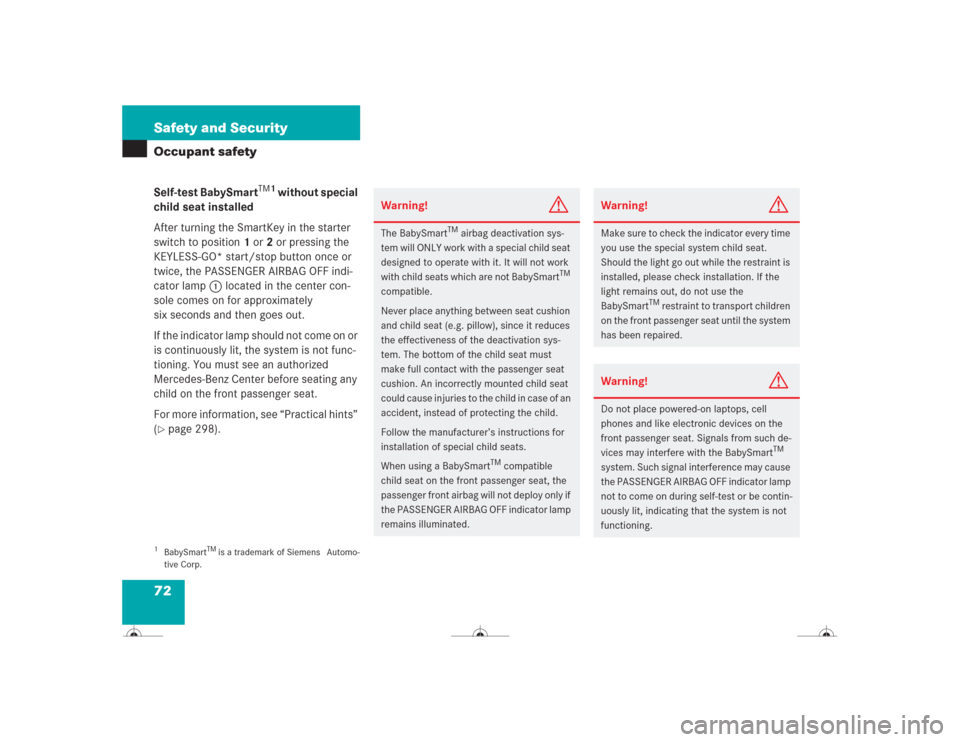

72 Safety and SecurityOccupant safetySelf-test BabySmart
TM1
without special
child seat installed
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the PASSENGER AIRBAG OFF indi-
cator lamp1 located in the center con-
sole comes on for approximately
six seconds and then goes out.
If the indicator lamp should not come on or
is continuously lit, the system is not func-
tioning. You must see an authorized
Mercedes-Benz Center before seating any
child on the front passenger seat.
For more information, see “Practical hints”
(
page 298).
1BabySmart
TMis a trademark of Siemens Automo-
tive Corp.
Warning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
passenger front airbag will not deploy only if
the PASSENGER AIRBAG OFF indicator lamp
remains illuminated.
Warning!
G
Make sure to check the indicator every time
you use the special system child seat.
Should the light go out while the restraint is
installed, please check installation. If the
light remains out, do not use the
BabySmart
TM restraint to transport children
on the front passenger seat until the system
has been repaired.
Warning!
G
Do not place powered-on laptops, cell
phones and like electronic devices on the
front passenger seat. Signals from such de-
vices may interfere with the BabySmart
TM
system. Such signal interference may cause
the PASSENGER AIRBAG OFF indicator lamp
not to come on during self-test or be contin-
uously lit, indicating that the system is not
functioning.

73 Safety and Security
Occupant safety
Installation of infant and child restraint
systems
This vehicle is equipped with tether an-
chorages for a top tether strap at each of
the rear seating positions.
1Cover of top anchorage ring
Remove cover1 from anchorage ring.

Store cover1 in a convenient place
(e.g. glove box).

Guide tether strap between head re-
straint and top of seat back.Head restraint must be positioned such
that the top tether strap can pass freely
between the head restraint and the top of
seat back.
Make sure the tether strap is not twisted.
2Hook
3Anchorage ring

Securely fasten hook2, which is part
of the tether strap, to anchorage
ring3.Once the top tether anchorage hook is at-
tached, the child restraint itself can be se-
cured. Tighten the top tether strap
according to the child restraint
manufacturer’s instructions.

Reinstall cover after removing the teth-
er strap.iFor safety, make sure the hook2 has
attached to the ring3 beyond the
safety catch, as illustrated.

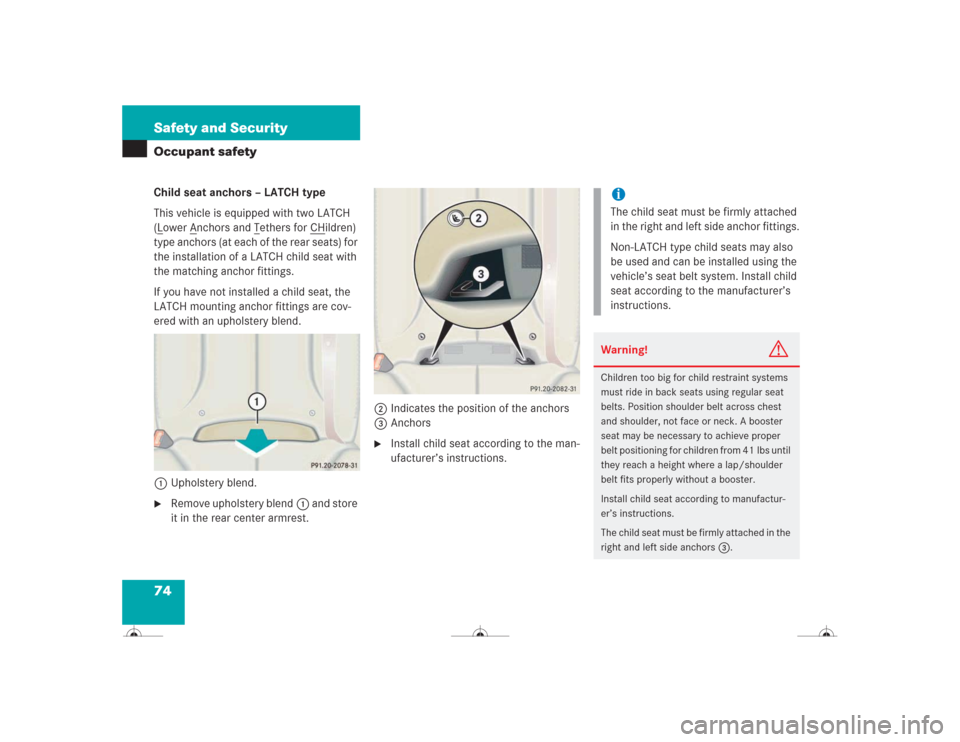

74 Safety and SecurityOccupant safetyChild seat anchors – LATCH type
This vehicle is equipped with two LATCH
(Lower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the rear seats) for
the installation of a LATCH child seat with
the matching anchor fittings.
If you have not installed a child seat, the
LATCH mounting anchor fittings are cov-
ered with an upholstery blend.
1Upholstery blend.

Remove upholstery blend1 and store
it in the rear center armrest.2Indicates the position of the anchors
3Anchors

Install child seat according to the man-
ufacturer’s instructions.
iThe child seat must be firmly attached
in the right and left side anchor fittings.
Non-LATCH type child seats may also
be used and can be installed using the
vehicle’s seat belt system. Install child
seat according to the manufacturer’s
instructions.Warning!
G
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs until
they reach a height where a lap/shoulder
belt fits properly without a booster.
Install child seat according to manufactur-
er’s instructions.
The child seat must be firmly attached in the
right and left side anchors3.

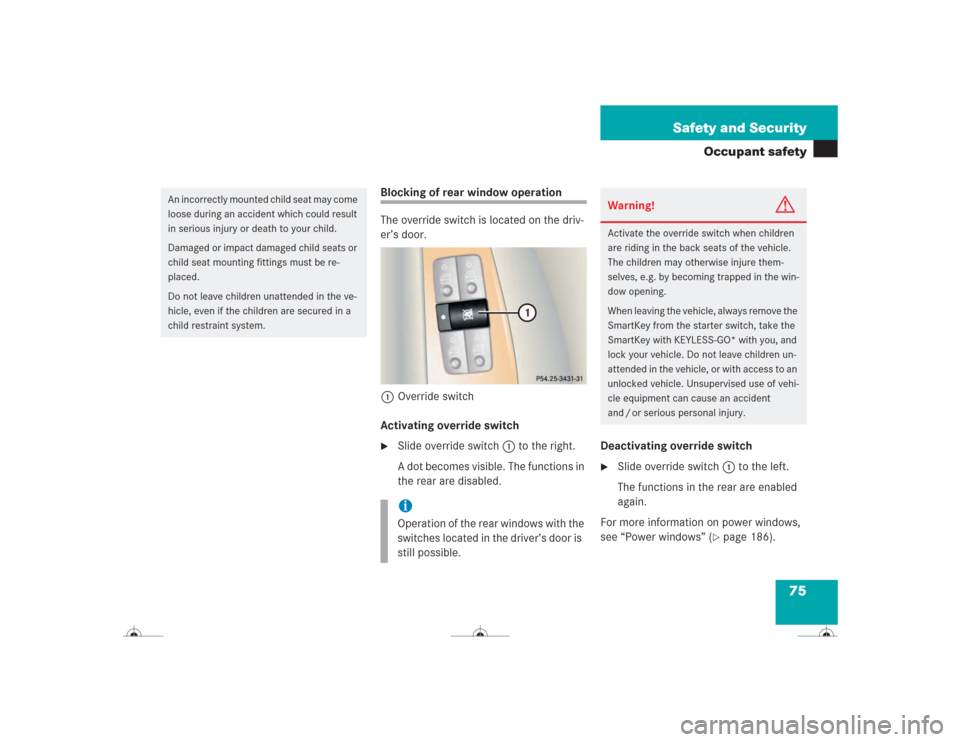

75 Safety and Security
Occupant safety
Blocking of rear window operation
The override switch is located on the driv-
er’s door.
1Override switch
Activating override switch
Slide override switch 1 to the right.
A dot becomes visible. The functions in
the rear are disabled.Deactivating override switch

Slide override switch 1 to the left.
The functions in the rear are enabled
again.
For more information on power windows,
see “Power windows” (
page 186).
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to your child.
Damaged or impact damaged child seats or
child seat mounting fittings must be re-
placed.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system.
iOperation of the rear windows with the
switches located in the driver’s door is
still possible.
Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and / or serious personal injury.

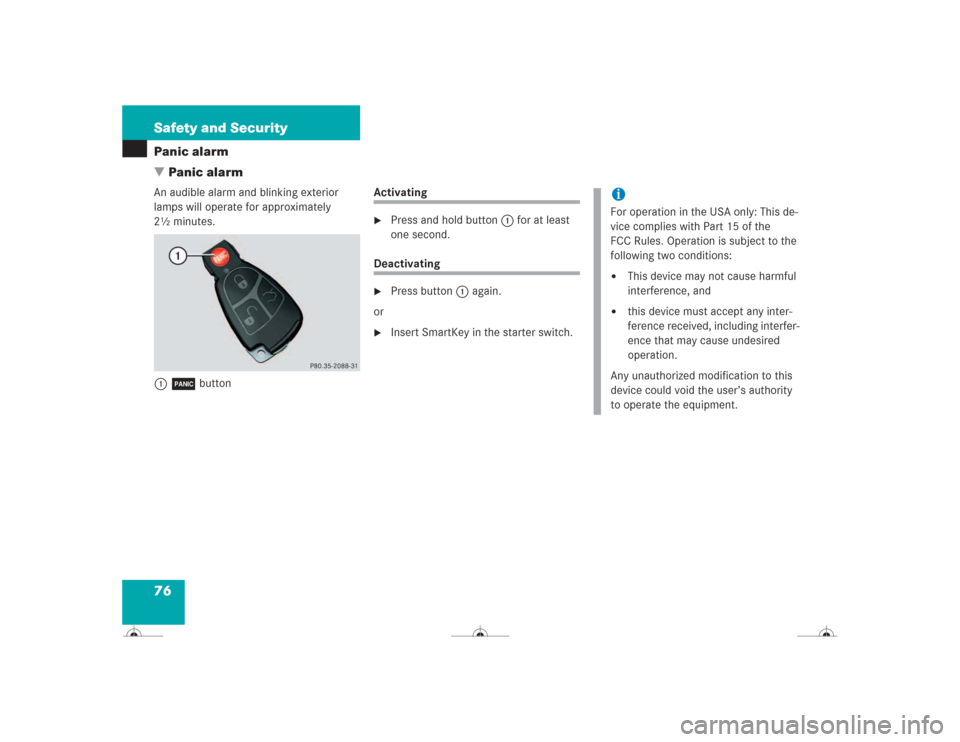

76 Safety and SecurityPanic alarm
Panic alarmAn audible alarm and blinking exterior
lamps will operate for approximately
2½ minutes.
1Â button
Activating
Press and hold button1 for at least
one second.
Deactivating
Press button1 again.
or

Insert SmartKey in the starter switch.
iFor operation in the USA only: This de-
vice complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

This device may not cause harmful
interference, and


this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

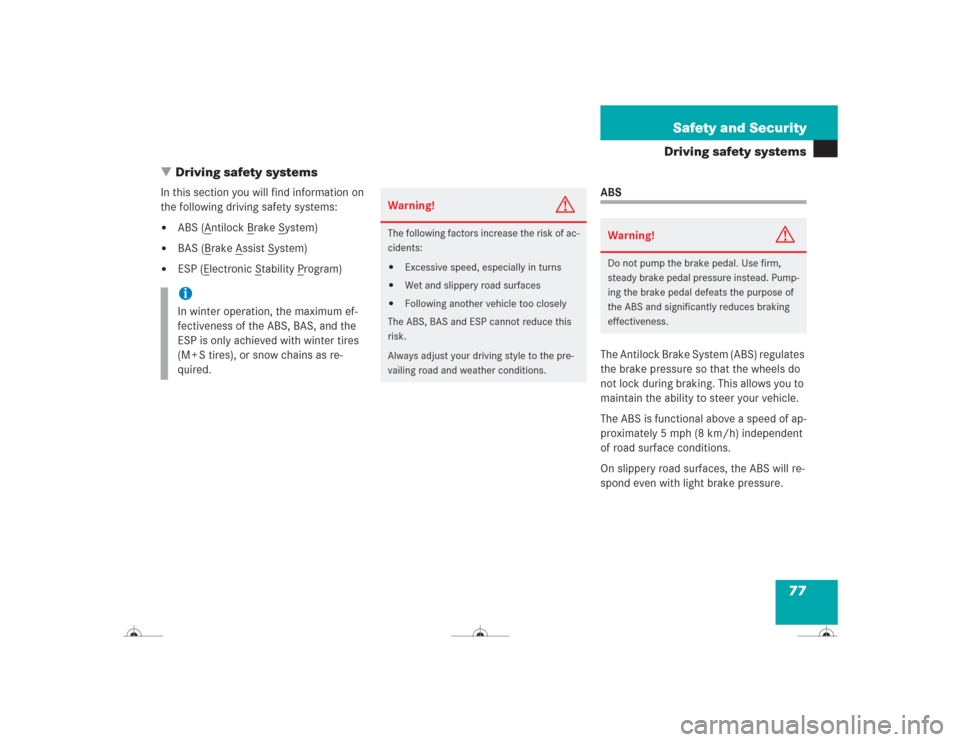

77 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even with light brake pressure.
iIn winter operation, the maximum ef-
fectiveness of the ABS, BAS, and the
ESP is only achieved with winter tires
(M + S tires), or snow chains as re-
quired.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS and ESP cannot reduce this
risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

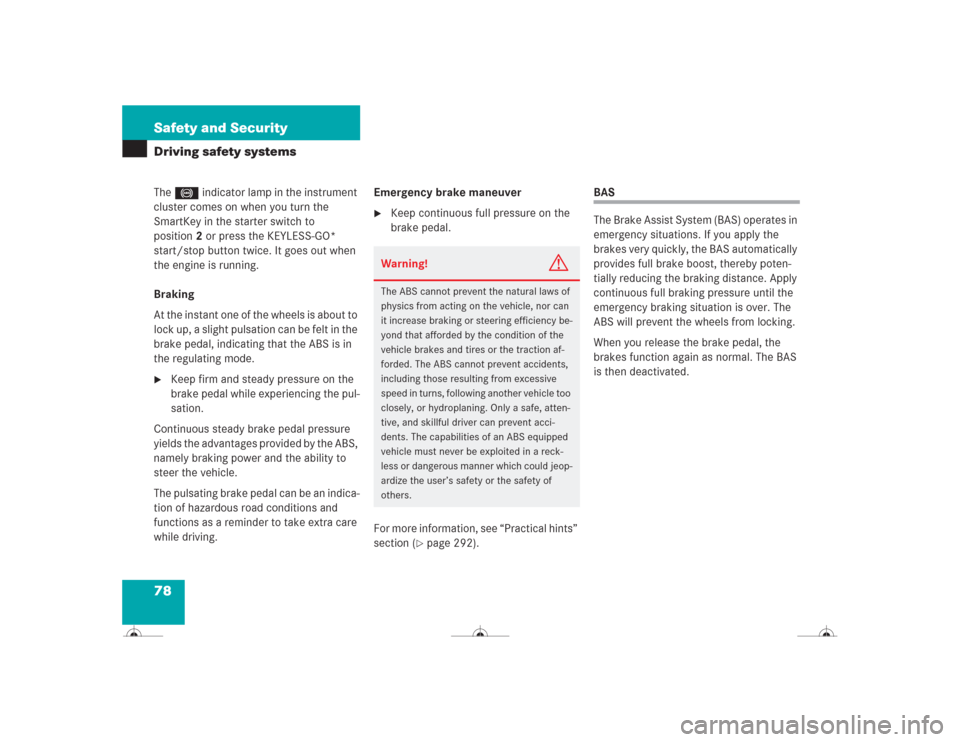

78 Safety and SecurityDriving safety systemsThe - indicator lamp in the instrument
cluster comes on when you turn the
SmartKey in the starter switch to
position2 or press the KEYLESS-GO*
start/stop button twice. It goes out when
the engine is running.
Braking
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode.
Keep firm and steady pressure on the
brake pedal while experiencing the pul-
sation.
Continuous steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.
The pulsating brake pedal can be an indica-
tion of hazardous road conditions and
functions as a reminder to take extra care
while driving.Emergency brake maneuver

Keep continuous full pressure on the
brake pedal.
For more information, see “Practical hints”
section (
page 292).
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing the braking distance. Apply
continuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction af-
forded. The ABS cannot prevent accidents,
including those resulting from excessive
speed in turns, following another vehicle too
closely, or hydroplaning. Only a safe, atten-
tive, and skillful driver can prevent acci-
dents. The capabilities of an ABS equipped
vehicle must never be exploited in a reck-
less or dangerous manner which could jeop-
ardize the user’s safety or the safety of
others.

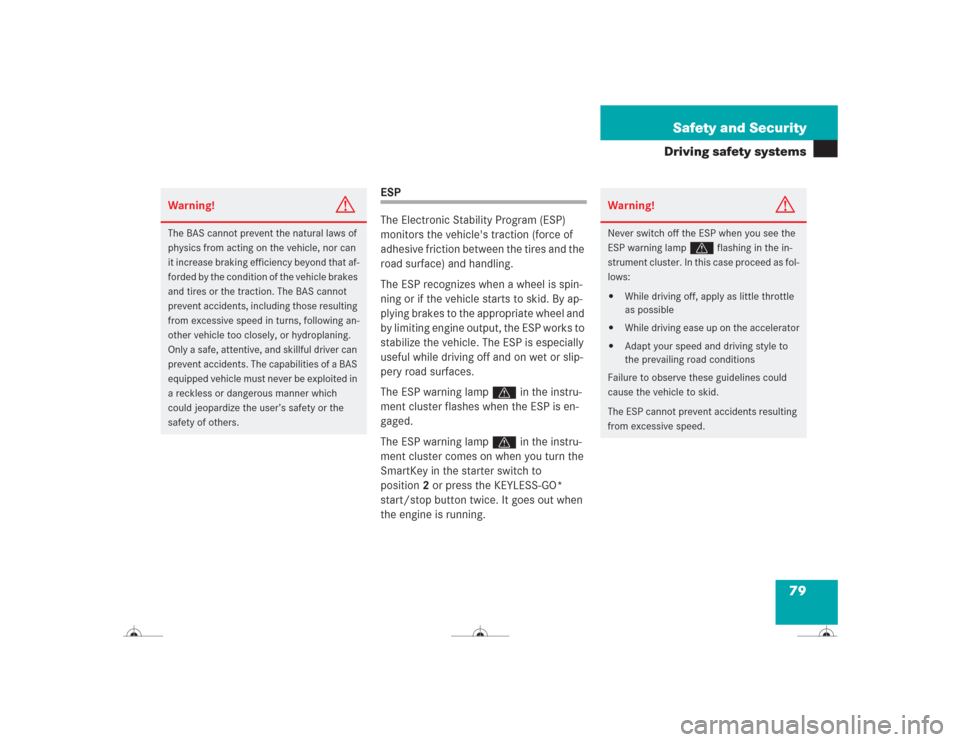

79 Safety and Security
Driving safety systems
ESP
The Electronic Stability Program (ESP)
monitors the vehicle's traction (force of
adhesive friction between the tires and the
road surface) and handling.
The ESP recognizes when a wheel is spin-
ning or if the vehicle starts to skid. By ap-
plying brakes to the appropriate wheel and
by limiting engine output, the ESP works to
stabilize the vehicle. The ESP is especially
useful while driving off and on wet or slip-
pery road surfaces.
The ESP warning lamp v in the instru-
ment cluster flashes when the ESP is en-
gaged.
The ESP warning lamp v in the instru-
ment cluster comes on when you turn the
SmartKey in the starter switch to
position2 or press the KEYLESS-GO*
start/stop button twice. It goes out when
the engine is running.
Warning!
G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that af-
forded by the condition of the vehicle brakes
and tires or the traction. The BAS cannot
prevent accidents, including those resulting
from excessive speed in turns, following an-
other vehicle too closely, or hydroplaning.
Only a safe, attentive, and skillful driver can
prevent accidents. The capabilities of a BAS
equipped vehicle must never be exploited in
a reckless or dangerous manner which
could jeopardize the user’s safety or the
safety of others.
Warning!
G
Never switch off the ESP when you see the
ESP warning lamp
v
flashing in the in-
strument cluster. In this case proceed as fol-
lows:


While driving off, apply as little throttle
as possible


While driving ease up on the accelerator


Adapt your speed and driving style to
the prevailing road conditions
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.
