2004 MERCEDES-BENZ CL500 Owner's Manual

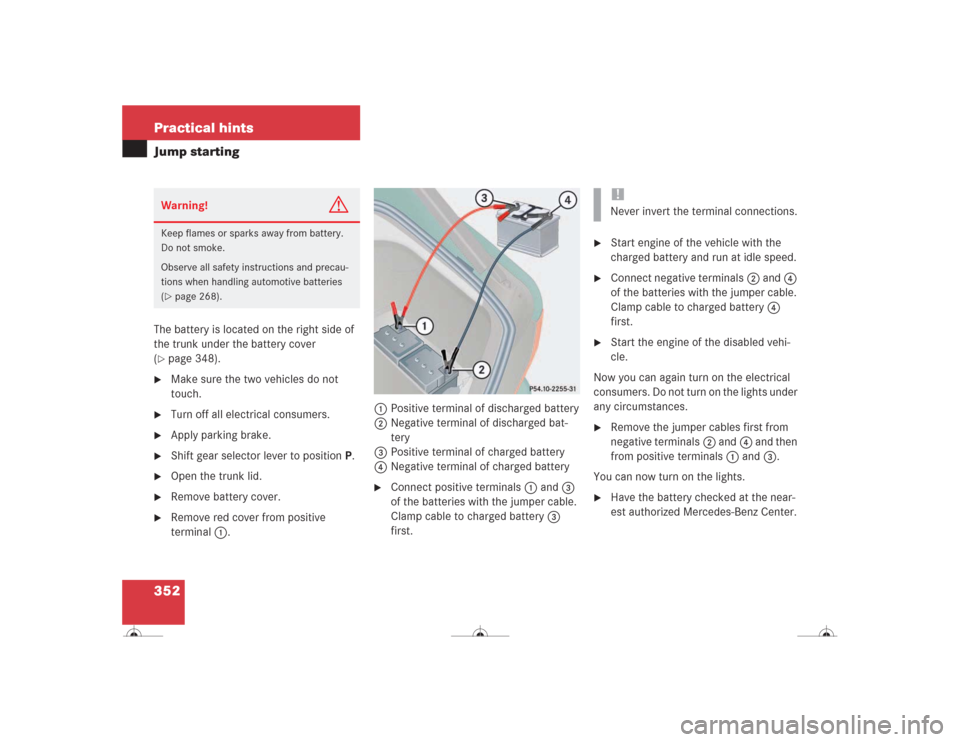

352 Practical hintsJump startingThe battery is located on the right side of
the trunk under the battery cover
(page 348).

Make sure the two vehicles do not
touch.

Turn off all electrical consumers.

Apply parking brake.

Shift gear selector lever to positionP.

Open the trunk lid.

Remove battery cover.

Remove red cover from positive
terminal 1. 1Positive terminal of discharged battery
2Negative terminal of discharged bat-
tery
3Positive terminal of charged battery
4Negative terminal of charged battery

Connect positive terminals 1 and3
of the batteries with the jumper cable.
Clamp cable to charged battery3
first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminals2 and4
of the batteries with the jumper cable.
Clamp cable to charged battery4
first.

Start the engine of the disabled vehi-
cle.
Now you can again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals2 and4 and then
from positive terminals1 and3.
You can now turn on the lights.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 268).
!Never invert the terminal connections.

353 Practical hints

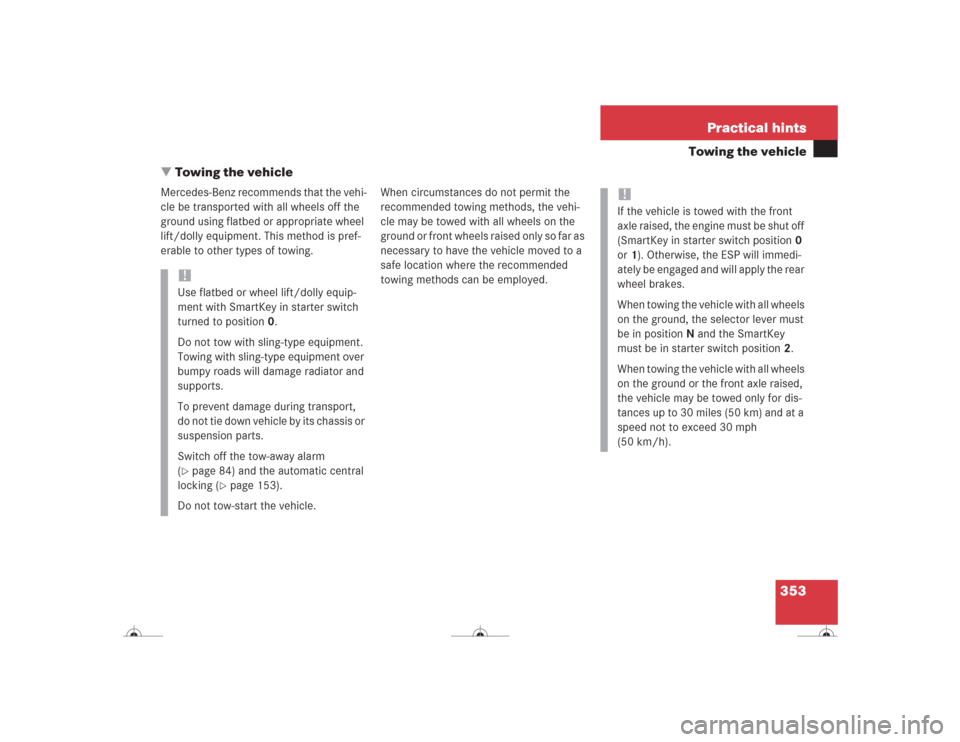

Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the vehi-
cle be transported with all wheels off the
ground using flatbed or appropriate wheel
lift/dolly equipment. This method is pref-
erable to other types of towing.When circumstances do not permit the
recommended towing methods, the vehi-
cle may be towed with all wheels on the
ground or front wheels raised only so far as
necessary to have the vehicle moved to a
safe location where the recommended
towing methods can be employed.
!Use flatbed or wheel lift/dolly equip-
ment with SmartKey in starter switch
turned to position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts.
Switch off the tow-away alarm
(page 84) and the automatic central
locking (
page 153).
Do not tow-start the vehicle.
!If the vehicle is towed with the front
axle raised, the engine must be shut off
(SmartKey in starter switch position0
or1). Otherwise, the ESP will immedi-
ately be engaged and will apply the rear
wheel brakes.
When towing the vehicle with all wheels
on the ground, the selector lever must
be in positionN and the SmartKey
must be in starter switch position2.
When towing the vehicle with all wheels
on the ground or the front axle raised,
the vehicle may be towed only for dis-
tances up to 30 miles (50 km) and at a
speed not to exceed 30 mph
(50 km/h).

354 Practical hintsTowing the vehicle
!
To be certain to avoid a possibility of
damage to the drive train, however, we
recommend the drive shaft be discon-
nected at the rear axle drive flange for
any towing beyond a short tow to a
nearby garage. Warning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make certain that the SmartKey
is in starter switch position2.
If the SmartKey is left in starter switch posi-
tion 0 for an extended period of time, it can
no longer be turned in the switch. In this
case, the steering is locked. To unlock, re-
move SmartKey from starter switch and re-
insert.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.iThe gear selector lever will remain
locked in positionP and the SmartKey
will not turn in the starter switch if the
battery is disconnected or discharged.
See notes on the battery (
page 348)
or on jump starting (
page 351).
iTo signal turns while being towed with
the hazard warning flasher in use, turn
SmartKey in starter switch to
position2 and activate the combina-
tion switch for the left or right turn sig-
nal in the usual manner – only the
selected turn signal will operate.
Upon canceling the turn signal, the haz-
ard warning flasher will operate again.

355 Practical hints
Towing the vehicle
Installing towing eye bolt
1Cover on right side of front bumper
2Cover on right side of rear bumperRemoving cover

Press mark on cover in direction of ar-
row.

Lift cover off to reveal threaded hole for
towing eye bolt.
Installing towing eye bolt

Take towing eye bolt and wheel wrench
out of trunk (
page 329).

Screw towing eye bolt clockwise into
its stop and tighten with wheel wrench.
Removing towing eye bolt

Loosen towing eye bolt counterclock-
wise with wheel wrench.

Unscrew towing eye bolt.

Store towing eye bolt and wheel
wrench in trunk.
Installing cover

Fit cover and snap into place.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, or KEYLESS-GO*
start/stop button in position2, the ve-
hicle doors lock if the left front wheel
as well as the right rear wheel are turn-
ing at vehicle speeds of approx. 9 mph
(15 km / h) or more.
Switch off the tow-away alarm
(page 84).
To prevent the vehicle door locks from
locking, deactivate the automatic cen-
tral locking (
page 153).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to the vehicle chas-
sis, frame or suspension parts.

356 Practical hintsFuses
FusesYour vehicle’s electrical fuses are located
in various fuse boxes:

In the dashboard on the passenger side


In the rear passenger compartment un-
der the right rear seat


In the engine compartment on the driv-
er’s side


In the engine compartment on the pas-
senger side
The following implements are located in
the vehicle tool kit in the trunk
(
page 329):


The fuse chart. The amperages of the
fuses are also given there.


Spare fuses


Special fuse extractor
Fuse boxes in passenger compartment
There are two fuse boxes in the passenger
compartment. One fuse box is located in
the dashboard on the front passenger side.
An additional fuse box is located under the
right rear seat.
Fuse box in dashboard
1Cover
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.

357 Practical hintsFuses
Opening
Open the passenger door.

Using the flat of your hand, press on
the middle of the cover1.
The edge of cover1 lifts up slightly
from the dashboard.

Insert flat, blunt object into the edge of
the cover as a lever.

Loosen cover1 from the dashboard
using lever.

Using your hands, pull cover1 in the
direction of the arrow and remove.
Closing

Press cover1 back onto the dash-
board.Fuse box in the rear passenger
compartment
1Cover
Opening

Pull cover1 away from fuse box in di-
rection of arrow.

Remove cover rearward.
Closing

Press cover back on until it engages.
Fuse boxes in engine compartment
There are two fuse boxes located in the en-
gine compartment on both the driver’s and
front passenger side in front of the firewall
(dividing wall between engine compart-
ment and passenger compartment).
1Fuse box cover, driver’s side
2Slide
!Do not use sharp objects such as a
screw driver to open the fuse box in the
dashboard, as this could damage it.

358 Practical hintsFuses1Fuse box cover, front passenger side
2Slide
Opening
Push both slides2 to the Πsym-
bol.

Remove cover1.Closing

Replace cover1 and press it down by
hand.

Push both slides 2 to the ‹ sym-
bol.
Emergency engine shut-down
If the engine can no longer be stopped us-
ing the SmartKey or the KEYLESS-GO*
start/stop button, the engine can be
turned off by withdrawing two fuses.
For easy removal of fuses, use the fuse ex-
tractor (supplied with vehicle tool kit) to
pull out the fuses marked on the fuse chart
as “ENGINE EMERGENCY STOP”.
The fuse chart is also located in the vehicle
tool kit (
page 329).
!The cover must fit properly and the
slide must be positioned at the ‹
symbol, as moisture or dirt may impair
the functionality of the fuses.

359 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and Tires
Electrical system
Main Dimensions and weights
Fuels, coolants, lubricants, etc.
Consumer information
