2004 MERCEDES-BENZ C320 4MATIC WAGON fuse

Contents
Practical hints................................. 273
What to do if … .................................. 274
Lamps in instrument cluster ........ 274
Lamp in center console................ 279
Messages in the display ............... 280
Where will I find ...? ........................... 300
First aid kit ................................... 300
Vehicle tool kit ............................. 300
Minispare wheel ........................... 302
Unlocking/locking in an emergency .. 305
Unlocking the vehicle ................... 305
Locking the vehicle ...................... 306
Changing batteries in
the SmartKey ............................... 306
Fuel filler flap ............................... 308
Manually unlocking the
transmission gear selector lever .. 308
Opening/closing in an emergency..... 309
Sliding/pop-up roof* ................... 309Replacing bulbs .................................. 310
Bulbs ............................................. 310
Replacing bulbs for front lamps .... 312
Side marker lamp bulb .................. 315
Replacing bulbs for rear lamps ..... 315
Replacing wiper blades....................... 317
Removing wiper blades ................. 317
Installing wiper blades .................. 317
Flat tire ............................................... 318
Preparing the vehicle .................... 318
Mounting the Minispare wheel...... 318
Battery................................................ 324
Disconnecting the battery............. 325
Removing the battery.................... 325
Charging and reinstalling
the battery .................................... 325
Reconnecting the battery.............. 326Jump starting...................................... 327
Towing the vehicle.............................. 329
Installing towing eye bolt .............. 332
Fuses.................................................. 333
Fuse box in
passenger compartment ............... 333
Fuse box in engine compartment . 333
Auxiliary fuse box in
cargo compartment ...................... 334

251 Operation
At the gas station
Check regularly and before a long trip
1Coolant level
For more information on coolant, see
“Coolant level” (
page 257).
2Brake fluid (fuse box cover removed)
Removing fuse box cover
(
page 333).
3Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield
washer system and headlamp cleaning
system*” (
page 259).Engine oil level
For more information on engine oil level,
see “Engine oil” (
page 254).
Opening hood (
page 252).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (page 310).
Exterior lamp switch (page 100).
Tire inflation pressure
More information on tire inflation pressure
(
page 261).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see “Practical
hints” (
page 275).

266 OperationMaintenanceThe Mercedes-Benz Center will reset the
service indicator following a completed
service.Calling up the service indicator
Switch on ignition.
The standard display of the control
system appears (
page 111).

Press buttonk orj on the mul-
tifunction steering wheel until the FSS
indicator appears in the multifunction
display.
Resetting the service indicator
In the event that the service on your
vehicle is not carried out by an authorized
Mercedes-Benz Center, you can reset the
service indicator yourself.
Switch on ignition.
The standard display of the control
system appears (
page 111).

Press buttonk orj on the mul-
tifunction steering wheel until the FSS
indicator appears in the multifunction
display.

Press the reset button for about three
seconds.
This message appears in the multifunc-
tion display:SERVICE INTERVAL?
RESET WITH R BUTTON FOR 3 SEC.

To confirm, press reset button until you
hear a signal.
The service indicator now displays the
reset interval.
iIf the battery is disconnected, the days
of disconnection will not be included in
the count shown by the service indica-
tor. To arrive at the true service
deadline, you will need to subtract
these days from the days shown in the
service indicator.
Do not confuse the service indicator
with the engine oil level indicator:.
iIf the service indicator was
inadvertently reset, have a
Mercedes-Benz Center correct it.
Only reset if the proper service has
been performed. Resetting the system
without performing proper service as
called for by the FSS will cause the FSS
to incorrectly determine the next
service interval which will result in
engine damage not covered by the
Mercedes-Benz Limited Warranty.

269 Operation
Vehicle care
Engine cleaning
Prior to cleaning the engine compartment,
make sure to protect electrical compo-
nents and connectors from the intrusion of
water and cleaning agents.
Corrosion protection, such as MB Anticor-
rosion Wax, should be applied to the
engine compartment after every engine
cleaning. Before applying, all control
linkage bushings and joints should be
lubricated. The poly-V-belt and all pulleys
should be protected from any wax.Vehicle washing
Do not use hot water or wash your vehicle
in direct sunlight. Only use a mild car wash
detergent, such as Mercedes-Benz
approved Car Shampoo.
Thoroughly spray the vehicle with a dif-
fused jet of water. Direct only a very weak
spray towards the ventilation intake. Use
plenty of water and rinse the sponge and
chamois frequently.
Rinse with clear water and thoroughly dry
with a chamois. Do not allow cleaning
agents to dry on the finish.
Due to the width of the vehicle, fold in
outside mirrors prior to running the vehicle
through an automatic car wash to prevent
damage to the mirrors.
In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the underbody, do not
forget to clean the inner sides of the
wheels.Ornamental moldings
For regular cleaning and care of very dirty
chrome-plated parts, use a chrome
cleaner.
Headlamps, tail lamps, side markers,
turn signal lenses
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo,
with plenty of water.
To prevent scratches, never apply strong
force and only use a soft, non-scratchy
cloth when cleaning the lenses. Do not
attempt to wipe dirty lenses with a dry
cloth or sponge.

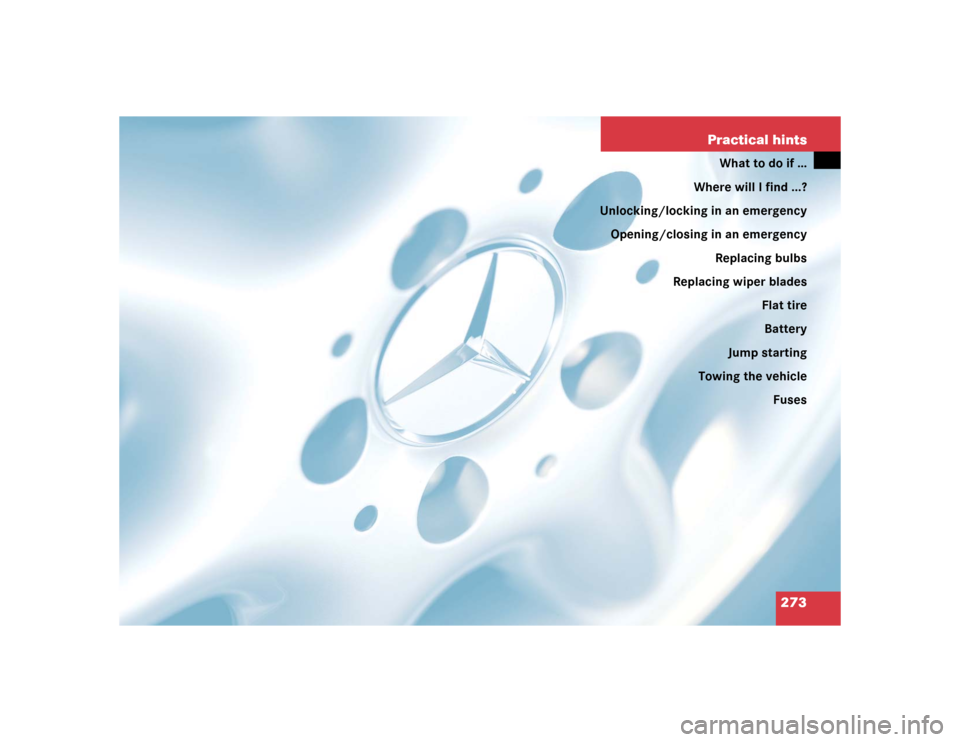

273 Practical hints
What to do if …
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

301 Practical hints
Where will I find ...?
3Vehicle tool kit
The following is included:

Towing eye bolt


Wheel wrench


Alignment bolt


Vehicle jack


Wheel bolts


Special fuse puller


Spare fusesVehicle jackThe vehicle jack is located in the storage
compartment behind the left trim panel.
Storage position
Remove vehicle jack from its
compartment.

Push crank handle up.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.

333 Practical hintsFuses
Fuses
Fuse box in passenger compartment
1CoverOpening

Pull cover1 open with a screw driver
or similar tool.

Remove cover rearward.
Closing

Attach cover1 in the front.

Fold cover in until it engages.
Fuse chart
The fuse chart is found in the fuse box in
the passenger compartment. The amper-
ages of the fuses are also given there.
Fuse box in engine compartment
The fuse box is located in the engine
compartment on the left-hand side.
1Screw
2Cover
3Retainer
Removing/installing cover
Twist screws1
90° counterclockwise.

Pull up cover2.

Slide out retainer3 and remove cover
by pulling towards front.
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage
rating.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.


334 Practical hintsFuses
Install cover2 in reverse order.
Opening fuse box
4Fuse box cover
5Clamps

Release clamps5.

Remove cover4.
Closing fuse box

Ensure that the sealing rubber is
properly positioned.

Press cover4 down and secure with
clamps5.Auxiliary fuse box in cargo compart-
ment
The auxiliary fuse box is located in the car-
go compartment behind the left hand trim
panel.
1Button for unlocking trim panel
2Trim panel
Opening trim panel
Press button1.

Fold down trim panel2.3Spare fuses
4Auxiliary fuse box
5Fuse extractor
Spare fuses
Spare fuses are found in the vehicle tool kit
in the cargo compartment.
Fuse extractor
The fuse extractor is found in the vehicle
tool kit in the cargo compartment.
