2004 MAZDA MODEL 3 4-DOOR ESP

3-6
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I
Replacing the transmitter battery
1. Insert a small screwdriver into the slot and gently pry open the transmitter.
2. Press the portion of the battery indicated by A and remove the battery. 3. Install a new battery (CR2025 or
equivalent) into the front portion of the
holder with the positive pole ( )
facing up. Press on the B portion of the
battery to set the battery.
4. Align the front and back covers and snap the transmitter shut.

Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
Back cover
Slot
A
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user
’s authority to operate the
equipment.
Back cover
Front of
holder
Front
cover
B
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 6 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-7
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

Locking, Unlocking with Key
The driver
’s door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.

Locking, Unlocking with
Transmitter*
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to keyless entry system
(page 3-3).
Door Locks
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don
’t leave
the keys in your vehicle with children
and keep them in a place where your
children will not find or play with
them.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors and the trunk lid/liftgate
when leaving your vehicle unattended.
This discourages intruders and thieves.
WARNING
NOTE
If your vehicle is equipped with a front
passenger door key slot, the door can
be locked/unlocked with the key.
Unlock
Lock
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 7 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

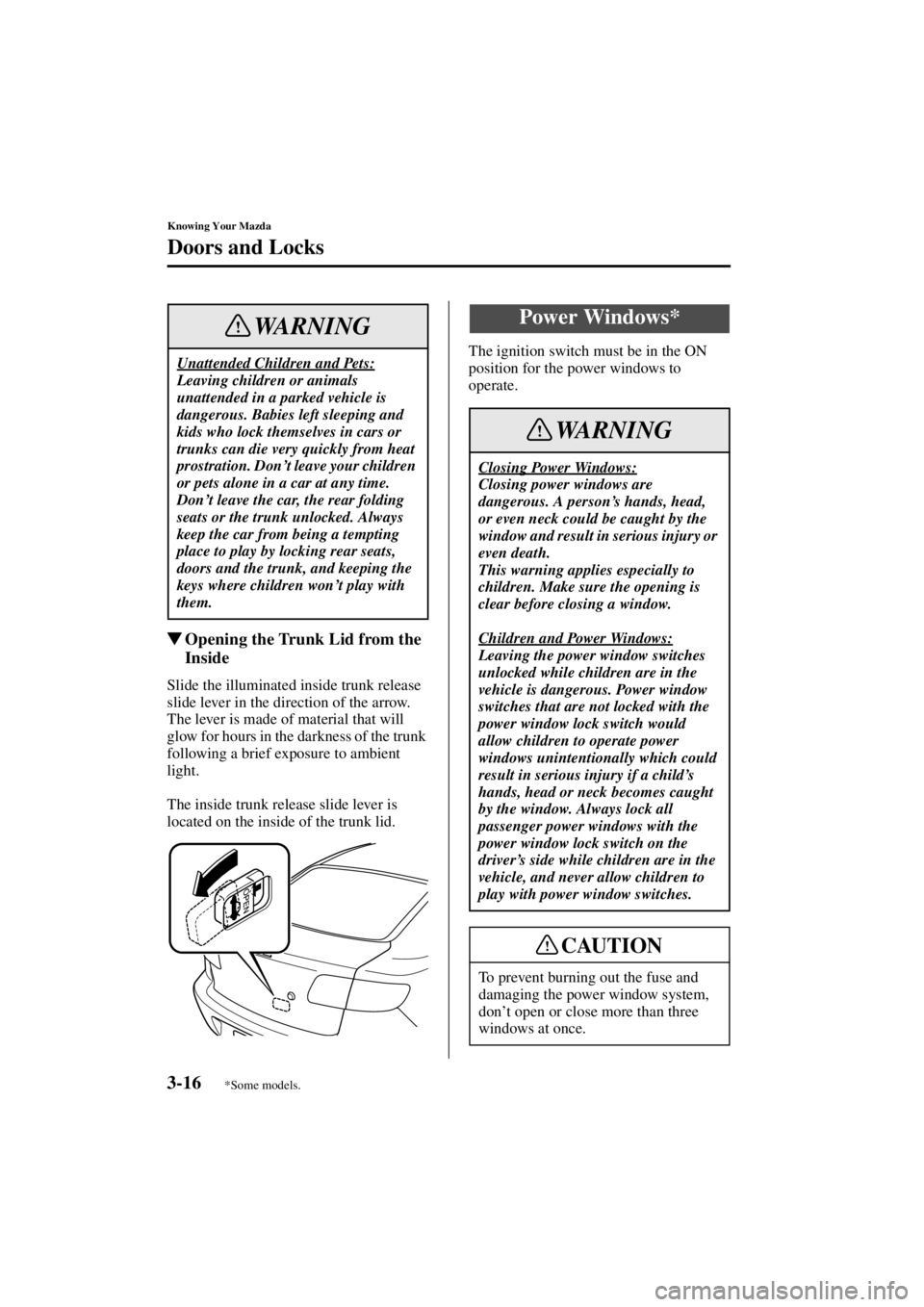

3-16
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

Opening the Trunk Lid from the
Inside
Slide the illuminated inside trunk release
slide lever in the direction of the arrow.
The lever is made of material that will
glow for hours in the darkness of the trunk
following a brief exposure to ambient
light.
The inside trunk release slide lever is
located on the inside of the trunk lid. The ignition switch must be in the ON
position for the power windows to
operate.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don
’t leave your children
or pets alone in a car at any time.
Don ’t leave the car, the rear folding
seats or the trunk unlocked. Always
keep the car from being a tempting
place to play by locking rear seats,
doors and the trunk, and keeping the
keys where children won ’t play with
them.
WARNINGPower Windows*
Closing Power Windows:
Closing power windows are
dangerous. A person ’s hands, head,
or even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Children and Power Windows:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child ’s
hands, head or neck becomes caught
by the window. Always lock all
passenger power windows with the
power window lock switch on the
driver ’s side while children are in the
vehicle, and never allow children to
play with power window switches.
To prevent burning out the fuse and
damaging the power window system,
don’ t open or close more than three
windows at once.
WARNING
CAUTION
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 16 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-21
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I
4. Use the support rod to hold the hood open.

Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely. The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.
Clip
Support rod
Moonroof*
Extending the Head or Arms
Through the Moonroof:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
death or serious injury. Don
’t let
passengers stand up or extend
anything through the open moonroof
while the vehicle is moving.
Closing the Moonroof:
A closing moonroof is dangerous.
The hands, head, or even neck of a
person —especially a child — could
be caught in it as it closes, causing
serious injury or even death. Make
sure the opening is clear before
closing the moonroof.
Tilt switch
Slide switch
WARNING
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 21 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

3-24
Knowing Your Mazda
Form No. 8S18-EA-03I
Security System
The optional immobilizer system allows
the engine to start only with a key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
Immobilizer System
•Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user
’s authority to operate
the equipment.
• To avoid damage to the key, do not:

Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
When starting the engine do not allow
the following, as the engine may not
start due to the electronic signal from
the ignition key not being transmitted
correctly.
•A key ring rests on the key grip.
• Metal parts of other keys or metal
objects touch the key grip.
• Spare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
• Devices for electronic purchases, or
security passage touch or come near
the key.
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 24 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-7
Driving Your Mazda
Starting and Driving
Form No. 8S18-EA-03I

Anti-Lock Brake System (ABS)*
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel
’s brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don ’t
pump the brakes, continue to press down
on the brake pedal.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don ’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
ABS:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident. So don ’t rely on ABS as a
substitute for safe driving.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
WARNING
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 7 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-24
Driving Your Mazda
Starting and Driving
Form No. 8S18-EA-03I
Warning light flashes
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.

System Error Activation
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
A system error activation may occur in the
following cases:
• When there is equipment or a device
near the vehicle using the same radio
frequency as that of the tire pressure
sensors.
• When a large metallic object (e.g. a
large electric household appliance or a
desk-top computer) is placed on the
right side of the rear seat, which may
block radio signals from the tire
pressure sensor to the receiver unit.
• When using the following devices in
the vehicle that may cause radio
interference with the receiver unit.

A digital device such as a personal
computer.
 A current converter device such as a
DC-AC converter.
• When excess snow or ice adheres to the
vehicle, especially around the wheels.
• When the tire pressure sensor batteries
are exhausted. •
When using a wheel with no tire
pressure sensor installed.
• When using tires with steel wire
reinforcement in the side walls.
• When using tire chains


Tires and Wheels
Changing tires and wheels
The following procedure allows the
TPMS to recognize a tire pressure
sensor
’s unique ID signal code whenever
tires or wheels are changed, such as
changing to and from winter tires.
When having tires changed at an
Authorized Mazda Dealer
Tire pressure sensor ID signal code
registration is completed when an
Authorized Mazda Dealer changes your
vehicle ’s tires.
When changing tires yourself
If you or someone else changes tires, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.
1. After tires have been changed, turn the ignition switch to the ON position, then
turn it back to the ACC or LOCK
position.
NOTE
A tire pressure sensor is not installed
to the temporary spare tire. The
warning light will flash continuously
while the temporary spare tire is being
used.
NOTE
Each tire pressure sensor has a unique
ID signal code. The signal code must
be registered with the TPMS before it
can work. The easiest way to do it is to
have an Authorized Mazda Dealer
change your tire and complete ID
signal code registration.
J48C_8S18-EA-03I_Edition3.book Page 24 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

5-49
Driving Your Mazda
Switches and Controls
Form No. 8S18-EA-03I

Windshield Wipers
Type A (With INT position)
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1 — Low speed
2 — High speed
Type B (With AUTO position,
CANADA)*
Turn the wipers on by pulling the lever
down.
AU TO — Auto control
1 — Low speed
2 — High speed AUTO (Auto-wiper control)

When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wiper on or off automatically
(off—intermittent —low speed—high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), turn
the switch towards (+) for higher
sensitivity (faster response) or turn the
switch towards (-) for less sensitivity
(slower response).
OFF
INT1
2
OFF
AUTO 1
2
Switch
Higher sensitivity
Less sensitivity
Center
position
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 49 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI
