CHASSIS
590
Tire related termMeaning
Occupant distributiondistribution of occupants in a vehicle as specified in the third column \
of Table 1
that follows
Production options
weightthe combined weight of those installed regular production options weighi\
ng over
2.3 kg (5 lb.) in excess of those standard items which they replace, n\
ot
previously considered in curb weight or accessory weight, including heav\
y duty
brakes, ride levelers, roof rack, heavy duty battery, and special trim
Recommended
inflation pressurecold tire inflation pressure recommended by a manufacturer
Rima metal support for a tire or a tire and tube assembly upon which the ti\
re beads
are seated
Rim diameter (Wheel
diameter)nominal diameter of the bead seat
Rim size designationrim diameter and width
Rim type designationthe industry of manufacturer's designation for a rim by style or code
Rim widthnominal distance between rim flanges
Vehicle capacity
weight
(Total load capacity)the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicl\
e's
designated seating capacity
Vehicle maximum
load on the tirethe load on an individual tire that is determined by distributing to eac\
h axle its
share of the maximum loaded vehicle weight and dividing by two

CHASSIS
591
Tire related termMeaning
Vehicle normal load
on the tirethe load on an individual tire that is determined by distributing to eac\
h axle its
share of the curb weight, accessory weight, and normal occupant weight
(distributed in accordance with Table 1 that follows) and dividing by two
Weather sidethe surface area of the rim not covered by the inflated tire
Table 1 Ð Occupant loading and distribution for vehicle normal load fo\
r various designated seating
capacitiesDesignated seating capacity,number of occupants
Vehicle normal load, number of occupantsOccupant distribution in anormally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat

CHASSIS
592
TYPES OF TIRES
Determine what kind of tires your vehicle is originally
equipped with.
1. Summer tires
Summer tires are high-speed capability tires best
suited to highway driving under dry conditions.
Since summer tires do not have the same traction
performance as snow tires, summer tires are
inadequate for driving on snow-covered or icy roads.
For driving on snow-covered or icy roads, we
recommend using snow tires. If installing snow tires,
be sure to replace all four tires.
2. All season tires
All season tires are designed to provide better traction
in snow and to be adequate for driving in most winter
conditions, as well as for use all year round.All season tires, however, do not have adequate
traction performance compared with snow tires in
heavy or loose snow. Also, all season tires fall short
in acceleration and handling performance compared
with summer tires in highway driving.
The details about how to distinguish summer tires
from all season tires are described on page 583.
CAUTION

Do not mix summer and all season tires on
your vehicle as this can cause dangerous
handling characteristics, resulting in loss of
control.
 Do not use tires other than the manufacturer's
designated tires, and never mix tires or
wheels of the sizes different from the
originals.

CHASSIS
593
ROTATING TIRES
To equalize tire wear and help extend tire life,
Lexus recommends that you rotate your tires
according to the maintenance schedule. (For
scheduled maintenance information, please refer
to the Owner's Manual Supplement/Scheduled
Maintenanceº.) However, the most appropriate
timing for tire rotation may vary according to your
driving habits and road surface conditions.

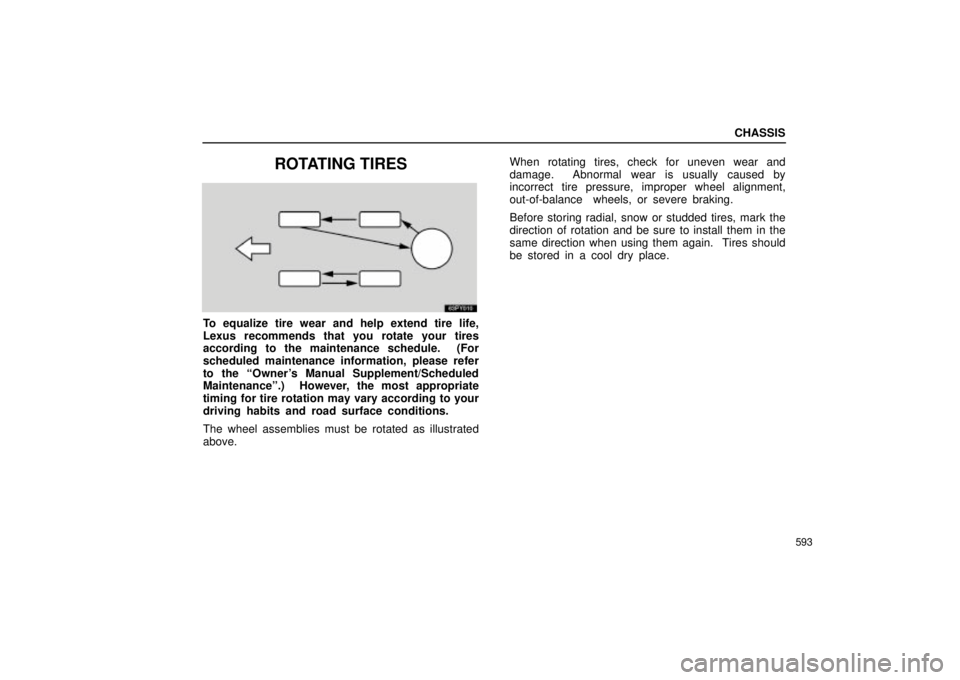

The wheel assemblies must be rotated as illustrated
above.When rotating tires, check for uneven wear and
damage. Abnormal wear is usually caused by
incorrect tire pressure, improper wheel alignment,
out-of-balance wheels, or severe braking.
Before storing radial, snow or studded tires, mark the
direction of rotation and be sure to install them in the
same direction when using them again. Tires should
be stored in a cool dry place.

CHASSIS
594
CHECKING AND REPLACING TIRES
When to replace your tires

1New tread2Tread wear indicator
3Worn tread
Replace the tires when the tread wear indicators
show. The location of the tread wear indicators
is shown by the marks such as TWIº or
Dº
marks, etc., molded on the sidewall of each tire. The tires on your Lexus have built-in tread wear
indicators to help you know when the tires need
replacement. When the tread depth wears to 1.6 mm
(0.06 in.) or less, the indicators will appear. If you
can see the indicators in two or more adjacent
grooves, the tire should be replaced.
The effectiveness of snow tires is lost if the tread
wears down below 4 mm (0.16 in.).
If you have tire damage such as cuts, splits,
cracks deep enough to expose the fabric, or
bulges indicating internal damage, the tire should
be replaced.
If a tire often goes flat or cannot be properly repaired
due to the size or location of a cut or other damage,
it should be replaced. If you are not sure, consult
with your Lexus dealer.
If air loss occurs while driving, do not continue driving.
Driving even a short distance can damage a tire
beyond repair.
Any tires which are over 6 years old must be
checked by a qualified technician even if damage
is not obvious.
Tires deteriorate with age even if they have never or
seldom been used.

CHASSIS
595
This applies also to the spare tire and tires stored
for future use.
Tire selection
When replacing a tire, use a tire of the same size
and construction, and the same or greater load
capacity as the originally installed tires. Also, all
the tires must be the same brand and have the
same tread patterns.
Using any other size or type of tire may seriously
affect handling, ride, speedometer/odometer
calibration, ground clearance, and clearance between
the body and tires or snow chains.
Check that the maximum load of the replaced tire is
greater than 1/2 of the Gross Axle Weight Ratings
(GAWR) of either the front axle or the rear axle,
whichever is greater. As for the maximum load of
the tire, see the load limit at maximum cold tire
inflation pressure mentioned on the sidewall of the tire,
and as for the Gross Axle Weight Ratings (GAWR),
see the Certification Label. For details about
Certification Label and sidewall of the tire, see pages
542 and 583.
CAUTION
Observe the following instructions. Otherwise,
an accident may occur resulting in death or
serious injuries.
Do not mix radial, bias belted, or bias-ply tires
on your vehicle, as this may cause dangerous
handling characteristics resulting in loss of
control.
 Do not use tires other than the manufacturer's
recommended size, as this may cause
dangerous handling characteristics resulting
in loss of control.
 Do not use tires of different brands, sizes,
construction or tread patterns, as this may
cause dangerous handling characteristics
resulting in loss of control.

CHASSIS
596
INSTALLING SNOW TIRES ANDCHAINS
When to use snow tires or chains
Snow tires or chains are recommended when driving on
snow or ice.
On wet or dry roads, conventional or radial tires provide better
traction than snow or studded tires.
Snow tire selection
If you need snow tires, select tires of the same size,
construction and load capacity as the originally installed
tires. Also, all the tires must be the same brand and have
the same tread patterns.
Do not use tires other than stated above. Since your vehicle
has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires
without first checking local regulations for possible restrictions.
CAUTION
Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.
Do not use snow tires other than the manufacturer's
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.
 Do not use snow tires of different brands, sizes,
construction or tread patterns, as this may cause
dangerous handling characteristics resulting in loss
of control.
Snow tire installation
Snow tires should be installed on all wheels.
Installing snow tires on the rear wheels only can lead to an
excessive difference in road grip capability between the front
and rear tires which could cause loss of vehicle control.
CAUTION
Do not drive with the snow tires incorrectly inflated.
 Never drive over 105 km/h (65 mph) with any type of
snow tires.

CHASSIS
597
Tire chain selection

1 Side chain2 Cross chain
Use the tire chains of correct size.
For P265/65R17 tires, use the following type chains.
mm (in.)
A: Diameter of side chain 5.0 (0.20)
B: Width of side chain 18.0 (0.71)
C: Length of side chain 46.0 (1.81)
D: Width of cross chain 22.6 (0.89)
E: Length of cross chain 38.1 (1.5)
F: Diameter of cross chain 6.3 (0.25) Regulations regarding the use of tire chains vary
according to
location or type of road. Always check local
regulations before installing chains.
