2004 KIA CERATO Owners Manual

Knowing your vehicle
86
3
1 23456789

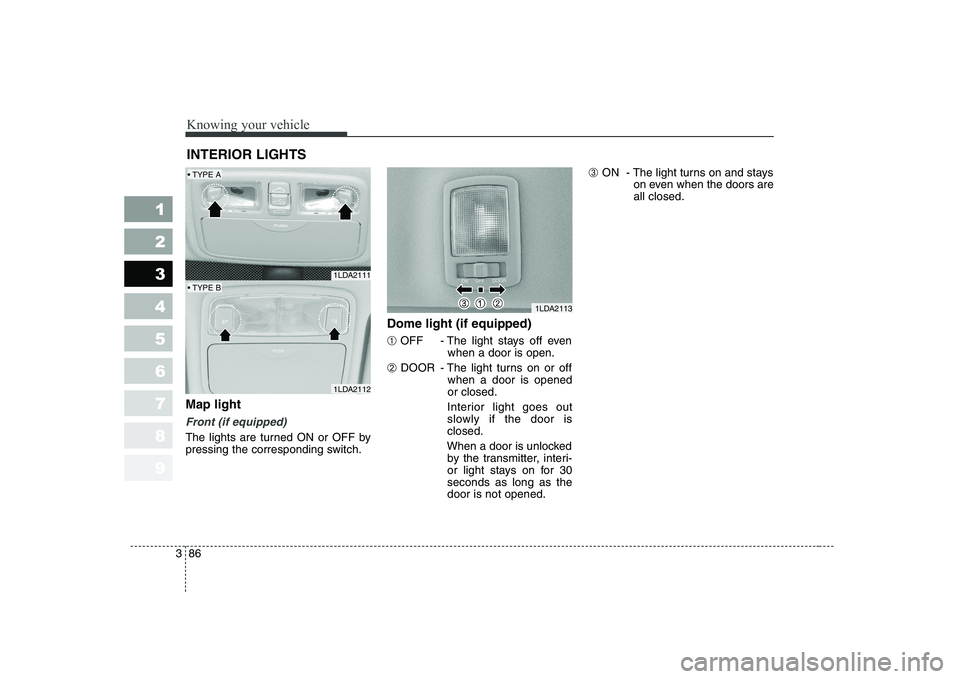

Map light
Front (if equipped)
The lights are turned ON or OFF by
pressing the corresponding switch. Dome light (if equipped) ➀
OFF - The light stays off even
when a door is open.
➁ DOOR - The light turns on or off
when a door is opened or closed.
Interior light goes out
slowly if the door isclosed.
When a door is unlocked by the transmitter, interi-
or light stays on for 30seconds as long as thedoor is not opened. ➂
ON - The light turns on and stays
on even when the doors areall closed.
INTERIOR LIGHTS
1LDA2111
1LDA2112
1LDA2113

387
1 23456789
Knowing your vehicle

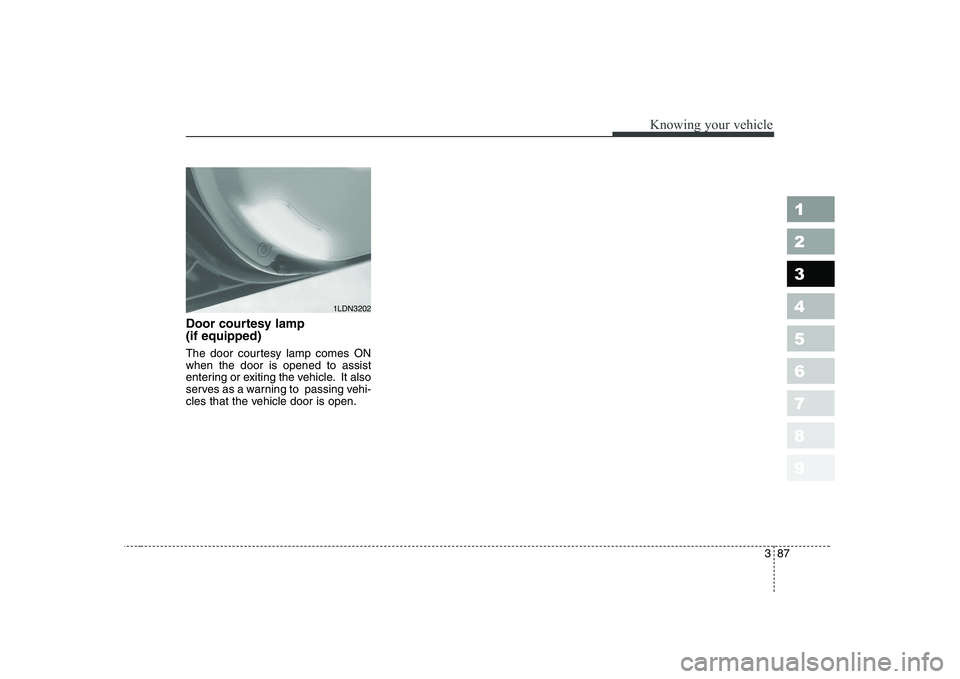

Door courtesy lamp (if equipped)
The door courtesy lamp comes ON when the door is opened to assist
entering or exiting the vehicle. It also
serves as a warning to passing vehi-
cles that the vehicle door is open.
1LDN3202

Knowing your vehicle
88
3
1 23456789
✽✽
NOTICE

389
1 23456789
Knowing your vehicle

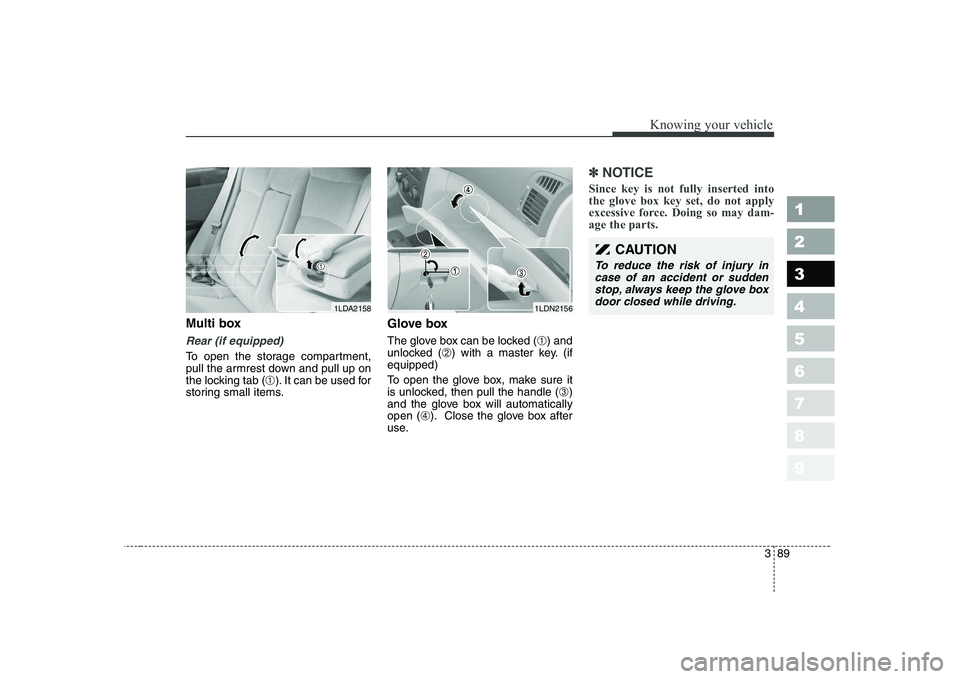

Multi box
Rear (if equipped)
To open the storage compartment,
pull the armrest down and pull up on
the locking tab (➀). It can be used for
storing small items. Glove box
The glove box can be locked (
➀) and
unlocked ( ➁) with a master key. (if
equipped)
To open the glove box, make sure it
is unlocked, then pull the handle ( ➂)
and the glove box will automaticallyopen ( ➃). Close the glove box after
use.
✽✽ NOTICE
Since key is not fully inserted into the glove box key set, do not apply
excessive force. Doing so may dam-age the parts.
1LDN2156
CAUTION
To reduce the risk of injury in case of an accident or suddenstop, always keep the glove box door closed while driving.
1LDA2158

Knowing your vehicle
90
3
1 23456789

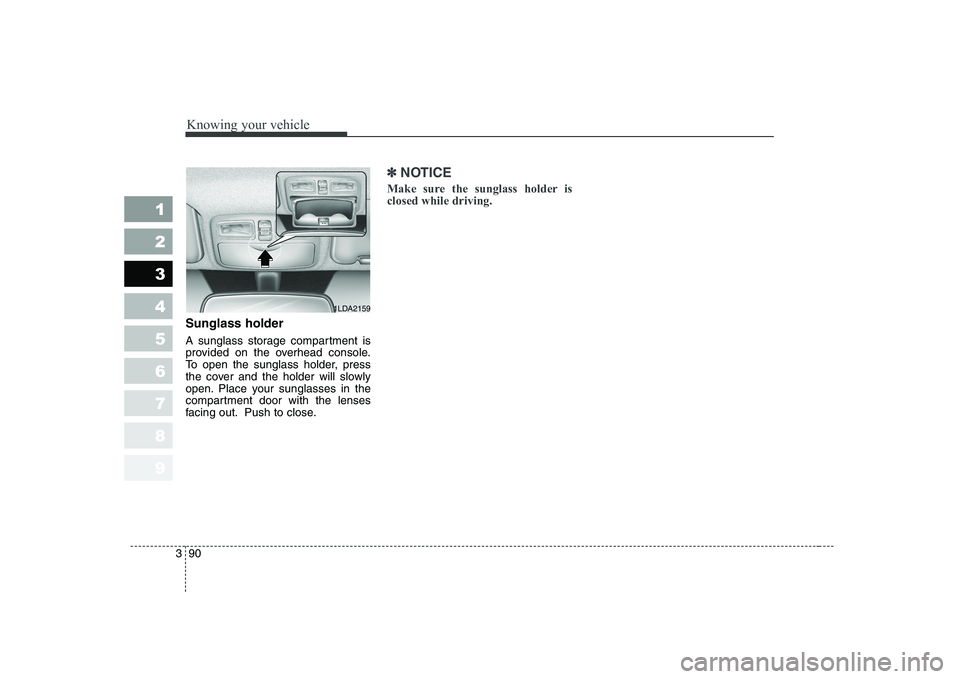

Sunglass holder
A sunglass storage compartment is
provided on the overhead console.
To open the sunglass holder, press
the cover and the holder will slowly
open. Place your sunglasses in the
compartment door with the lenses
facing out. Push to close.
✽✽
NOTICE
Make sure the sunglass holder is closed while driving.
1LDA2159

391
1 23456789
Knowing your vehicle

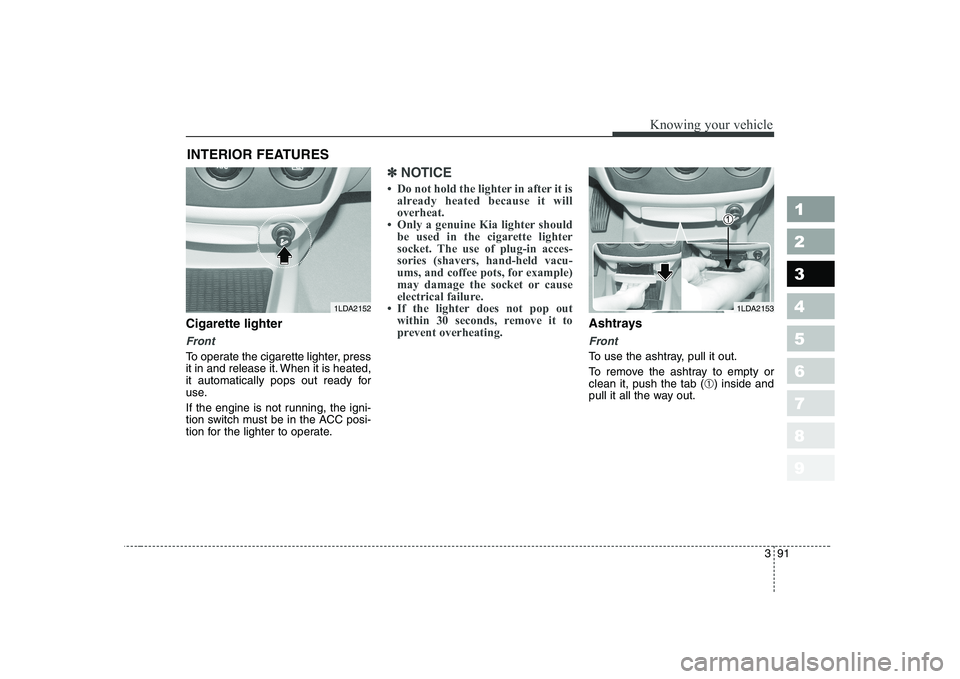

Cigarette lighter
Front
To operate the cigarette lighter, press
it in and release it. When it is heated,
it automatically pops out ready for
use.
If the engine is not running, the igni-
tion switch must be in the ACC posi-
tion for the lighter to operate.
✽✽NOTICE

Knowing your vehicle
92
3
1 23456789

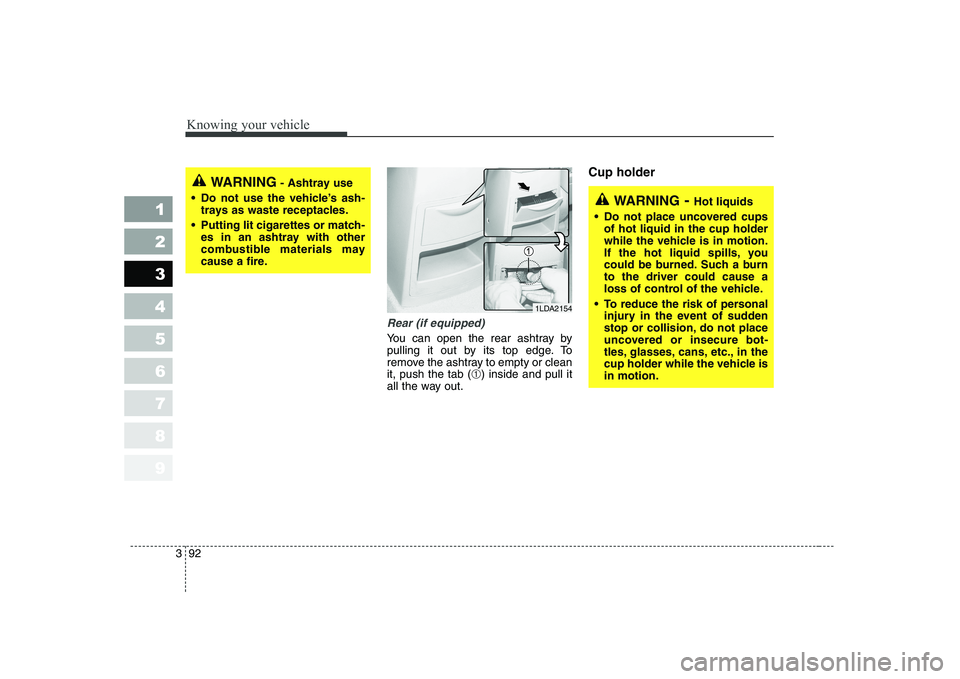

Rear (if equipped)
You can open the rear ashtray by
pulling it out by its top edge. To
remove the ashtray to empty or cleanit, push the tab (
➀) inside and pull it
all the way out. Cup holder
WARNING
- Ashtray use
Do not use the vehicle’s ash- trays as waste receptacles.
Putting lit cigarettes or match- es in an ashtray with other
combustible materials may
cause a fire.
WARNING - Hot liquids
Do not place uncovered cups of hot liquid in the cup holder
while the vehicle is in motion.
If the hot liquid spills, you
could be burned. Such a burnto the driver could cause a
loss of control of the vehicle.
To reduce the risk of personal injury in the event of sudden
stop or collision, do not place
uncovered or insecure bot-
tles, glasses, cans, etc., in the
cup holder while the vehicle isin motion.
1LDA2154

393
1 23456789
Knowing your vehicle

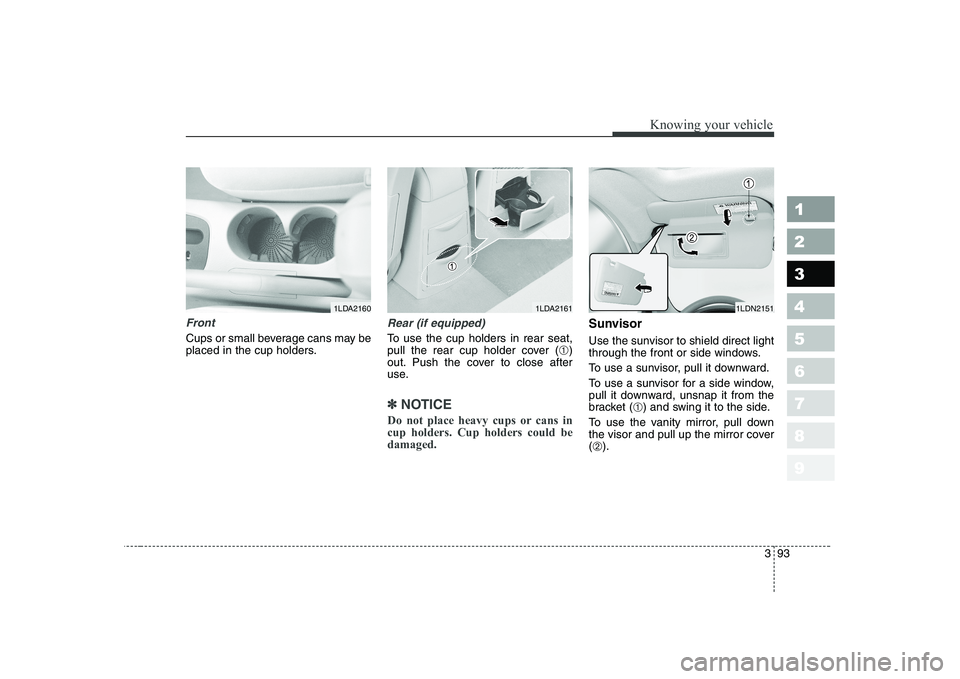

Front
Cups or small beverage cans may be
placed in the cup holders.
Rear (if equipped)
To use the cup holders in rear seat,
pull the rear cup holder cover (➀)
out. Push the cover to close after
use.
✽✽ NOTICE
Do not place heavy cups or cans in cup holders. Cup holders could bedamaged.
Sunvisor
Use the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket ( ➀) and swing it to the side.
To use the vanity mirror, pull down
the visor and pull up the mirror cover( ➁ ).
1LDA21611LDN21511LDA2160
