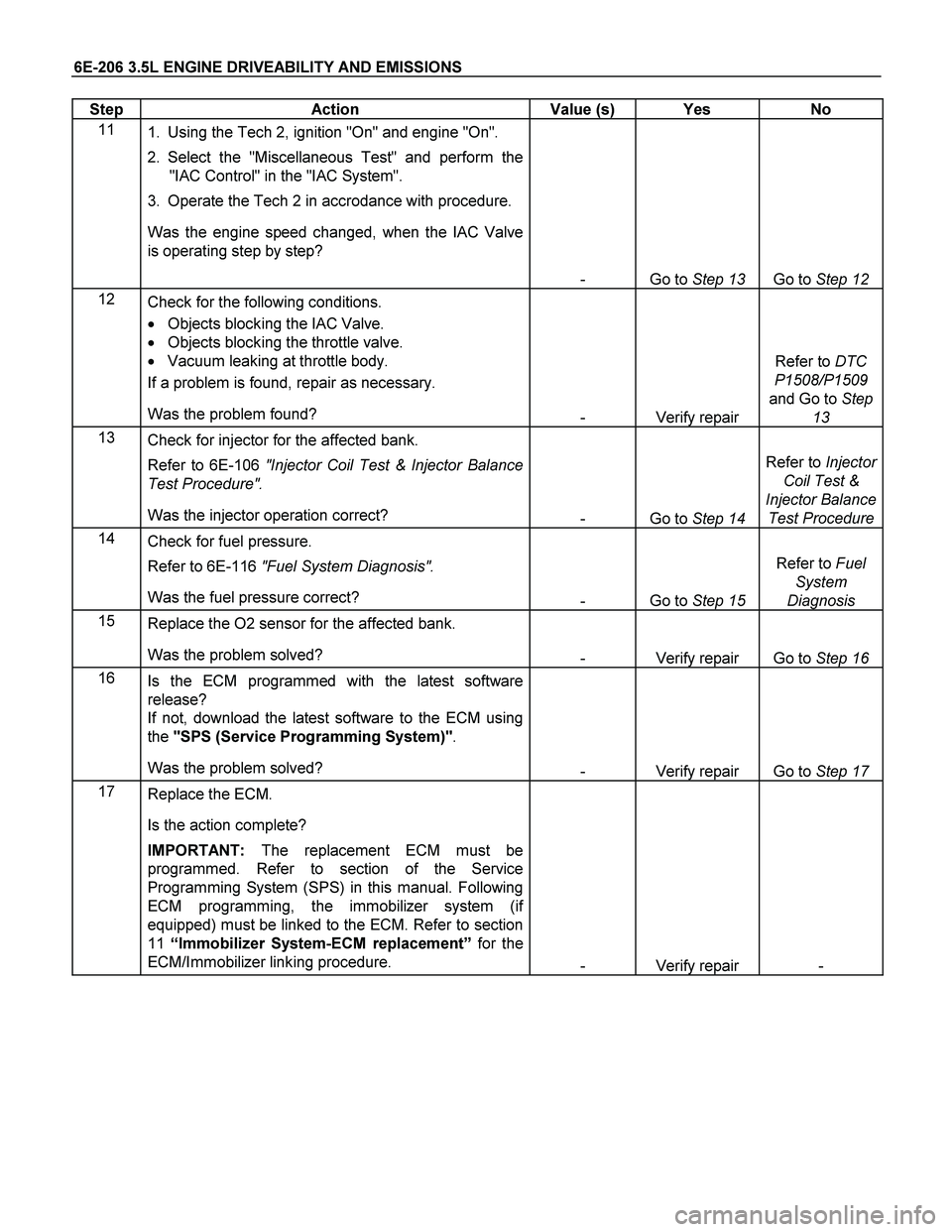

6E-206 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
11
1. Using the Tech 2, ignition "On" and engine "On".
2. Select the "Miscellaneous Test" and perform the
"IAC Control" in the "IAC System".
3. Operate the Tech 2 in accrodance with procedure.
Was the engine speed changed, when the IAC Valve
is operating step by step?

- Go to Step 13 Go to Step 12
12
Check for the following conditions.

Objects blocking the IAC Valve.

Objects blocking the throttle valve.

Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?
- Verify repair Refer to DTC
P1508/P1509
and Go to Step
13
13
Check for injector for the affected bank.
Refer to 6E-106 "Injector Coil Test & Injector Balance
Test Procedure".
Was the injector operation correct?
- Go to Step 14 Refer to Injector
Coil Test &
Injector Balance
Test Procedure
14
Check for fuel pressure.
Refer to 6E-116 "Fuel System Diagnosis".
Was the fuel pressure correct?
- Go to Step 15 Refer to Fuel
System
Diagnosis
15
Replace the O2 sensor for the affected bank.
Was the problem solved?
- Verify repair Go to Step 16
16
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 17
17
Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual. Following
ECM programming, the immobilizer system (if
equipped) must be linked to the ECM. Refer to section
11 “Immobilizer System-ECM replacement” for the
ECM/Immobilizer linking procedure.
- Verify repair -

6E-214 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
6
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
Does the Tech 2 indicate correct "Throttle Position"
from 0% to 100% depending on accelerator pedal
operation?
- Go to Step 8 Go to Step 7
7
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
3. Adjust the TPS within 0% to 100%.
Was the action complete?
- Verify repair -
8
Check for the following conditions.

Objects blocking the throttle valve.

Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?
- Verify repair Refer to DTC
P0121 and Go to
Step 9
9
1. Using the Tech 2, ignition "On" and engine "On".
2. Select the "Miscellaneous Test" and perform the
"IAC Control" in the "IAC System".
3. Operate the Tech 2 in accrodance with procedure.
Was the engine speed changed, when the IAC Valve
is operating step by step?
- Go to Step 11 Go to Step 10
10
Check for the following conditions.

Objects blocking the IAC Valve.

Objects blocking the throttle valve.

Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?
- Verify repair Refer to DTC
P1508/P1509
and Go to Step
11
11
Check for injector for the affected bank.
Refer to 6E-106 "Injector Coil Test & Injector Balance
Test Procedure".
Was the injector operation correct?
- Go to Step 12 Refer to Injector
Coil Test &
Injector Balance
Test Procedure
12
Check for fuel pressure.
Refer to 6E-116 "Fuel System Diagnosis".
Was the fuel pressure correct?
- Go to Step 13 Refer to Fuel
System
Diagnosis
13
Replace the O2 sensor for the affected bank.
Was the problem solved?
- Verify repair Go to Step 14
14
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 15

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-219
Step Action Value (s) Yes No
6
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
Does the Tech 2 indicate correct "Throttle Position"
from 0% to 100% depending on accelerator pedal
operation?
- Go to Step 8 Go to Step 7
7
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
3. Adjust the TPS within 0% to 100%.
Is the action complete?
- Verify repair -
8
Check for the following conditions.

Objects blocking the throttle valve.

Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?
- Verify repair Refer to DTC
P0121 and Go to
Step 9
9
1. Using the Tech 2, ignition "On" and engine "On".
2. Select the "Miscellaneous Test" and perform the
"IAC Control" in the "IAC System".
3. Operate the Tech 2 in accrodance with procedure.
Was the engine speed changed, when the IAC Valve
is operating step by step?
-
Go to Step 11
Go to Step 10
10
Check for the following conditions.

Objects blocking the IAC Valve.

Objects blocking the throttle valve.

Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?
- Verify repair Refer to DTC
P1508/P1509
and Go to Step
11
11
Check for injector for the affected bank.
Refer to 6E-106 "Injector Coil Test & Injector Balance
Test Procedure".
Was the injector operation correct?
- Go to Step 12 Refer to Injector
Coil Test &
Injector Balance
Test Procedure
12
Check for fuel pressure.
Refer to 6E-116 "Fuel System Diagnosis".
Was the fuel pressure correct?
- Go to Step 13 Refer to Fuel
System
Diagnosis
13
Replace the O2 sensor for the affected bank.
Was the problem solved?
- Verify repair Go to Step 14
14
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 15

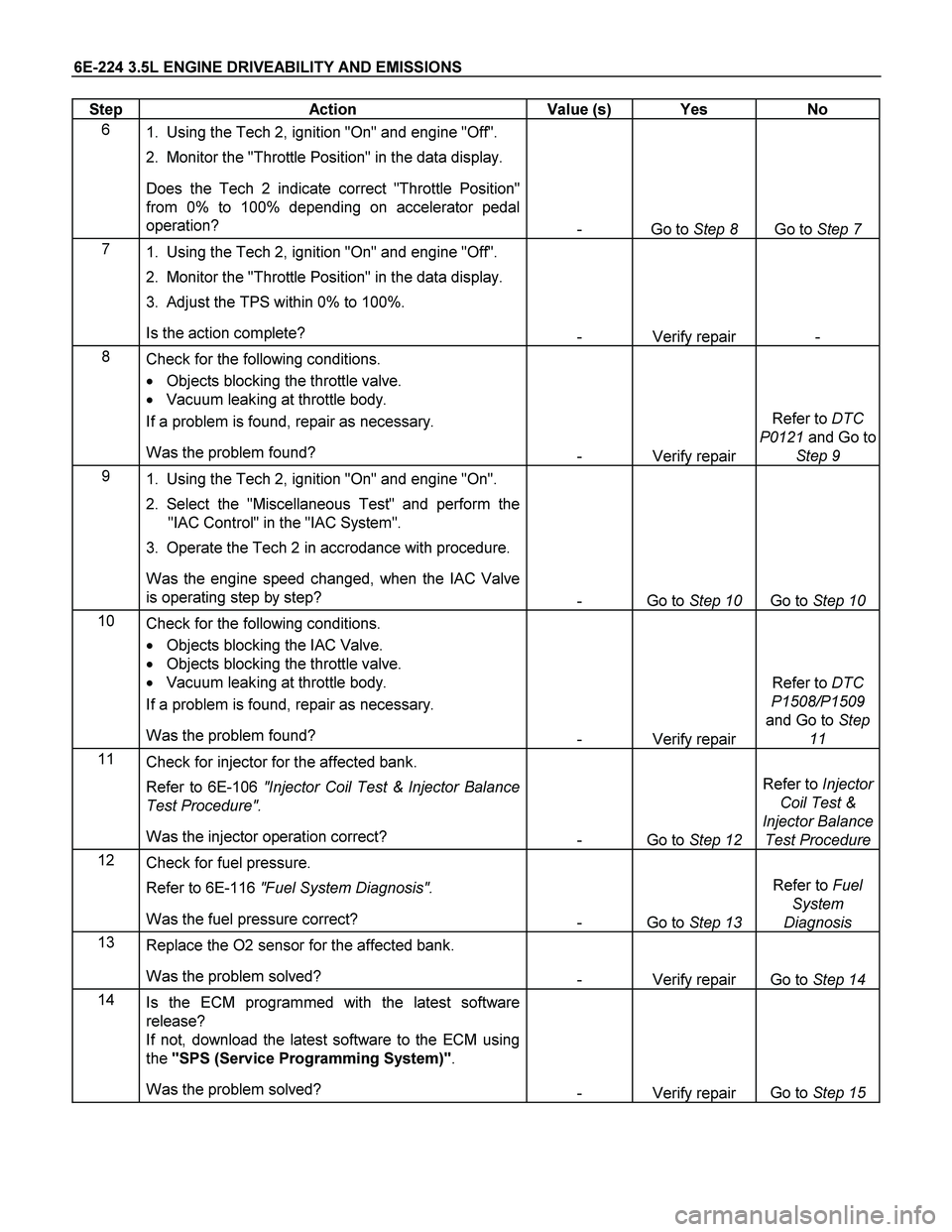

6E-224 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
6
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
Does the Tech 2 indicate correct "Throttle Position"
from 0% to 100% depending on accelerator pedal
operation?
- Go to Step 8 Go to Step 7
7
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
3. Adjust the TPS within 0% to 100%.
Is the action complete?
- Verify repair -
8
Check for the following conditions.

Objects blocking the throttle valve.

Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?
- Verify repair Refer to DTC
P0121 and Go to
Step 9
9
1. Using the Tech 2, ignition "On" and engine "On".
2. Select the "Miscellaneous Test" and perform the
"IAC Control" in the "IAC System".
3. Operate the Tech 2 in accrodance with procedure.
Was the engine speed changed, when the IAC Valve
is operating step by step?
-
Go to Step 10
Go to Step 10
10
Check for the following conditions.

Objects blocking the IAC Valve.

Objects blocking the throttle valve.

Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?
- Verify repair Refer to DTC
P1508/P1509
and Go to Step
11
11
Check for injector for the affected bank.
Refer to 6E-106 "Injector Coil Test & Injector Balance
Test Procedure".
Was the injector operation correct?
- Go to Step 12 Refer to Injector
Coil Test &
Injector Balance
Test Procedure
12
Check for fuel pressure.
Refer to 6E-116 "Fuel System Diagnosis".
Was the fuel pressure correct?
- Go to Step 13 Refer to Fuel
System
Diagnosis
13
Replace the O2 sensor for the affected bank.
Was the problem solved?
- Verify repair Go to Step 14
14
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 15

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-329
SYMPTOM DIAGNOSIS
PRELIMINARY CHECKS
Before using this section, perform the "On-Board
Diagnostic (OBD) System Check" and verify all of the
following items:

The engine control module (ECM) and check engine
lamp (MIL=malfunction indicator lamp) are operating
correctly.

There are no Diagnostic Trouble Code(s) stored.

Tech 2 data is within normal operating range. Refer
to Typical Scan Data Values.

Verify the customer complaint and locate the correct
symptom in the table of contents. Perform the
procedure included in the symptom chart.

VISUAL/PHYSICAL CHECK
Several of the symptom procedures call for a careful
visual/physical check. This can lead to correcting a
problem without further checks and can save valuable
time. This check should include the following items:

ECM grounds for cleanliness, tightness and proper
location.

Vacuum hoses for splits, kinks, and proper
connection. Check thoroughly for any type of leak or
restriction.

Air intake ducts for collapsed or damaged areas.

Air leaks at throttle body mounting area, manifold
absolute pressure (MAP) sensor and intake manifold
sealing surfaces.

Ignition wires for cracking, harness, and carbon
tracking.

Wiring for proper connections, pinches and cuts.

INTERMITTENT
Important: An intermittent problem may or may not turn
on the check engine lamp (MIL=malfunction indicato
r
lamp) or store a Diagnostic Trouble Code. Do NOT use
the Diagnostic Trouble Code (DTC) charts fo
r
intermittent problems.
The fault must be present to locate the problem.
Most intermittent problems are cased by faulty electrical
connections or wiring. Perform a careful visual/physical
check for the following conditions.

Poor mating of the connector halves or a terminal
not fully seated in the connector (backed out).

Improperly formed or damaged terminal.


All connector terminals in the problem circuit should
be carefully checked for proper contact tension.

Poor terminal-to-wire connection. This requires
removing the terminal form the connector body to
check.

Ignition coils shorted to ground and arcing at ignition
wires or plugs.

Check engine lamp (MIL=malfunction indicator lamp)
wire to ECM shorted to ground.

Poor ECM grounds. Refer to the ECM wiring
diagrams.

Road test the vehicle with a Digital Multimete
r
connected to a suspected circuit. An abnormal voltage
when the malfunction occurs is a good indication tha
t
there is a fault in the circuit being monitored.
Using Tech 2 to help detect intermittent conditions. The
Tech 2 have several features that can be used to
located an intermittent condition. Use the following
features to find intermittent faults:
To check for loss of diagnostic code memory,
disconnect the mass air flow (MAF) sensor and idle the
engine until the check engine lamp (MIL=malfunction
indicator lamp) comes on. Diagnostic Trouble Code
P0102 should be stored and kept in memory when the
ignition is turned OFF.
If not, the ECM is faulty. When this test is completed,
make sure that you clear the Diagnostic Trouble Code
P0102 from memory.

An intermittent check engine lamp (MIL=malfunction
indicator lamp) with no stored Diagnostic Trouble Code
may be caused by the following:

Ignition coil shorted to ground and arcing at ignition
wires or plugs.

Check engine lamp (MIL=malfunction indicator lamp)
wire to ECM short to ground.

Poor ECM grounds. Refer to the ECM wiring
diagrams.

Check for improper installation of electrical options such
as light, cellular phones, etc. Check all wires from ECM
to the ignition control module for poor connections.
Check for an open diode across the A/C compresso
r
clutch and check for other open diodes (refer to wiring
diagrams in Electrical Diagnosis).

6E-332 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
8
1. Using a Tech 2, display the IAC value.
2. Check for a faulty, plugged, or sticking IAC
operation.
Was the problem found?
- Verify repair Go to Step 9
9
Check the CKP sensor signal or installation condition.
Refer to DTC P0336 "Crankshaft Position Sensor
Circuit Range/Performance" and DTC P0337
"Crankshaft Position Sensor Circuit No Signal".
Was a problem found?
- Verify repair Go to Step 10
10
Check for proper ignition voltage output with the spark
tester.
Was a problem found?
- Verify repair Go to Step 11
11
1. Remove the spark plugs and check for gas or oil
fouling cracks, wear, improper gap, burned
electrodes, heavy deposits, or improper heat
range.
2. If spark plugs are fouled, the cause of fouling must
be determined before replacing the spark plugs.
Was a problem found?
- Verify repair Go to Step 12
12
Check the fuel pressure. Refer to Fuel System
Diagnosis.
Was a problem found?
- Verify repair Go to Step 13
13
Perform the procedure in Fuel System Pressure Test
to determine if there is a problem with fuel delivery.
Was a problem found?
- Verify repair Go to Step 14
14
Visually/physically check the vacuum hose for splits,
kinks and proper connections and routing.
Was a problem found?
- Verify repair Go to Step 15
15
Check the exhaust system for a possible restriction:

Damaged or collapsed pipes.

Internal muffler failure.
Was a problem found?
- Verify repair Go to Step 16
16
Check for the following engine mechanical problems
(refer to Engine Mechanical section):

Low compression.

Leaking cylinder head gaskets.

Worn camshaft.

Camshaft drive belt slipped or stripped.
Was a problem found?
- Verify repair Go to Step 17

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-335
Step Action Value (s) Yes No
10
1. Remove the spark plugs and check for gas or oil
fouling cracks, wear, improper gap, burned
electrodes, heavy deposits, or improper heat
range.
2. If spark plugs are fouled, the cause of fouling must
be determined before replacing the spark plugs.
Was a problem found?
- Verify repair Go to Step 11
11
Check for water or alcohol contaminated fuel.
Was a problem found?
- Verify repair Go to Step 12
12
Perform the procedure in Fuel System Pressure Test
to determine if there is a problem with fuel delivery.
Refer to 6E-116 page.
Was a problem found?
- Verify repair Go to Step 13
13
1. Check the injector connectors.
2. If any of the connectors are connected at an
improper cylinder, connect as necessary.
Was a problem found?
- Verify repair Go to Step 14
14
Check for the following engine mechanical problems
(refer to Engine Mechanical section):

Low compression.

Leaking cylinder head gaskets.

Worn camshaft.

Camshaft drive belt slipped or stripped.
Was a problem found?
- Verify repair Go to Step 15
15
1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
following:

Visual/physical inspection.

Tech 2 data.

All electrical connections within a suspected circuit
and/or system.
Was a problem found?
- Verify repair Go to Step 16
16
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 17

6E-350 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
9
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
Does the Tech 2 indicate correct "Throttle Position"
from 0% to 100% depending on accelerator pedal
operation?
- Go to Step 11 Go to Step 10
10
1. Using the Tech 2, ignition "On" and engine "Off".
2. Monitor the "Throttle Position" in the data display.
3. Adjust the accelerator cable or TPS within 0% to
100%.
Is the action complete?
- Verify repair -
11
Check for the following conditions.

Objects blocking the throttle valve.

Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found? - Verify repair Go to Step 12
12
Visually/physically inspect for the following conditions:

Restrict air intake system. Check for a restricted air
filter element, or foreign objects blocking the air
intake system.

Check for objects blocking the IAC passage or
throttle bore, excessive deposits in the throttle bore
and on the throttle plate.

Check for a condition that causes a large vacuum
leak, such as an incorrectly installed or faulty
crankcase ventilation hose/brake booster hose.
Was a problem found?
- Verify repair Go to Step 13
13
Perform the Injector Coil/Balance Test.
Refer to 6E-106 page
Was a problem found.
- Verify repair Go to Step 14
14
1. Check for fuel in the pressure regulator vacuum
hose.
2. If fuel is present, replace the fuel pressure regulator
assembly.
Was a problem found?
- Verify repair Go to Step 15
15
Check for proper ignition voltage output with the spark
tester.
Was a problem found?
- Verify repair Go to Step 16
16
1. Remove the spark plugs and check for gas or oil
fouling cracks, wear, improper gap, burned
electrodes, heavy deposits, or improper heat
range.
2. If spark plugs are fouled, the cause of fouling must
be determined before replacing the spark plugs.
Was a problem found?
- Verify repair Go to Step 17
