Transmitter Wake Up OperationEES0012C

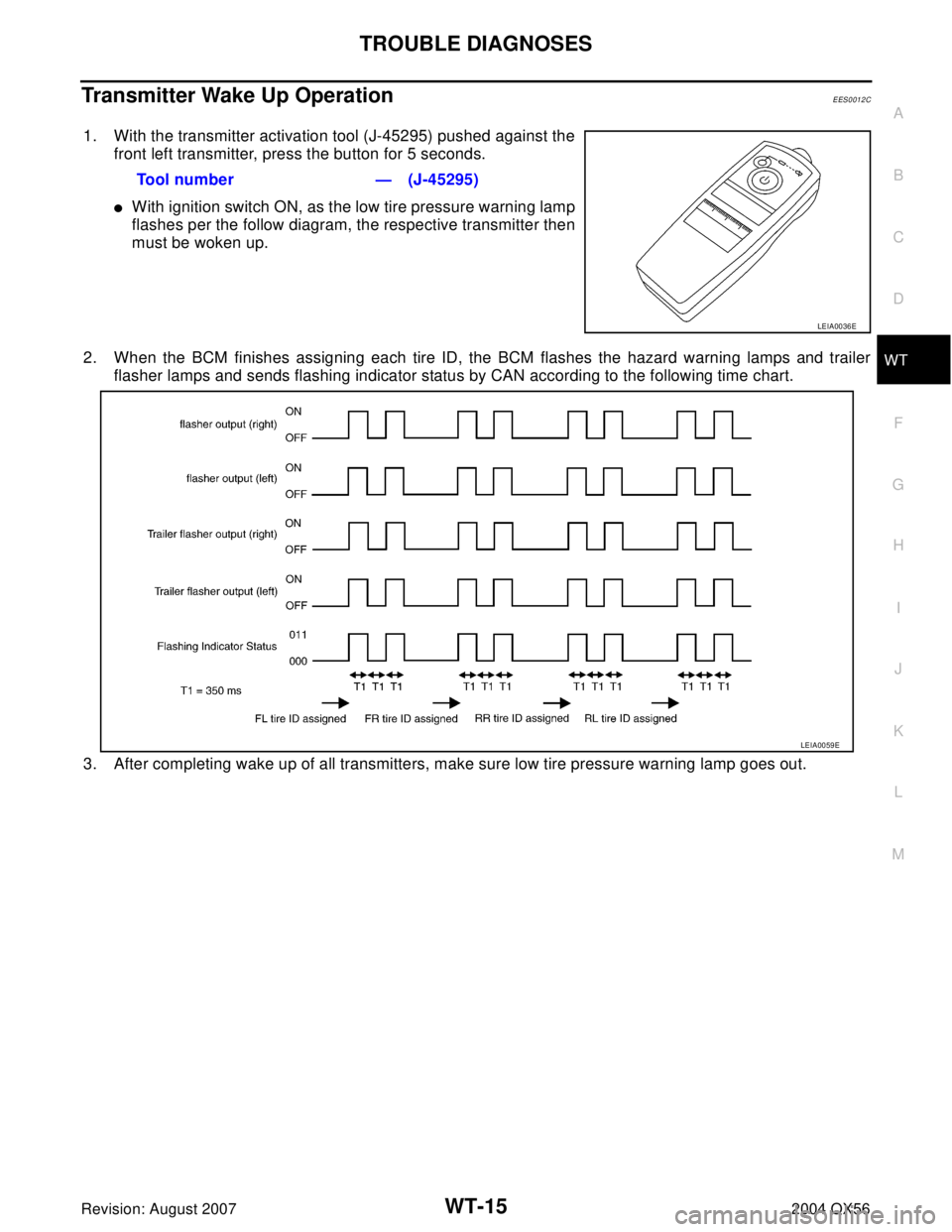

1. With the transmitter activation tool (J-45295) pushed against the
front left transmitter, press the button for 5 seconds.
With ignition switch ON, as the low tire pressure warning lamp
flashes per the follow diagram, the respective transmitter then
must be woken up.
2. When the BCM finishes assigning each tire ID, the BCM flashes the hazard warning lamps and trailer
flasher lamps and sends flashing indicator status by CAN according to the following time chart.
3. After completing wake up of all transmitters, make sure low tire pressure warning lamp goes out.Tool number — (J-45295)
LEIA0036E
LEIA0059E
