2004 INFINITI FX35 Engine

EC-650
[VQ35DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Revision: 2004 November 2004 FX35/FX45
ON BOARD REFUELING VAPOR RECOVERY (ORVR)PFP:00032
System DescriptionABS006ZB
From the beginning of refueling, the air and vapor inside the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The vapor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspections below, be sure to observe the following:

Put a “CAUTION: INFLAMMABLE” sign in workshop.

Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.

Be sure to furnish the workshop with a CO2 fire extinguisher.
CAUTION:

Before removing fuel line parts, carry out the following procedures:
–Put drained fuel in an explosion-proof container and put lid on securely.
–Release fuel pressure from fuel line. Refer to Fuel Pressure Release, EC-51 .
–Disconnect battery ground cable.

Always replace O-ring when the fuel gauge retainer is removed.

Do not kink or twist hose and tube when they are installed.

Do not tighten hose and clamps excessively to avoid damaging hoses.

After installation, run engine and check for fuel leaks at connection.

Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.
PBIB1068E

POSITIVE CRANKCASE VENTILATION
EC-655
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

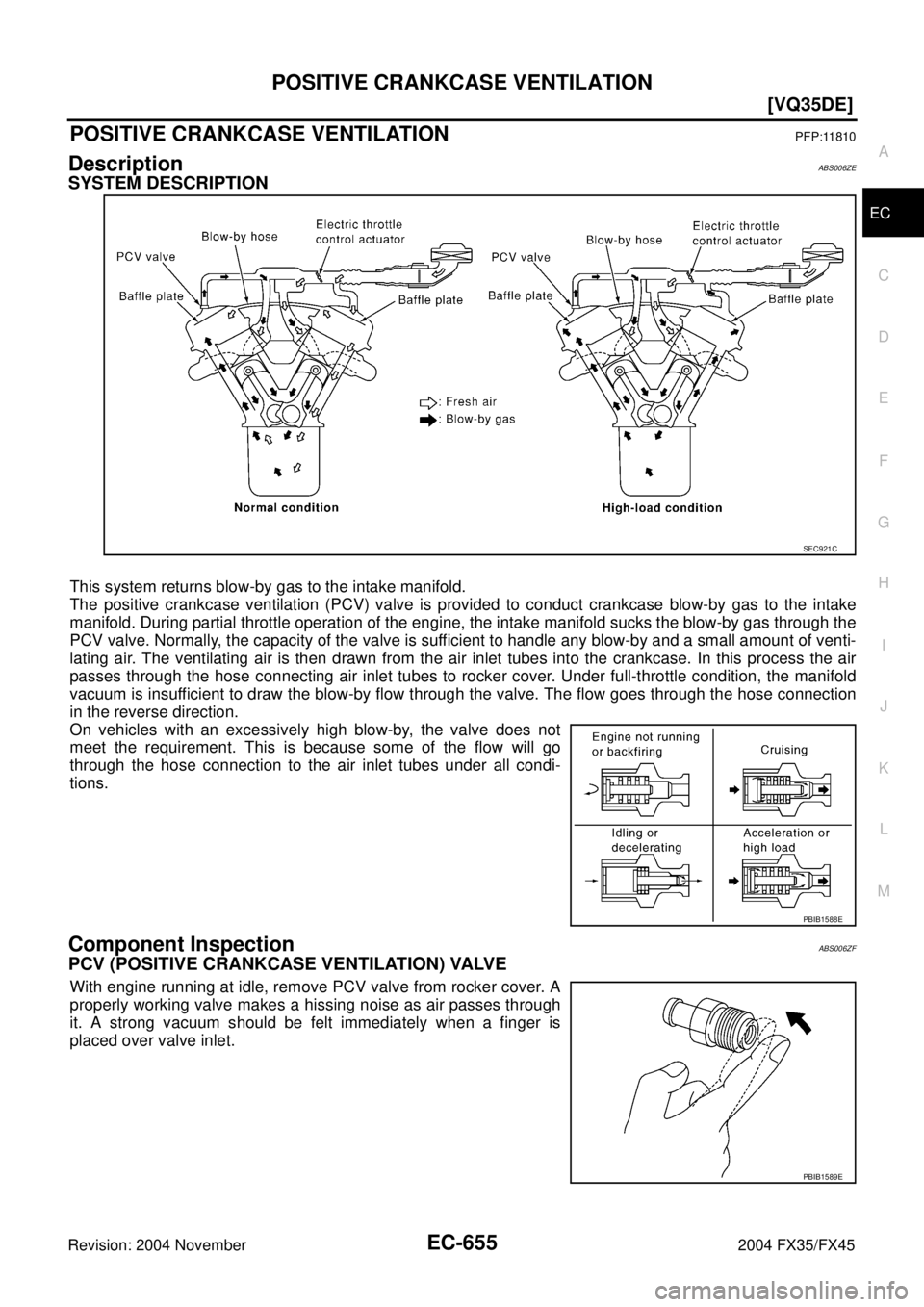

POSITIVE CRANKCASE VENTILATIONPFP:11810
DescriptionABS006ZE
SYSTEM DESCRIPTION
This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake
manifold. During partial throttle operation of the engine, the intake manifold sucks the blow-by gas through the
PCV valve. Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of venti-
lating air. The ventilating air is then drawn from the air inlet tubes into the crankcase. In this process the air
passes through the hose connecting air inlet tubes to rocker cover. Under full-throttle condition, the manifold
vacuum is insufficient to draw the blow-by flow through the valve. The flow goes through the hose connection
in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meet the requirement. This is because some of the flow will go
through the hose connection to the air inlet tubes under all condi-
tions.
Component InspectionABS006ZF
PCV (POSITIVE CRANKCASE VENTILATION) VALVE
With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.
SEC921C
PBIB1588E
PBIB1589E

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EC-657
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionABS006ZG
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM through CAN communication line.
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE indicator and SET indicator in combination meter. If any
malfunction occurs in ASCD system, it automatically deactivates control.
SET OPERATION
Press ON/OFF(MAIN)) switch. (The CRUISE indicator in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89
MPH), press COAST/SET switch. (Then SET indicator in combination meter illuminates.)
ACCEL OPERATION
If the ACCEL/RESUME switch is pressed during cruise control driving, increase the vehicle speed until the
switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.

CANCEL switch is pressed

More than 2 switches at ASCD steering switch are pressed at the same time (Set speed will be cleared)

Brake pedal is depressed

Selector lever is changed to N, P, R position

Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed

VDC/TCS system is operated
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.

Engine coolant temperature is slightly higher than the normal operating temperature, CRUISE lamp may
blink slowly.
When the engine coolant temperature decreases to the normal operating temperature, CRUISE lamp will
stop blinking and the cruise operation will be able to work by depressing COAST/SET switch or ACCEL/
RESUME switch.

Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If ON/OFF(MAIN) switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled
and vehicle speed memory will be erased.
COAST OPERATION
When the COAST/SET switch is pressed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.
Sensor Input signal to ECM ECM function Actuator
ASCD brake switch Brake pedal operation
ASCD vehicle speed controlElectric throttle control
actuator Stop lamp switch Brake pedal operation
ASCD steering switch ASCD steering switch operation
Park/Neutral position (PNP)
switchGear position
Unified meter and A/C amp.* Vehicle speed
TCM* Powertrain revolution

EC-660
[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureABS006ZI
Idle Speed and Ignition TimingABS006ZJ
*1: Under the following conditions:

Air conditioner switch: OFF

Electric load: OFF (Lights, heater fan & rear window defogger)

Steering wheel: Kept in straight-ahead position
Calculated Load ValueABS006ZK
Mass Air Flow SensorABS006ZL
*: Engine is warmed up to normal operating temperature and running under no-load.
Intake Air Temperature SensorABS006ZM
Engine Coolant Temperature SensorABS006ZN
Heated Oxygen Sensor 1 HeaterABS006ZO
Heated Oxygen sensor 2 HeaterABS006ZP
Crankshaft Position Sensor (POS)ABS006ZQ
Refer to EC-307, "Component Inspection" .
Camshaft Position Sensor (PHASE)ABS006ZR
Refer to EC-315, "Component Inspection" .
Throttle Control MotorABS006ZS
Fuel pressure at idling kPa (kg/cm2 , psi)Approximately 350 (3.57, 51)
Target idle speed
No-load*1 (in P or N position)650±50 rpm
Air conditioner: ON In P or N position 775 rpm or more
Ignition timing In P or N position 15° ± 5° BTDC
Calculated load value% (Using CONSULT-II or GST)
At idle5 - 35
At 2,500 rpm5 - 35
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle1.1 - 1.5*V
Mass air flow (Using CONSULT-II or GST)2.0 - 6.0 g·m/sec at idle*
7.0 - 20.0 g·m/sec at 2,500 rpm*
Temperature °C (°F) Resistance kΩ
25 (77)1.94 - 2.06
80 (176)0.295 - 0.349
Temperature °C (°F) Resistance kΩ
20 (68)2.1 - 2.9
50 (122)0.68 - 1.00
90 (194)0.236 - 0.260
Resistance [at 25°C (77°F)] 3.3 - 4.0Ω
Resistance [at 25°C (77°F)] 5.0 - 7.0Ω
Resistance [at 25°C (77°F)] Approximately 1 - 15Ω

INDEX FOR DTC
EC-665
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results). This number is controlled by NISSAN.
*4: When engine is running.
*5: The troubleshooting for this DTC needs CONSULT-II.
*6: When the fail-safe operations for both self-diagnoses occur at the same time, the MIL illuminates.
*7: Models with ICC
*8: Models with ASCD
DTC No. IndexABS00BYW
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-792, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.P0000 0000———
P-N POS SW/CIRCUIT P1706 1706 2×EC-1211
PNP SW/CIRC P0705 0705 2×AT- 11 2
PURG VOLUME CONT/V P0444 0444 2×EC-990
PURG VOLUME CONT/V P0445 0445 2×EC-990
PURG VOLUME CONT/V P1444 1444 2×EC-1160
PW ST P SEN/CIRC P0550 0550 2 —EC-1052
SENSOR POWER/CIRC P1229 1229 1×EC-1156
SHIFT SIG FNCTN P1780 1780 2 —EC-1218
TCC SOLENOID/CIRC P0740 0740 2×AT- 1 2 3
TCS C/U FUNCTN P1211 1211 2 —EC-1140
TCS/CIRC P1212 1212 2 —EC-1141
THERMSTAT FNCTN P0128 0128 2×EC-861
TP SEN 1/CIRC P0222 0222 1×EC-942
TP SEN 1/CIRC P0223 0223 1×EC-942
TP SEN 2/CIRC P0122 0122 1×EC-848
TP SEN 2/CIRC P0123 0123 1×EC-848
TP SENSOR P2135 2135 1×EC-1239
TURBINE REV S/CIRC P1716 1716 2×AT- 1 4 3
TW CATALYST SYS-B1 P0420 0420 2×EC-971
TW CATALYST SYS-B2 P0430 0430 2×EC-971
V/SP SEN(A/T OUT) P1720 1720 2 —EC-1216
VEH SPD SEN/CIR AT*6P0720 0720 2×AT- 11 6
VEH SPEED SEN/CIRC*6P0500 0500 2×EC-1046
VENT CONTROL VALVE P0447 0447 2×EC-997
VENT CONTROL VALVE P1446 1446 2×EC-1168
Items
(CONSULT-II screen terms)DTC*
1
TripMIL lighting
upReference page
CONSULT-II
GST*
2ECM*3

INDEX FOR DTC
EC-669
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results). This number is controlled by NISSAN.
*4: When engine is running.
*5: The troubleshooting for this DTC needs CONSULT-II.
*6: When the fail-safe operations for both self-diagnoses occur at the same time, the MIL illuminates.
*7: Models with ICC
*8: Models with ASCDP1706 1706 P-N POS SW/CIRCUIT 2×EC-1211
P1716 1716 TURBINE REV S/CIRC 2×AT- 1 4 3
P1720 1720 V/SP SEN (A/T OUT) 2 —EC-1216
P1730 1730 A/T INTERLOCK 1×AT- 1 4 7
P1752 1752 I/C SOLENOID/CIRC 1×AT- 1 5 2
P1754 1754 I/C SOLENOID FNCTN 1×AT- 1 5 4
P1757 1757 FR/B SOLENOID/CIRC 1×AT- 1 5 6
P1759 1759 FR/B SOLENOID FNCT 1×AT- 1 5 8
P1762 1762 D/C SOLENOID/CIRC 1×AT- 1 6 0
P1764 1764 D/C SOLENOID FNCTN 1×AT- 1 6 2
P1767 1767 HLR/C SOL/CIRC 1×AT- 1 6 4
P1769 1769 HLR/C SOL FNCTN 1×AT- 1 6 6
P1772 1772 LC/B SOLENOID/CIRC 1×AT- 1 6 8
P1774 1774 LC/B SOLENOID FNCT 1×AT- 1 7 0
P1780 1780 SHIFT SIG FNCTN 2 —EC-1218
P1805 1805 BRAKE SW/CIRCUIT 2 —EC-1220
P2122 2122 APP SEN 1/CIRC 1×EC-1225
P2123 2123 APP SEN 1/CIRC 1×EC-1225
P2127 2127 APP SEN 2/CIRC 1×EC-1232
P2128 2128 APP SEN 2/CIRC 1×EC-1232
P2135 2135 TP SENSOR 1×EC-1239
P2138 2138 APP SENSOR 1×EC-1246
DTC*1
Items
(CONSULT-II screen terms)TripMIL lighting
upReference page
CONSULT-II
GST*
2ECM*3

EC-670
[VK45DE]
PRECAUTIONS
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
ABS00BYX
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
On Board Diagnostic (OBD) System of Engine and A/TABS00BYY
The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:

Be sure to turn the ignition switch OFF and disconnect the negative battery cable before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves,
etc. will cause the MIL to light up.

Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector. For description and how to disconnect, refer to PG-74, "
HAR-
NESS CONNECTOR" .

Be sure to route and secure the harnesses properly after work. The interference of the harness
with a bracket, etc. may cause the MIL to light up due to the short circuit.

Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to the malfunction of the EVAP system or fuel injection system,
etc.

Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM and
TCM (Transmission control module) before returning the vehicle to the customer.
PrecautionABS00BYZ

Always use a 12 volt battery as power source.

Do not attempt to disconnect battery cables while engine is
running.

Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect negative
battery cable. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned OFF.

Before removing parts, turn ignition switch OFF and then
disconnect battery ground cable.
SEF289H

PRECAUTIONS
EC-671
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

Do not disassemble ECM.

If a battery cable is disconnected, the memory will return to
the ECM value.
The ECM will now start to self-control at its initial value.
Engine operation can vary slightly when the terminal is dis-
connected. However, this is not an indication of a malfunc-
tion. Do not replace parts because of a slight variation.

When connecting ECM harness connector, fasten it
securely with a lever as far as it will go as shown in the fig-
ure.

When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM
pin terminal, when connecting pin connectors.

Securely connect ECM harness connectors.
A poor connection can cause an extremely high (surge)
voltage to develop in coil and condenser, thus resulting in
damage to ICs.

Keep engine control system harness at least 10 cm (4 in)
away from adjacent harness, to prevent engine control sys-
tem malfunctions due to receiving external noise, degraded
operation of ICs, etc.

Keep engine control system parts and harness dry.

Before replacing ECM, perform ECM Terminals and Refer-
ence Value inspection and make sure ECM functions prop-
erly. Refer to EC-750
.

Handle mass air flow sensor carefully to avoid damage.

Do not disassemble mass air flow sensor.

Do not clean mass air flow sensor with any type of deter-
gent.

Do not disassemble electric throttle control actuator.

Even a slight leak in the air intake system can cause seri-
ous incidents.

Do not shock or jar the camshaft position sensor (PHASE),
crankshaft position sensor (POS).
PBIB1164E
PBIB1512E
PBIB0090E
MEF040D
