2004 INFINITI FX35 ECO mode

TROUBLE DIAGNOSIS
EC-759
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
CONSULT-II FunctionABS00BZX
FUNCTION
106 R/BAccelerator pedal position
sensor 1[Ignition switch: ON]

Engine stopped

Accelerator pedal is fully released0.5 - 1.0V
[Ignition switch: ON]

Engine stopped

Accelerator pedal is fully depressed3.9 - 4.7V
107 PU/WFuel tank temperature sen-
sor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with fuel
tank temperature.
108 SBICC brake switch (models
witch ICC system)
ASCD brake switch
(models witch ASCD sys-
tem)[Ignition switch: ON]

Brake pedal is depressedApproximately 0V
[Ignition switch: ON]

Brake pedal is fully releasedBATTERY VOLTAGE
(11 - 14V)
109 W/L Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
111 W / BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
113 GY/R Fuel pump relay[Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
11 5
11 6B/R
B/WECM ground[Engine is running]

Idle speedBody ground
11 7 R / YEVAP canister vent control
valve[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
11 9
120R
RPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
121 R/WPower supply for ECM
(Back-up)[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
Diagnostic test mode Function
Work supportThis mode enables a technician to adjust some devices faster and more accurately by following the
indications on the CONSULT-II unit.
Self-diagnostic resultsSelf-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*
Data monitor Input/Output data in the ECM can be read.
Data monitor (SPEC)Input/Output of the specification for Basic fuel schedule, AFM, A/F feedback control value and the
other data monitor items can be read.

TROUBLE DIAGNOSIS
EC-765
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
*: The items are the same as those of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
×: Applicable B/FUEL SCHDL
[msec]

The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE [°C]
or [°F]

The intake air temperature at the moment a malfunction is detected is displayed. Freeze frame data
item*Description
Monitored item [Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks
ENG SPEED [rpm]××

Indicates the engine speed computed from
the signal of the crankshaft position sensor
(POS) and camshaft position sensor
(PHASE).
Accuracy becomes poor if engine
speed drops below the idle rpm.

If the signal is interrupted while the
engine is running, an abnormal value
may be indicated.
MAS A/F SE-B1 [V]××

The signal voltage of the mass air flow sen-
sor is displayed.
When the engine is stopped, a cer-
tain value is indicated.
B/FUEL SCHDL
[msec]×

“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board correc-
tion.
A/F ALPHA-B1 [%]×

The mean value of the air-fuel ratio feed-
back correction factor per cycle is indicated.

When the engine is stopped, a cer-
tain value is indicated.

This data also includes the data for
the air-fuel ratio learning control. A/F ALPHA-B2 [%]×
COOLAN TEMP/S
[°C] or [°F]××

The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is displayed.

When the engine coolant tempera-
ture sensor is open or short-circuited,
ECM enters fail-safe mode. The
engine coolant temperature deter-
mined by the ECM is displayed.
HO2S1 (B1) [V]××

The signal voltage of the heated oxygen
sensor 1 is displayed.
HO2S1 (B2) [V]×
HO2S2 (B1) [V]×

The signal voltage of the heated oxygen
sensor 2 is displayed.
HO2S2 (B2) [V]×
HO2S1 MNTR (B1)
[RICH/LEAN]××

Display of heated oxygen sensor 1 signal
during air-fuel ratio feedback control:
RICH: means the mixture became “rich”,
and control is being affected toward a
leaner mixture.
LEAN: means the mixture became “lean”,
and control is being affected toward a rich
mixture.
After turning ON the ignition switch,
“RICH” is displayed until air-fuel mix-
ture ratio feedback control begins.

When the air-fuel ratio feedback is
clamped, the value just before the
clamping is displayed continuously. HO2S1 MNTR (B2)
[RICH/LEAN]×
HO2S2 MNTR (B1)
[RICH/LEAN]×

Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after
three way catalyst is relatively small.
LEAN: means the amount of oxygen after
three way catalyst is relatively large.

When the engine is stopped, a cer-
tain value is indicated.
HO2S2 MNTR (B2)
[RICH/LEAN]×
VHCL SPEED SE
[km/h] or [mph]××

The vehicle speed computed from the vehi-
cle speed signal sent from combination
meter is displayed.

TROUBLE DIAGNOSIS
EC-771
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

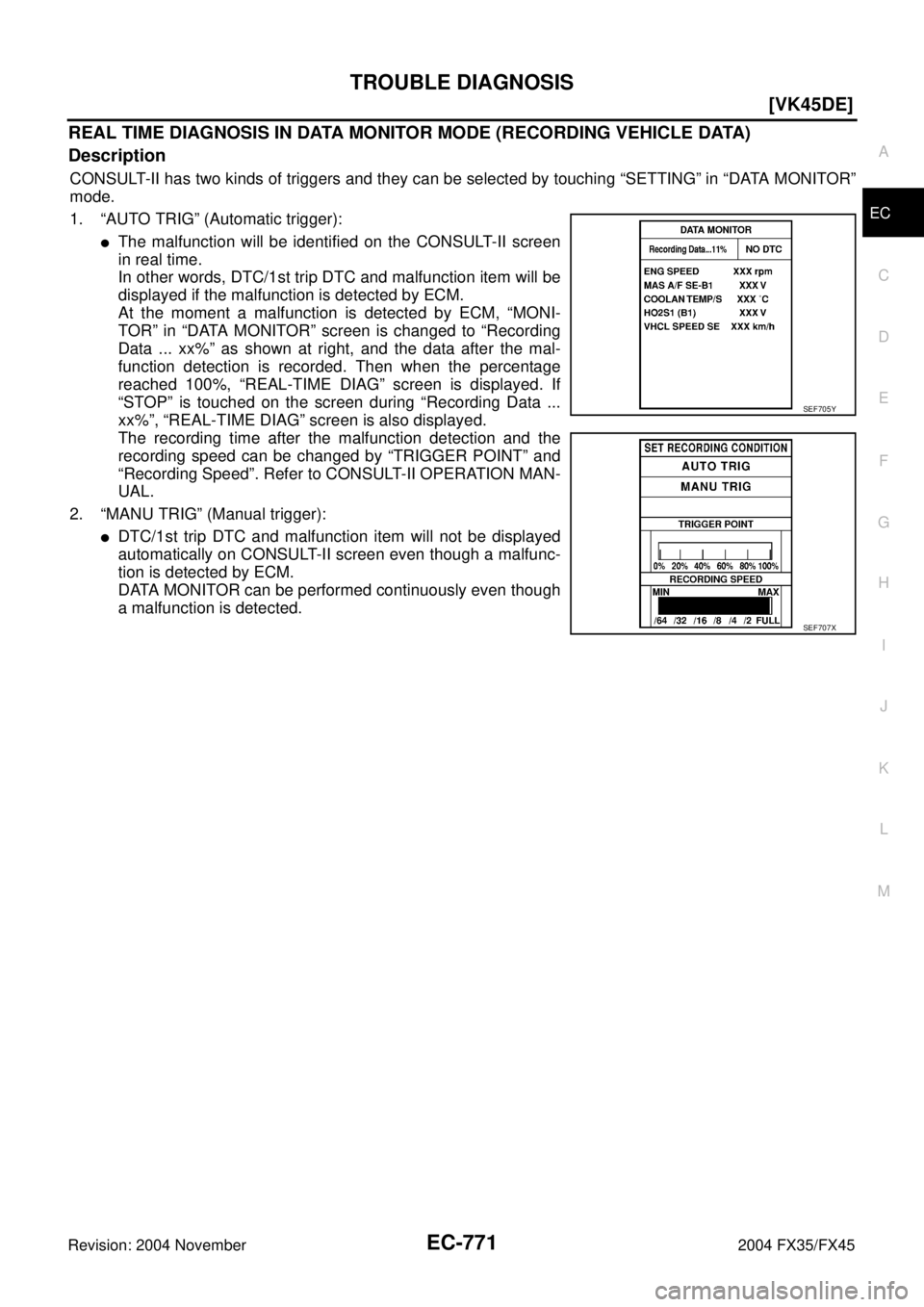

REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description
CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):

The malfunction will be identified on the CONSULT-II screen
in real time.
In other words, DTC/1st trip DTC and malfunction item will be
displayed if the malfunction is detected by ECM.
At the moment a malfunction is detected by ECM, “MONI-
TOR” in “DATA MONITOR” screen is changed to “Recording
Data ... xx%” as shown at right, and the data after the mal-
function detection is recorded. Then when the percentage
reached 100%, “REAL-TIME DIAG” screen is displayed. If
“STOP” is touched on the screen during “Recording Data ...
xx%”, “REAL-TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the
recording speed can be changed by “TRIGGER POINT” and
“Recording Speed”. Refer to CONSULT-II OPERATION MAN-
UAL.
2. “MANU TRIG” (Manual trigger):

DTC/1st trip DTC and malfunction item will not be displayed
automatically on CONSULT-II screen even though a malfunc-
tion is detected by ECM.
DATA MONITOR can be performed continuously even though
a malfunction is detected.
SEF705Y
SEF707X

EC-776
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
LOAD SIGNAL
Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2ndON
Rear window defogger switch is OFF
and lighting switch is OFFOFF
SNOW MODE SW

Ignition switch: ONSnow mode switch: ON ON
Snow mode switch: OFF OFF
IGNITION SW

Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW

Engine: After warming up, idle
the engineHeater fan is operating ON
Heater fan is not operating OFF
BRAKE SW

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N

No loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N

No loadIdle 10° - 14° BTDC
2,000 rpm 25° - 45° BTDC
CAL/LD VALUE

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N

No loadIdle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N

No loadIdle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
PURG VOL C/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N

No loadIdle 0%
2,000 rpm —
INT/V TIM (B1)
INT/V TIM (B2)

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N

No loadIdle−5° - 5°CA
2,000 rpm Approx. 0° - 20°CA
INT/V SOL (B1)
INT/V SOL (B2)

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N

No loadIdle 0% - 2%
2,000 rpm Approx. 25% - 50%
VIAS S/V

Engine speed: IdleShift lever position: P or N ON
Except above OFF
AIR COND RLY

Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON
FUEL PUMP RLY

For 1 second after turning ignition switch ON

Engine running or crankingON

Except above conditions OFF MONITOR ITEM CONDITION SPECIFICATION

EC-792
[VK45DE]
DTC U1000, U1001 CAN COMMUNICATION LINE
Revision: 2004 November 2004 FX35/FX45
DTC U1000, U1001 CAN COMMUNICATION LINEPFP:23710
DescriptionABS00C0A
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicABS00C0B
*1: This self-diagnosis has the one trip detection logic.
*2: The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureABS00C0C
1. Turn ignition switch ON and wait at least 3 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If 1st trip DTC is detected, go to EC-794, "
Diagnostic Procedure" .
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
U1000*
1
1000*1CAN communication
line

ECM cannot communicate to other control
units.

ECM cannot communicate for more than the
specified time.

Harness or connectors
(CAN communication line is open or
shorted) U1001*
2
1001*2

DTC P0011, P0021 IVT CONTROL
EC-797
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS00C0I
CAUTION:
Always drive at a safe speed.
NOTE:

If DTC P0011 or P0021 is displayed with DTC P1111, P1136, P1140 or P1145, first perform the trou-
ble diagnosis for EC-1070
or EC-1095 .

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec-
onds.
4. Maintain the following conditions for at least 20 consecutive sec-
onds.
5. If the 1st trip DTC is detected, go to EC-801, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec-
onds.
4. If the 1st trip DTC is detected, go to EC-801, "
Diagnostic Proce-
dure" .
With GST
Follow the procedure “With CONSULT-II” above.
ENG SPEED More than 2,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 70°C (158°F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
ENG SPEED Idle
COOLAN TEMP/S More than 70°C (158°F)
Selector lever P or N position
SEF353Z
ENG SPEED 2,000 - 3,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S 80 - 90°C (176 - 194°F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
SEF353Z

DTC P0031, P0032, P0051, P0052 HO2S1 HEATER
EC-807
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS00C0Q
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
4. Start engine and run it for at least 6 seconds at idle speed.
5. If 1st trip DTC is detected, go to EC-811, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF174Y

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
EC-815
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS00C0Y
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera-
ture.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start the engine and keep the engine speed between 3,500 rpm
and 4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 1 minute.
6. If 1st trip DTC is detected, go to EC-819, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF174Y
