2004 INFINITI FX35 sensor

CAMSHAFT
EM-83
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
REMOVAL
1. Remove front timing chain case, camshaft sprocket, timing chain and rear timing chain case. Refer to EM-
63, "TIMING CHAIN" .
2. If necessary, remove camshaft position sensor (PHASE) (right
and left banks) from cylinder head back side.
CAUTION:

Handle carefully to avoid dropping and shocks.

Do not disassemble.

Do not allow metal powder to adhere to magnetic part at
sensor tip.

Do not place sensors in a location where they are
exposed to magnetism.
3. Remove intake valve timing control solenoid valve from No.1
camshaft bracket.
4. Remove intake and exhaust camshaft brackets.

Mark camshafts, camshaft brackets, and bolts so they are
placed in the same position and direction for installation.

Equally loosen camshaft bracket bolts in several steps in the
reverse order as shown in the figure.
5. Remove camshaft.
6. Remove valve lifter.

Identify installation positions, and store them without mixing them up.
KBIA1046E
SEM443GA
PBIC2050E

CYLINDER BLOCK
EM-121
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
DISASSEMBLY
1. Remove engine assembly from vehicle, and separate transmission from engine. Refer to EM-110,
"ENGINE ASSEMBLY" .
2. Remove engine mounting bracket. Refer to EM-110, "
ENGINE ASSEMBLY" .
3. Remove RH side exhaust manifold. Refer to EM-26, "
EXHAUST MANIFOLD AND THREE WAY CATA-
LYST" .
4. Install engine sub-attachment with engine stand shaft (SST) to
right side of cylinder block.

Use spacer to engine rear side.
1. Cylinder block 2. Reinforcement plate 3. Drive plate
4. Rear oil seal retainer 5. Cover 6. Gasket
7. Knock sensor 8. Oil jet 9. Thrust bearing
10. Pilot converter 11. Main bearing 12. Crankshaft
13. Key 14. Main bearing cap 15. Main bearing cap bolt
16. Main bearing beam 17. Baffle plate (2WD model) 18. Top ring
19. Second ring 20. Oil ring 21. Piston
22. Piston pin 23. Snap ring 24. Connecting rod
25. Connecting rod bearing 26. Connecting rod bearing cap 27. Connecting rod bolt

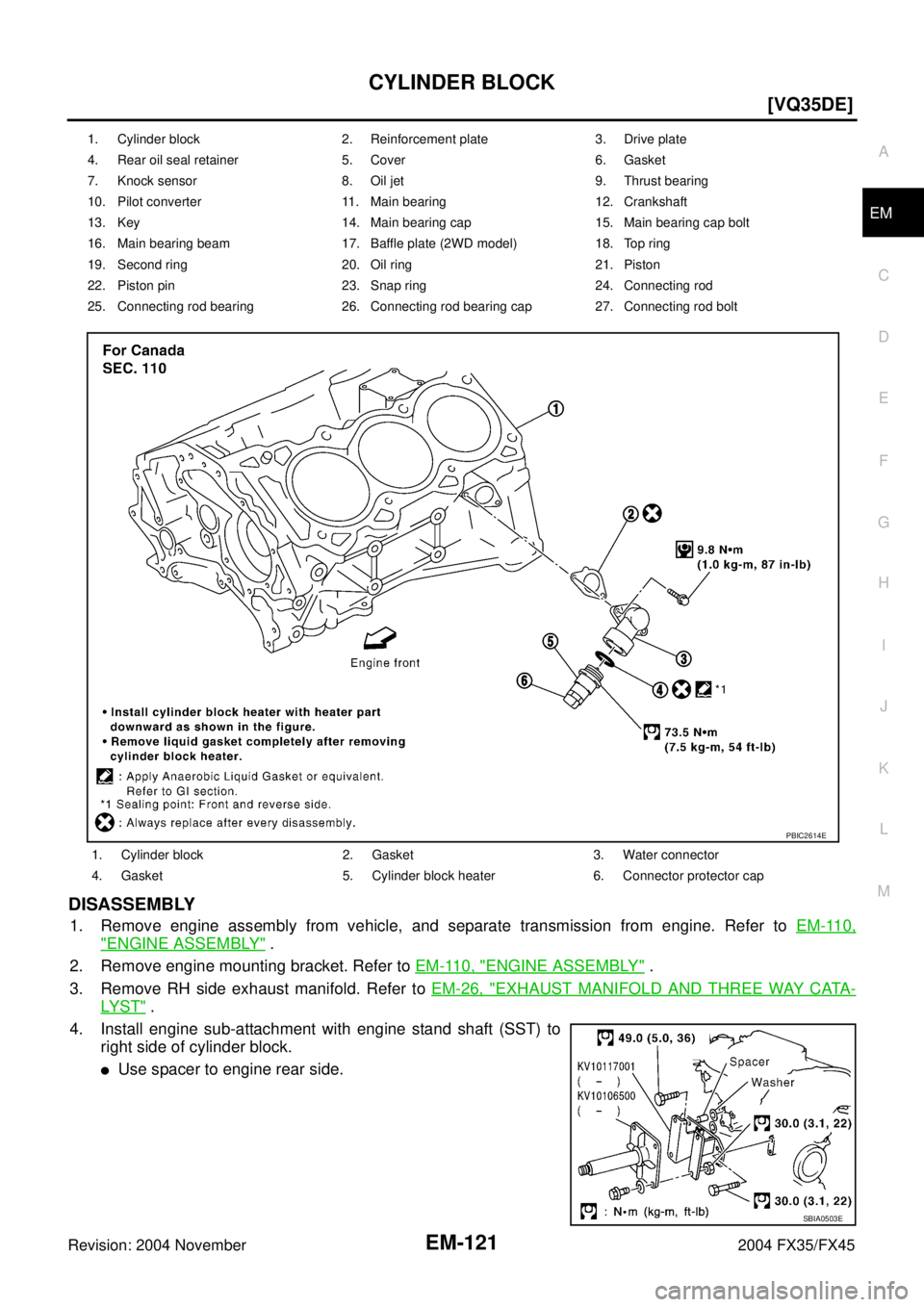

1. Cylinder block 2. Gasket 3. Water connector
4. Gasket 5. Cylinder block heater 6. Connector protector cap
PBIC2614E
SBIA0503E

CYLINDER BLOCK
EM-123
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
7. Drain engine coolant by removing water drain plugs from cylin-
der block both sides at “B” and “C” and cylinder block front side
at “A” as shown in the figure.
8. Remove cylinder head. Refer to EM-98, "
CYLINDER HEAD" .
9. Remove knock sensor.
CAUTION:
Carefully handle sensor avoiding shocks.
10. Remove drive plate with power tool. Fix crankshaft with a ring gear stopper [SST: KV1011770 (J-44716)],
and remove mounting bolts.

Loosen mounting bolts in diagonal order.
CAUTION:

Do not disassemble drive plate.

Never place drive plate with signal plate facing down.

When handling signal plate, take care not to damage or
scratch it.

Handle signal plate in a manner that prevents it from
becoming magnetized.
11. Remove pilot converter using pilot bushing puller (SST) or suit-
able tool as necessary.
PBIC2610E
SEM760G
SEM005G

CYLINDER BLOCK
EM-131
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
22. Install knock sensor.

Install knock sensor so that connector faces front of engine.

After installing knock sensor, connect harness connector, and
lay it out to rear of engine.
CAUTION:

Do not tighten mounting bolts while holding connector.

If any impact by dropping is applied to knock sensor,
replace it with new one.
NOTE:

Make sure that there is no foreign material on the cylinder
block mating surface and the back surface of knock sensor.

Make sure that knock sensor does not interfere with other parts.
23. Install followings in reverse order of removal.
How to Select Piston and Bearing ABS00FPI
DESCRIPTION
*For the service parts, the grade for fitting cannot be selected between a piston pin and a connecting rod.
(Only 0 grade is available.) The information at the shipment from the plant is described as a reference.

The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.

For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.

For details of the measurement method of each part, the reuse standards and the selection method of the
selective fitting parts, refer to the text.
HOW TO SELECT PISTON
When New Cylinder Block Is Used
Check cylinder bore grade (“1”, “2”, or “3”) on rear side of cylinder
block, and select a piston of the same grade.
NOTE:
Piston is available with piston pin as a set for the service part. (Only
“0” grade piston pin is available.)
PBIC0810E
Selection points Selection parts Selection items Selection methods
Between cylinder block and
crankshaftMain bearingMain bearing grade
(bearing thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft and con-
necting rodConnecting rod bearingConnecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod big end inner
diameter and crankshaft pin
outer diameter determine con-
necting rod bearing selection.
Between cylinder block and pis-
tonPiston and piston pin assembly
(Piston is available together
with piston pin as an assembly.)Piston grade
(piston outer diameter)Piston grade = cylinder bore
grade (inner diameter of bore)
*Between piston and connect-
ing rod———
PBIC0811E

EM-162
[VK45DE]
PREPARATION
Revision: 2004 November 2004 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsABS006I2
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool nameDescription
KV10111100
(J37228)
Seal cutterRemoving steel oil pan and front cover
KV10114400
(J-38365)
Heated oxygen sensor wrenchLoosening or tightening heated oxygen
sensors
a: 22 mm (0.87 in)
EG15050500
(J45402)
Compression gauge adapterInspection of compression pressure
KV10116200
(J26336-A)
Valve spring compressor
1. KV10115900
(J26336-20)
Attachment
2. KV10109220
(—)
AdapterDisassembling valve mechanism
Part (1) is a component of KV10116200
(J26336-A), but part (2) is not so.
KV101151S0
(J38972)
Lifter stopper set
1. KV10115110
(J38972-1)
Camshaft pliers
2. KV10115120
(J38972-2)
Lifter stopperChanging valve lifter shims
KV10112100
(BT8653-A)
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc.
S-NT046
S-NT636
ZZA1225D
PBIC1650E
S-NT041
S-NT014

PREPARATION
EM-165
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45

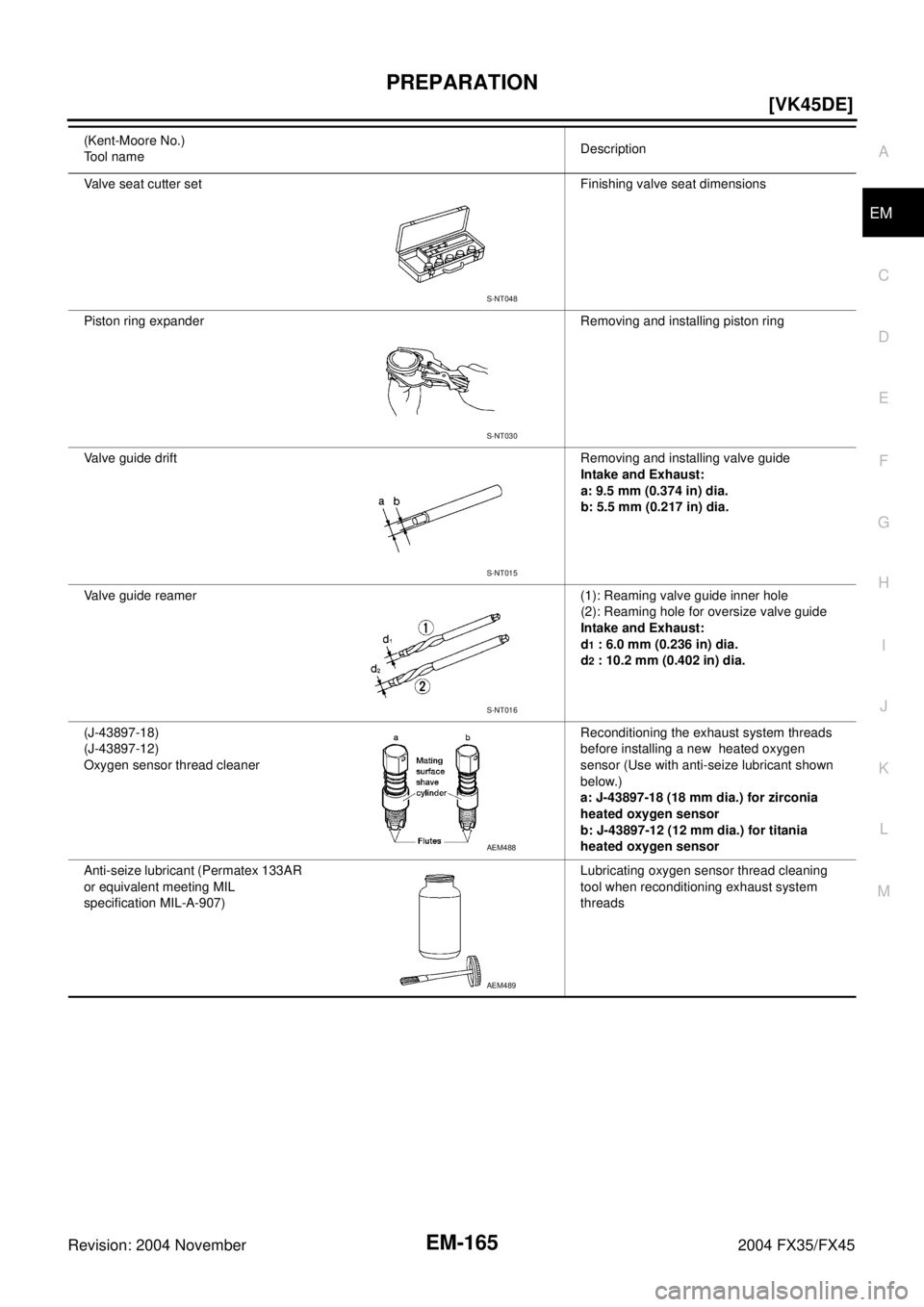

Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
Valve guide reamer (1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
Intake and Exhaust:
d
1 : 6.0 mm (0.236 in) dia.
d
2 : 10.2 mm (0.402 in) dia.
(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleanerReconditioning the exhaust system threads
before installing a new heated oxygen
sensor (Use with anti-seize lubricant shown
below.)
a: J-43897-18 (18 mm dia.) for zirconia
heated oxygen sensor
b: J-43897-12 (12 mm dia.) for titania
heated oxygen sensor
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL
specification MIL-A-907)Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads (Kent-Moore No.)
Tool nameDescription
S-NT048
S-NT030
S-NT015
S-NT016
AEM488
AEM489

EM-172
[VK45DE]
AIR CLEANER AND AIR DUCT
Revision: 2004 November 2004 FX35/FX45

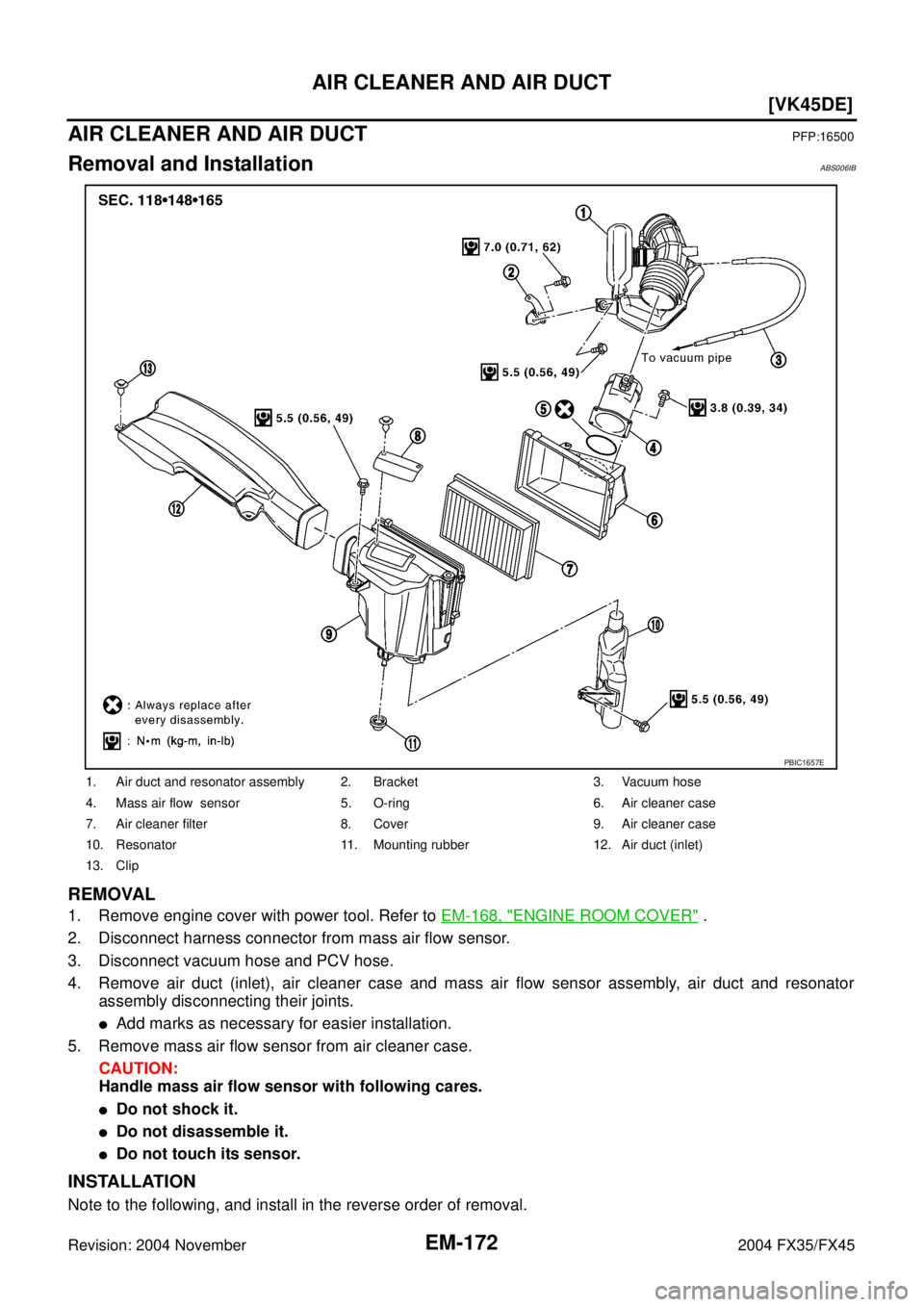

AIR CLEANER AND AIR DUCTPFP:16500
Removal and InstallationABS006IB
REMOVAL
1. Remove engine cover with power tool. Refer to EM-168, "ENGINE ROOM COVER" .
2. Disconnect harness connector from mass air flow sensor.
3. Disconnect vacuum hose and PCV hose.
4. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator
assembly disconnecting their joints.

Add marks as necessary for easier installation.
5. Remove mass air flow sensor from air cleaner case.
CAUTION:
Handle mass air flow sensor with following cares.

Do not shock it.

Do not disassemble it.

Do not touch its sensor.
INSTALLATION
Note to the following, and install in the reverse order of removal.
1. Air duct and resonator assembly 2. Bracket 3. Vacuum hose
4. Mass air flow sensor 5. O-ring 6. Air cleaner case
7. Air cleaner filter 8. Cover 9. Air cleaner case
10. Resonator 11. Mounting rubber 12. Air duct (inlet)
13. Clip
PBIC1657E

AIR CLEANER AND AIR DUCT
EM-173
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45

Align marks. Attach each joint. Screw clamps firmly.
Changing Air Cleaner FilterABS00A2T
REMOVAL
1. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly.
2. Remove air cleaner filter from air cleaner case.
INSTALLATION
Install in the reverse order of removal.
