2004 Hyundai Sonata Owner's Manual

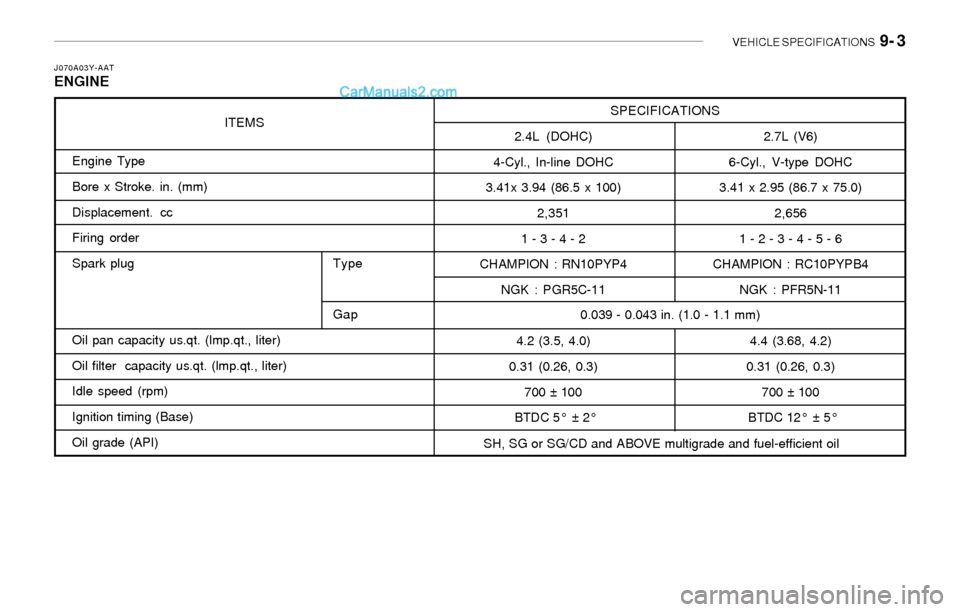

VEHICLE SPECIFICATIONS 9- 3
J070A03Y-AATENGINE
ITEMS
Engine Type
Bore x Stroke. in. (mm)
Displacement. cc
Firing order
Spark plugType
Gap
Oil pan capacity us.qt. (lmp.qt., liter)
Oil filter capacity us.qt. (lmp.qt., liter)
Idle speed (rpm)
Ignition timing (Base)
Oil grade (API)2.4L (DOHC)
4-Cyl., In-line DOHC
3.41x 3.94 (86.5 x 100)
2,351
1 - 3 - 4 - 2
CHAMPION : RN10PYP4
NGK : PGR5C-11
4.2 (3.5, 4.0)
0.31 (0.26, 0.3)
700 ± 100
BTDC 5° ± 2°2.7L (V6)
6-Cyl., V-type DOHC
3.41 x 2.95 (86.7 x 75.0)
2,656
1 - 2 - 3 - 4 - 5 - 6
CHAMPION : RC10PYPB4
NGK : PFR5N-11
4.4 (3.68, 4.2)
0.31 (0.26, 0.3)
700 ± 100
BTDC 12° ± 5°
SPECIFICATIONS
0.039 - 0.043 in. (1.0 - 1.1 mm)
SH, SG or SG/CD and ABOVE multigrade and fuel-efficient oil

9- 4 VEHICLE SPECIFICATIONS
J080A09Y-AATLUBRICATION CHART
API SH, Hot Climate: SAE 20W-40, 20W-50 (ABOVE 32°F OR 0°C)
SG or Normal Climate:SAE 10W-30 10W-40, 10W-50 (ABOVE -10°F OR -23°C)
SG/CDCold Climate:SAE 5W-30 5W-40 (BELOW 100°F OR 38°C)
HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4)
HYUNDAI GENUINE ATF, DIAMOND ATF SP-III or SK ATF SP-III
Ethylene glycol base for aluminum radiator
PSF-3 type fluid
DOT 3 or DOT 4 Equivalent Engine
TransaxleManual
Auto
Coolant
Power steering
Brakes and clutch fluid
Quantity (us.qts) (lmp.qts, liter)
2.2 (1.8, 2.1)
8.2 (6.9, 7.8)
0.95 (0.9)
As requiredItem
Oil & Coolant Standard2.4L 2.7L (V6)
Drain & refill;
Without oil filter :
4.2 (3.5, 4.0)
With oil filter :
4.5 (3.76, 4.3)Drain & refill;
Without oil filter :
4.45 (3.69, 4.2)
With oil filter :
4.77 (3.96, 4.5)
7.7 (6.4, 7.3)9.0 (7.6, 8.6)

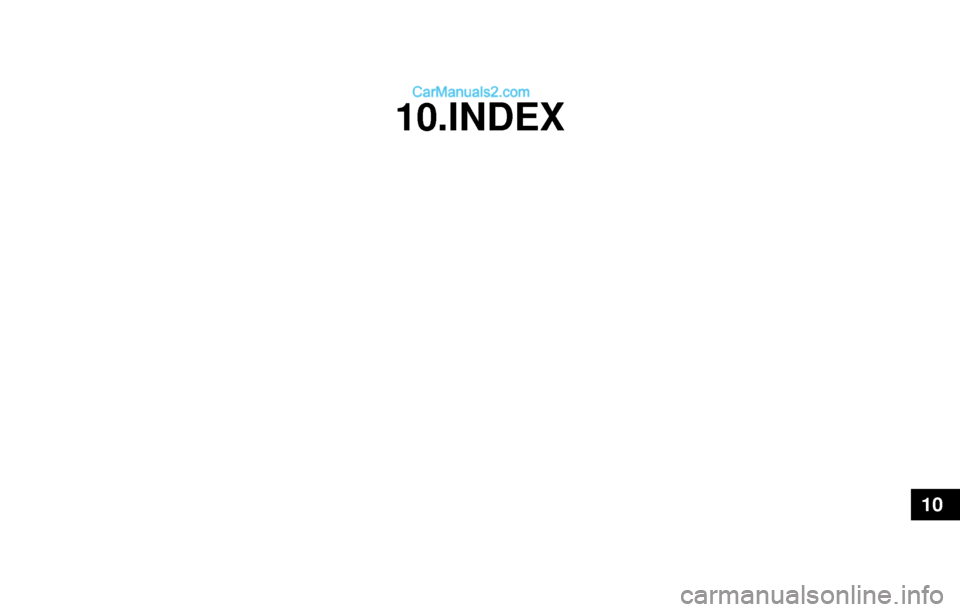

10.INDEX
10

10- 2 INDEX
A
Air bag ...............................................................................................1-28
Air Cleaner Filter ...............................................................................6-11
Air Conditioning
Care..............................................................................................6-15
Operation............................................................................ 1-71, 6-16
Switch...........................................................................................1-70
Antenna..........................................................................................1-103
Ashtray..............................................................................................1-46
Audio (H240, H260, H290)........................................... 1-81, 1-86, 1-92
B
Battery..................................................................................... 2-14, 6-19
Brake
Anti-lock system..........................................................................2-10
Checking the brakes ....................................................................6-14
Fluid ..............................................................................................6-14
Pedal clearance...........................................................................6-17
Pedal free-play.............................................................................6-17
Practices......................................................................................2-12
Breaking-In your New Hyundai .......................................................... 1-3
Bulb Replacement.............................................................................6-21
C
Care of Cassette Tapes ................................................................1-101
Cassette Tape Player Operation (H240, H290) .................... 1-84, 1-95
Catalytic Converter............................................................................. 7-3
Child Restraint System.....................................................................1-22
Child-Protector Rear Door Lock ......................................................... 1-6
Cigarette Lighter................................................................................1-45
Clock .................................................................................................1-45Clutch
Checking fluid...............................................................................6-15
Pedal free-play.............................................................................6-17
Combination Light
Headlight flasher..........................................................................1-42
Headlight switch...........................................................................1-41
High-beam switch........................................................................1-42
Lane change signal ......................................................................1-41
Turn signal operation...................................................................1-41
Compact Disc Player Operation (H260, H290) ..................... 1-89, 1-97
Consumer Information........................................................................ 8-5
Cooling Fans.....................................................................................6-20
Corrosion protection
Cleaning the interior....................................................................... 4-4
Protecting your Hyundai from corrosion....................................... 4-2
Washing and waxing...................................................................... 4-3
Cruise Control...................................................................................1-62
D
Defrosting/Defogging........................................................................1-77
Door
Door locks...................................................................................... 1-4
Front door edge warning light ......................................................1-60
Locking, unlocking front door with a key ...................................... 1-4
Drink Holder ......................................................................................1-46
Drive Belts.........................................................................................6-18
Driving
Economical driving .......................................................................2-13
Smooth cornering.........................................................................2-13
Winter driving...............................................................................2-13

INDEX 10- 3
E
Emission Control System ................................................................... 7-2
Engine
Before starting the engine .............................................................. 2-3
Compartment (2.4 DOHC) ............................................................ 6-2
Compartment (2.7 V6)................................................................... 6-3
Coolant........................................................................................... 6-7
Coolant temperature gauge .........................................................1-38
If the engine overheats .................................................................. 3-3
Number........................................................................................... 8-2
Oil .................................................................................................... 6-5
Starting........................................................................................... 2-4
Engine Exhaust Can Be Dangerous .................................................. 2-2
F
Fan Speed Control............................................................................1-66
Floor Mat Anchor ..............................................................................1-62
Fog Light
Front.............................................................................................1-42
Front Seats
Adjustable front seats ..................................................................1-10
Adjustable headrests...................................................................1-11
Adjusting seat forward and rearward ..........................................1-10
Adjusting seatback angle .............................................................1-11
Fuel
Capacity......................................................................................... 9-2
Gauge...........................................................................................1-38
Unleaded gasoline.......................................................................... 1-2
Fuel Filler Lid
Remote release............................................................................1-58
Fuses ................................................................................................6-18G
General Everyday Checks................................................................. 6-4
Glove Box..........................................................................................1-50
H
Hazard Warning System ..................................................................1-44
Headlight ..................................................................................1-41, 6-21
Heating and Cooling Control
Rotary and push Button type .......................................................1-65
Automatic type.............................................................................1-72
Heating and Ventilation
Air flow control..............................................................................1-68
Temperature control....................................................................1-66
High-Mounted Rear Stop Light .........................................................1-58
Homelink Mirror.................................................................................1-53
Hood Release....................................................................................1-59
Horn...................................................................................................1-60
I
Ignition Switch ...................................................................................... 2-3
Instrument Cluster and Indicator Lights...........................................1-34
Instrument Panel Light Control (Rheostat).......................................1-45
Interior Light.......................................................................................1-49
Intermittent Wiper..............................................................................1-43
J
Jump Starting...................................................................................... 3-2
Junction Box Description..................................................................6-29

10- 4 INDEX
K
Key ..................................................................................................... 1-3
If you lose your keys ...................................................................3-11
Positions......................................................................................... 2-3
M
Maintenance Intervals
Explanation of scheduled maintenance items ............................... 5-7
Maintenance under severe usage conditions............................... 5-6
Scheduled maintenance................................................................ 5-4
Service requirements.................................................................... 5-2
Map lamp...........................................................................................1-49
Mirrors
Day-night inside rearview ............................................................1-52
Outside rear view .........................................................................1-50
O
Odometer..........................................................................................1-39
Outside rear view mirror heater .......................................................1-51
P
Parking Brake....................................................................................1-56
Passenger Presense Detection.......................................................1-31
Power Driver seat .............................................................................1-13
Power Outlet......................................................................................1-61
Power Steering Fluid Level ...............................................................6-20R
Radio (H240, H260, H290)........................................... 1-81, 1-86, 1-91
Rear Seat
Fold down.....................................................................................1-15
Rear View mirror ...............................................................................1-52
Rear Window Defroster Switch ........................................................1-44
Reporting Safety Defects ................................................................... 8-7
S
Seat
Front.............................................................................................1-10
Seat Belts
3-Point system.............................................................................1-18
Adjusting your seat belt ...............................................................1-20
Care of seat belts .........................................................................1-17
Precautions..................................................................................1-16
Shop Manual ........................................................................................ 8-5
Spark Plugs ......................................................................................... 6-9
Speedometer.....................................................................................1-38
Starting Procedure.............................................................................. 2-4
Steering Wheel
Free play ......................................................................................6-16
Steering Wheel Tilt Lever ..................................................................1-61
Stereo Radio Operation (H240, H260, H290) .............. 1-81, 1-86, 1-92
Stereo Sound System .......................................................................1-79
Sun Visor...........................................................................................1-60
Sunroof..............................................................................................1-47

INDEX 10- 5
T
Tachometer.......................................................................................1-39
Theft-Alarm system............................................................................ 1-6
Tires
Balancing........................................................................................ 8-4
Chains............................................................................................ 8-3
Changing a flat tire ......................................................................... 3-5
If you have a flat tire ....................................................................... 3-5
Information...................................................................................... 8-2
Pressure......................................................................................... 8-2
Replacement.................................................................................. 8-4
Rotation.......................................................................................... 8-3
Snow tires....................................................................................... 8-3
Spare tire........................................................................................ 3-4
Traction.......................................................................................... 8-4
Towing
A trailer (or vehicle)......................................................................2-16
Emergency...................................................................................3-11
If your car must be towed .............................................................. 3-9
Traction Control System ...................................................................2-11
Transaxle
Automatic........................................................................................ 2-7
Automatic transaxle fluid checking ..............................................6-12
Manual............................................................................................ 2-5
Manual transaxle oil checking.....................................................6-12
Trip Computer...................................................................................1-40
Trip Odometer...................................................................................1-39
Trunk Lid ...........................................................................................1-56V
Vehicle Identification Number............................................................. 8-2
W
Warning Lights...................................................................... 1-35 ~ 1-38
Windows
Manual............................................................................................ 1-9
Power............................................................................................. 1-9
Windshield Wiper and Washer ..........................................................1-42
Windshield Wiper Blades..................................................................6-11

Seoul KoreaPrinting: FEB. 20, 2004
Publication No.: A38O-EU42P
Printed in Korea
SERVICE STATION INFORMATION
FUEL:
UNLEADED gasoline only
Pump Octane Rating of 87 (Research Octane Number 91) or higher.
FUEL TANK CAPACITY
US.gal (Imp.gal., liter) 17.2 (14.3, 65)
TIRE PRESSURE:
See the label on the driver's side of the center pillar outer panel.
OTHER TIRE INFORMATION:
See pages 8-2 through 8-6
HOOD RELEASE:
Pull handle under left side of dash.
ENGINE OIL:
API grade SH, SG or SG/CD multigrade and fuel efficient oil. Use SAE
10W-30, 10W-40 or 10W-50 if normal temperatures are above -10°F
(-23°C). For other viscosity recommendations, see page 6-5 or 9-4.
MANUAL TRANSAXLE:
HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) Oil level
should be up to filler-bolt hole in housing beside differential.
AUTOMATIC TRANSAXLE:
Apply the parking brake, with the engine running, shift the selector
lever through all ranges and return to “N” (Neutral) position. Then
check the level of fluid on the dipstick. Use only HYUNDAI GENU-
INE ATF available at your dealer or DIAMOND ATF SP-III or SK
ATF SP-III.
QUICK INDEX
o Car will not start ....................................................................... 3-2
o Flat tire ..................................................................................... 3-5
o Warning light/chime comes on .............................................. 1-35
o Engine overheats ...................................................................... 3-3
o Towing of your vehicle ............................................................. 3-9
o Starting the engine ................................................................... 2-3
o Driving tips for first 1,200 miles (2,000 km) .......................... 1-3
o Scheduled maintenance ............................................................ 5-4
o Reporting safety defects ........................................................... 8-7
