2004 Hyundai Sonata Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 61
!
!
B600A01HP-GATSTEERING WHEEL TILT LEVER
To adjust the steering wheel:
1. Pull the lever forward driver and hold it to
unlock.
2. Raise or lower the steering wheel to the
desired position.
3. After adjustment, release the lever.
WARNING:Do not attempt to adjust the steering wheel
while driving as this may result in loss of
control of the vehicle and serious injury or
death.
B611A01Y-AATREAR SEAT ARM REST (If installed)
This arm rest is located in the center of the rear
seat back.
B611A02YB600A02Y
B500D07O-GATPOWER OUTLET (If installed)
These supply 12V electric power to operate
electric accessories or equipment only when
the key is in the "ON" or "ACC" position.
WARNING:Do not use electric accessories or equip-
ment other than the Hyundai genuine parts
in the socket.
1MS04009A-2

1- 62 FEATURES OF YOUR HYUNDAI
!
B660A01S-AATCRUISE CONTROL (If installed)
The cruise control system provides automatic
speed control for your comfort when driving on
freeways, tollroads, or other noncongested
highways. This system is designed to function
above approximately 25 mph (40 km/h).
B660B01L-AATTo Set the Cruise Speed
1. Push in the cruise control main switch. This
turns the system on.
2. Accelerate to desired cruising speed above
25 mph (40 km/h).
3. Push the control switch "SET" (COAST)
position. The "CRUISE" indicator light in the
instrument cluster will illuminate after you
have set the vehicle speed at the desired
speed.
4. Remove your foot from the accelerator pedal
and the desired speed will automatically be
maintained.
5. To increase speed, depress the accelerator
pedal enough for the vehicle to exceed the
preset speed. When you remove your foot
from the accelerator pedal, the vehicle will
return to the speed you have set.
B660A03Y
B990A03Y-AATFLOOR MAT ANCHOR
To use a floor mat on the front floor carpet, make
sure it attaches to the floor mat anchor in your
vehicle.
This keeps the floor mat from sliding forward.
WARNING:o Make sure the floor mat is properly placed
on the floor carpet. If the floor mat slips
and interferes with the movement of the
pedals during driving, it may cause an
accident.
o Don't put an additional floor mat on the
top of the anchored mat, otherwise the
additional mat may slide forward and
interfere with the movement of the ped-
als.
HEF-112B660B01L

FEATURES OF YOUR HYUNDAI 1- 63
B660F01L-AATTo Reset at a Slower Speed
1. Push the control button "SET (COAST)".
The vehicle will decelerate.
2. When the desired speed is obtained, release
the control button. While the control switch is
pushed, the vehicle speed will gradually
decrease.
B660D01L-AATTo Resume the Preset Speed
The vehicle will automatically resume the speed
set prior to cancellation when you push the
control switch "RESUME (ACCEL)" (above 25
mph).
B660E01L-GATTo Reset at a Faster Speed
1. Push the control switch "RESUME (ACCEL)"
2. Accelerate to desired speed. While the con-
trol switch is held, the vehicle will gradually
gain speed.
B660C03L-AATTo Cancel the Cruise Speed
To disengage the cruise control system, push
the control switch "CANCEL".
Additionally, the following actions will disengage
the system:
o Depress the brake pedal.
o Shift the selector lever to "N" position.
o Decrease the vehicle speed lower than the
memory speed by 9 mph(15 km/h).
o Decrease the vehicle speed to less than 25
mph(40 km/h).
o Release the "MAIN" switch.
B660C01L
B660D01L
B660B01L

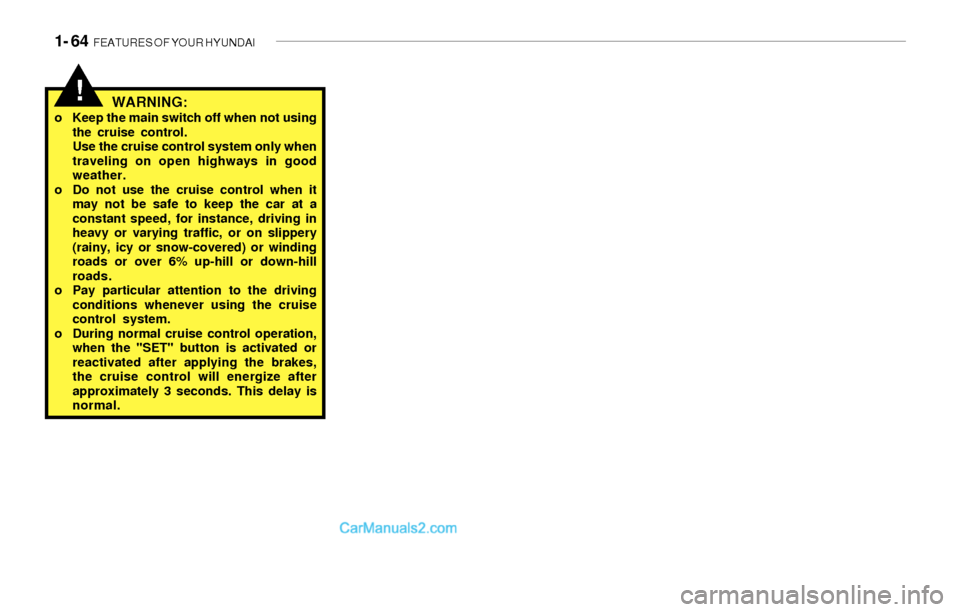

1- 64 FEATURES OF YOUR HYUNDAI
!WARNING:o Keep the main switch off when not using
the cruise control.
Use the cruise control system only when
traveling on open highways in good
weather.
o Do not use the cruise control when it
may not be safe to keep the car at a
constant speed, for instance, driving in
heavy or varying traffic, or on slippery
(rainy, icy or snow-covered) or winding
roads or over 6% up-hill or down-hill
roads.
o Pay particular attention to the driving
conditions whenever using the cruise
control system.
o During normal cruise control operation,
when the "SET" button is activated or
reactivated after applying the brakes,
the cruise control will energize after
approximately 3 seconds. This delay is
normal.

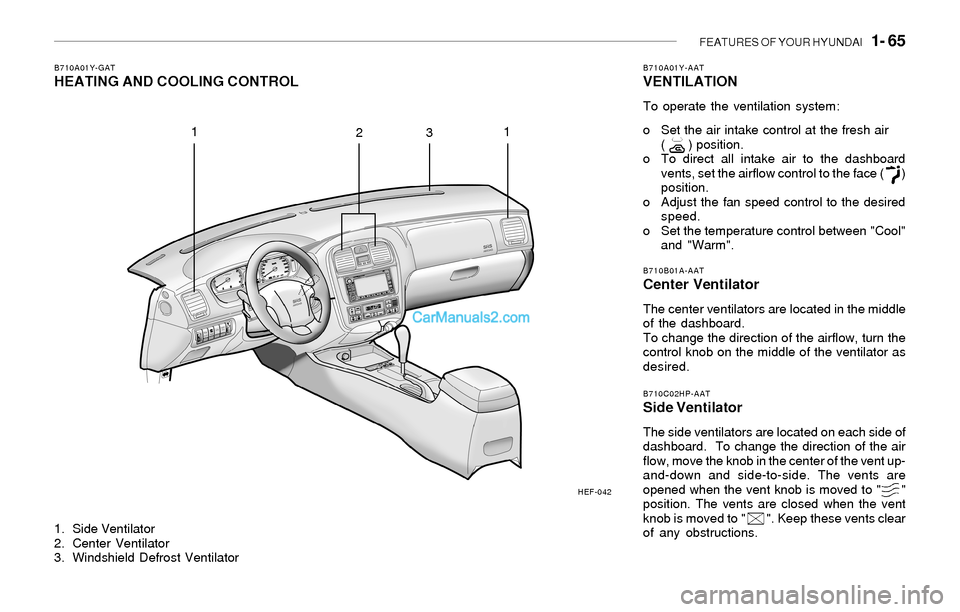

FEATURES OF YOUR HYUNDAI 1- 65
1. Side Ventilator
2. Center Ventilator
3. Windshield Defrost Ventilator
B710A01Y-GATHEATING AND COOLING CONTROLB710A01Y-AATVENTILATION
To operate the ventilation system:
o Set the air intake control at the fresh air
( ) position.
o To direct all intake air to the dashboard
vents, set the airflow control to the face ( )
position.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".
B710B01A-AATCenter Ventilator
The center ventilators are located in the middle
of the dashboard.
To change the direction of the airflow, turn the
control knob on the middle of the ventilator as
desired.
B710C02HP-AATSide Ventilator
The side ventilators are located on each side of
dashboard. To change the direction of the air
flow, move the knob in the center of the vent up-
and-down and side-to-side. The vents are
opened when the vent knob is moved to " "
position. The vents are closed when the vent
knob is moved to " ". Keep these vents clear
of any obstructions.
HEF-042
1
231

1- 66 FEATURES OF YOUR HYUNDAI
B670E01A-AATTemperature ControlB670A02Y-GATRotary and Push Button Type
1. Fan speed control
2. Air Conditioning switch
3. Max A/Con switch
4. Air intake control
5. Rear window defroster
6. Temperature control
7. Air flow control
B670B02Y-AATFan Speed Control
(Blower Control)
This is used to turn the blower fan on and off and
to select the fan speed.
The blower fan speed, and therefore the volume
of air delivered from the system, may be con-
trolled manually by setting the blower control
between the "1" and "4" position.
NOTE:If the blower fan is off, it will set to the fresh
mode automatically and be able to select
"Fresh" mode or "Recirculation" mode.This is used to turn the heating system on and
off and to select the degree of heating desired.
B670A01Y
HEF-031HEF-032
123456
7CoolWarm

FEATURES OF YOUR HYUNDAI 1- 67
B670C01O-AATAir Intake Control
This is used to select fresh outside air or
recirculation inside air.
Fresh
Recirculation
With the " " mode selected, air enters the
vehicle from outside and is heated or cooled
according to the other functions selected.
With the " " mode selected, air from within
the passenger compartment is drawn through
the heating system and heated or cooled ac-
cording to the other functions selected.
NOTE:o It should be noted that prolonged opera-
tion of the heating system in " " mode
will give rise to fogging of the wind-
shield and side windows and the air
within the passenger compartment will
become stale. In addition prolonged use
of the air conditioning with the " " mode
selected may result in the air within the
passenger compartment becoming ex-
cessively dry.
o When the ignition switch is turned "ON"
the air intake control will change to " "
mode in floor, floor-defrost and defrost
position. This is normal operation.
But, the air intake control switch will
change to " " mode when the ignition
switch is turned "ON" with the MAX A/C
mode selected.
This is normal operation.
HEF-037A
B675C01Y-AATMAX A/C switch
HEF-037B
The MAX A/C mode is used to cool the inside of
the vehicle faster.
If the "MAX A/C" mode is selected. the A/C will
turn on automatically and " " mode will be
activated and air is discharged the face level
vents.
NOTE:When you change to another mode from
MAX A/C, the A/C and the air intake control
switch are set to the following chart.

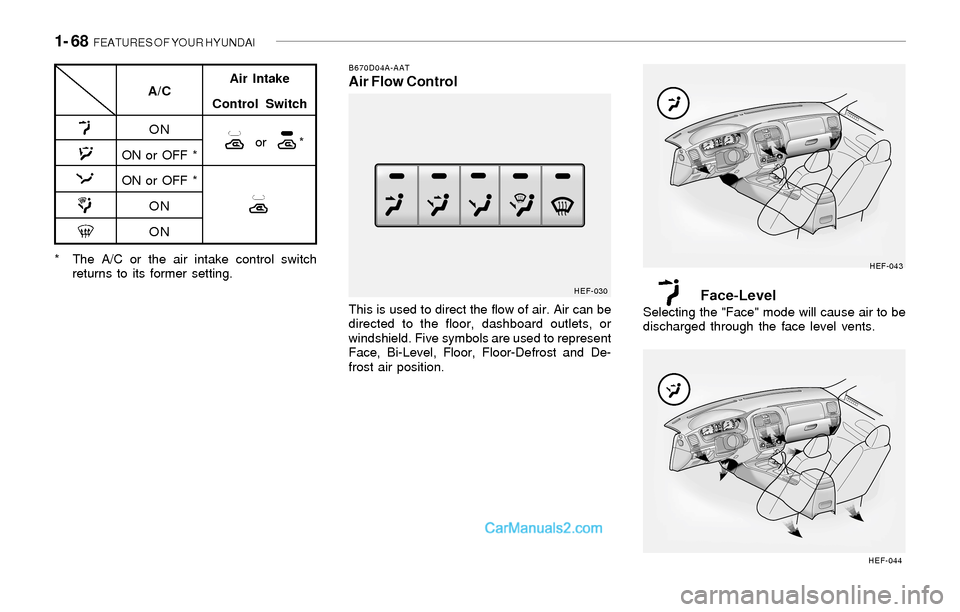

1- 68 FEATURES OF YOUR HYUNDAI
Face-LevelSelecting the "Face" mode will cause air to be
discharged through the face level vents.
HEF-043
HEF-044* The A/C or the air intake control switch
returns to its former setting.
B670D04A-AATAir Flow Control
This is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or
windshield. Five symbols are used to represent
Face, Bi-Level, Floor, Floor-Defrost and De-
frost air position.
HEF-030
A/C
ON
ON or OFF *
ON or OFF *
ON
ONAir Intake
Control Switch
or *
