OWNER MAINTENANCE
6-22 5. Open the bonnet.
6. Draw the vertical line (through the centre
of each headlight beam pattern) and the horizontal line (through the centre of eachheadlight beam pattern) on the aimingscreen. And then, draw the horizontal parallel line at 1.18 in. (30 mm) under the horizontalline.
7. Adjust each cut-off line of the low beam to the parallel line with a phillips screwdriver- VERTICAL AIMING
8. Adjust each cut-off line of the low beam to each vertical line with a phillips screw-driver - HORIZONTAL AIMING.
G290A01FC-EAT
HEADLIGHT AIMING ADJUSTMENT
Before performing aiming adjustment, makesure of the following.
1. Keep all tyres inflated to the correct pres- sure.
2. Place the vehicle on level ground and press the front bumper & rear bumper down sev-eral times. Place the vehicle at a distanceof 118 in. (3,000 mm) from the test wall.
3. See that the vehicle is unloaded (except for full levels of coolant, engine oil and fuel,and spare tyre, jack, and tools).
4. Clean the head lights lens and turn on the headlight (Low beam).
G290A01FC
Horizontal Aiming
Vertical Aiming
Protect the bulb against abrasions or scratches and against liquids whenlighted. Turn on the bulb only when in-stalled in a headlight. Replace the head-light if damaged or cracked. Keep thebulb out of the reach of children anddispose of the used bulb with care.
5. Push the bulb spring for removing the headlight bulb.
6. Remove the protective cap from the re- placement bulb and install the new bulb bymatching the plastic base with the headlighthole. Install the dust cover after retighteningthe bulb spring and reconnect the powercord.
7. Use the protective cap and carton to dis- pose of the old bulb.
8. Check for proper headlight aim. WARNING The halogen bulb contains gas under pressure and if impacted could shatter,resulting in flying fragments. Always weareye protection when servicing the bulb.
G270A02FC
3. Disconnect the power cord from the bulb base in the back of the headlight.
4. Remove the dust cover.
fcuk-6.p65 3/6/2007, 10:01 AM
22

CONSUMER INFORMATION 8-1
SI010B1-E
Engine Number
SI000A1-E
8. CONSUMER
INFORMATION
I010A01FC-EAT
VEHICLE IDENTIFICATION
NUMBER (VIN) The vehicle identification number (VIN) is
unique to each individual vehicle and is the number (sometimes referred to as chassisnumber) used upon the vehicle registrationdocument to identify the vehicle.
It can be found on the identification plate
attached to apron panel located on the driver'sside of the engine compartment. The engine number is stamped on the engine
block as shown in the drawing. I030A01FC-EAT
TYRE PRESSURES
In modern high-speed motoring, correct tyre
pressures are vitally important. Incorrect tyrepressures can affect vehicle safety by caus-ing reduced adhesion, steering response andtyre failure through overheating. The tyrepressure must only be checked when thetyres are cold. The correct tyre pressuresare indicated on the label affixed to the driver'sside "C" piller outer panel and below.
Diesel engine
I010B01B8
HFC6001
EADA010C
Gasoline engine
5.5Jx14 5.5Jx15 6.0Jx15 3.5Jx153.5Jx15
TYRE
SIZE
RIM
SIZE PRESSURE, kPa (PSI)
185/65R14195/55R15 205/55R15
T115/70D15 T115/70R15 REAR
210(30)210(30)210(30)420(60)420(60) FRONT
250(36)250(36) 250(36) 420(60)420(60)
UP TO 2
PERSONS UP TO
MAX. LOAD
REAR
250(36)250(36) 250(36) 420(60)420(60)
FRONT210(30)210(30)210(30) 420(60) 420(60)
I030A01FC-D
fcuk-8.p65
3/6/2007, 10:02 AM
1

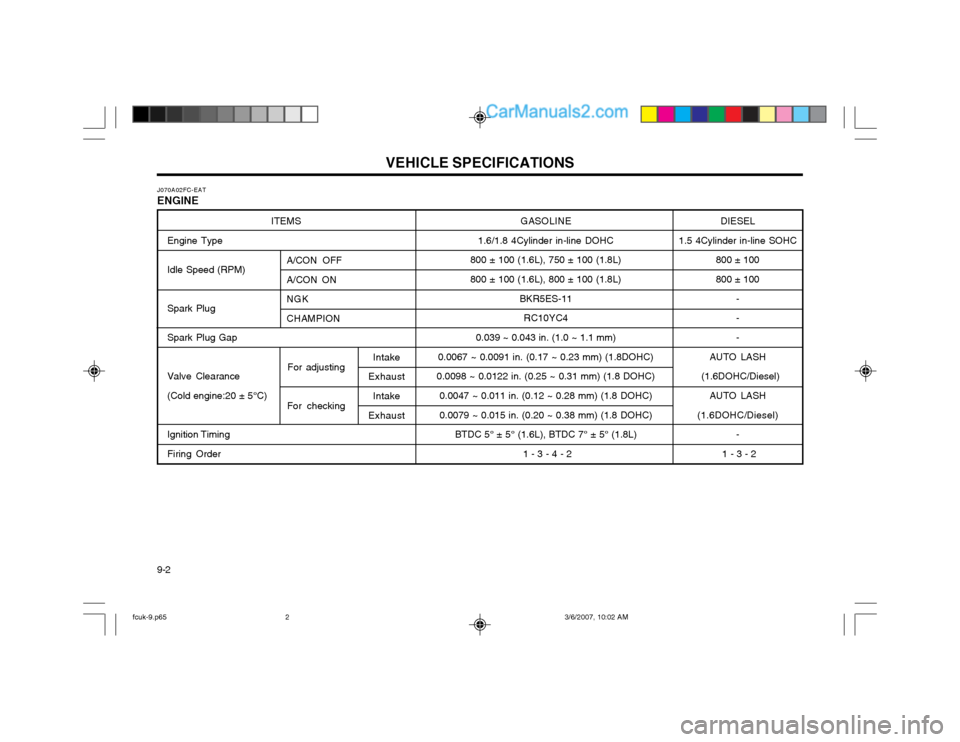

VEHICLE SPECIFICATIONS
9-2 GASOLINE
1.6/1.8 4Cylinder in-line DOHC
800 ± 100 (1.6L), 750 ± 100 (1.8L) 800 ± 100 (1.6L), 800 ± 100 (1.8L)
BKR5ES-11RC10YC4
0.039 ~ 0.043 in. (1.0 ~ 1.1 mm)
0.0067 ~ 0.0091 in. (0.17 ~ 0.23 mm) (1.8DOHC)
0.0098 ~ 0.0122 in. (0.25 ~ 0.31 mm) (1.8 DOHC)
0.0047 ~ 0.011 in. (0.12 ~ 0.28 mm) (1.8 DOHC) 0.0079 ~ 0.015 in. (0.20 ~ 0.38 mm) (1.8 DOHC) BTDC 5° ± 5° (1.6L), BTDC 7° ± 5° (1.8L)
1 - 3 - 4 - 2
ITEMS
Engine Type Idle Speed (RPM) Spark Plug Spark Plug Gap Valve Clearance (Cold engine:20 ± 5°C) Ignition Timing Firing Order
A/CON OFF A/CON ON NGKCHAMPION
For adjusting
For checking DIESEL
1.5 4Cylinder in-line SOHC 800 ± 100800 ± 100
---
AUTO LASH
(1.6DOHC/Diesel)
AUTO LASH
(1.6DOHC/Diesel) -
1 - 3 - 2
J070A02FC-EAT ENGINE
Intake
Exhaust
Intake
Exhaust
fcuk-9.p65 3/6/2007, 10:02 AM
2

INDEX10-1
A
ACCESSORY TRAY ..
...................................................................... 1-48
AIR CONDITIONING SWITCH ........................................................ 1-57
AIR CONDITIONING SYSTEM MAINTENANCE ........................... 6-16
AIR CLEANER ELEMENT REPLACEMENT .................................. 6-11
ANTENNA ......................................................................................... 1-62
ANTI-THEFT ALARM SYSTEM .............................................. 1-5 ~ 1-7
AUTO FUEL CUT SWITCH ............................................................. 1-51
AUTOMATIC TRANSAXLE ..................................................... 2-6 ~ 2-9
AUTOMATIC TRANSAXLE FLUID ..................................... 6-12 ~ 6-13
BBATTERY MAINTENANCE ............................................................. 6-19
BEFORE STARTING THE ENGINE ................................................. 2-2
BONNET RELEASE ......................................................................... 1-49
BRAKE PEDAL FREEPLAY ..................... ....................................... 6-17
BRAKE TRACTION CONTROL SYSTEM ...................................... 2-10
BRAKE SYSTEM CHECKING ........................................................ 6-14 CCARE OF SEAT
BELTS ................................................................. 1-14
CARGO AREA COVER ................................................................... 1-51
CATALYTIC CONVERTOR OPERATING PRECAUTIONS ............. 7-1
CENTRE VENTILATOR ................................................................... 1-53
CENTRAL DOOR LOCKS ................................................................. 1-5
CHANGING A FLAT TYRE . .............................................................. 3-4
CHECKING THE CLUTCH FLUID .................................................. 6-15
CHILD-PROOF REAR DOOR LOCK ................................................ 1-4
CHILD RESTRAINT SYSTEM ............................................. 1-16 ~ 1-20
CIGAR LIGHTER ............................................................................. 1-40
CLUTCH PEDAL FREEPLAY ......................................................... 6-17
COMBINATION IGNITION SWITCH AND STEERING LOCK ........ 2-2
COOLANT TEMPERATURE GAUG E ............................................. 1-33
DDAILY OPERATING CHECKS .......................................................... 6-4
DIGITAL CLOCK .............................................................................. 1-40
DOOR LOCKS ................................................................................... 1-3
DOOR WINDOWS ............................................................................. 1-7
DRINK HOLDER .............................................................................. 1-41
DRIVE BELTS .................................................................................. 6-17
DRIVING FOR ECONOMY ............................................................. 2-11
JK000A1-A 10. INDEX
10
fcuk-10.p65
3/6/2007, 10:03 AM
1

INDEX
10-2 E EFFECTIVE BRAKING
...................................................................... 2-9
ELECTRIC COOLING FANS ........................................................... 6-20
EMISSION CONTROL SYSTEM ...................................................... 7-1
ENGINE COMPARTMENT ...................................................... 6-1 ~ 6-3
ENGINE COOLANT CHECKING AND REPLACING ....................... 6-7
ENGINE OIL AND FILTER REPLACEMENT ................................... 6-6
ENGINE OIL CONSUMPTION .......................................................... 6-6
ENGINE OIL REPLENISHMENT ...................................................... 6-5
ENGINE OIL ....................................................................................... 6-4
EXTERIOR REAR VIEW MIRROR ................................................. 1-45
FFOLDING REAR SEATBACK AND SEAT CUSHION ....... 1-11 ~ 1-12
FOLD-UP TRAY ............................................................................... 1-48
FRONT AS HTRAY........................................................................... 1-40
FRONT FOG LIGHT SWITCH ........................................................ 1-39
FUEL ECONOMY .............................................................................. 2-4
FUEL GAUGE .................................................................................. 1-33
FUEL RECOMMENDATIONS ........................................................... 1-1
FUSE PANEL DESCRIPTION ......................................................... 6-25
FUSIBLE LINKS ............................................................................... 6-18
G
GLOVE BOX .................................................................................... 1-45 HHAZARD WARNING SYSTEM
........................................................ 1-38
HEADLIGHT AIMING ADJUSTEMENT .......................................... 6-21
HEADLIGHT BULB .............................................................. 6-20 ~ 6-21
HEADLIGHT LEVELING DEVICE SYSTEM .................................. 1-42
HEAD RESTRAINT ADJUSTMENT ........................................ 1-9, 1-11
HEATED REAR WINDOW .............................................................. 1-39
HEATING CON TROL ....................................................................... 1-56
HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT .......... 1-14
HORN ............................................................................................... 1-52 I IF THE ENGINE CANNOT BE CRANKED ...................................... 3-1
IF THE ENGINE WILL NOT START ................................................ 3-1
IF THE EVENT OF A PUNCTURE ................................................... 3-4
IMMOBILISER SYSTEM ......................................................... 1-2 ~ 1-3
INDIVIDUAL CIRCUIT FUSES ........................................................ 6-18
INSTRUMENT CLUSTER AND INDICATORS ................... 1-28 ~ 1-29
INSTRUMENTS AND CONTROLS ................................................. 1-27
INTERIOR LIGHT ............................................................................ 1-44
INTERIOR REAR VIEW MIRROR .................................................. 1-47
JJUMP STARTING .............................................................................. 3-1
