2004 FORD TAURUS trunk release

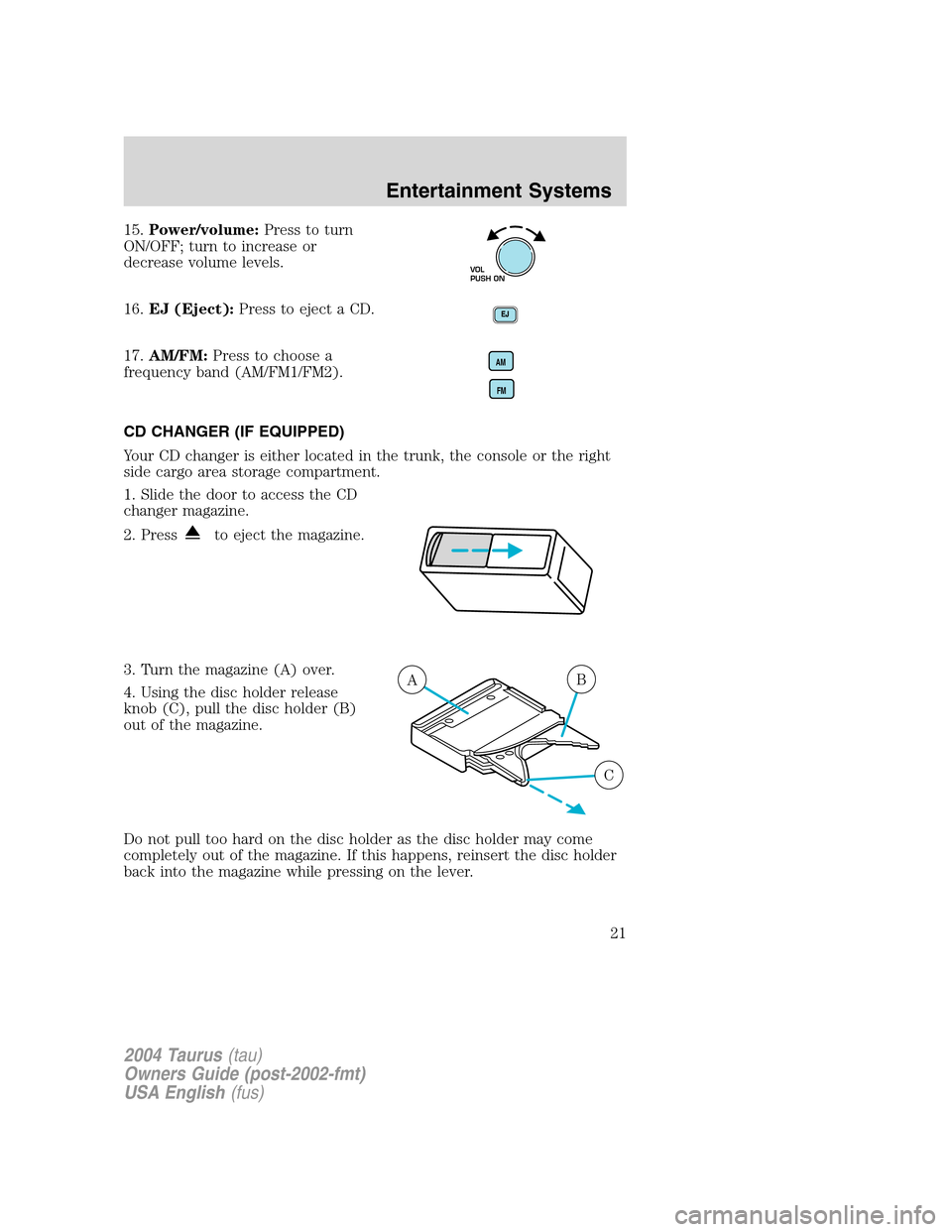

15.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels.
16.EJ (Eject):Press to eject a CD.
17.AM/FM:Press to choose a
frequency band (AM/FM1/FM2).
CD CHANGER (IF EQUIPPED)
Your CD changer is either located in the trunk, the console or the right
side cargo area storage compartment.
1. Slide the door to access the CD
changer magazine.
2. Press
to eject the magazine.
3. Turn the magazine (A) over.
4. Using the disc holder release
knob (C), pull the disc holder (B)
out of the magazine.
Do not pull too hard on the disc holder as the disc holder may come
completely out of the magazine. If this happens, reinsert the disc holder
back into the magazine while pressing on the lever.
VOL
PUSH ON
AM
FM
AB
C
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
21

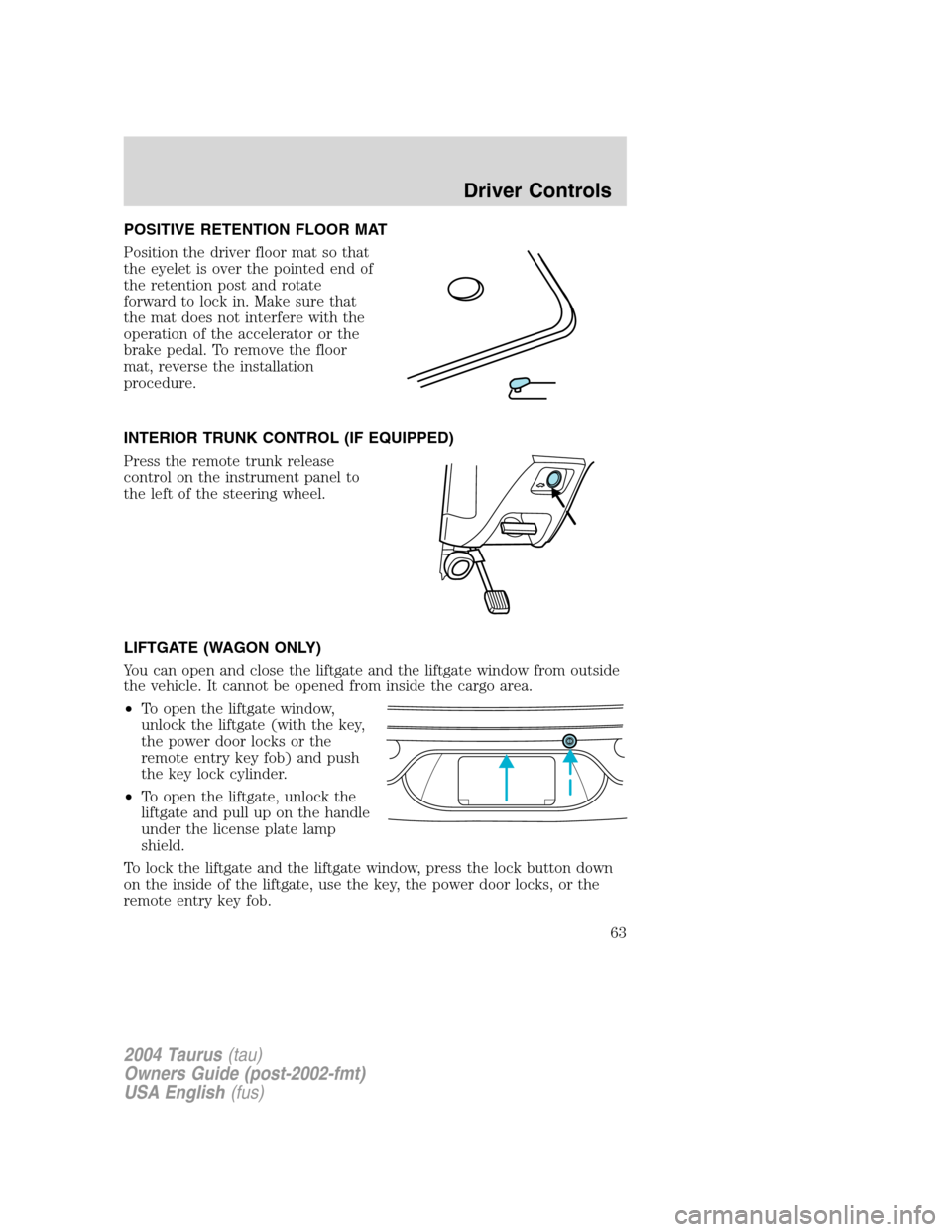

POSITIVE RETENTION FLOOR MAT
Position the driver floor mat so that
the eyelet is over the pointed end of
the retention post and rotate
forward to lock in. Make sure that
the mat does not interfere with the
operation of the accelerator or the
brake pedal. To remove the floor
mat, reverse the installation
procedure.
INTERIOR TRUNK CONTROL (IF EQUIPPED)
Press the remote trunk release
control on the instrument panel to
the left of the steering wheel.
LIFTGATE (WAGON ONLY)
You can open and close the liftgate and the liftgate window from outside
the vehicle. It cannot be opened from inside the cargo area.
•To open the liftgate window,
unlock the liftgate (with the key,
the power door locks or the
remote entry key fob) and push
the key lock cylinder.
•To open the liftgate, unlock the
liftgate and pull up on the handle
under the license plate lamp
shield.
To lock the liftgate and the liftgate window, press the lock button down
on the inside of the liftgate, use the key, the power door locks, or the
remote entry key fob.
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
63

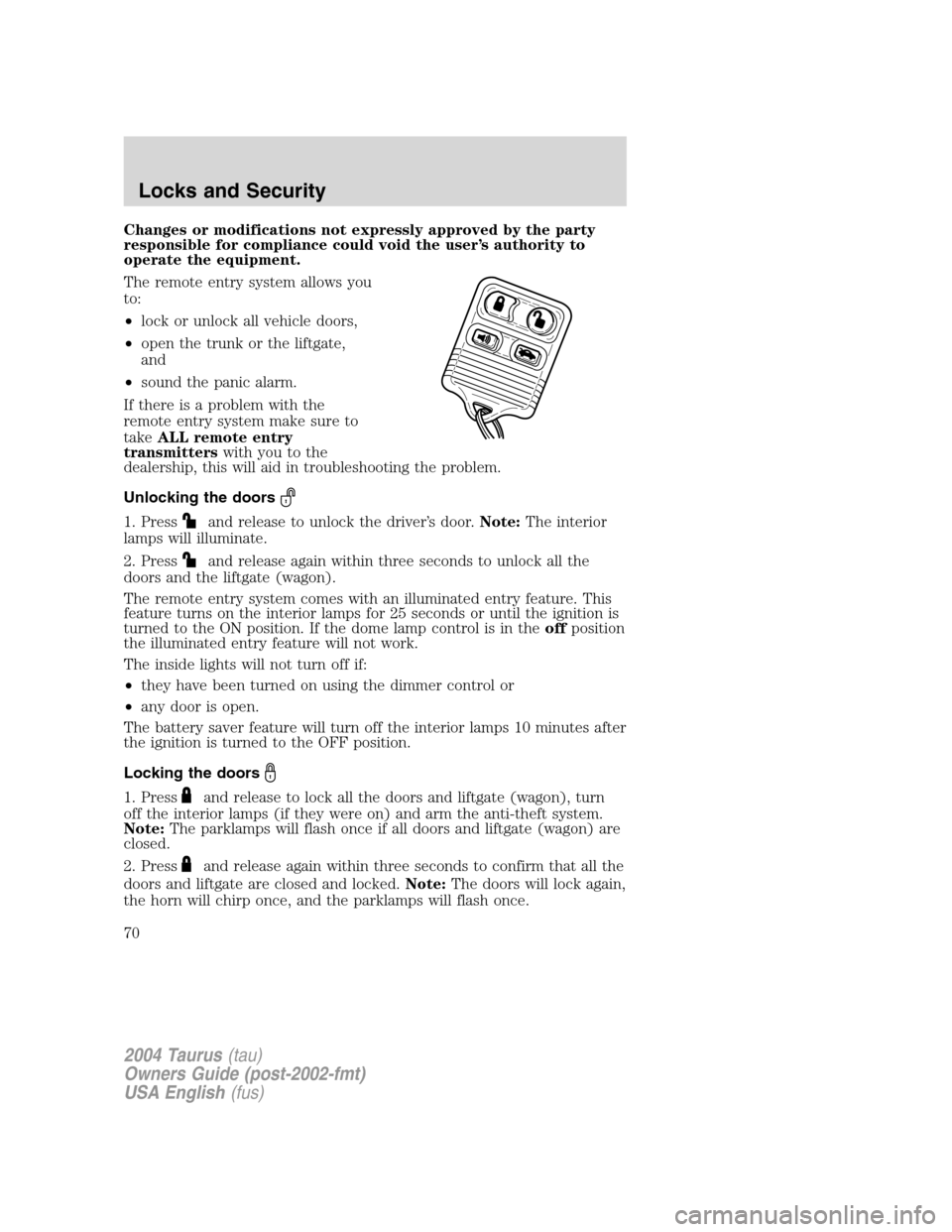

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The remote entry system allows you
to:
•lock or unlock all vehicle doors,
•open the trunk or the liftgate,
and
•sound the panic alarm.
If there is a problem with the
remote entry system make sure to
takeALL remote entry
transmitterswith you to the
dealership, this will aid in troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate.
2. Press
and release again within three seconds to unlock all the
doors and the liftgate (wagon).
The remote entry system comes with an illuminated entry feature. This
feature turns on the interior lamps for 25 seconds or until the ignition is
turned to the ON position. If the dome lamp control is in theoffposition
the illuminated entry feature will not work.
The inside lights will not turn off if:
•they have been turned on using the dimmer control or
•any door is open.
The battery saver feature will turn off the interior lamps 10 minutes after
the ignition is turned to the OFF position.
Locking the doors
1. Pressand release to lock all the doors and liftgate (wagon), turn
off the interior lamps (if they were on) and arm the anti-theft system.
Note:The parklamps will flash once if all doors and liftgate (wagon) are
closed.
2. Press
and release again within three seconds to confirm that all the
doors and liftgate are closed and locked.Note:The doors will lock again,
the horn will chirp once, and the parklamps will flash once.
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
70

Fuse/relay
locationFuse amp
ratingPassenger compartment fuse panel
description
14—Not used
15 10A Left headlamp
16 10A Not used (spare)
17 15A Stop lamp, Speed control deactivation
switch
18 15A Parklamps, PWM (backlighting),
Autolamps
19 10A Heated mirrors, Rear defrost switch
indicator
20 10A Restraints (air bag module/OCS module)
21 15A Transmission range sensor (transmission
position switch)
22 15A Front washer pump, Electrochromatic
mirror, Compass, Cluster (RUN/ACC),
Integrated Control Panel (ICP) logic, Rear
wiper (wagon only), Rear washer (wagon
only)
23 30A Front wiper motor
24—Not used
25 20A Power point
26 20A Power locks, Liftgate (wagon)/Trunk
(sedan) release
27 10A Anti-lock Brake System (ABS), Speed
control, Traction control, Brake-shift
interlock, A/C function switch (manual A/C
only), Temperature blend door (manual
A/C only), Defrost coil
28 15A Turn signals, Back-up lamps
29 20A Cigar lighter
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
147

Remote entry system
illuminated entry ......................73
locking/unlocking doors ...........67
opening the trunk .....................71
Roadside assistance ..................142
Roof rack .....................................66
S
Safety Belt Maintenance ..........100
Safety belts (see Safety
restraints) ..................85, 88–91, 93
Safety defects, reporting ..........170
Safety restraints ..............85, 88–94
belt minder ...............................96
extension assembly ................100
for adults .............................89–91
for children .....................109–110
lap belt ......................................93
Occupant Classification
Sensor ........................................86
safety belt maintenance .........100
warning light and chime ....95–96
Safety seats for children ..........113
Seat belts
(see Safety restraints) ...............85
Seats ............................................81
child safety seats ....................113
front seats .................................82
Servicing your vehicle ..............177
Setting the clock
AM/FM stereo ...........................15
AM/FM/CD .................................19
AM/FM/Tape ..............................19
Spare tire (see Changing the
Tire) ...........................................151
Spark plugs,
specifications .....................220, 224Specification chart,
lubricants ...........................222, 224
Speed control ..............................49
Starting a flex fuel vehicle .......125
Starting your
vehicle ........................122–123, 125
jump starting ..........................156
Steering wheel
tilting .........................................45
T
Tilt steering wheel ......................45
Tires ...........................151, 206–207
changing ..................151–152, 155
snow tires and chains ............219
tire grades ...............................207
treadwear ................................207
Towing .......................................137
recreational towing .................140
trailer towing ..........................137
wrecker ....................................161
Traction control ........................128
Transaxle
fluid, refill capacities ..............221
lubricant specifications ..........224
Transmission .............................130
brake-shift interlock (BSI) ....130
fluid, checking and adding
(automatic) .............................204
lubricant specifications ..........222
Trunk ...............................64, 66, 68
remote release ....................63, 71
Turn signal ..................................32
V
Vehicle dimensions ...................224
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
236
