2004 FORD TAURUS oil change

Maintenance and Specifications 177
Engine compartment 179
Engine oil 182
Battery 185
Fuel information 191
Part numbers 220
Refill capacities 221
Lubricant specifications 222
Accessories 230
Index 232
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2003 Ford Motor Company
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Table of Contents
3

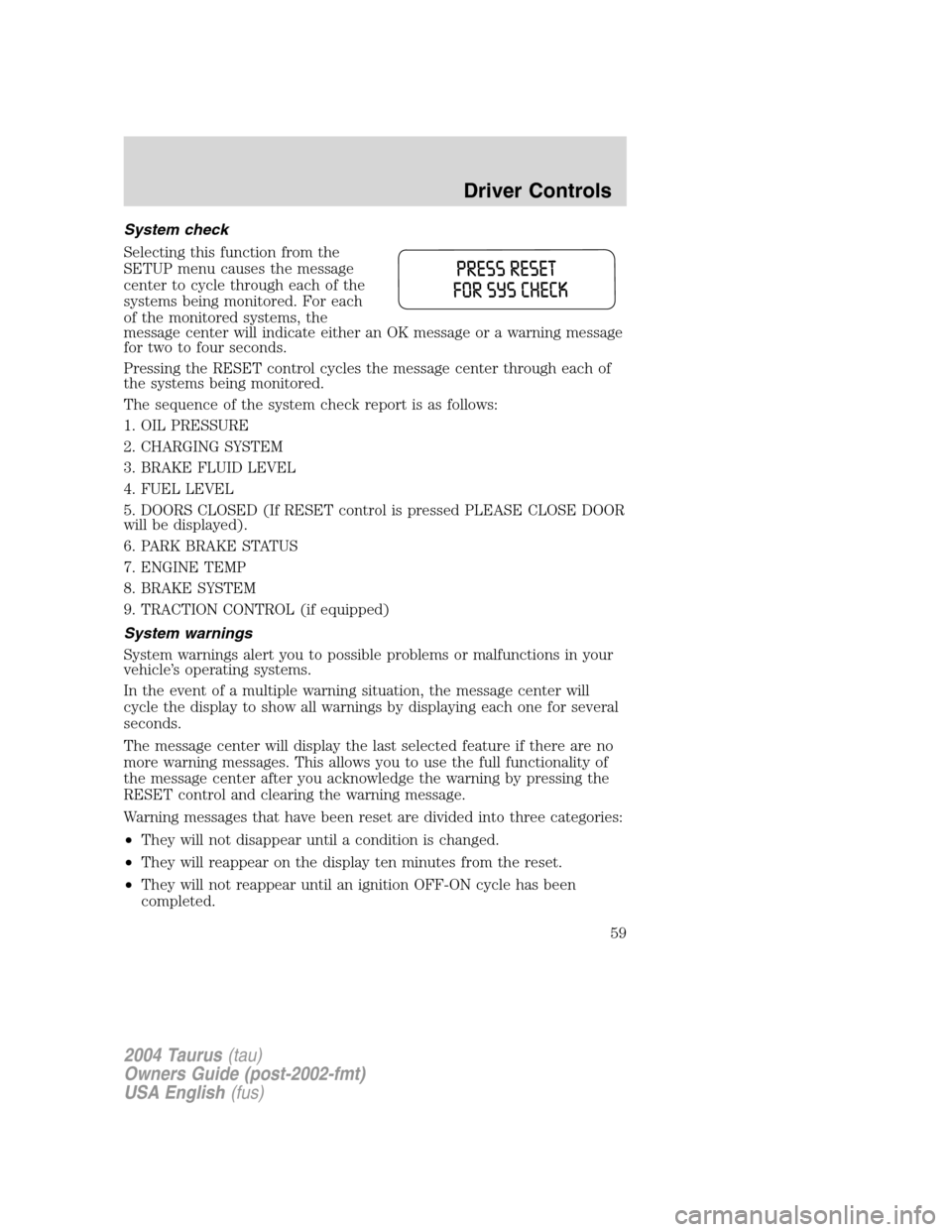

System check
Selecting this function from the
SETUP menu causes the message
center to cycle through each of the
systems being monitored. For each
of the monitored systems, the
message center will indicate either an OK message or a warning message
for two to four seconds.
Pressing the RESET control cycles the message center through each of
the systems being monitored.
The sequence of the system check report is as follows:
1. OIL PRESSURE
2. CHARGING SYSTEM
3. BRAKE FLUID LEVEL
4. FUEL LEVEL
5. DOORS CLOSED (If RESET control is pressed PLEASE CLOSE DOOR
will be displayed).
6. PARK BRAKE STATUS
7. ENGINE TEMP
8. BRAKE SYSTEM
9. TRACTION CONTROL (if equipped)
System warnings
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for several
seconds.
The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
RESET control and clearing the warning message.
Warning messages that have been reset are divided into three categories:
•They will not disappear until a condition is changed.
•They will reappear on the display ten minutes from the reset.
•They will not reappear until an ignition OFF-ON cycle has been
completed.
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
59

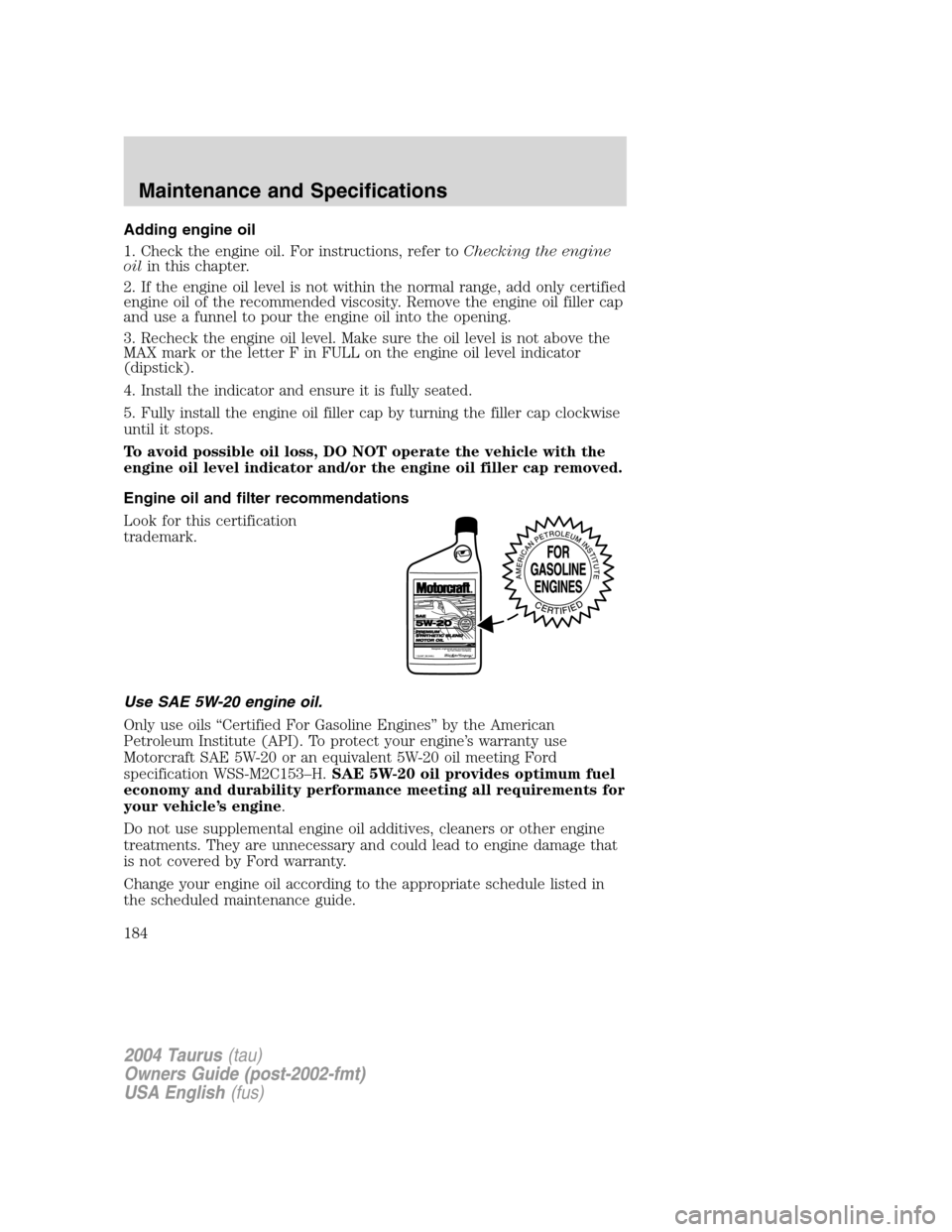

Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
MAX mark or the letter F in FULL on the engine oil level indicator
(dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
until it stops.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil.
Only use oils“Certified For Gasoline Engines”by the American
Petroleum Institute (API). To protect your engine’s warranty use
Motorcraft SAE 5W-20 or an equivalent 5W-20 oil meeting Ford
specification WSS-M2C153–H.SAE 5W-20 oil provides optimum fuel
economy and durability performance meeting all requirements for
your vehicle’s engine.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil according to the appropriate schedule listed in
the scheduled maintenance guide.
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
184

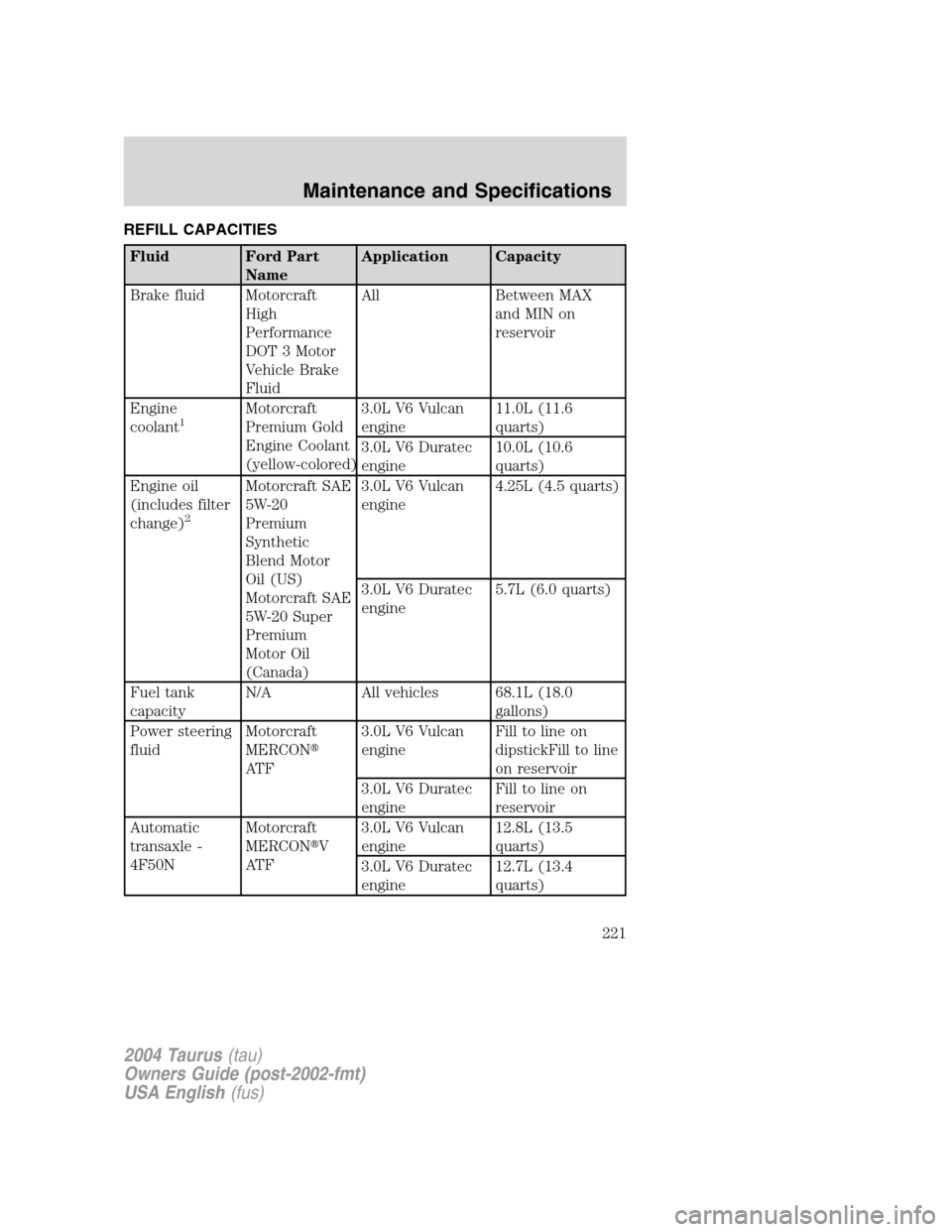

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft
High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Between MAX
and MIN on
reservoir
Engine
coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)3.0L V6 Vulcan
engine11.0L (11.6
quarts)
3.0L V6 Duratec
engine10.0L (10.6
quarts)
Engine oil
(includes filter
change)
2
Motorcraft SAE
5W-20
Premium
Synthetic
Blend Motor
Oil (US)
Motorcraft SAE
5W-20 Super
Premium
Motor Oil
(Canada)3.0L V6 Vulcan
engine4.25L (4.5 quarts)
3.0L V6 Duratec
engine5.7L (6.0 quarts)
Fuel tank
capacityN/A All vehicles 68.1L (18.0
gallons)
Power steering
fluidMotorcraft
MERCON
AT F3.0L V6 Vulcan
engineFill to line on
dipstickFill to line
on reservoir
3.0L V6 Duratec
engineFill to line on
reservoir
Automatic
transaxle -
4F50NMotorcraft
MERCONV
AT F3.0L V6 Vulcan
engine12.8L (13.5
quarts)
3.0L V6 Duratec
engine12.7L (13.4
quarts)
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
221

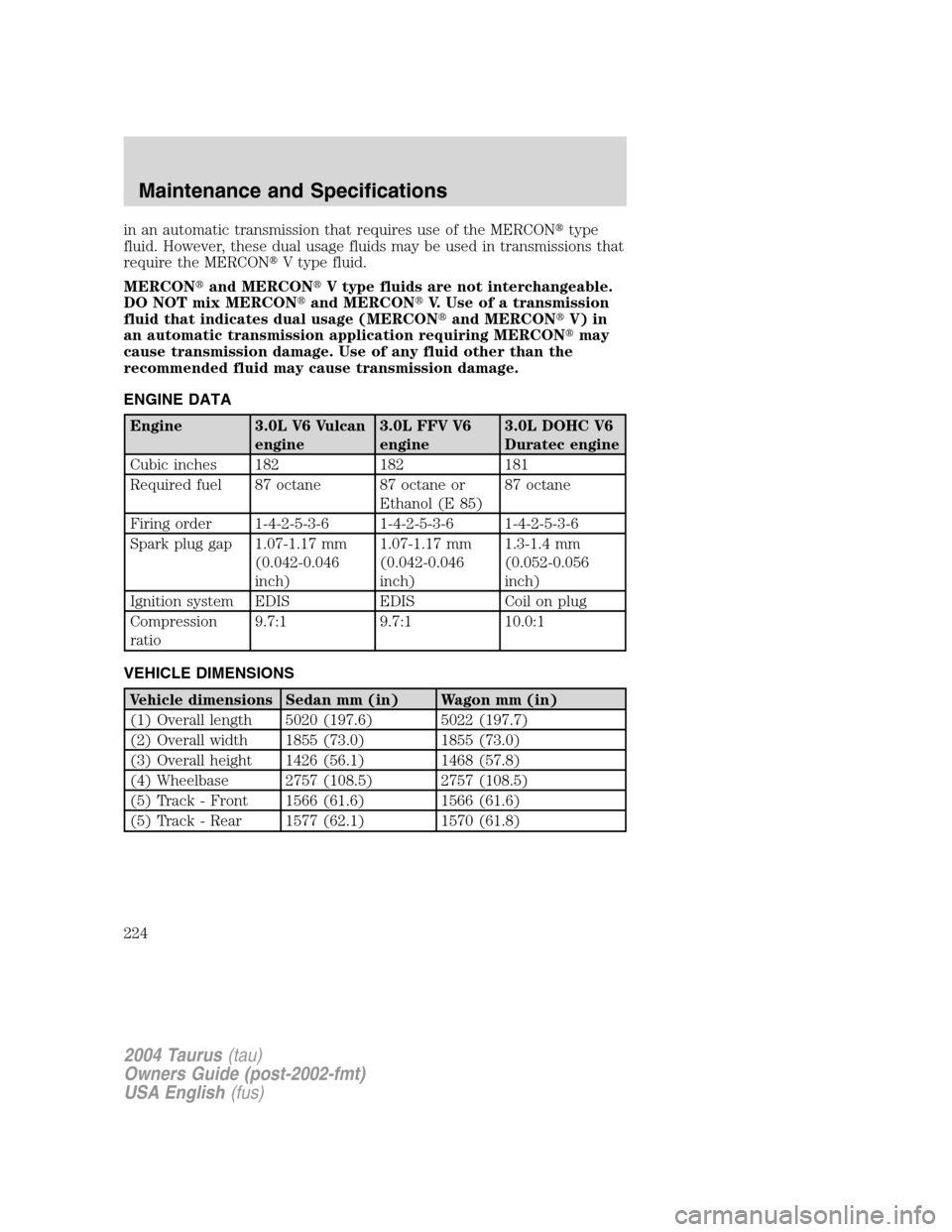

in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 3.0L V6 Vulcan
engine3.0L FFV V6
engine3.0L DOHC V6
Duratec engine
Cubic inches 182 182 181
Required fuel 87 octane 87 octane or
Ethanol (E 85)87 octane
Firing order 1-4-2-5-3-6 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap 1.07-1.17 mm
(0.042-0.046
inch)1.07-1.17 mm
(0.042-0.046
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition system EDIS EDIS Coil on plug
Compression
ratio9.7:1 9.7:1 10.0:1
VEHICLE DIMENSIONS
Vehicle dimensions Sedan mm (in) Wagon mm (in)
(1) Overall length 5020 (197.6) 5022 (197.7)
(2) Overall width 1855 (73.0) 1855 (73.0)
(3) Overall height 1426 (56.1) 1468 (57.8)
(4) Wheelbase 2757 (108.5) 2757 (108.5)
(5) Track - Front 1566 (61.6) 1566 (61.6)
(5) Track - Rear 1577 (62.1) 1570 (61.8)
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
224

K
Keyless entry system .................74
Keys
positions of the ignition .........122
L
Lamps
autolamp system .......................29
bulb replacement
specifications chart ..................34
daytime running light ...............29
headlamps .................................29
headlamps, flash to pass ..........30
instrument panel, dimming .....30
interior lamps .....................32–34
replacing
bulbs ..................33, 35, 37–40, 42
Lane change indicator
(see Turn signal) ........................32
Liftgate ........................................63
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........127
Load limits .................................134
Locks
childproof ..................................68
doors ..........................................67
Lubricant specifications ...222, 224
Lumbar support, seats ...............82
M
Message center .....................53–54
english/metric button ...............58
system check button ................59
warning messages .....................59
Mirrors ...................................46–47automatic dimming rearview
mirror ........................................47
heated ........................................48
side view mirrors (power) .......48
Moon roof ....................................52
Motorcraft parts ................197, 220
O
Octane rating ............................195
Oil (see Engine oil) ..................182
Overdrive ...................................131
P
Parking brake ............................128
Parts (see Motorcraft parts) ....220
Passenger Occupant
Classification Sensor ...................86
Pedals (see Power adjustable
foot pedals) .................................49
Power adjustable foot pedals .....49
Power distribution box
(see Fuses) ...............................149
Power door locks ........................67
Power point .................................46
Power steering ..........................129
fluid, checking and adding ....203
fluid, refill capacity ................221
fluid, specifications .........222, 224
Power Windows ...........................47
R
Radio ................................15–16, 19
Rear window defroster ...............28
Relays ........................................151
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
235
