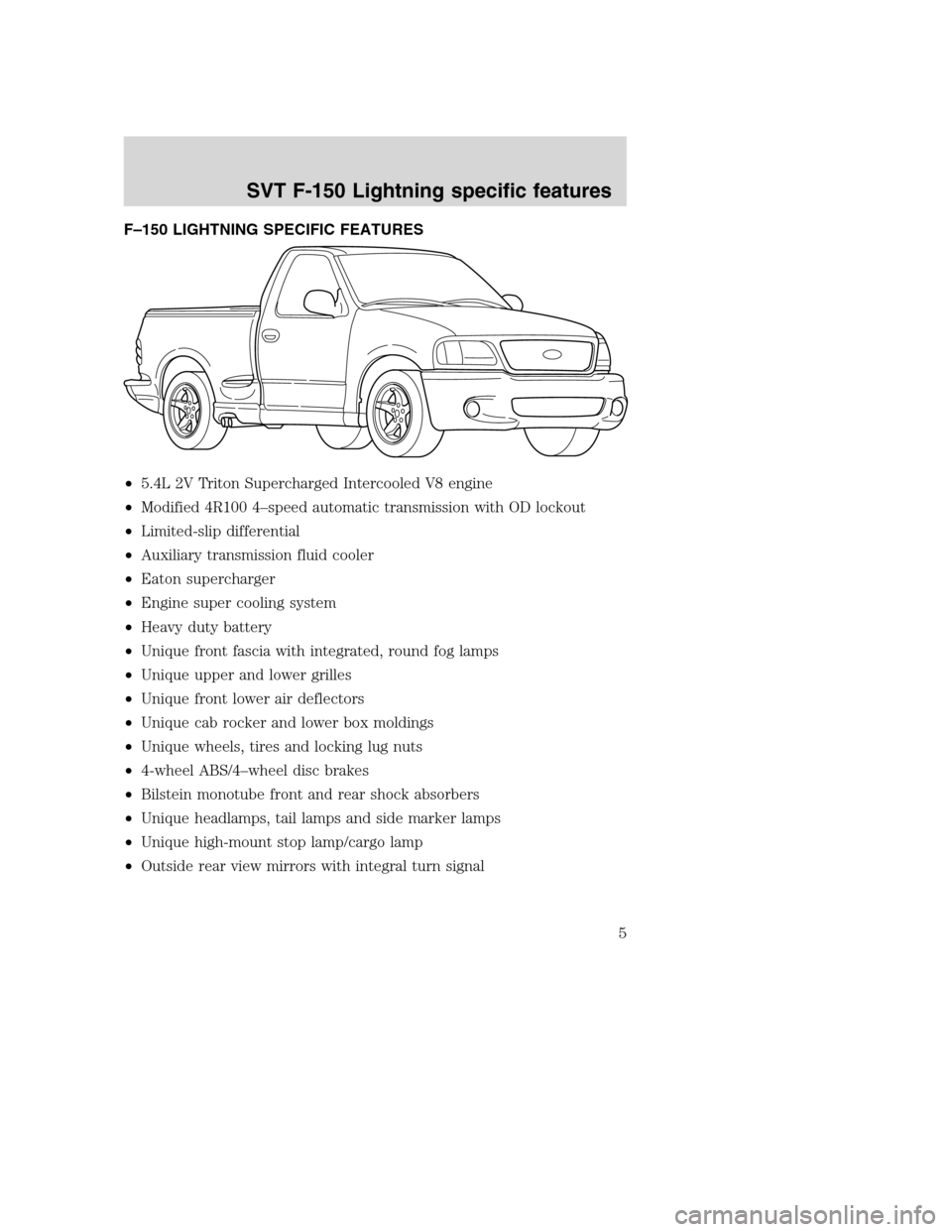

F–150 LIGHTNING SPECIFIC FEATURES
•5.4L 2V Triton Supercharged Intercooled V8 engine
•Modified 4R100 4–speed automatic transmission with OD lockout
•Limited-slip differential
•Auxiliary transmission fluid cooler
•Eaton supercharger
•Engine super cooling system
•Heavy duty battery
•Unique front fascia with integrated, round fog lamps
•Unique upper and lower grilles
•Unique front lower air deflectors
•Unique cab rocker and lower box moldings
•Unique wheels, tires and locking lug nuts
•4-wheel ABS/4–wheel disc brakes
•Bilstein monotube front and rear shock absorbers
•Unique headlamps, tail lamps and side marker lamps
•Unique high-mount stop lamp/cargo lamp
•Outside rear view mirrors with integral turn signal
SVT F-150 Lightning specific features
SVT F-150 Lightning specific features
5

5.4L SUPERCHARGED V8 ENGINE
1. Engine oil dipstick
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Power distribution box
5. Engine coolant reservoir
6. Air filter assembly
7. Intercooler coolant reservoir
8. Windshield washer fluid reservoir
9. Battery
10. Transmission fluid dipstick
11. Engine oil filler cap
9
8765
10111234
Engine/Transmission
Engine/Transmission
7

REFILL CAPACITIES
Fluid Ford Part Name Capacity
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidFill to line on reservoir
Engine oil (includes
filter change)
5Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)5.7L (6.0 quarts)
Engine coolant
1Motorcraft Premium
Gold Engine Coolant
(yellow-colored)24.1L (25.5 quarts)
Intercooler coolant
14.0L (4.2 quarts)
Power steering fluid Motorcraft MERCON

AT FFill to line on reservoir
Rear axle lubricant
2Motorcraft SAE
75W-140 High
Performance Rear
Axle Lubricant3.3-3.8L (7.5-8.0
pints)
Fuel tank N/A 94.6L (25.0 gallons)
Transmission fluid
3Motorcraft MERCON

AT F16.1L (17.0 quarts)4
Windshield washer
fluidMotorcraft Premium
Windshield Washer
Concentrate4.0L (4.25 quarts)
1Add the coolant type originally equipped in your vehicle.
2Fill 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118–A for complete refill of
Traction-Lok axles.
Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is
considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
