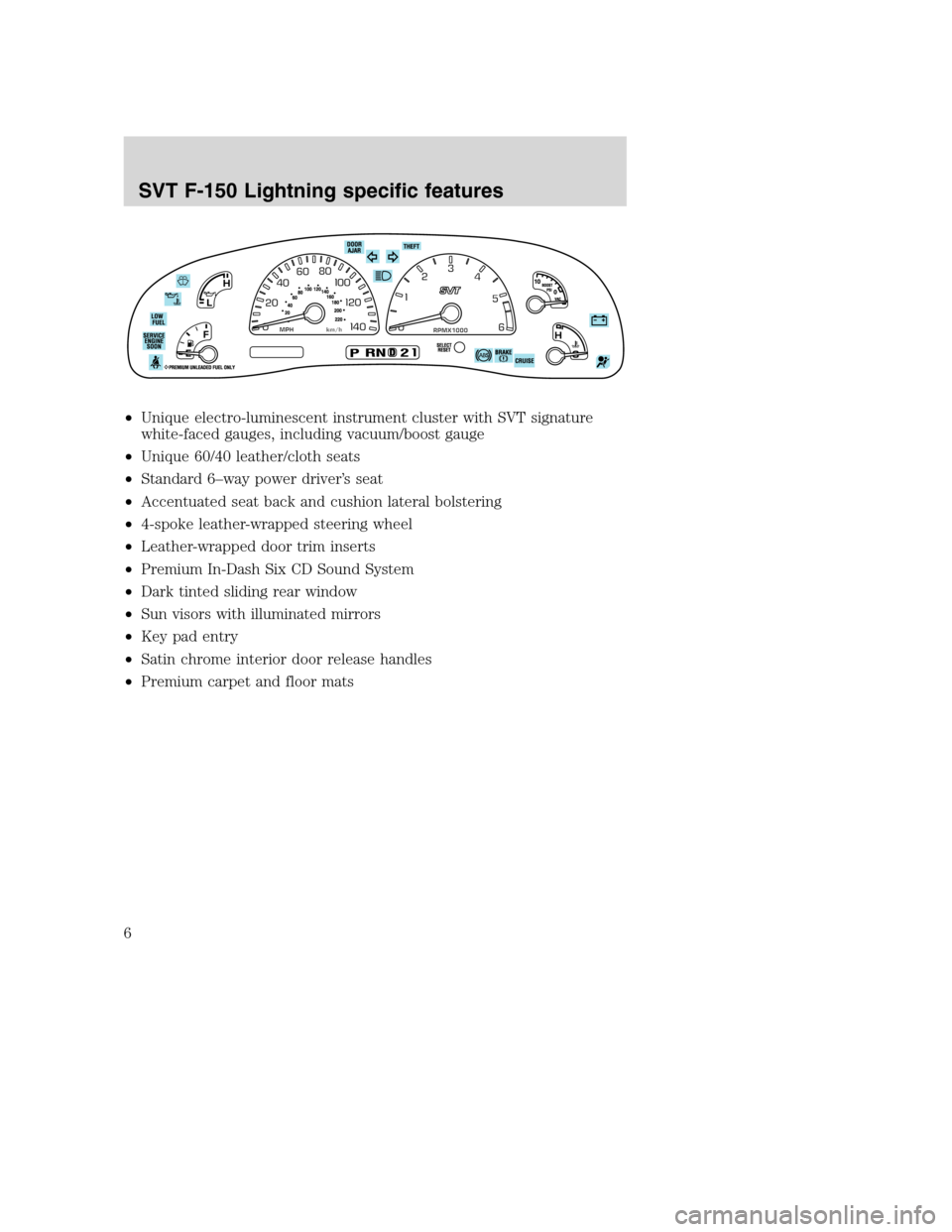

•Unique electro-luminescent instrument cluster with SVT signature
white-faced gauges, including vacuum/boost gauge
•Unique 60/40 leather/cloth seats
•Standard 6–way power driver’s seat
•Accentuated seat back and cushion lateral bolstering
•4-spoke leather-wrapped steering wheel
•Leather-wrapped door trim inserts
•Premium In-Dash Six CD Sound System
•Dark tinted sliding rear window
•Sun visors with illuminated mirrors
•Key pad entry
•Satin chrome interior door release handles
•Premium carpet and floor mats
SVT F-150 Lightning specific features
6

5.4L SUPERCHARGED V8 ENGINE
1. Engine oil dipstick
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Power distribution box
5. Engine coolant reservoir
6. Air filter assembly
7. Intercooler coolant reservoir
8. Windshield washer fluid reservoir
9. Battery
10. Transmission fluid dipstick
11. Engine oil filler cap
9
8765
10111234
Engine/Transmission
Engine/Transmission
7

REFILL CAPACITIES
Fluid Ford Part Name Capacity
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidFill to line on reservoir
Engine oil (includes
filter change)
5Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)5.7L (6.0 quarts)
Engine coolant
1Motorcraft Premium
Gold Engine Coolant
(yellow-colored)24.1L (25.5 quarts)
Intercooler coolant
14.0L (4.2 quarts)
Power steering fluid Motorcraft MERCON

AT FFill to line on reservoir
Rear axle lubricant
2Motorcraft SAE
75W-140 High
Performance Rear
Axle Lubricant3.3-3.8L (7.5-8.0
pints)
Fuel tank N/A 94.6L (25.0 gallons)
Transmission fluid
3Motorcraft MERCON

AT F16.1L (17.0 quarts)4
Windshield washer
fluidMotorcraft Premium
Windshield Washer
Concentrate4.0L (4.25 quarts)
1Add the coolant type originally equipped in your vehicle.
2Fill 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118–A for complete refill of
Traction-Lok axles.
Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is
considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
Maintenance
15

IMPORTANT TIRE INFORMATION
Your SVT vehicle is equipped with unique wheels and tires designed to
enhance performance and appearance. To continue providing this
performance, extra care must be taken when operating and maintaining
your vehicle.
TIRES
Your SVT vehicle is equipped with low profile, high performance tires
that are designed to optimize handling, steering and braking to provide
the performance you expect in a SVT vehicle. These tires are not
optimized for off-road or winter performance, and their ride, noise and
wear characteristics are different than other tires. Also, because of their
lower profile, the tires are more susceptible to damage due to potholes
and rough or unpaved roads. To ensure that your tires perform as
designed, it is important that you maintain your tires properly:
•Always maintain your tire pressures according to the tire information
placard in the doorjamb or inside the fuel filler door, using an accurate
gauge.
•Tire pressures are specified“cold”and should be checked after the
vehicle has been parked for at least 3 hours. Do not reduce pressure
of warm tires.
•Check your tire pressure often to maintain it properly. Tire pressure
can diminish over time and fluctuate with temperature.
•Do not overload your vehicle. Maximum vehicle and axle weights are
listed on the tire information placard.
•Extra caution should be taken when operating the vehicle near its
maximum load, including assuring proper tire pressure and reducing
speeds.
•Extra caution should be taken when operating on rough roads to avoid
impacts that could cause tire damage.
•In the event that you encounter an abnormally harsh impact, inspect
you tires for damage.
•Inspect your tires for damage on a regular basis. If a tire is damaged,
replace it immediately.
•Proper suspension alignment is critical for maximum performance and
optimal tire wear. If you notice uneven tire wear, have you alignment
checked.
Tire Information
Tire Information
20

WINTER DRIVING
The original equipment tires on your SVT vehicle are designed for
maximum performance in dry and wet conditions. They are not designed
for winter use on ice or snow and cannot be used with snow chains. If
you will be operating your vehicle in these conditions, winter or
all-season tires must be used. Contact the Ford SVT Hotline at
1–800–FORD-SVT for information on SVT recommended winter tires for
your vehicle. When using winter or all-season tires:
•Always use winter tires on all 4 wheels and use 4 of the same size,
brand and model.
•Be aware that winter or all-season tires will not perform as well as the
original equipment tire in dry and wet conditions. Expect handling,
steering and braking to be degraded.
•Do not use a winter tire with less than a“T”rating, and even with
clear, dry driving conditions do not operate your vehicle above posted
speed limits while using winter tires. Never perform high-speed driving
with winter tires.
Tire Information
22
