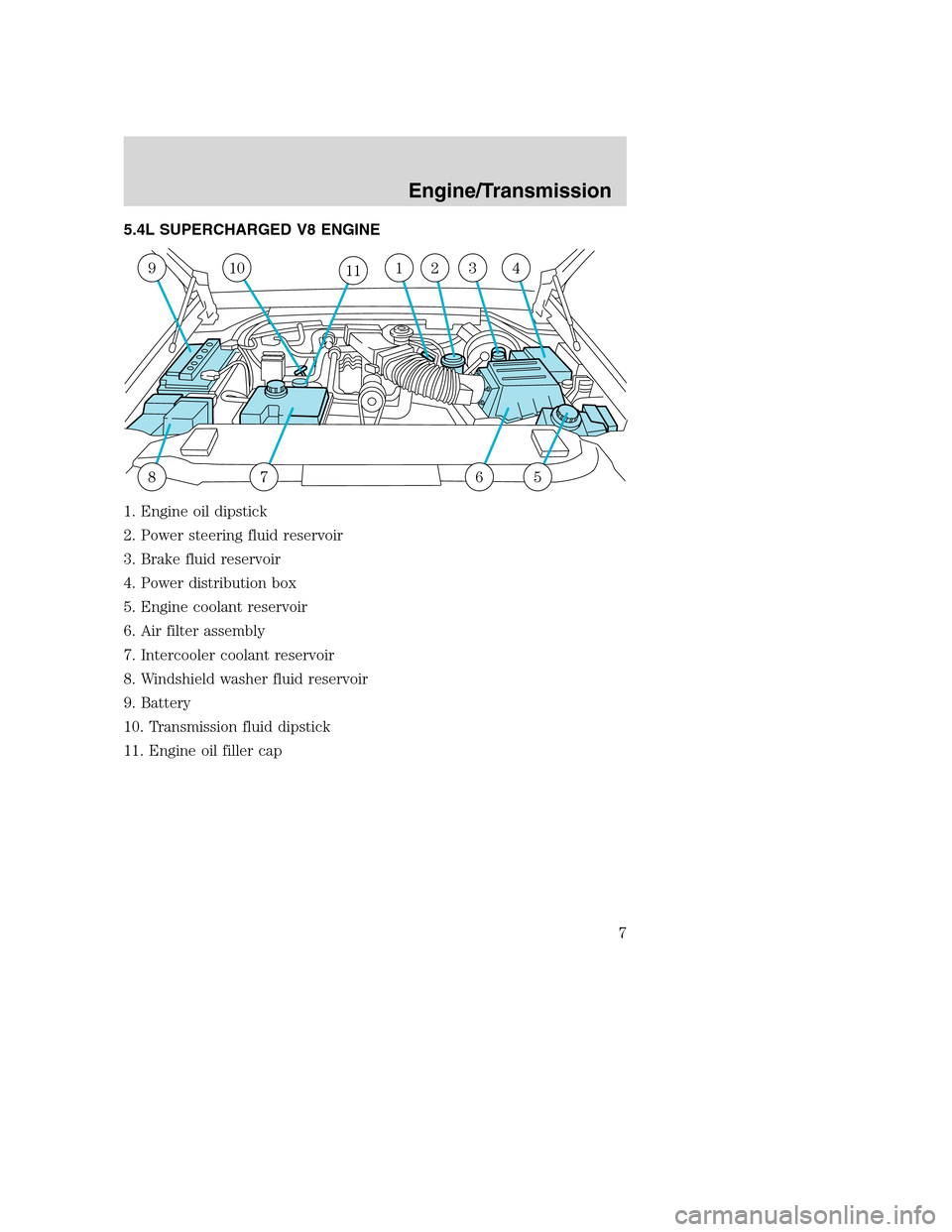

5.4L SUPERCHARGED V8 ENGINE
1. Engine oil dipstick
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Power distribution box
5. Engine coolant reservoir
6. Air filter assembly
7. Intercooler coolant reservoir
8. Windshield washer fluid reservoir
9. Battery
10. Transmission fluid dipstick
11. Engine oil filler cap
9
8765
10111234
Engine/Transmission
Engine/Transmission
7

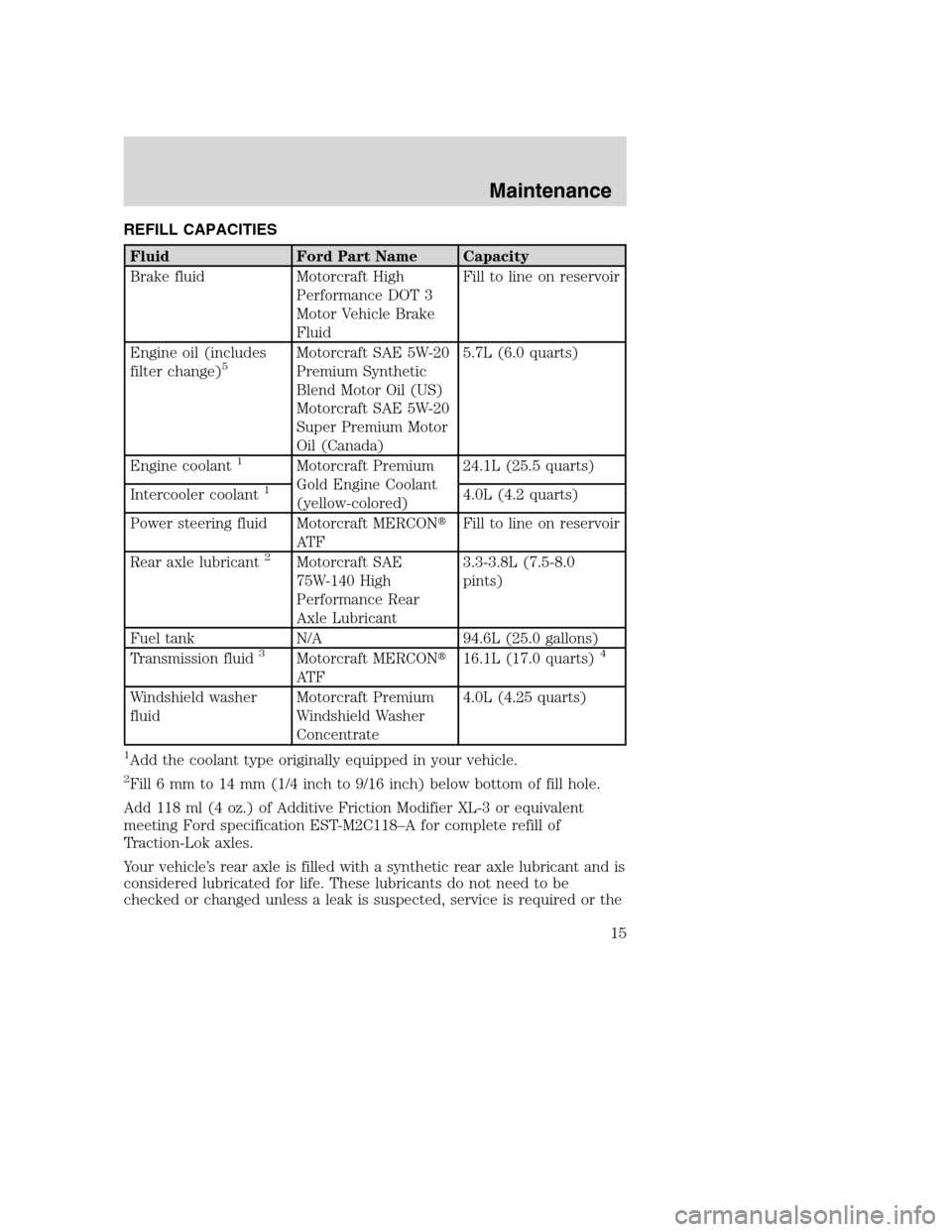

REFILL CAPACITIES
Fluid Ford Part Name Capacity
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidFill to line on reservoir
Engine oil (includes
filter change)
5Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)5.7L (6.0 quarts)
Engine coolant
1Motorcraft Premium
Gold Engine Coolant
(yellow-colored)24.1L (25.5 quarts)
Intercooler coolant
14.0L (4.2 quarts)
Power steering fluid Motorcraft MERCON
AT FFill to line on reservoir
Rear axle lubricant
2Motorcraft SAE
75W-140 High
Performance Rear
Axle Lubricant3.3-3.8L (7.5-8.0
pints)
Fuel tank N/A 94.6L (25.0 gallons)
Transmission fluid
3Motorcraft MERCON
AT F16.1L (17.0 quarts)4
Windshield washer
fluidMotorcraft Premium
Windshield Washer
Concentrate4.0L (4.25 quarts)
1Add the coolant type originally equipped in your vehicle.
2Fill 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118–A for complete refill of
Traction-Lok axles.
Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is
considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
