2004 FORD F150 Raptor Supplement Manual

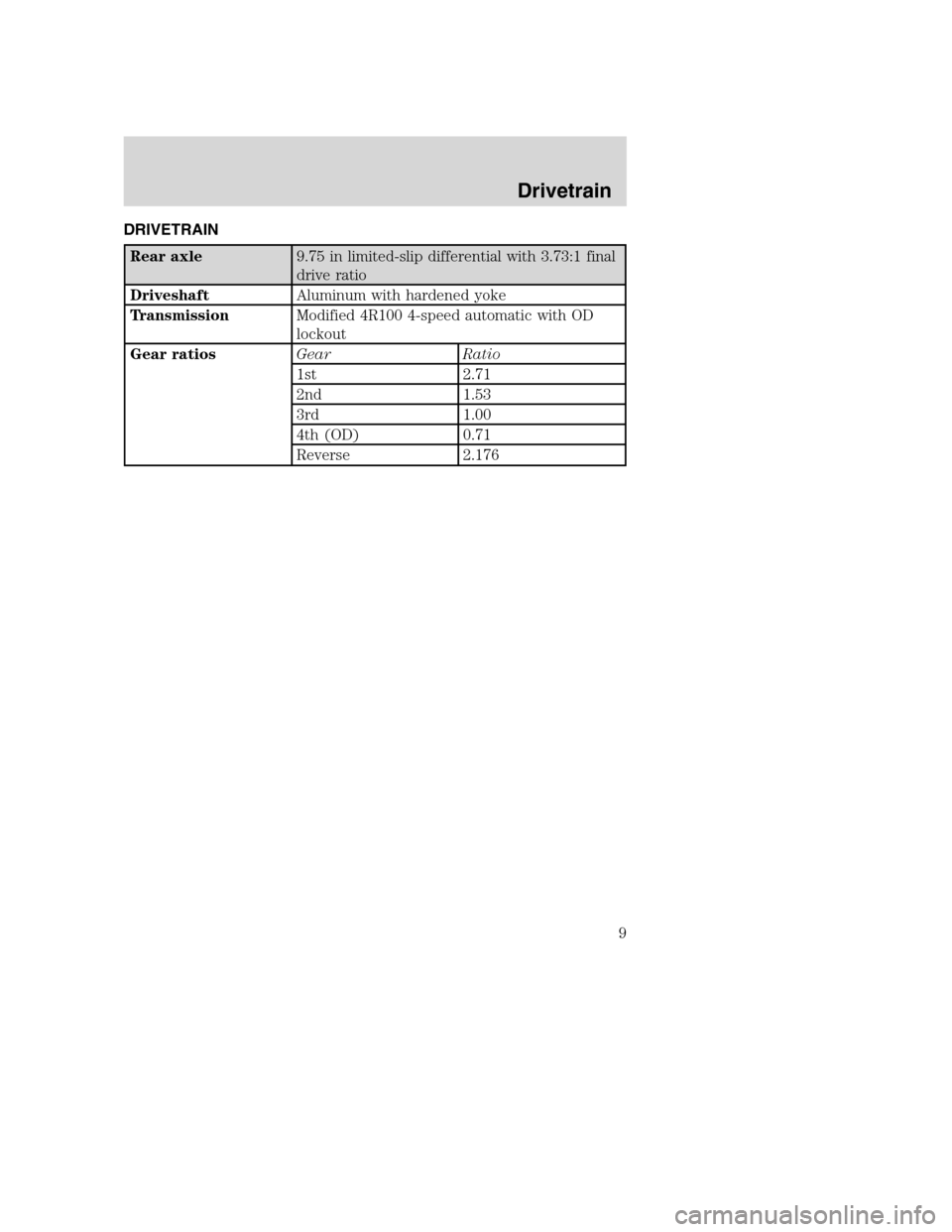

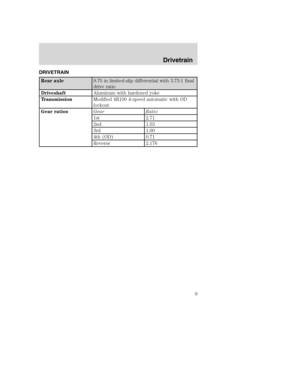

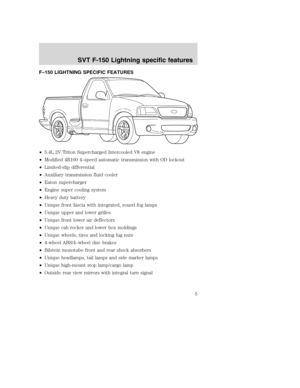

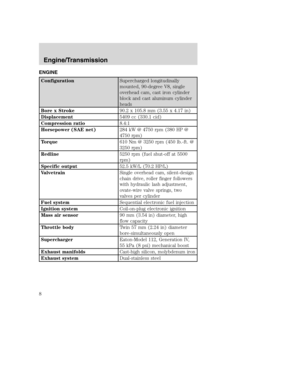

DRIVETRAIN
Rear axle9.75 in limited-slip differential with 3.73:1 final
drive ratio
DriveshaftAluminum with hardened yoke
TransmissionModified 4R100 4-speed automatic with OD
lockout
Gear ratiosGear Ratio
1st 2.71
2nd 1.53
3rd 1.00
4th (OD) 0.71
Reverse 2.176
Drivetrain
Drivetrain
9

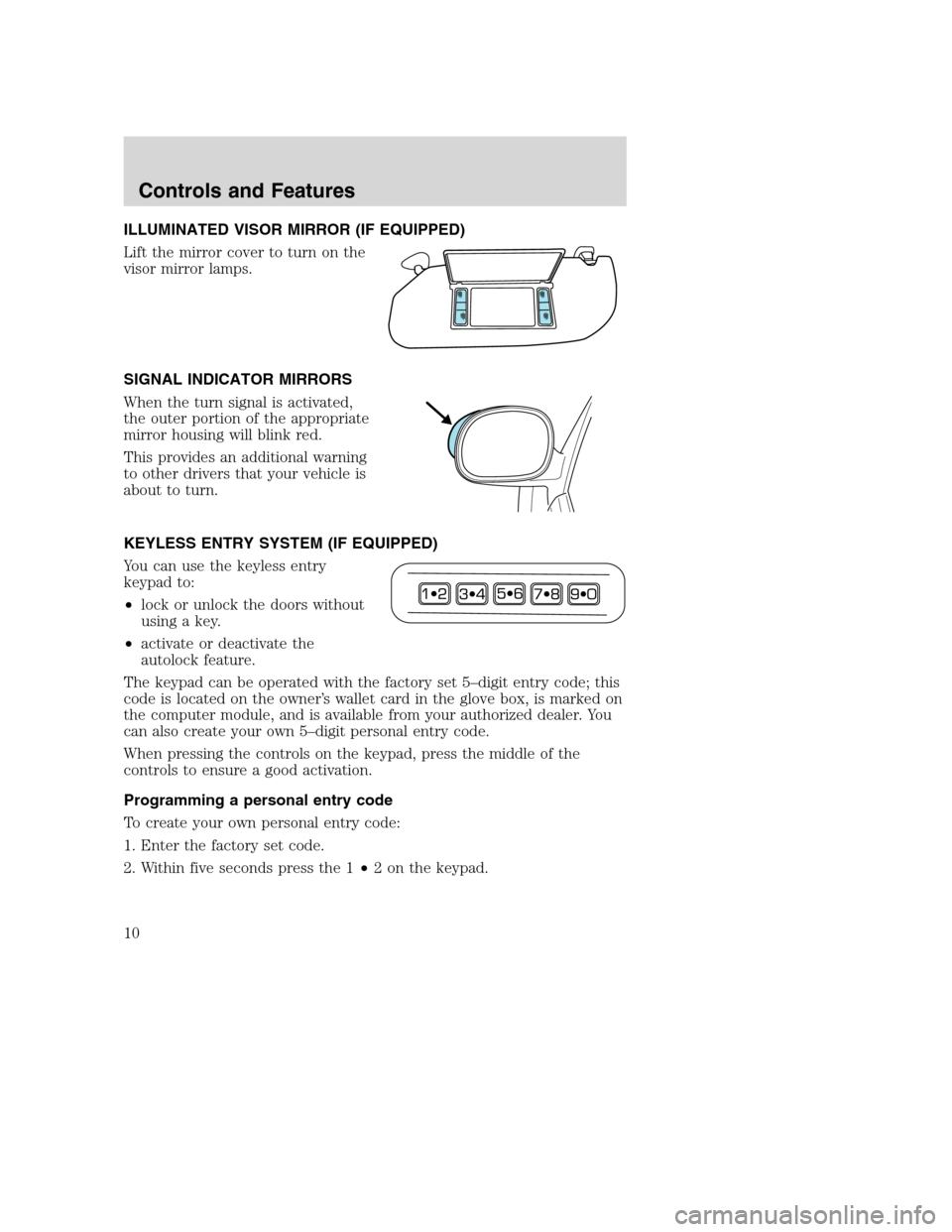

ILLUMINATED VISOR MIRROR (IF EQUIPPED)
Lift the mirror cover to turn on the
visor mirror lamps.
SIGNAL INDICATOR MIRRORS
When the turn signal is activated,
the outer portion of the appropriate
mirror housing will blink red.
This provides an additional warning
to other drivers that your vehicle is
about to turn.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•activate or deactivate the
autolock feature.
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box, is marked on
the computer module, and is available from your authorized dealer. You
can also create your own 5–digit personal entry code.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
Controls and Features
Controls and Features
10

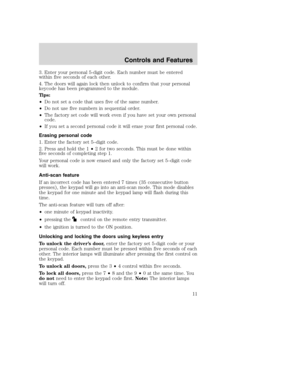

3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. The doors will again lock then unlock to confirm that your personal
keycode has been programmed to the module.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
•If you set a second personal code it will erase your first personal code.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Press and hold the 1•2 for two seconds. This must be done within
five seconds of completing step 1.
Your personal code is now erased and only the factory set 5–digit code
will work.
Anti-scan feature
If an incorrect code has been entered 7 times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash during this
time.
The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the
control on the remote entry transmitter.
•the ignition is turned to the ON position.
Unlocking and locking the doors using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate after pressing the first control on
the keypad.
To unlock all doors,press the 3•4 control within five seconds.
To lock all doors,press the 7•8 and the 9•0 at the same time. You
do notneed to enter the keypad code first.Note:The interior lamps
will turn off.
Controls and Features
11

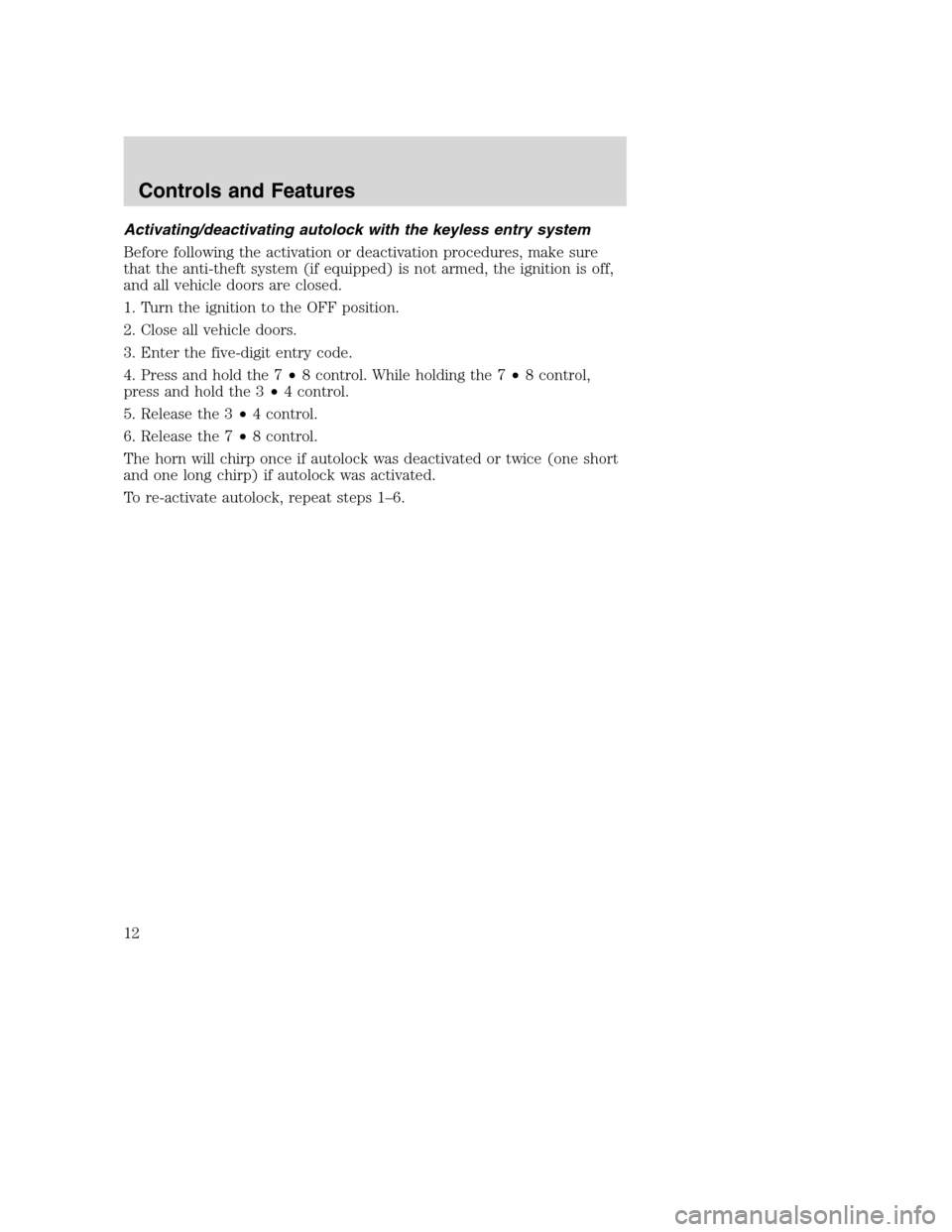

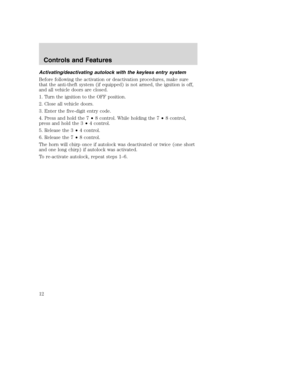

Activating/deactivating autolock with the keyless entry system
Before following the activation or deactivation procedures, make sure
that the anti-theft system (if equipped) is not armed, the ignition is off,
and all vehicle doors are closed.
1. Turn the ignition to the OFF position.
2. Close all vehicle doors.
3. Enter the five-digit entry code.
4. Press and hold the 7•8 control. While holding the 7•8 control,
press and hold the 3•4 control.
5. Release the 3•4 control.
6. Release the 7•8 control.
The horn will chirp once if autolock was deactivated or twice (one short
and one long chirp) if autolock was activated.
To re-activate autolock, repeat steps 1–6.
Controls and Features
12

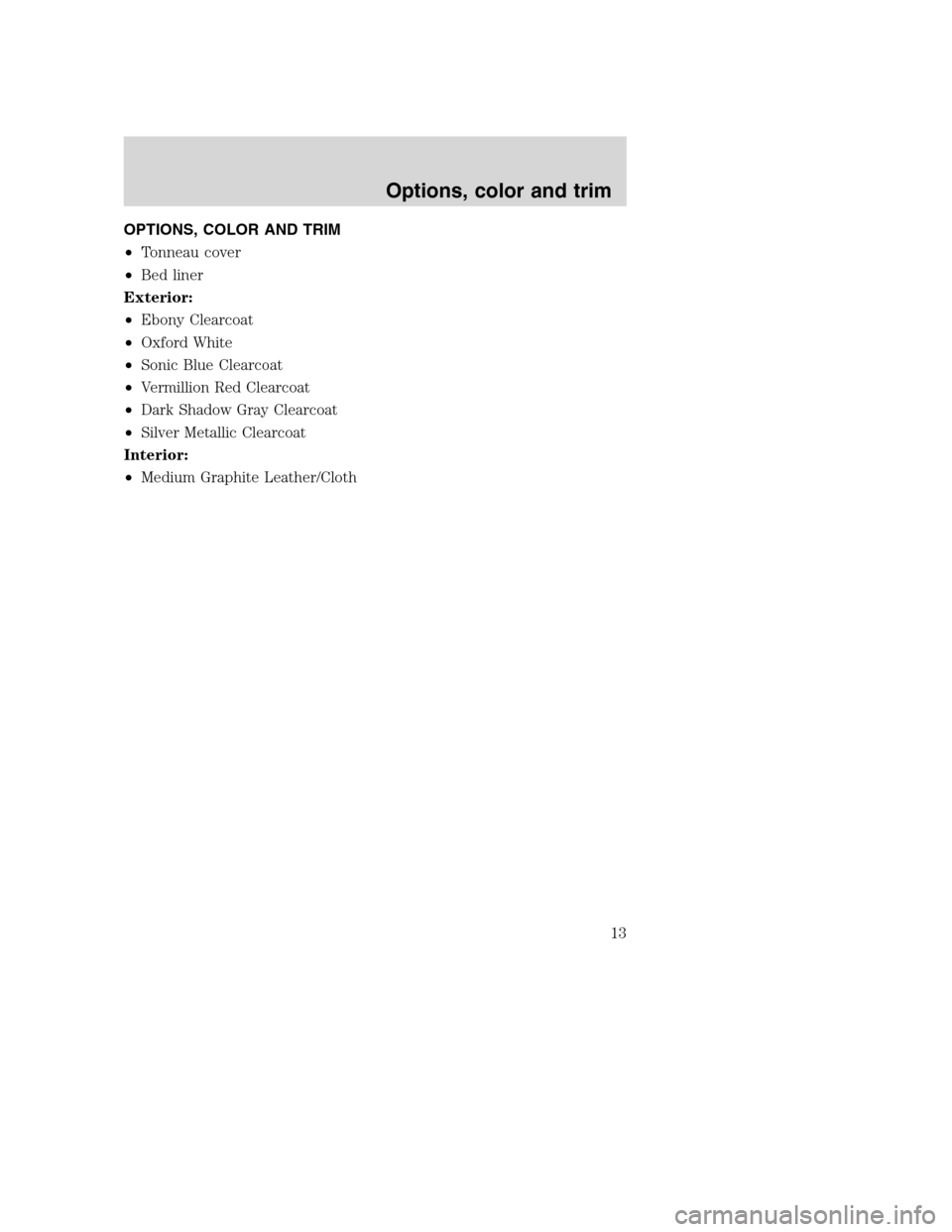

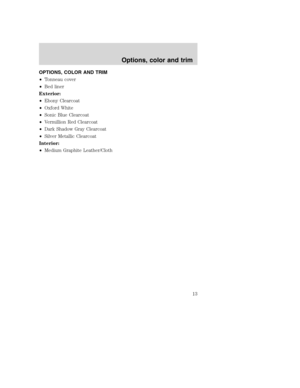

OPTIONS, COLOR AND TRIM
•Tonneau cover
•Bed liner
Exterior:
•Ebony Clearcoat
•Oxford White
•Sonic Blue Clearcoat
•Vermillion Red Clearcoat
•Dark Shadow Gray Clearcoat
•Silver Metallic Clearcoat
Interior:
•Medium Graphite Leather/Cloth
Options, color and trim
Options, color and trim
13

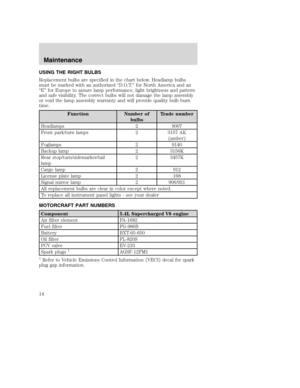

USING THE RIGHT BULBS
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized“D.O.T.”for North America and an
“E”for Europe to assure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of
bulbsTrade number
Headlamps 2 9007
Front park/turn lamps 2 3157 AK
(amber)
Foglamps 2 9140
Backup lamp 2 3156K
Rear stop/turn/sidemarker/tail
lamp2 3457K
Cargo lamp 2 912
License plate lamp 2 168
Signal mirror lamp 2 906/921
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your dealer
MOTORCRAFT PART NUMBERS
Component 5.4L Supercharged V8 engine
Air filter element FA-1682
Fuel filter FG-986B
Battery BXT-65-650
Oil filter FL-820S
PCV valve EV-233
Spark plugs
1AGSF-12FM1
1Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
Maintenance
Maintenance
14

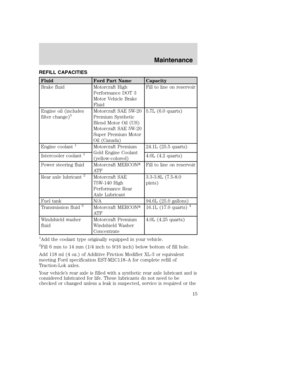

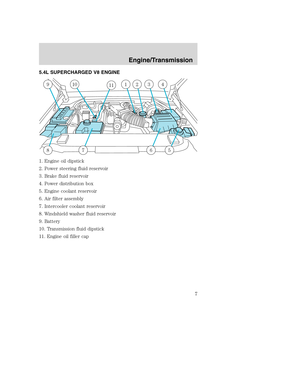

REFILL CAPACITIES
Fluid Ford Part Name Capacity
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidFill to line on reservoir
Engine oil (includes
filter change)
5Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)5.7L (6.0 quarts)
Engine coolant
1Motorcraft Premium
Gold Engine Coolant
(yellow-colored)24.1L (25.5 quarts)
Intercooler coolant
14.0L (4.2 quarts)
Power steering fluid Motorcraft MERCON

AT FFill to line on reservoir
Rear axle lubricant
2Motorcraft SAE
75W-140 High
Performance Rear
Axle Lubricant3.3-3.8L (7.5-8.0
pints)
Fuel tank N/A 94.6L (25.0 gallons)
Transmission fluid
3Motorcraft MERCON

AT F16.1L (17.0 quarts)4
Windshield washer
fluidMotorcraft Premium
Windshield Washer
Concentrate4.0L (4.25 quarts)
1Add the coolant type originally equipped in your vehicle.
2Fill 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118–A for complete refill of
Traction-Lok axles.
Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is
considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
Maintenance
15

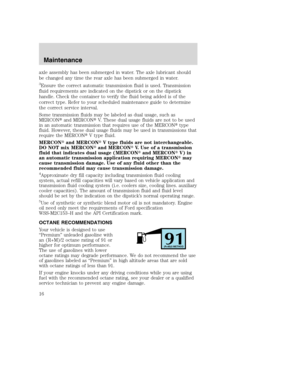

axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water.
3Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCON
and MERCON
V. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCON
type
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCON
V type fluid.
MERCON
and MERCON
V type fluids are not interchangeable.
DO NOT mix MERCON
and MERCON
V. Use of a transmission
fluid that indicates dual usage (MERCON
and MERCON
V) in
an automatic transmission application requiring MERCON
may
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
4Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines. auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
5Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
OCTANE RECOMMENDATIONS
Your vehicle is designed to use
“Premium”unleaded gasoline with
an (R+M)/2 octane rating of 91 or
higher for optimum performance.
The use of gasolines with lower
octane ratings may degrade performance. We do not recommend the use
of gasolines labeled as“Premium”in high altitude areas that are sold
with octane ratings of less than 91.
If your engine knocks under any driving conditions while you are using
fuel with the recommended octane rating, see your dealer or a qualified
service technician to prevent any engine damage.
91(R+M)/2 METHOD

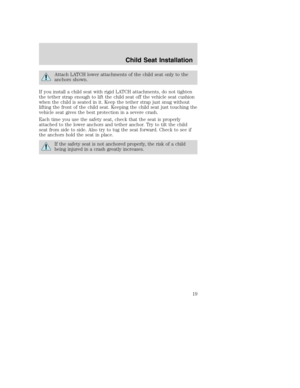

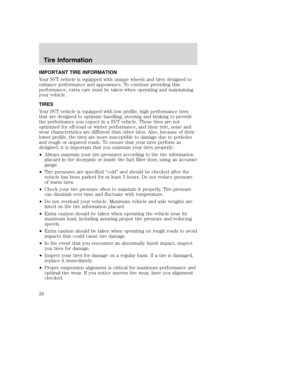

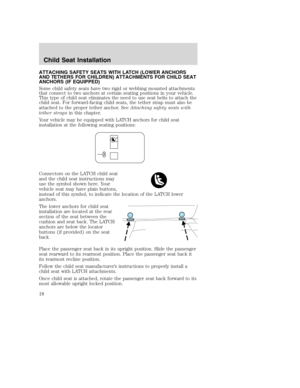

Maintenance
