2004 FORD F150 Owners Manual

Super Cab
Vehicle
dimensionsStyleside 5.5'
box mm (in)Styleside/
Flareside 6.5'
box mm (in)Styleside 8.0'
box mm (in)
(1) Overall
length5536 (218.0) 5841 (230.0) 6313 (248.6)
(2) Overall
width2005 (78.9) 2005 (78.9) 2005 (78.9)
(3) Overall
height 4x2/4x41854 (73.0) /
1918 (75.5)1854 (73.0) /
1905 (75.0)1867 (73.5) /
1918 (75.5)
(4) Wheelbase
4x2/4x43363 (132) /
3371 (133)3668 (144) /
3675 (145)4140 (163) /
4148 (163)
(5) Track -
Front1701 (67.0) 1701 (67.0) 1701 (67.0)
(5) Track -
Rear1701 (67.0) 1701 (67.0) 1701 (67.0)
Maintenance and Specifications
265

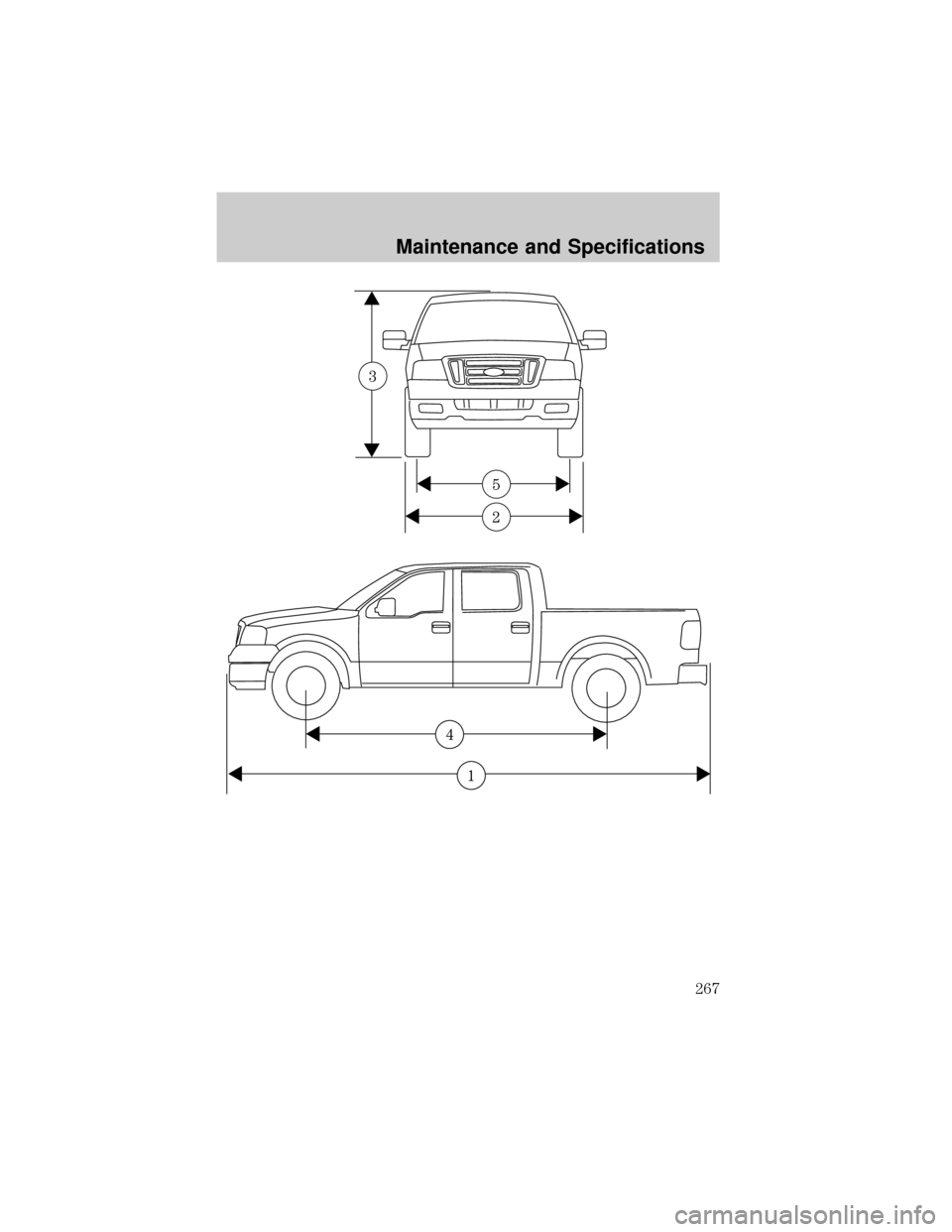

Super Crew
Vehicle dimensions Styleside 5.5' box mm (in)
(1) Overall length 5689 (224)
(2) Overall width 2005 (78.9)
(3) Overall height 4x2/4x4 1867 (73.5) /
1918 (75.5)
(4) Wheelbase 4x2/4x4 3515 (138) /
3523 (139)
(5) Track - Front 1701 (67.0)
(5) Track - Rear 1701 (67.0)
Maintenance and Specifications
266

Maintenance and Specifications
267

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver's side.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
268

7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transmission.
Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5±speed overdrive (Mazda R2)
C Manual 5±speed overdrive (Close ratio)
W Manual 5±speed overdrive (Dana ZF)
G Manual 6±speed ZF
Automatic transmission
U Automatic 4±speed overdrive (4R70W)
Maintenance and Specifications
269

Code Transmission Description
T Automatic 4±speed overdrive (4R44E)
E Automatic 4±speed overdrive (4R100)
J Automatic 5±speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5±speed overdrive (5R44E)
R Automatic 5±speed overdrive (5R55W)
Passenger car application:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R 5±speed overdrive (MTX75)
W 5±speed overdrive (M5)
Front wheel drive automatic transaxle
E 4±speed overdrive (4FE)
J 3±speed (Mazda)
L 4±speed overdrive (AX4S)
P 4±speed overdrive (4F20E)
X 4±speed overdrive (4F50N)
Y 4±speed overdrive (CD4E)
Rear wheel drive manual transaxle
5 5±speed (Mazda M5)
Rear wheel drive automatic transmission
U 4±speed overdrive (4R70W)
A 5±speed overdrive (5R55N)
Maintenance and Specifications
270

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford's rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford accessory found to be
defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
²12 months or 20,000 km (12,000 miles) (whichever occurs first), or
²the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle's Limited Warranty Ð 3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Following is a list of several Ford Genuine Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim
Fender flares
Front end covers
Grille inserts
Headlamps, taillamps, fog lights and Daytime Running Lamps (DRLS)
Running boards
Sliding rear windows - manual and power
Splash guards
Accessories
Accessories
271

Step bars
Tonneau covers
Truck caps
Wheels
Interior style
Cell phone holders
Consoles
Electrochromatic compass/temperature interior mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bedliners and bedmats
Bed tents
Bike racks
Cargo organization and management
Diamond plate accessories
Engine block heaters and blankets
Rear seat entertainment systems
Toolboxes
Towing mirrors
TracRac and accessories
Trailer hitches, wiring harnesses and accessories
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Accessories
272
