Page 1089 of 2585

DODGE TOWN AND COUNTRY 2004 Service Manual

Page 1090 of 2585

DODGE TOWN AND COUNTRY 2004 Service Manual 8W-70 SPLICE INFORMATION
Component Page
S101.............................. 8W-42-20
S103............................... 8W-18-4
S106............................... 8W-15-2
S107........................

8W-70 SPLICE INFORMATION
Component Page
S101.............................. 8W-42-20
S103............................... 8W-18-4
S106............................... 8W-15-2
S107........................... 8W-10-43, 45
S111 ............................. 8W-15-3, 4
S112 .............................. 8W-10-42

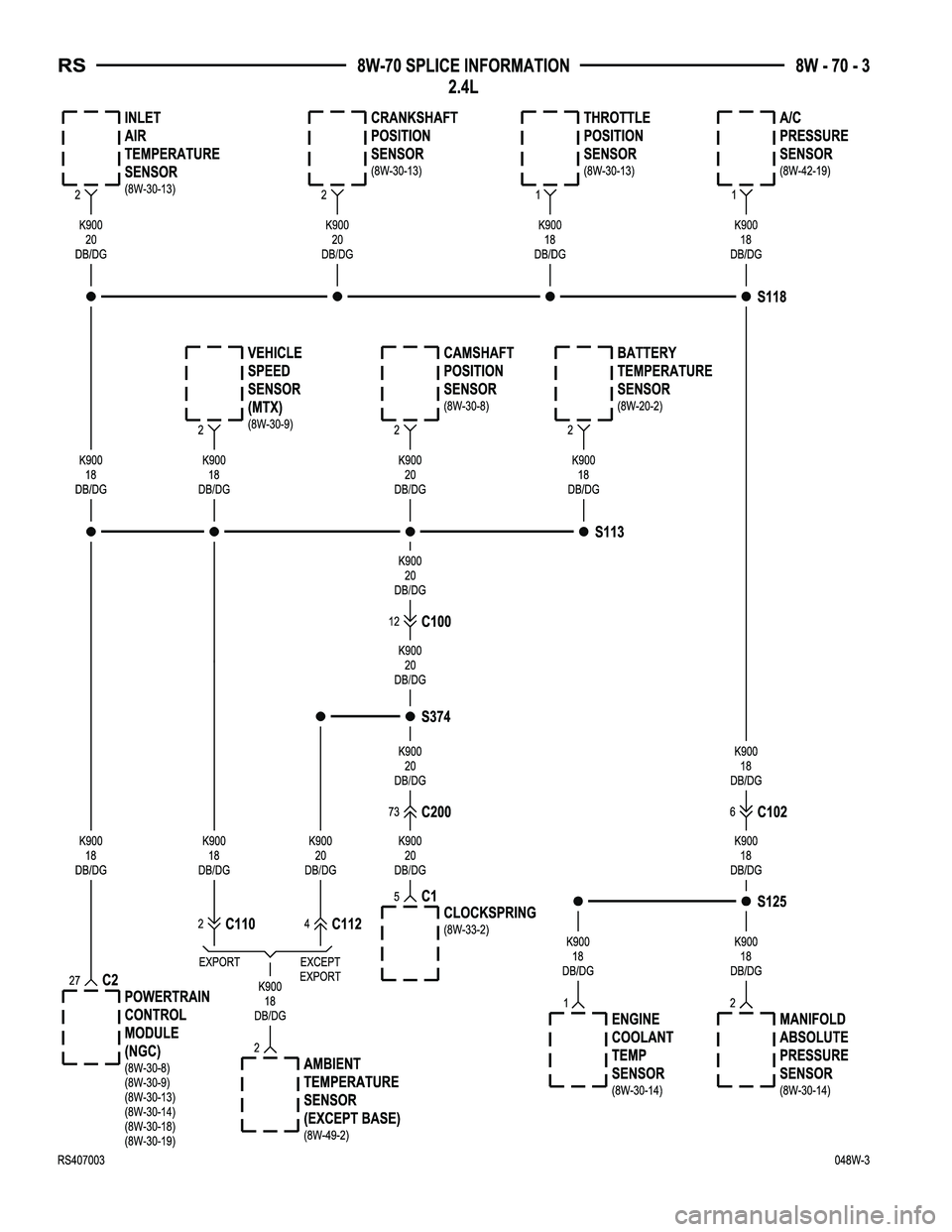

S113 ............................... 8W-70-3
S114 .............................. 8W-10-41
S115 ............................... 8W-31-5

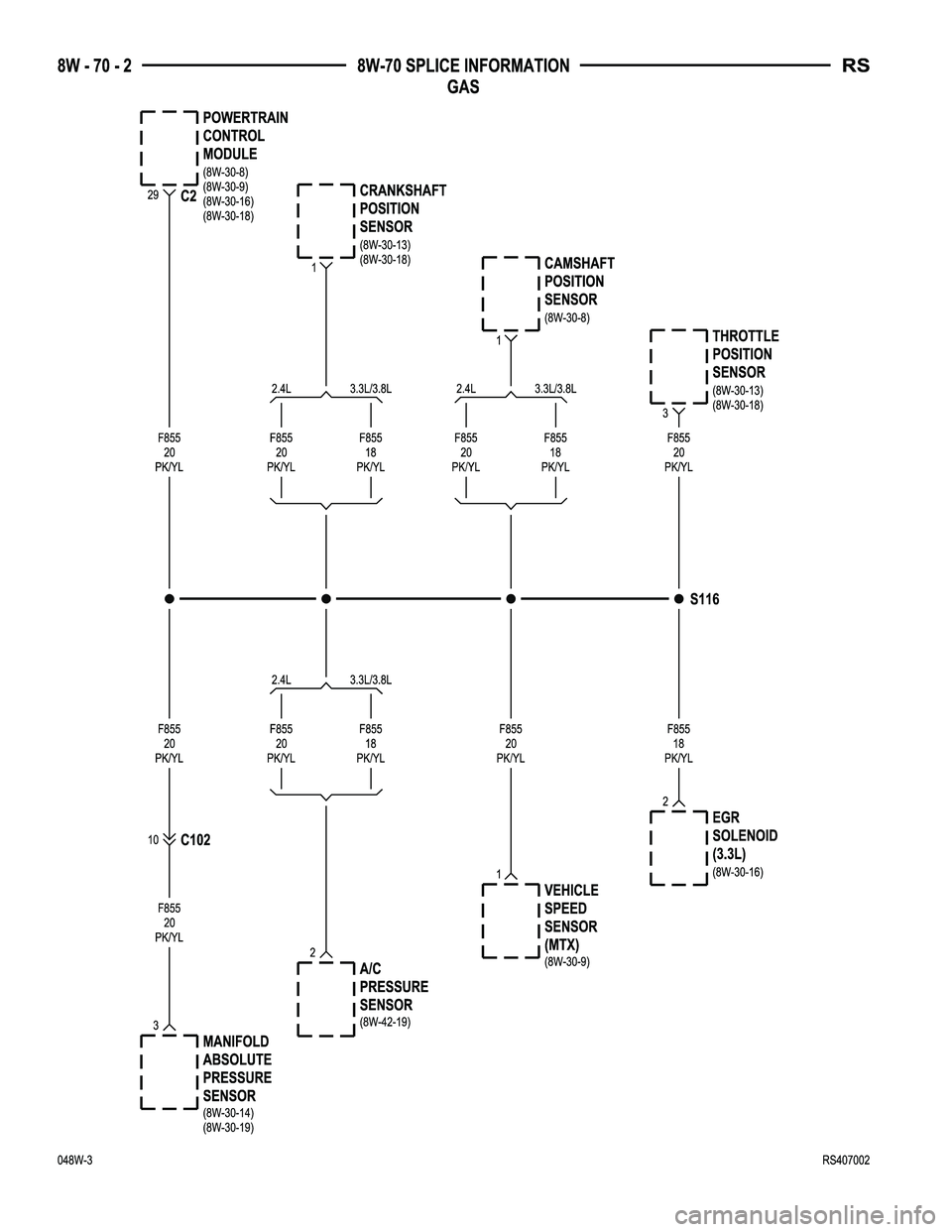

S116 ............................. 8W-70-2, 6
S118 ............................... 8W-70-3
S119 ............................... 8W-15-9

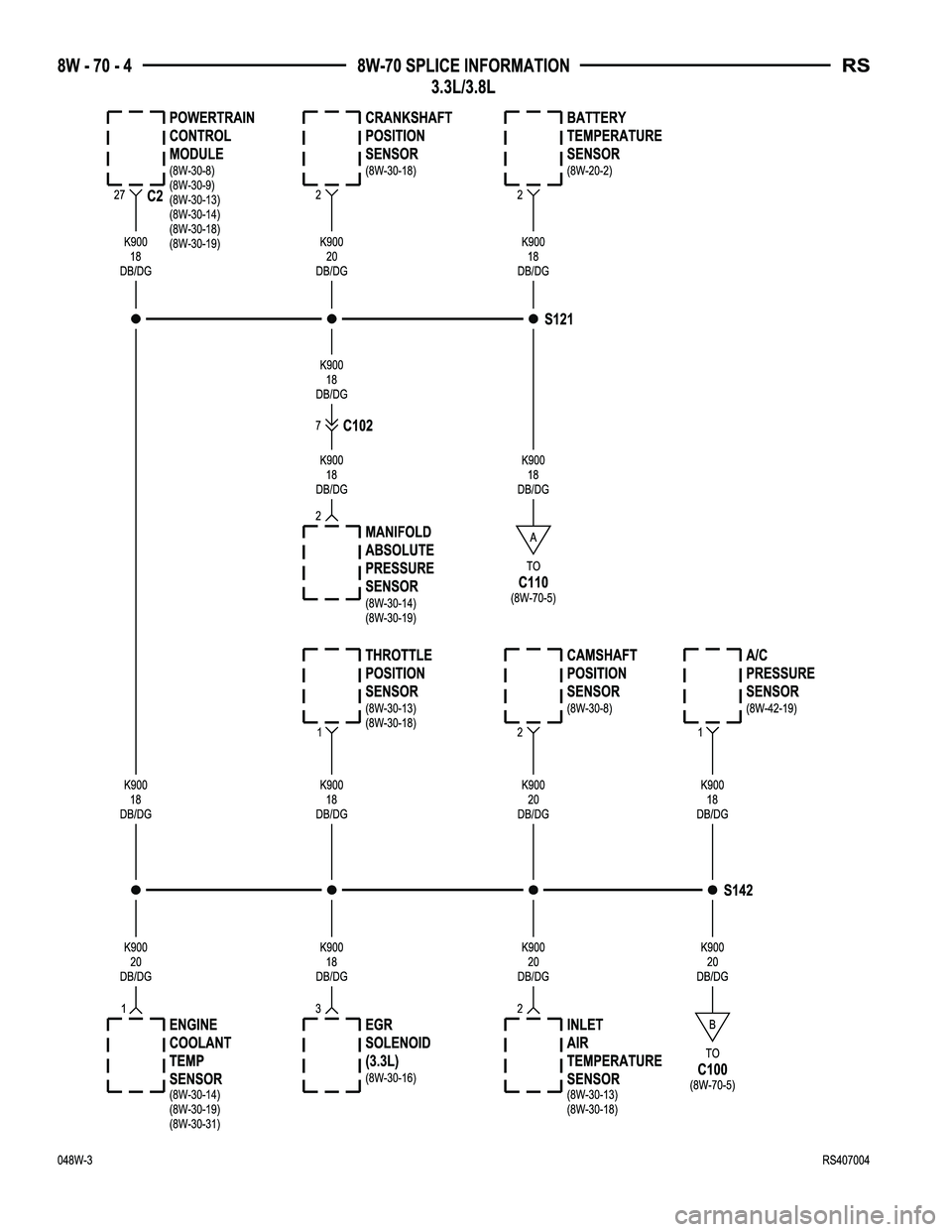

S121............................... 8W-70-4
S122.............................. 8W-10-14
S123.............................. 8W-10-35
S124.............................. 8W-10-42
S125............................... 8W-70-3
S126.............................. 8W-10-29
S127.............................. 8W-10-13
S128.............................. 8W-10-29
S129.............................. 8W-10-13
S130.............................. 8W-10-13
S131.............................. 8W-10-56
S132.............................. 8W-10-13
S134.............................. 8W-30-33
S135.............................. 8W-30-34
S136.............................. 8W-42-18
S137.............................. 8W-30-32
S139.............................. 8W-10-44
S141............................. 8W-15-2, 4
S142............................... 8W-70-4
S144.............................. 8W-10-44

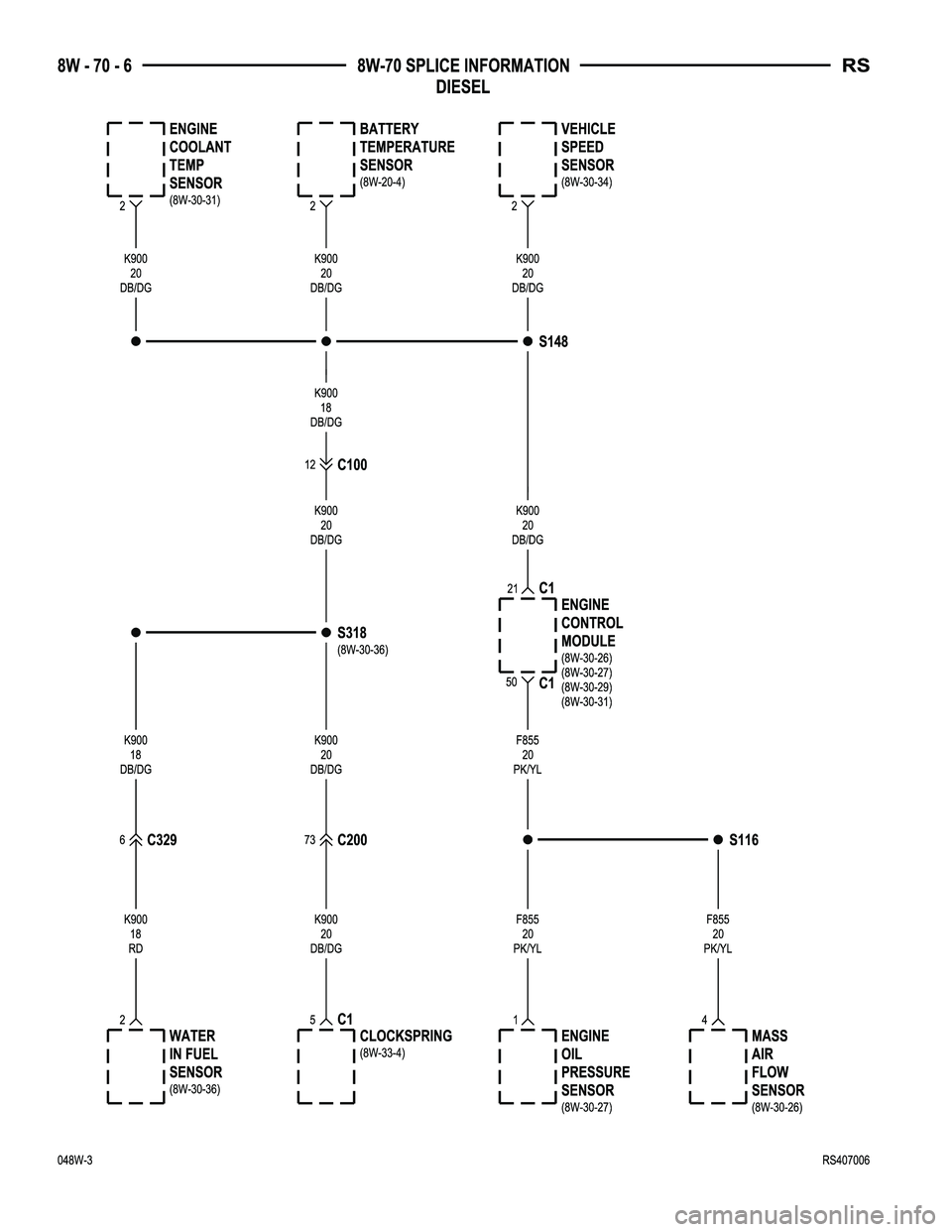

S148............................... 8W-70-6
S150.............................. 8W-10-67
S151.............................. 8W-42-18
S152.............................. 8W-10-63
S157.............................. 8W-30-31
S177.............................. 8W-15-19
S179.............................. 8W-15-19
S187.............................. 8W-30-26
S188.............................. 8W-10-44
S201.............................. 8W-10-40
S202.............................. 8W-45-19
S203.............................. 8W-45-17
S204.............................. 8W-10-39
S205............................... 8W-42-9
S206.............................. 8W-10-52
S207............................... 8W-18-6
S208.............................. 8W-45-10
S209............................... 8W-42-7
S210........................... 8W-10-46, 49
S211 ............................... 8W-47-8
S212............................... 8W-47-8
S222.............................. 8W-47-15
S223.............................. 8W-10-68
S224.............................. 8W-15-11
S302............................... 8W-18-5
S303.............................. 8W-10-35
S304.............................. 8W-10-67
Component Page
S305............................... 8W-63-8
S306............................. 8W-45-5, 6
S307............................... 8W-63-8
S309.............................. 8W-45-13
S310............................... 8W-44-2
S311 ............................... 8W-42-8
S312.............................. 8W-15-17
S313........................... 8W-10-28, 29
S314............................ 8W-47-7, 39
S315.............................. 8W-15-13
S316.............................. 8W-10-53
S317.............................. 8W-10-40
S318.............................. 8W-30-36
S319............................... 8W-45-6
S321............................. 8W-18-3, 4
S322.............................. 8W-10-31
S323.............................. 8W-10-31
S324.............................. 8W-15-26
S325.............................. 8W-10-32
S326........................... 8W-10-45, 49
S329.............................. 8W-15-24
S330.............................. 8W-39-13
S331.............................. 8W-15-24
S332............................... 8W-42-8
S333............................... 8W-42-8
S334.............................. 8W-45-11
S335............................... 8W-45-9
S336............................... 8W-44-3
S337.............................. 8W-15-22
S338.............................. 8W-45-13
S339.............................. 8W-15-22
S342.............................. 8W-15-21
S343.............................. 8W-15-15
S344............................... 8W-39-8
S345.............................. 8W-15-20
S346........................... 8W-10-33, 34
S347.............................. 8W-15-20
S348.............................. 8W-15-14
S349............................... 8W-39-8
S350.............................. 8W-15-14
S352.............................. 8W-15-24
S354.............................. 8W-10-29
S355.............................. 8W-15-23
S356.............................. 8W-10-52
S359.............................. 8W-10-53
S361.............................. 8W-15-17
S362.............................. 8W-10-50
S363............................... 8W-15-9
S364.............................. 8W-15-21
S365.............................. 8W-15-16
S366.............................. 8W-10-51
S367.............................. 8W-10-67
S368.............................. 8W-10-49
S370.............................. 8W-10-47
S371.............................. 8W-15-15
S372.............................. 8W-15-18

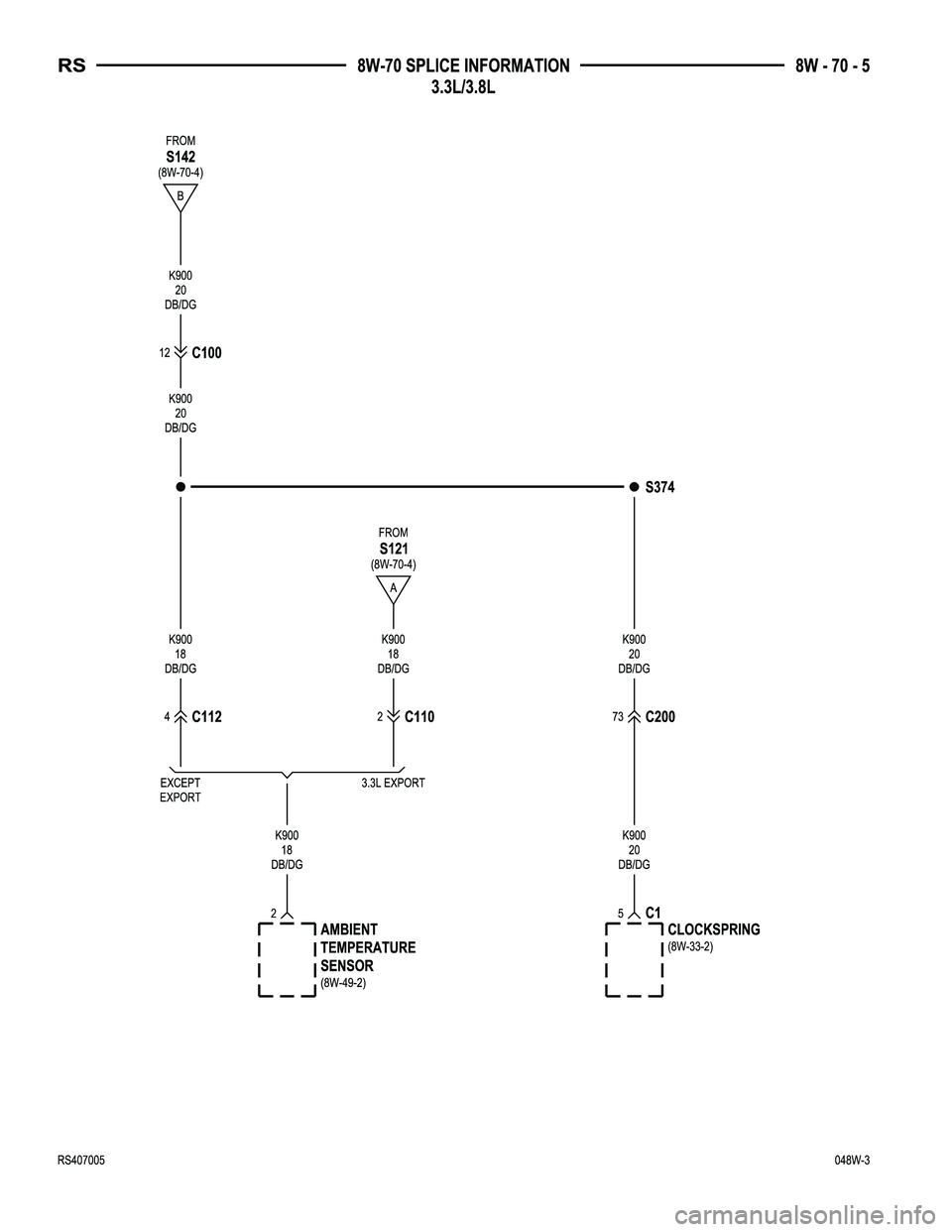

S374............................. 8W-70-3, 5
RS8W-70 SPLICE INFORMATION8W-70-1

Page 1091 of 2585

Page 1092 of 2585

Page 1093 of 2585

Page 1094 of 2585

Page 1095 of 2585

Page 1096 of 2585

DODGE TOWN AND COUNTRY 2004 Service Manual 8W-80 CONNECTOR PIN-OUTS
Component Page
A/C Compressor Clutch............... 8W-80-6
A/C Pressure Sensor.................. 8W-80-6
A/C-Heater Control C1 (MTC).......... 8W-80-6
A/C-Heater Control C2 (

8W-80 CONNECTOR PIN-OUTS
Component Page
A/C Compressor Clutch............... 8W-80-6
A/C Pressure Sensor.................. 8W-80-6
A/C-Heater Control C1 (MTC).......... 8W-80-6
A/C-Heater Control C2 (MTC).......... 8W-80-7
Accelerator Pedal Position Sensor (Diesel) . 8W-80-7
Adjustable Pedals Module (Except Export) . 8W-80-7
Adjustable Pedals Motor (Except Export) . . 8W-80-8
Adjustable Pedals Relay (Except Export/Except
Memory)......................... 8W-80-8
Adjustable Pedals Sensor (Except Export) . 8W-80-8
Adjustable Pedals Switch (Except Export) . 8W-80-9
Airbag Control Module (ORC) (Base)..... 8W-80-9
Airbag Control Module C1 (ORC)
(Premium)...................... 8W-80-10
Airbag Control Module C2 (ORC)
(Premium)....................... 8W-80-11
Ambient Temperature Sensor.......... 8W-80-11
ATC Remote Sensor (ATC)............ 8W-80-12
Auto Temp Control C1............... 8W-80-12
Auto Temp Control C2............... 8W-80-12
Auto Temp Control C3............... 8W-80-13
Automatic Day/Night Mirror (Luxury) . . . 8W-80-13
Back-Up Lamp Switch (MTX).......... 8W-80-13
Battery Temperature Sensor........... 8W-80-13
Blower Motor Resistor C1 (MTC)....... 8W-80-14
Blower Motor Resistor C2 (MTC)....... 8W-80-14
Body Control Module C1.............. 8W-80-14
Body Control Module C2.............. 8W-80-15
Body Control Module C3.............. 8W-80-16
Body Control Module C4.............. 8W-80-17
Body Control Module C5.............. 8W-80-18
Boost Pressure Sensor (Diesel)......... 8W-80-18
Brake Fluid Level Switch............. 8W-80-19
Brake Lamp Switch................. 8W-80-19
Brake Transmission Shift Interlock
Solenoid........................ 8W-80-19
C100............................. 8W-80-19
C100............................. 8W-80-20
C101 (Diesel)...................... 8W-80-20
C101 (Diesel)...................... 8W-80-21
C101 (Gas)........................ 8W-80-21
C101 (Gas)........................ 8W-80-21
C102 (Gas)........................ 8W-80-21
C102 (Gas)........................ 8W-80-22
C103 (Diesel)...................... 8W-80-22
C103 (Diesel)...................... 8W-80-22
C104 (Except Export)................ 8W-80-23
C104 (Except Export)................ 8W-80-23
C106 (Export)...................... 8W-80-23
C106 (Export)...................... 8W-80-23
C107 (Export)...................... 8W-80-24
C107 (Export)...................... 8W-80-24Component Page
C110 (Gas Export).................. 8W-80-24
C110 (Gas Export).................. 8W-80-24
C111(EATX)....................... 8W-80-25
C111(EATX)....................... 8W-80-25
C112 (Except Export)................ 8W-80-25
C112 (Except Export)................ 8W-80-25
C200............................. 8W-80-26
C200............................. 8W-80-28
C201 (Base ORC)................... 8W-80-30
C201 (Base ORC)................... 8W-80-30
C202............................. 8W-80-30
C202............................. 8W-80-30
C204 (Premium).................... 8W-80-31
C204 (Premium).................... 8W-80-31
C300 (LHD)....................... 8W-80-31
C300 (LHD)....................... 8W-80-32
C300 (RHD)....................... 8W-80-32
C300 (RHD)....................... 8W-80-32
C301 (Except Premium).............. 8W-80-33
C301 (Except Premium).............. 8W-80-33
C301 (LHD Premium/Memory)......... 8W-80-33
C301 (LHD Premium/Memory)......... 8W-80-33
C301 (RHD/LHD Premium Except
Memory)........................ 8W-80-34
C301 (RHD/LHD Premium Except
Memory)........................ 8W-80-34
C302 (Except RHD Memory).......... 8W-80-34
C302 (Except RHD Memory).......... 8W-80-34
C302 (RHD Memory)................ 8W-80-35
C302 (RHD Memory)................ 8W-80-35
C303 (LHD)....................... 8W-80-35
C303 (LHD)....................... 8W-80-36
C303 (RHD)....................... 8W-80-36
C303 (RHD)....................... 8W-80-36
C304 (LHD Premium ORC)........... 8W-80-37
C304 (LHD Premium ORC)........... 8W-80-37
C304 (Base ORC)................... 8W-80-37
C304 (Base ORC)................... 8W-80-37
C305............................. 8W-80-37
C305............................. 8W-80-38
C306 (RHD Premium ORC)........... 8W-80-38
C306 (RHD Premium ORC)........... 8W-80-38
C306 (Base ORC)................... 8W-80-38
C306 (Base ORC)................... 8W-80-39
C307 (Base ORC)................... 8W-80-39
C307 (Base ORC)................... 8W-80-39
C307 (Premium ORC)................ 8W-80-40
C307 (Premium ORC)................ 8W-80-40
C308............................. 8W-80-41
C308............................. 8W-80-41
C309............................. 8W-80-41
C309............................. 8W-80-42
RS8W-80 CONNECTOR PIN-OUTS8W-80-1
